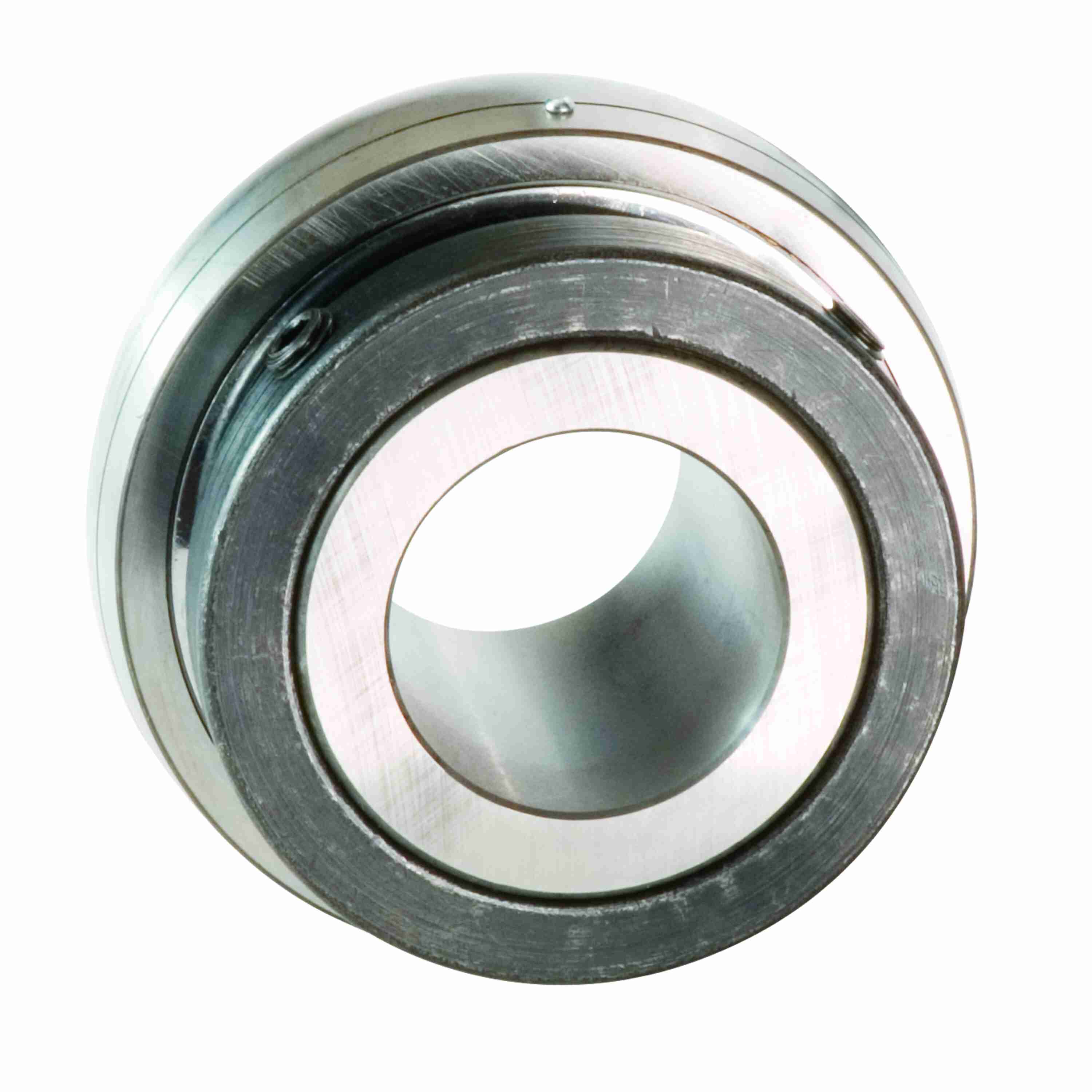

Link-Belt UG314L Unmounted Replacement Bearings Ball Bearings - UG314L
Part #:10418925
Catalog #:UG314L
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 0.8750 in |
Technical Specifications
| Lubrication Type: | EXXON RONEX MP STD | Co Static Load Rating: | 2450 lb |
| Outer Ring Width (in): | 0.8661 in | Setscrew Torque (in-lbs): | 87-92 in/lbs |
| Maximum Temperature (F): | 225 °F | Vibration Frequency Roller Spin: | 0.0305 cps |
| Available Seal Type: | E3 Triple Lip Seal; N Lip Seal; H Labyrinth Seal | Vibration Frequency Inner Ring Defect: | 0.0732 cps |
| Bearing Type: | Heavy Duty | Vibration Frequency Outer Ring Defect: | 0.0435 cps |
| Maximum Speed (RPM): | 9350 rpm | Maximum Temperature (C): | 107 °C |
| Retainer Type: | NYLON | Inner Ring Hub Diameter (in): | 1.451 in |
| Locking Type: | Set Screw | Short Hub Length (in): | 11/16 in |
| Locking Collar Width (in): | 13/32 in | Service Instructions: | BR3-007 LB 200 BALL-300 BALL |
| Locking Device Kit: | U3165S | C Dynamic Load Rating: | 4810 lb |
| Mounted Clearance: | C3 STANDARD | Bore Length (in): | 1 43/64 in |
| Size Code: | 316 | Type of Seal: | Clearance Seal |
| Product: | UG300 | Locking Collar Outside Diameter (in): | 2 in |
| Primary Seal: | CLEARANCE SEAL WITH FLINGERS | Outside Diameter (in): | 2.4409 in |
| Bearing Brand: | LINK-BELT 300 SERIES HD BALL | Vibration Frequency Fundamental Train: | 0.0062 cps |
General Specifications
| UPC: | 662327882778 | Weight: | 1.00 LB |
| Packaged Length: | 3.00 IN | Packaged Width: | 3.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 84833080 |
