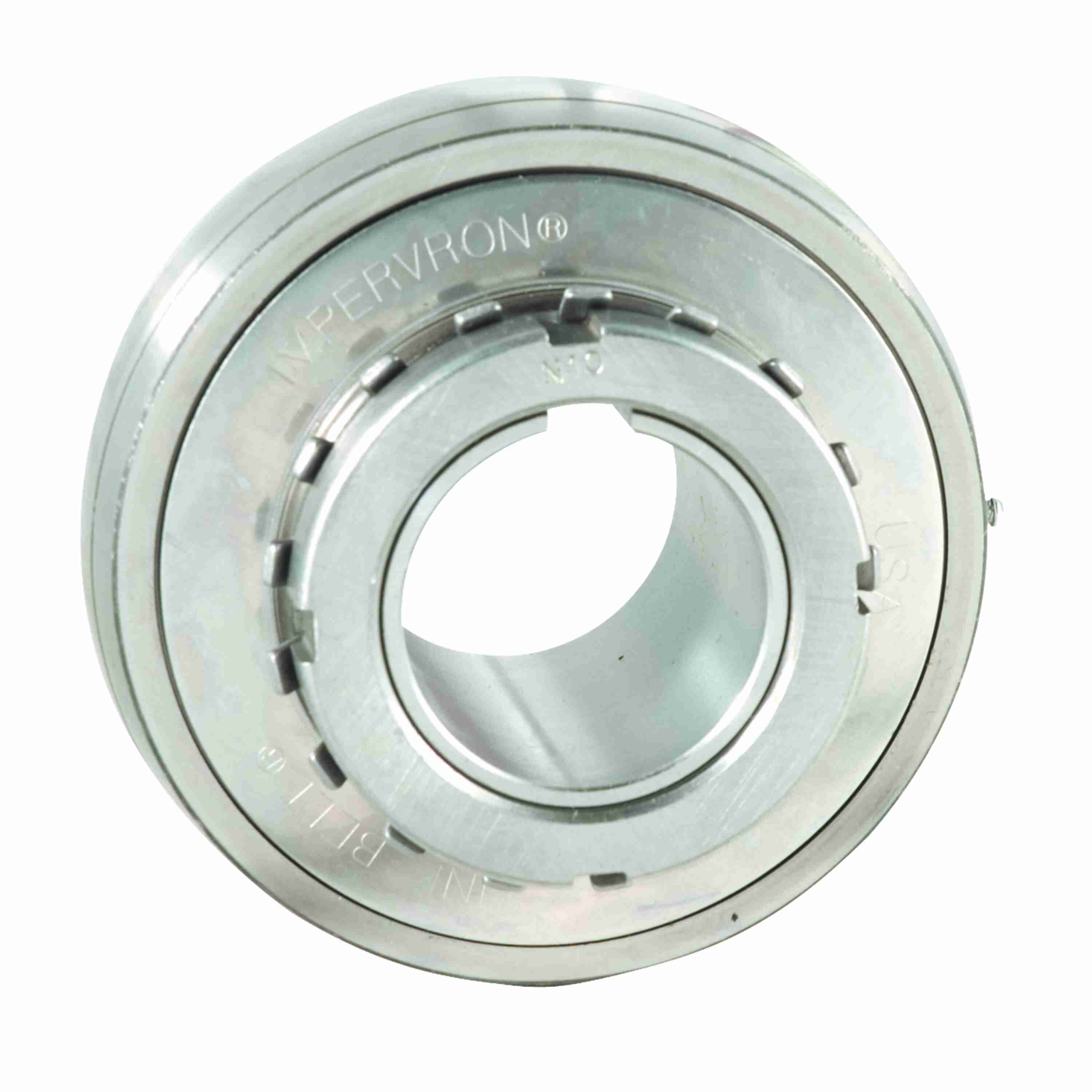

Link-Belt UG3K35L Unmounted Replacement Bearings Ball Bearings - UG3K35L
Part #:10409819
Catalog #:UG3K35L
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 2.1875 in |
Technical Specifications
| Outside Diameter (in): | 5.9055 in | Vibration Frequency Outer Ring Defect: | 0.0513 cps |
| Short Hub Length (in): | 1 3/16 in | Shaft Locking Collar Kit/Adapter Assembly: | H2313035 |
| Vibration Frequency Inner Ring Defect: | 0.0820 cps | Primary Seal: | CLEARANCE SEAL WITH FLINGERS |
| Retainer Type: | NYLON | Maximum Temperature (F): | 225 °F |
| Locking Type: | Set Screw | Outer Ring Width (in): | 1.6142 in |
| Locking Device Kit: | H2313035 | Lubrication Type: | EXXON RONEX MP STD |
| Mounted Clearance: | C3 STANDARD | Service Instructions: | BR3-007 LB 200 BALL-300 BALL |
| Product: | UG3K00 | Bore Length (in): | 3 in |
| Maximum Speed (RPM): | 3950 rpm | Available Seal Type: | E3 Triple Lip Seal; N Lip Seal; H Labyrinth Seal |
| Bearing Type: | Heavy Duty | Maximum Temperature (C): | 107 °C |
| Type of Seal: | Clearance Seal | Locking Collar Outside Diameter (in): | 3 3/8 in |
| Locking Collar Width (in): | 7/8 in | C Dynamic Load Rating: | 23420 lb |
| Vibration Frequency Roller Spin: | 0.0342 cps | Co Static Load Rating: | 15300 lb |
| Bearing Brand: | LINK-BELT 300 SERIES HD BALL | Vibration Frequency Fundamental Train: | 0.0063 cps |
| Inner Ring Hub Diameter (in): | 3.732 in | Size Code: | 344 |
General Specifications
| UPC: | 793699402667 | Weight: | 11.50 LB |
| Packaged Length: | 6.63 IN | Packaged Width: | 3.75 IN |
| Packaged Height: | 6.63 IN | HTC: | 8482105056 |
| Country of Origin: | Mexico |
