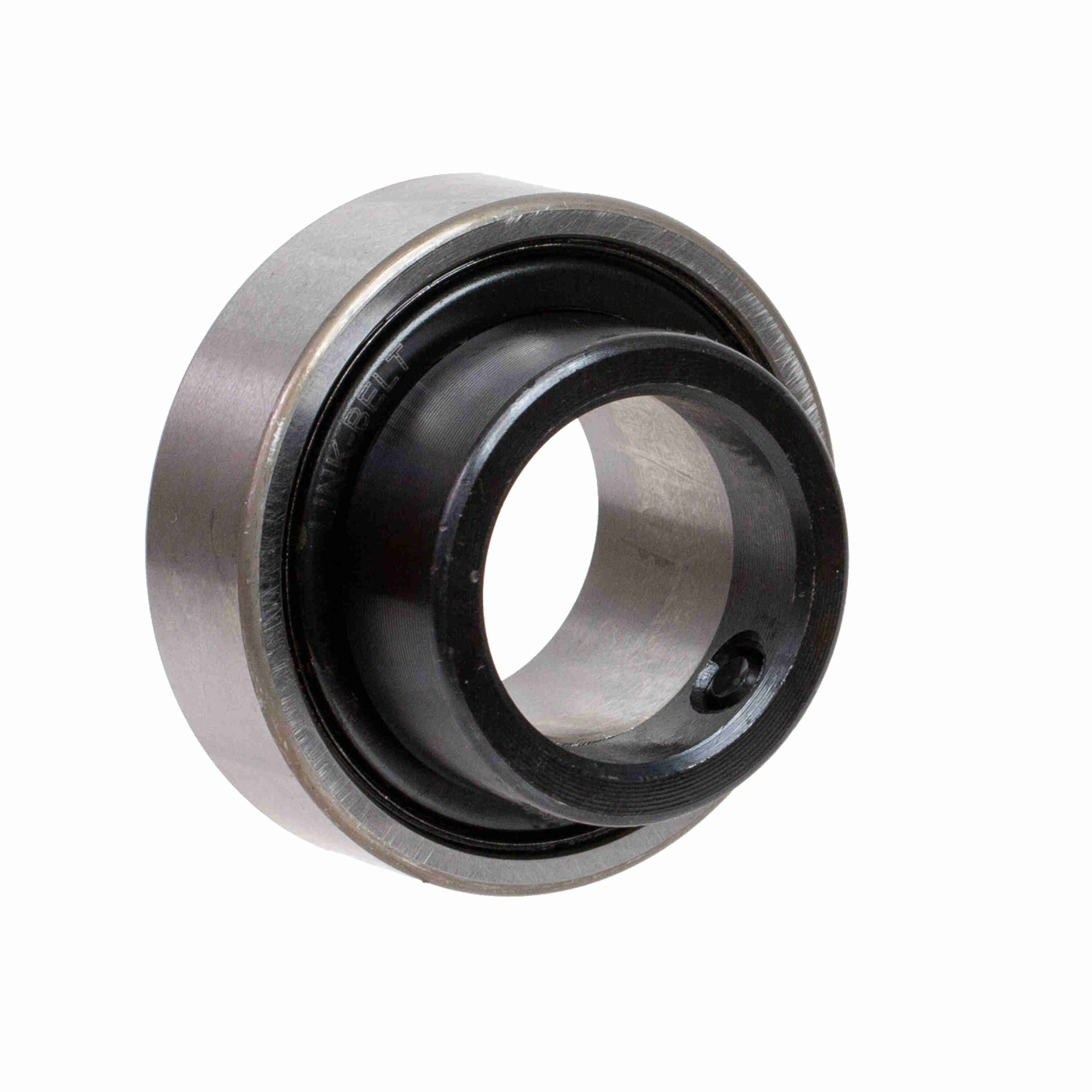

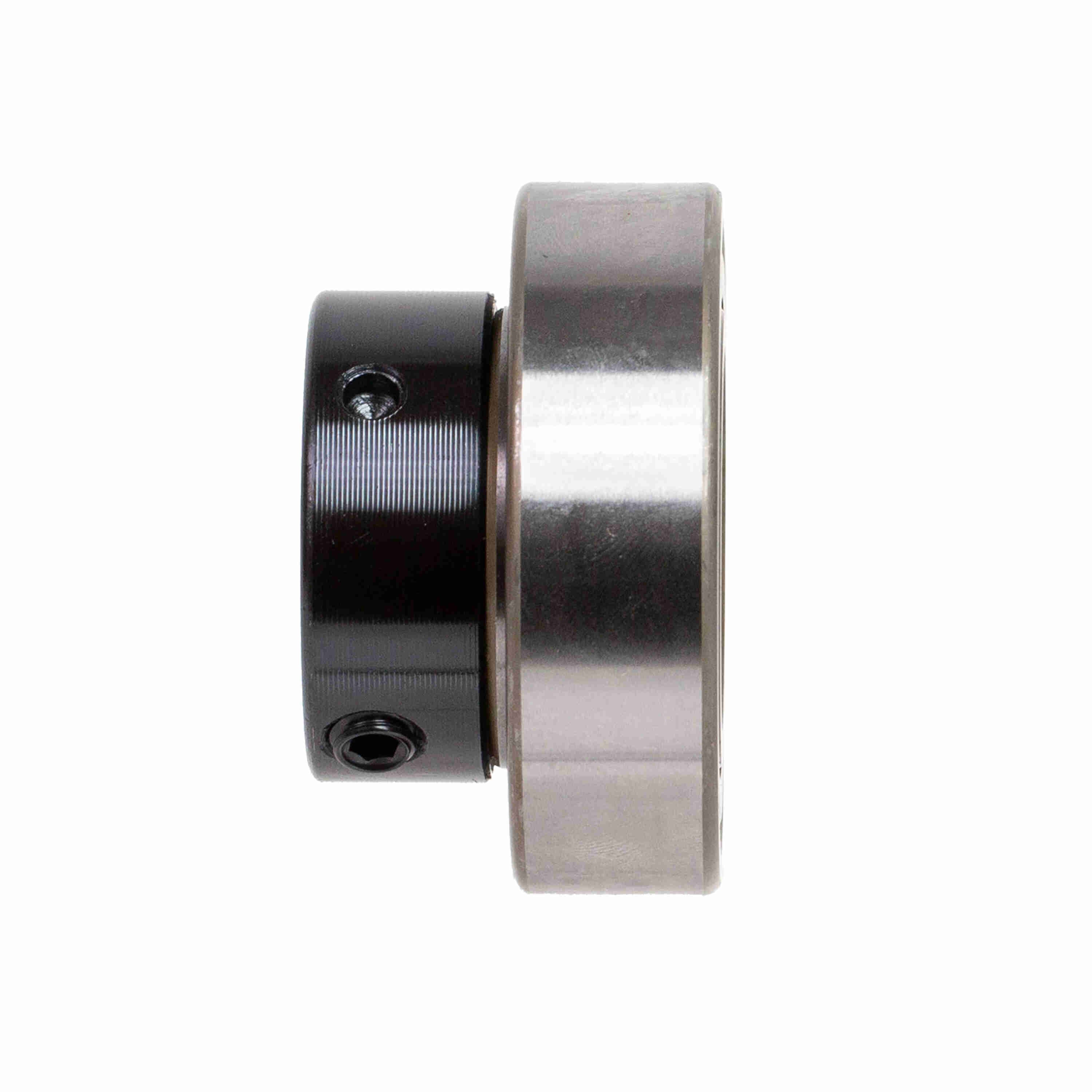

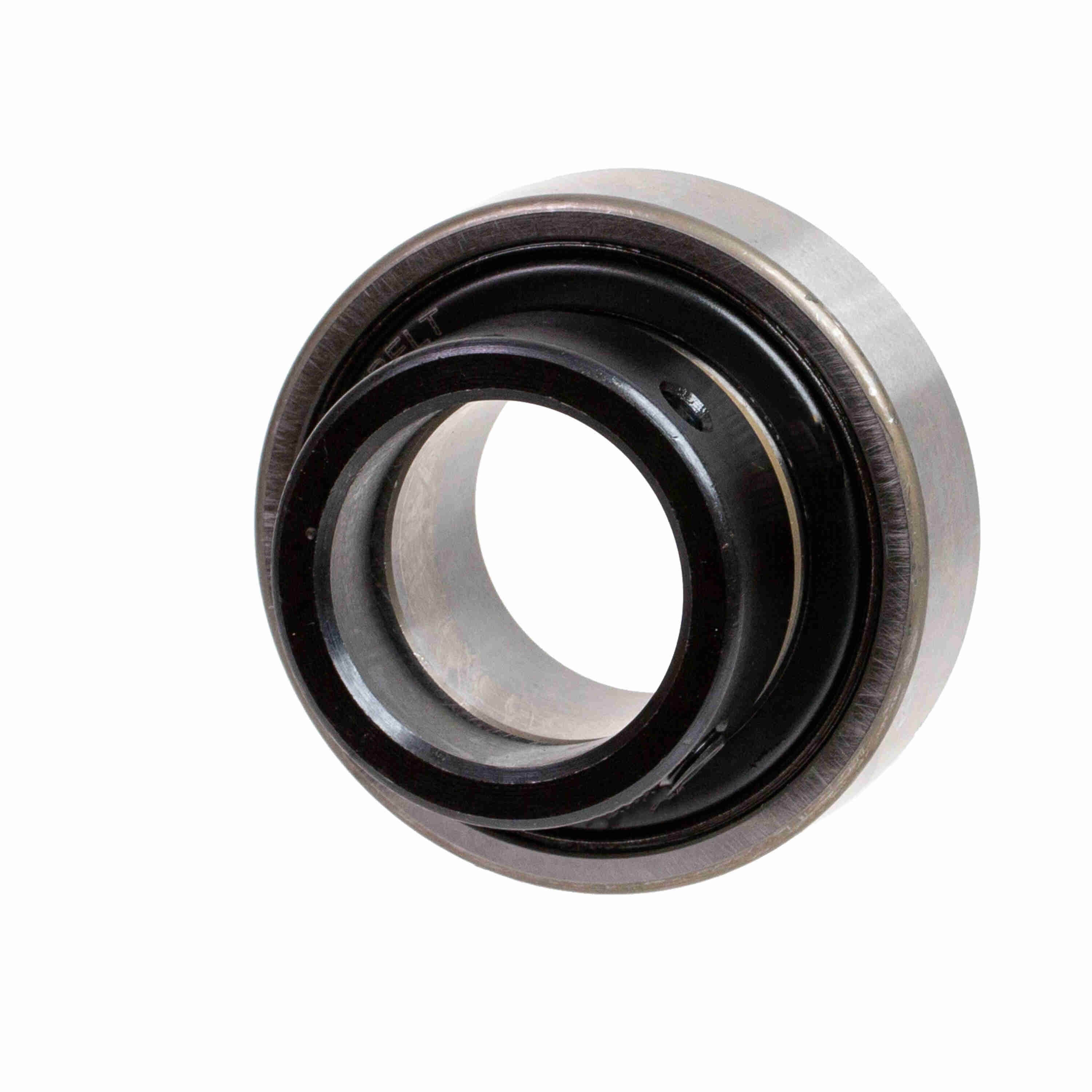

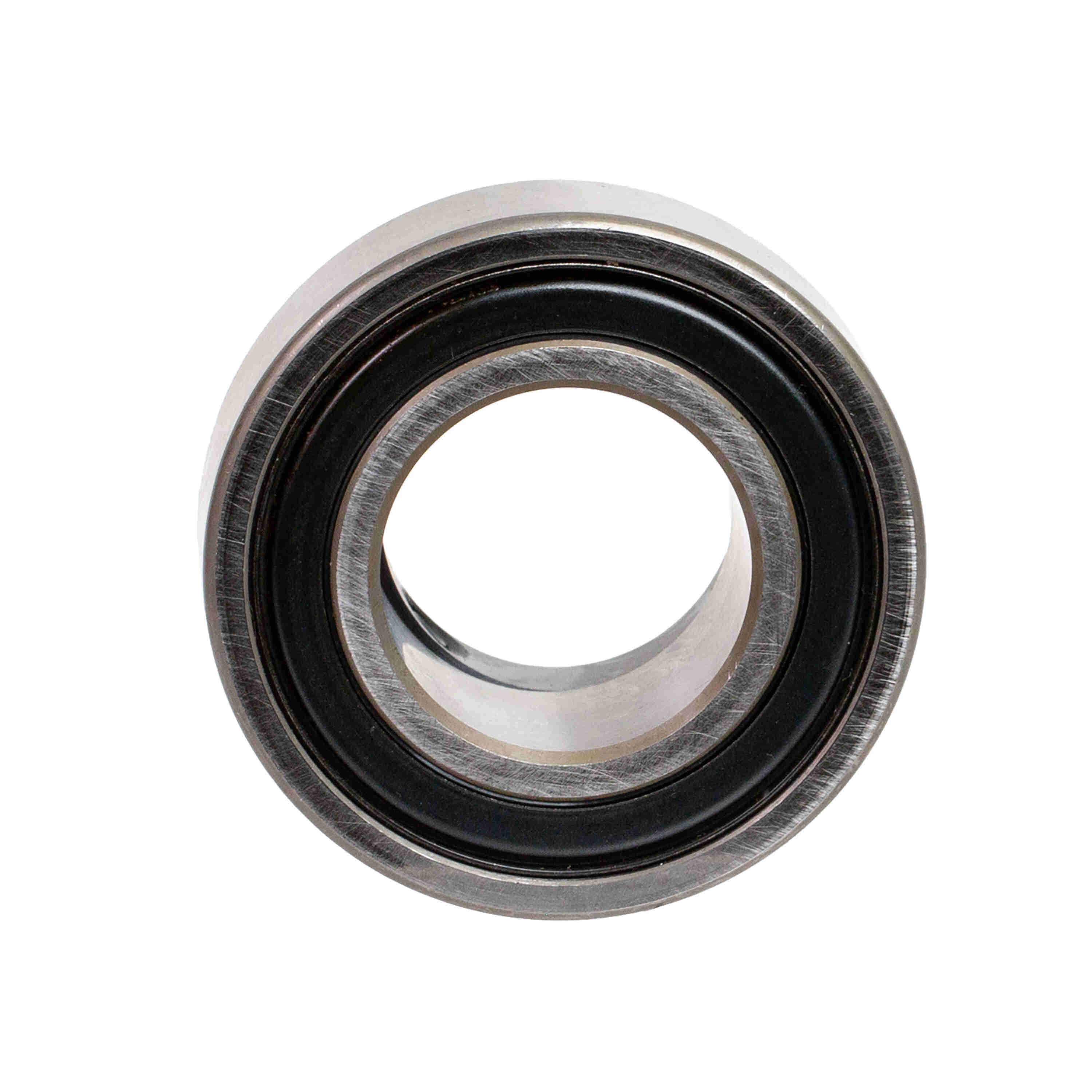

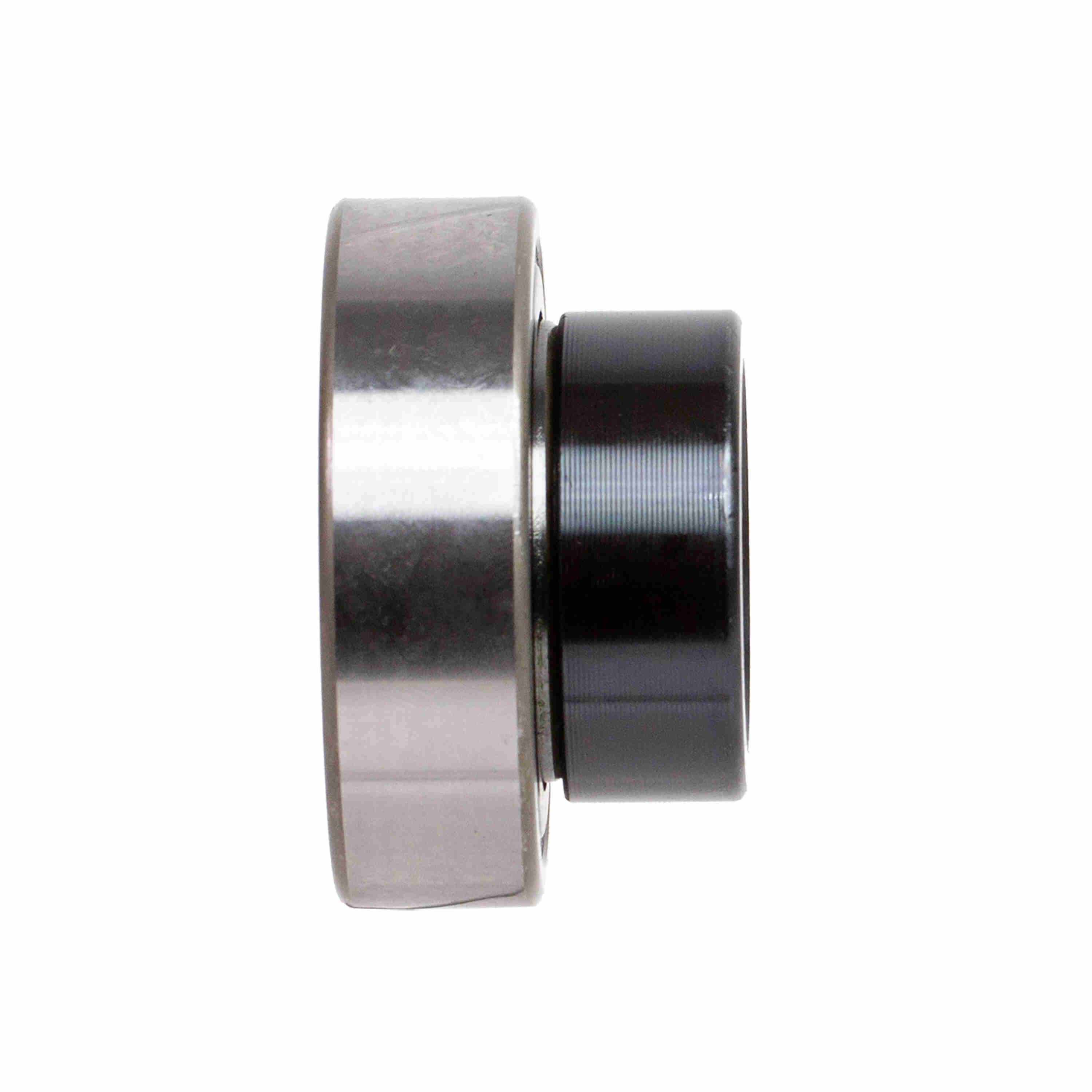

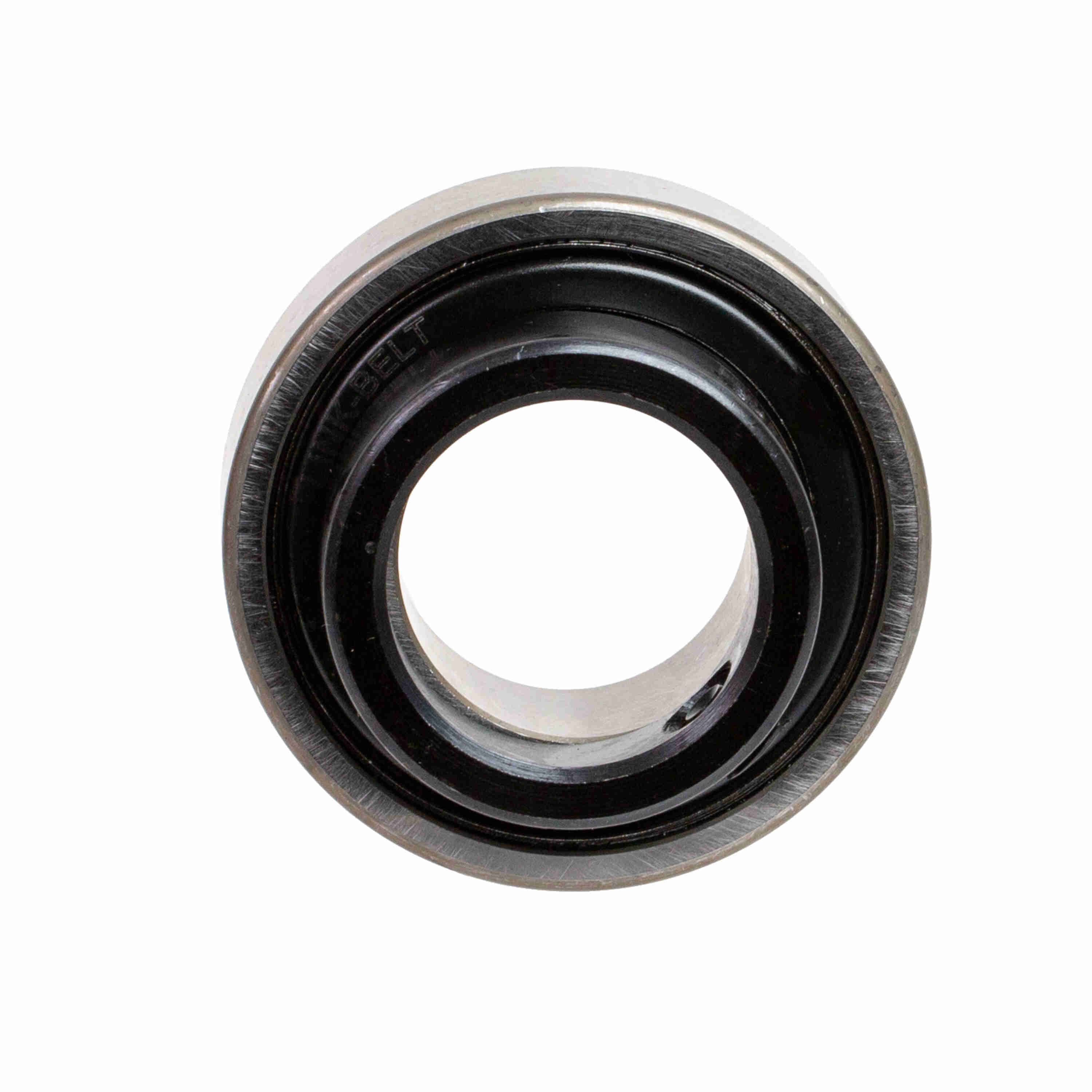

Link-Belt WB219JELC2 Unmounted Replacement Bearings Ball Bearings - WB219JELC2
Part #:10430708
Catalog #:WB219JELC2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 1.1875 in |
Technical Specifications
| Bearing Brand: | LINK-BELT 200 SERIES BALL | C Dynamic Load Rating: | 4390 lb |
| Retainer Type: | Steel | Maximum Temperature (F): | 225 °F |
| Bore Length (in): | 1 13/32 in | Available Seal Type: | E Lip Seal |
| Outside Diameter (in): | 2.4409 in | Vibration Frequency Roller Spin: | 0.0385 cps |
| Outer Ring Width (in): | 0.7087 in | Inner Ring Width (in): | 0.938 in |
| Bearing Type: | Intermediate Duty | Mounted Clearance: | C2 DECREASED |
| Locking Device Kit: | W2195S | Type of Seal: | E Lip Seal |
| Maximum Temperature (C): | 107 °C | Locking Type: | Eccentric |
| Service Instructions: | BR3-007 LB 200 BALL-300 BALL | Product: | WB200 |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Maximum Speed (RPM): | 5600 rpm |
| Primary Seal: | BUNA SINGLE LIP CONTACT SEAL | Lubrication Type: | EXXON RONEX MP STD |
| Co Static Load Rating: | 2530 lb | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Size Code: | 206 | Short Hub Length (in): | 0.3543 in |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | Outer Ring Fillet Radius (in): | 0.039 in |
| Locking Collar Width (in): | 5/8 in | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Locking Collar Outside Diameter (in): | 1 3/4 in | Inner Ring Hub Diameter (in): | 1.587 in |
General Specifications
| UPC: | 793699185133 | Weight: | 0.77 LB |
| Packaged Length: | 3.00 IN | Packaged Width: | 3.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 8482105052 |
| Country of Origin: | Mexico |
