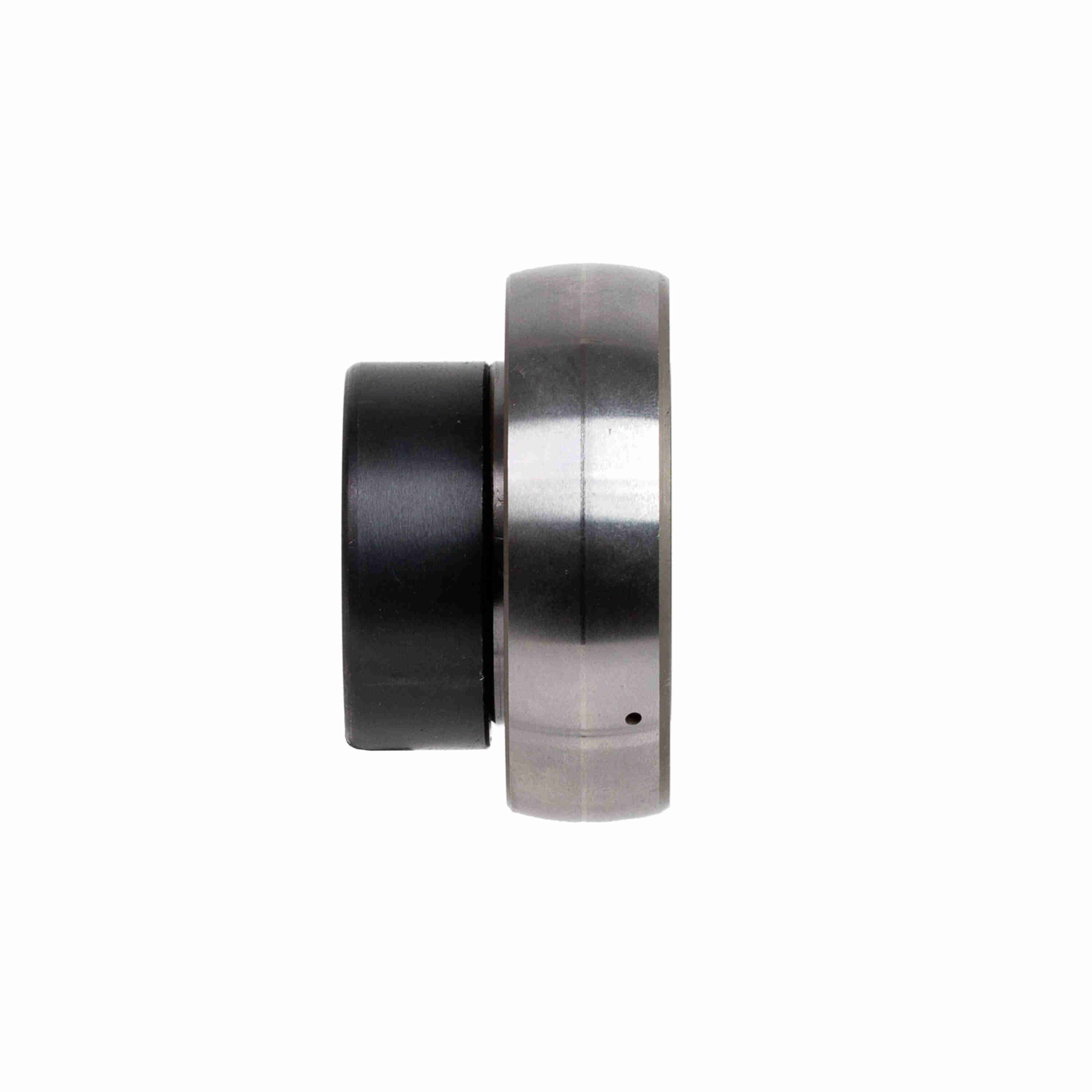

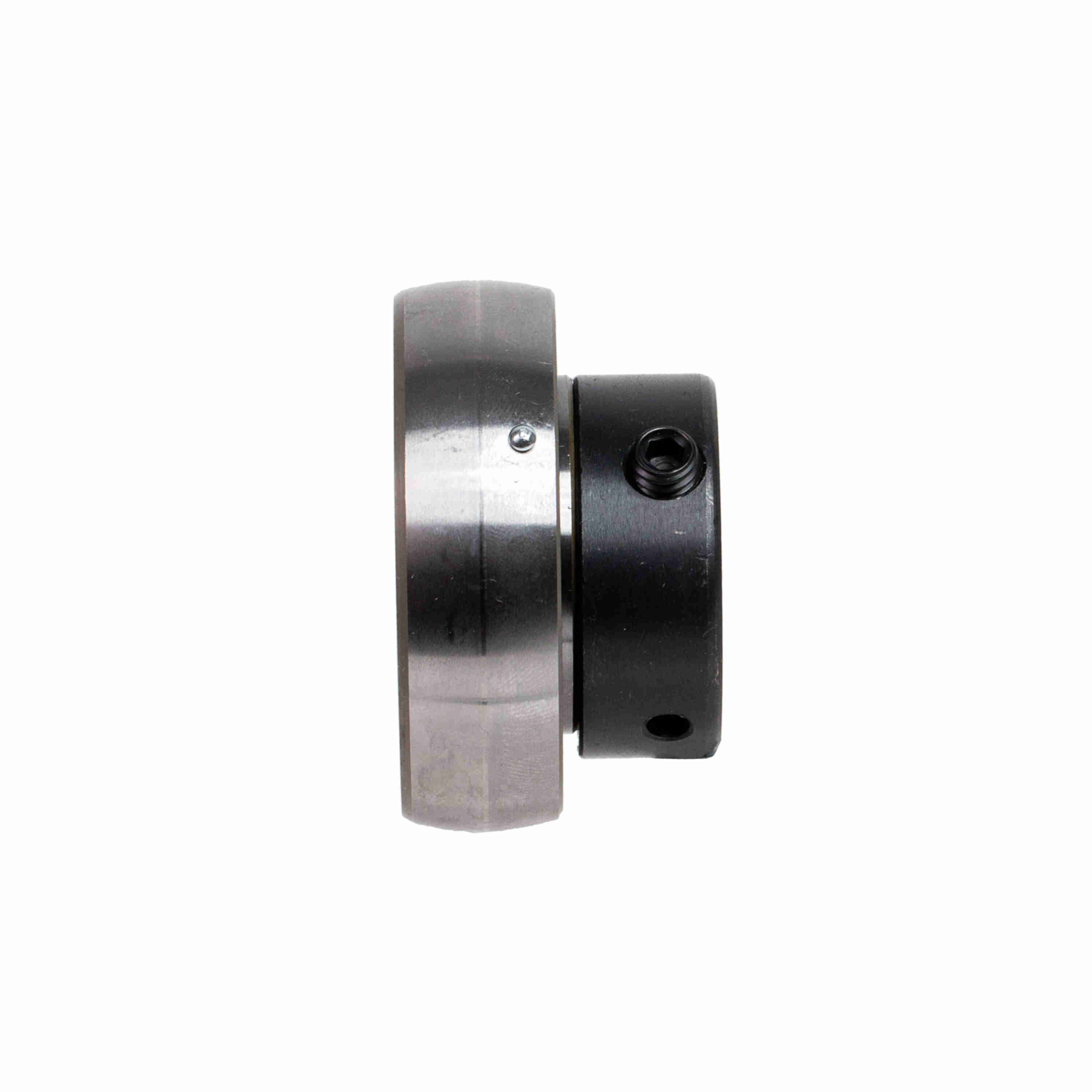

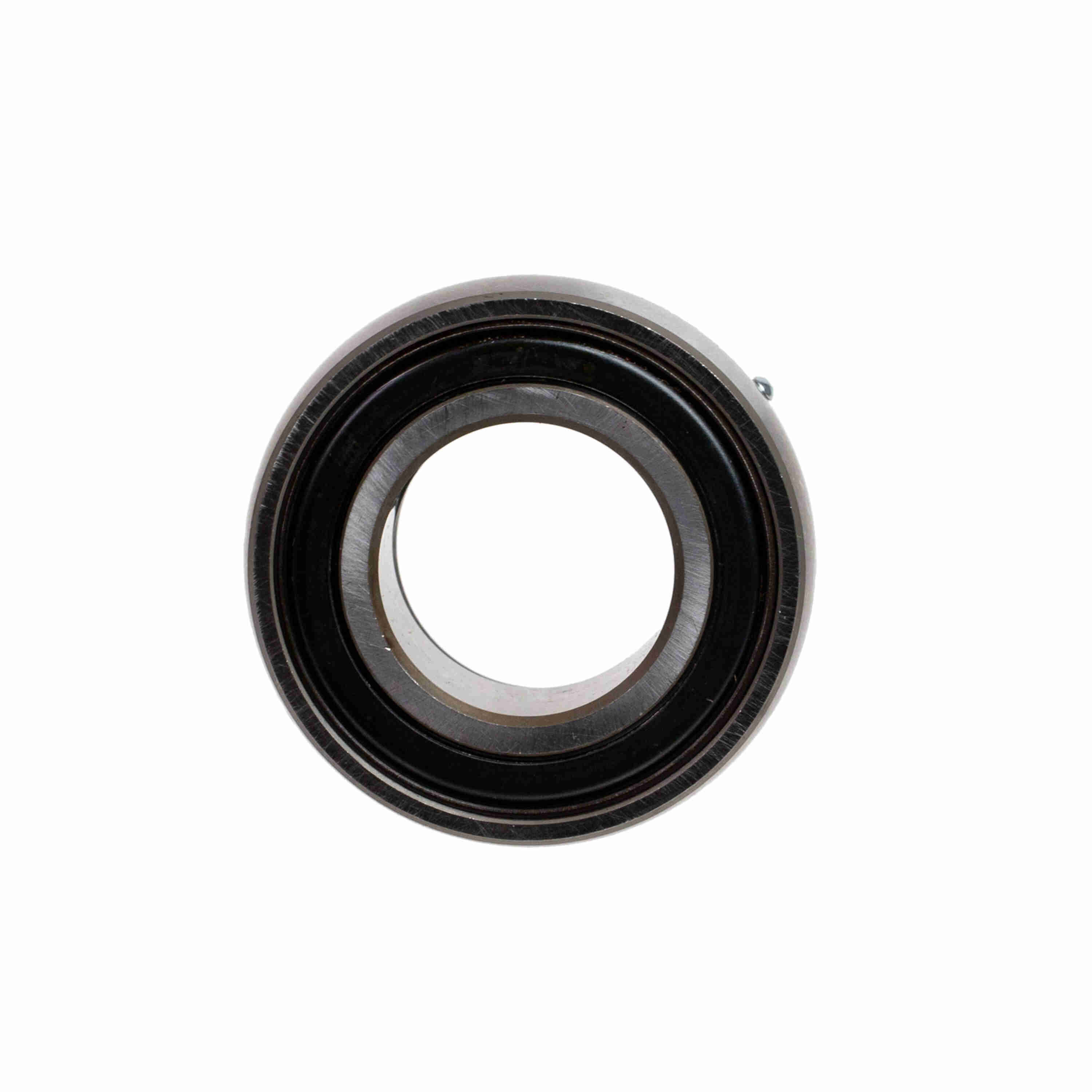

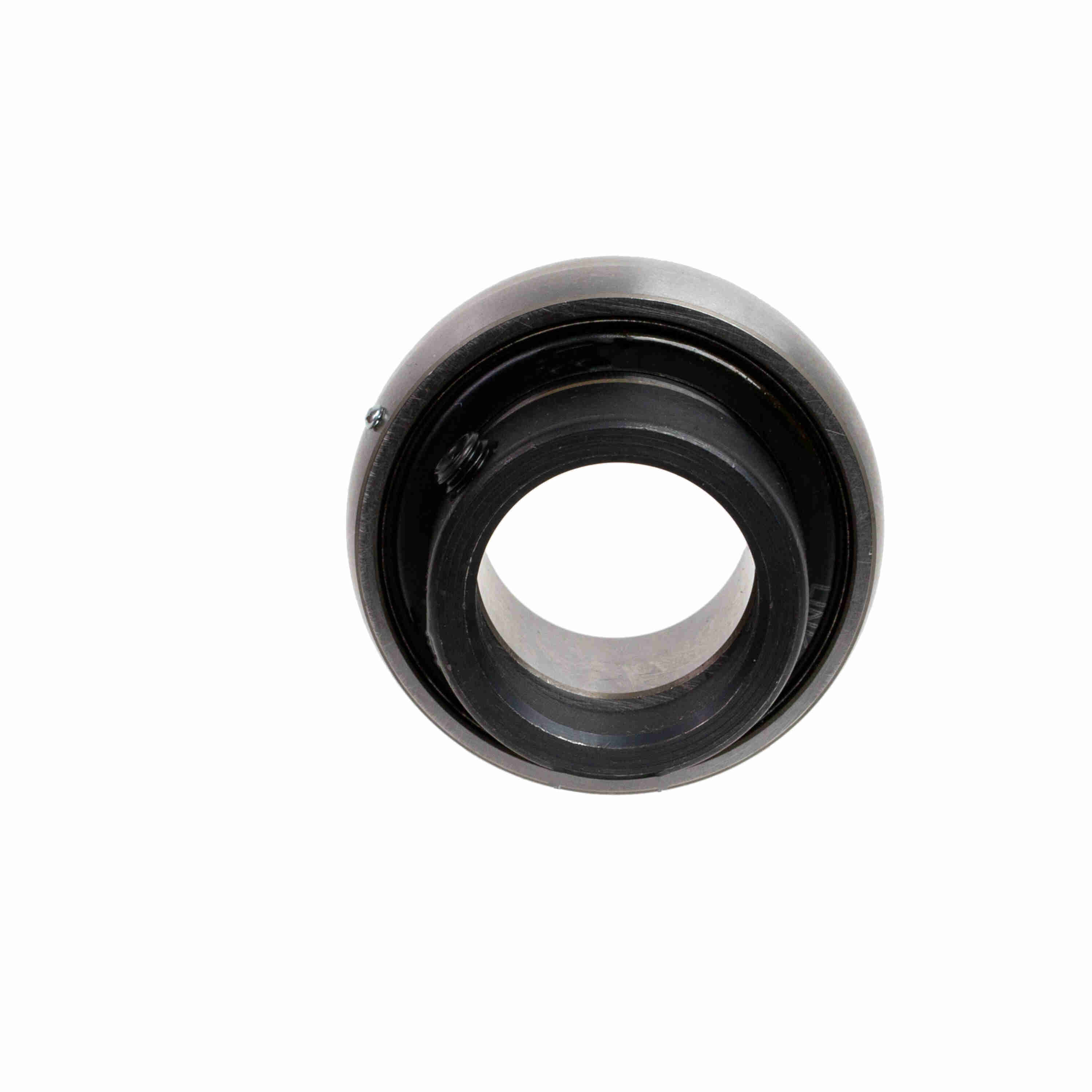

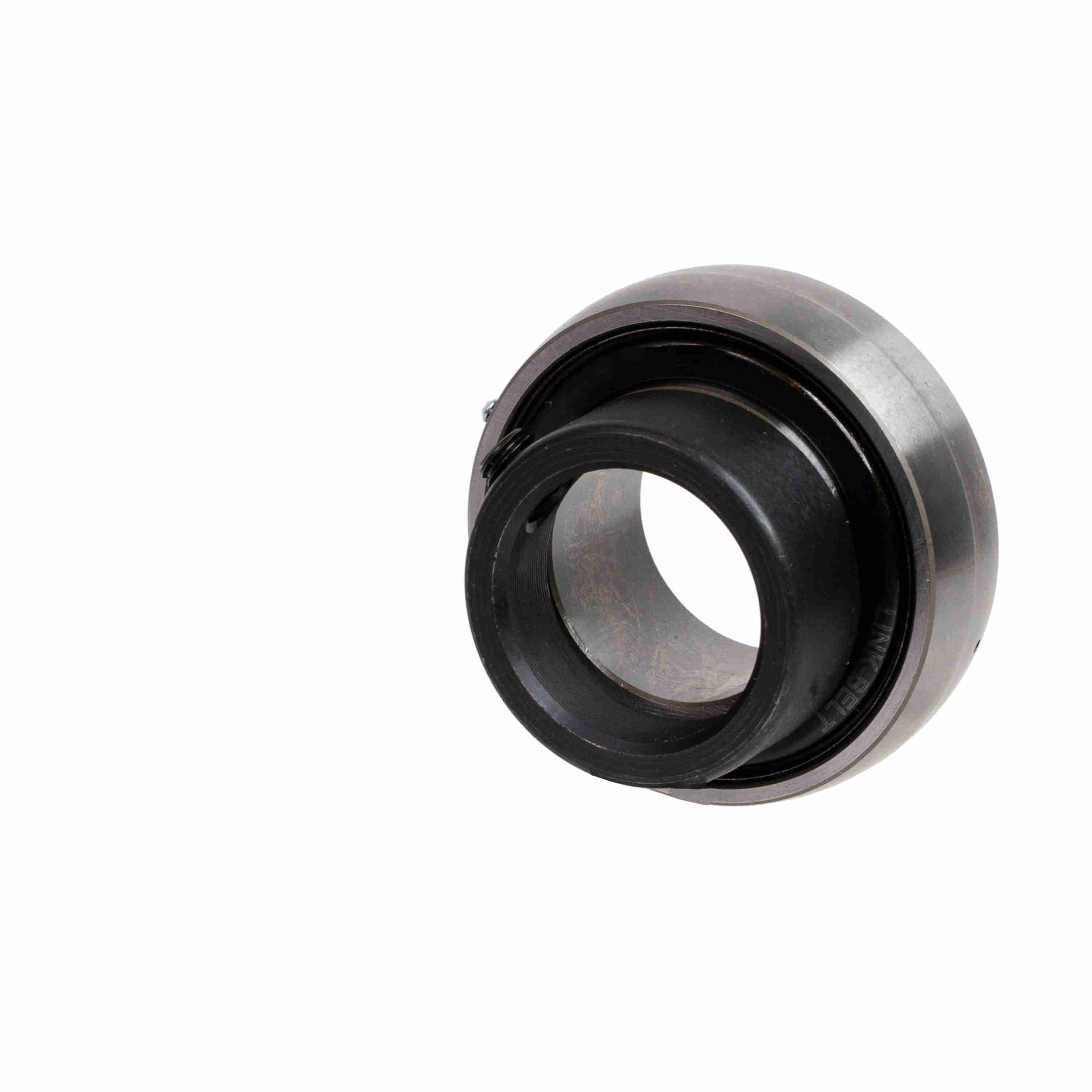

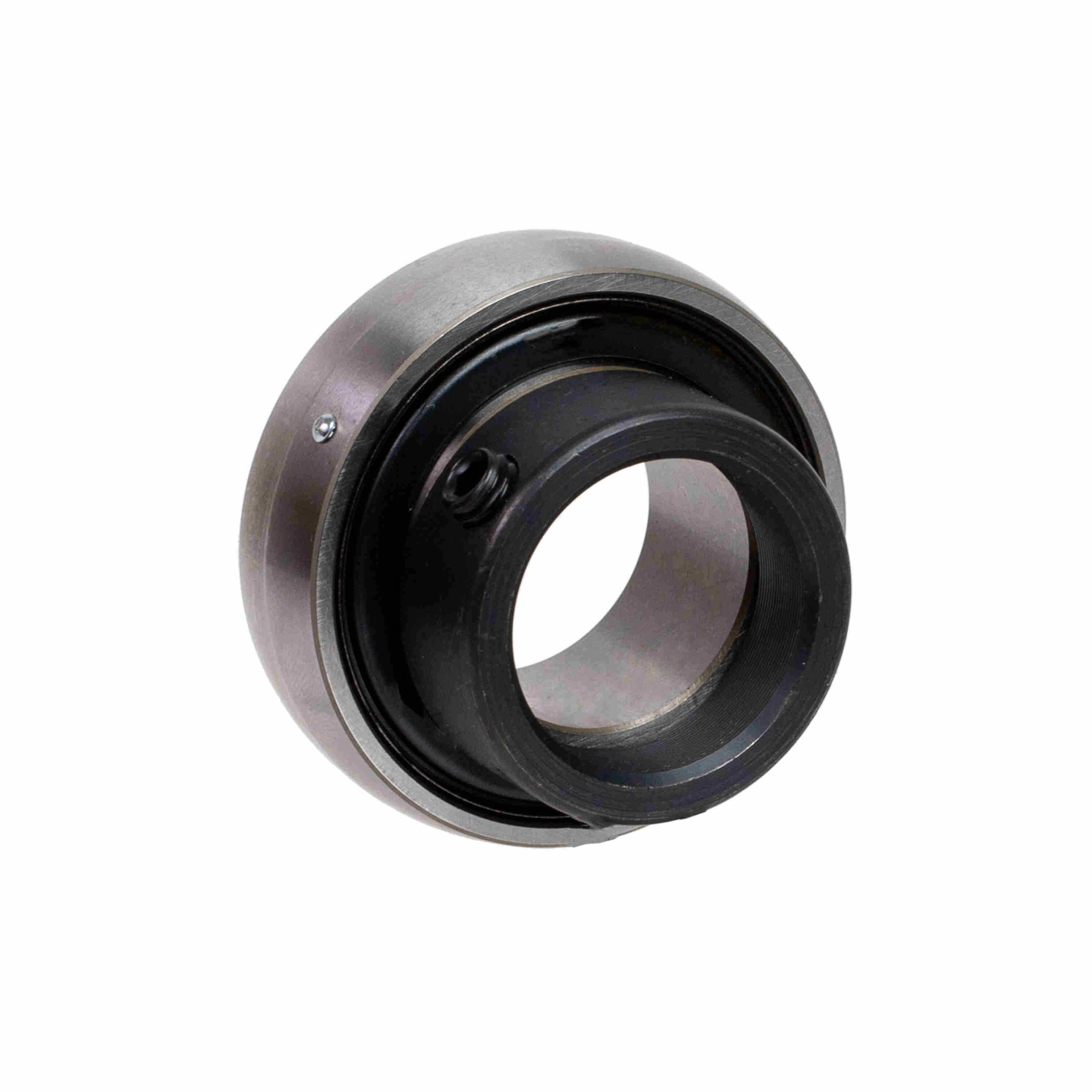

Link-Belt WG219EL Unmounted Replacement Bearings Ball Bearings - WG219EL
Part #:10430721
Catalog #:WG219EL
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 1.1875 in |
Technical Specifications
| Size Code: | 206 | Primary Seal: | BUNA SINGLE LIP CONTACT SEAL |
| Maximum Temperature (F): | 225 °F | Outer Ring Width (in): | 0.7087 in |
| Maximum Speed (RPM): | 5600 rpm | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Co Static Load Rating: | 2530 lb | Product: | WG200 |
| Mounted Clearance: | C3 STANDARD | Type of Seal: | E Lip Seal |
| Locking Type: | Eccentric | Outside Diameter (in): | 2.4409 in |
| Vibration Frequency Outer Ring Defect: | 0.0595 cps | Maximum Temperature (C): | 107 °C |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Locking Collar Width (in): | 5/8 in |
| Locking Device Kit: | W2195S | Bore Length (in): | 1 13/32 in |
| Inner Ring Width (in): | 0.938 in | Bearing Type: | Intermediate Duty |
| Inner Ring Hub Diameter (in): | 1.587 in | Lubrication Type: | EXXON RONEX MP STD |
| Vibration Frequency Inner Ring Defect: | 0.0905 cps | C Dynamic Load Rating: | 4390 lb |
| Distance from Bearing Centerline to Centerline of Lube Hole (in): | 0.202 in | Service Instructions: | BR3-007 LB 200 BALL-300 BALL |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Short Hub Length (in): | 0.3543 in |
| Locking Collar Outside Diameter (in): | 1 3/4 in | Available Seal Type: | E Lip Seal |
| Vibration Frequency Roller Spin: | 0.0385 cps | Retainer Type: | NYLON |
General Specifications
| UPC: | 662327151072 | Weight: | 0.70 LB |
| Packaged Length: | 3.00 IN | Packaged Width: | 3.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 8482105052 |
| Country of Origin: | Mexico |
