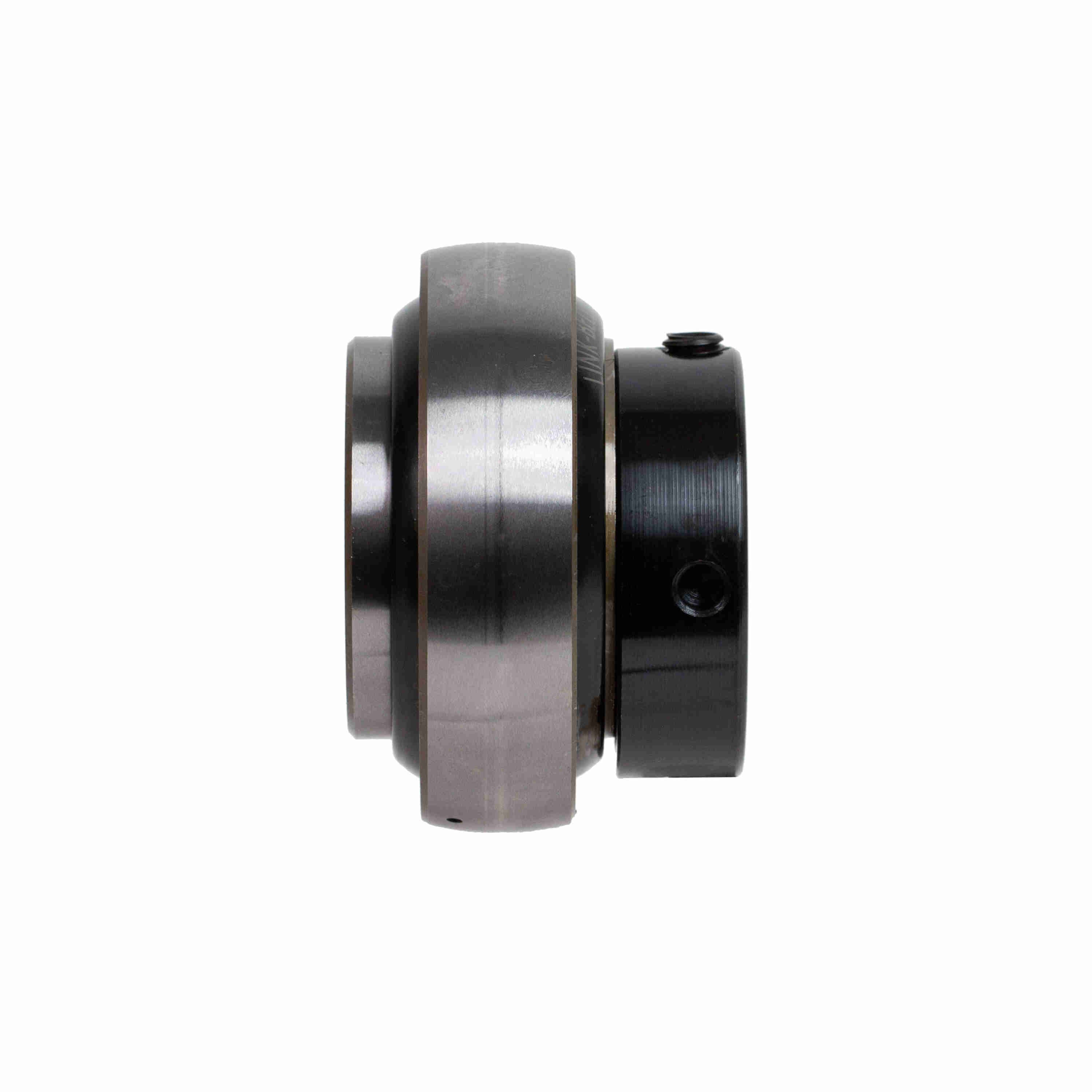

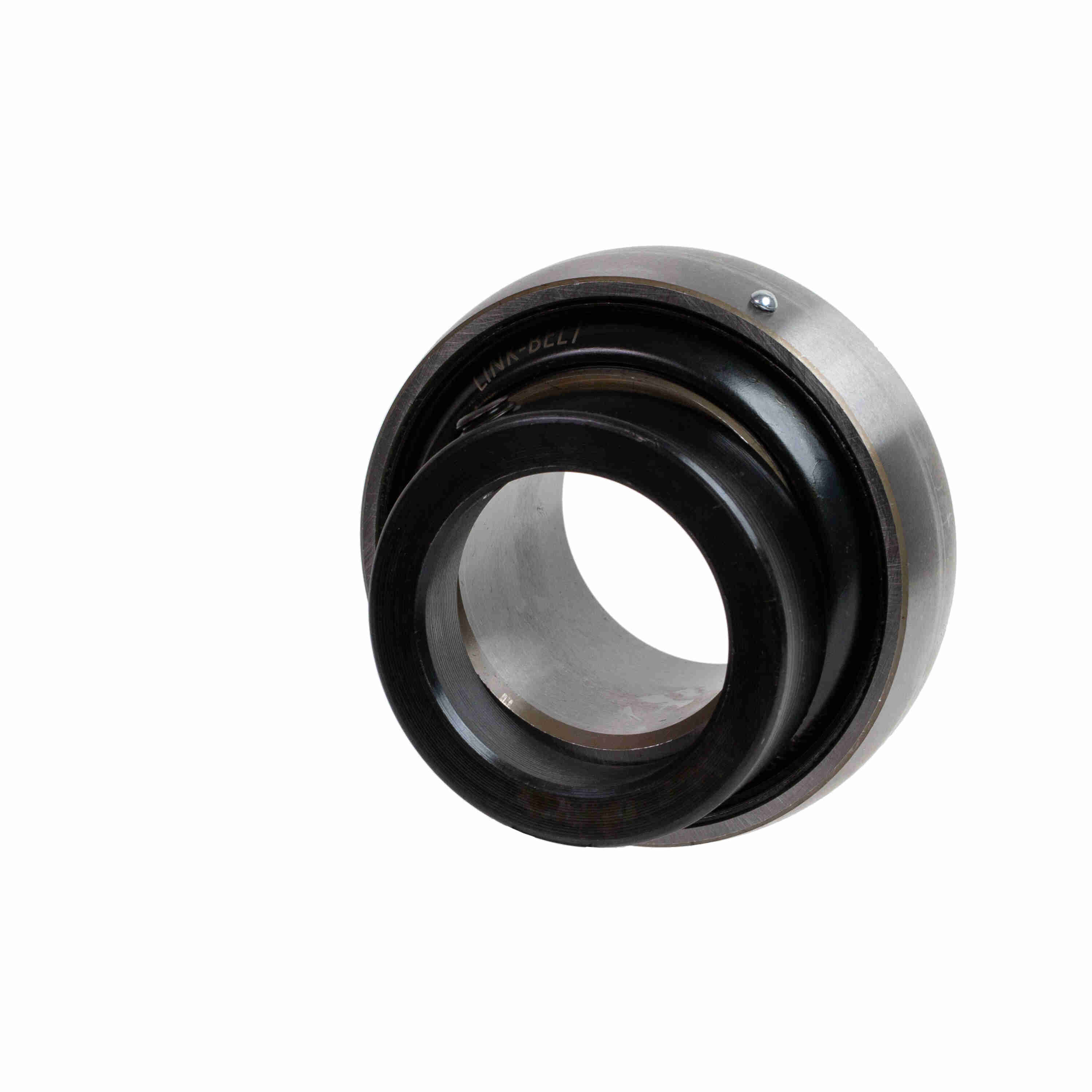

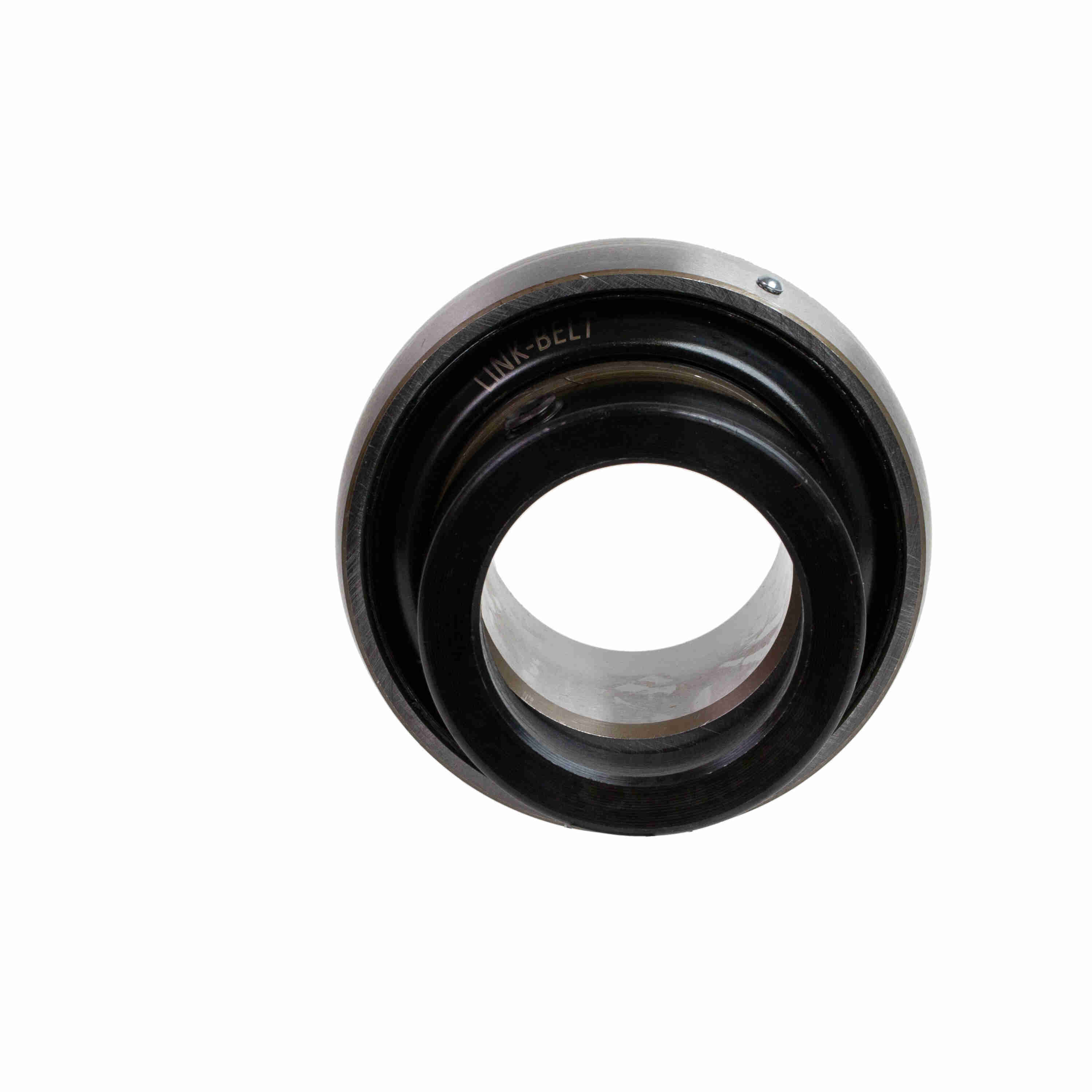

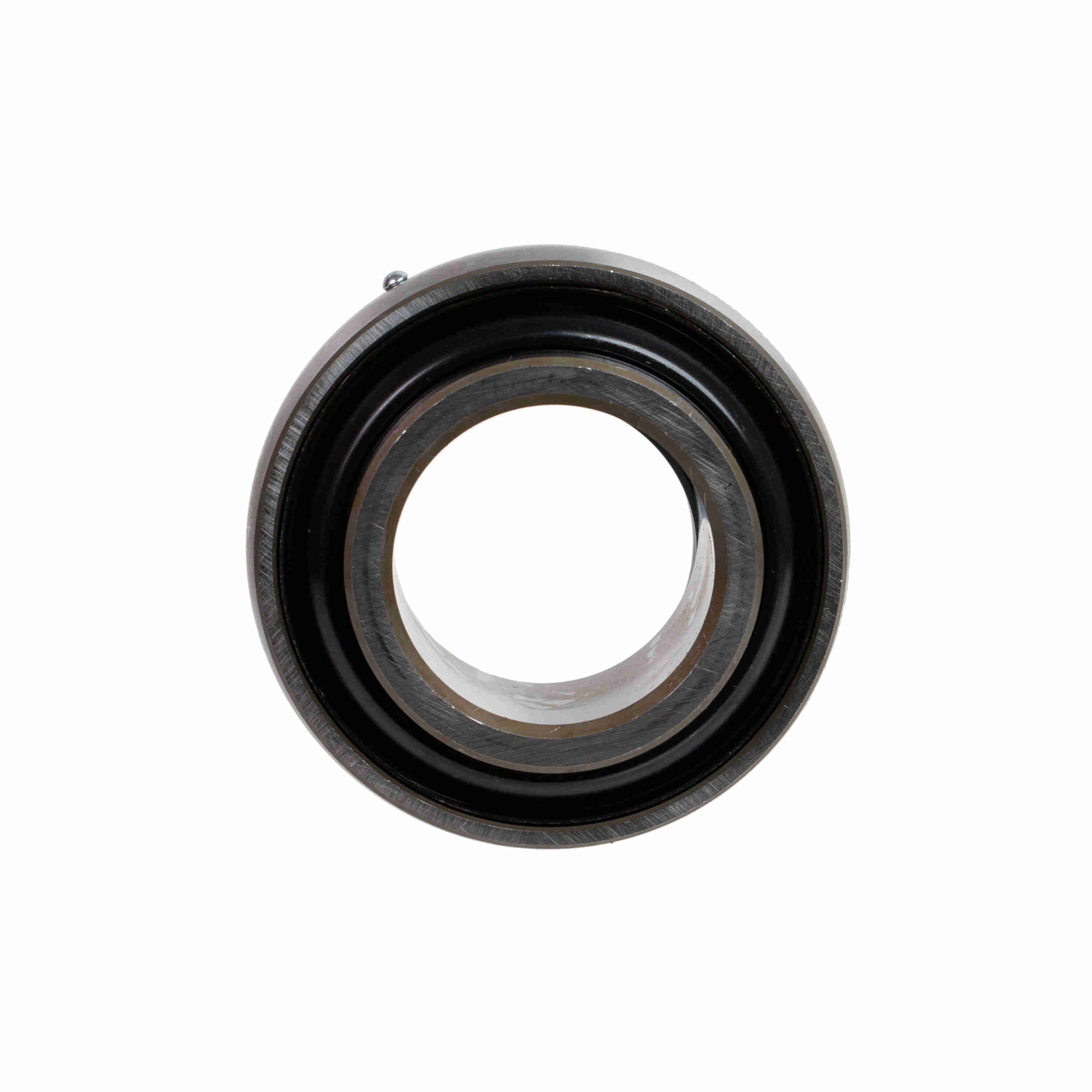

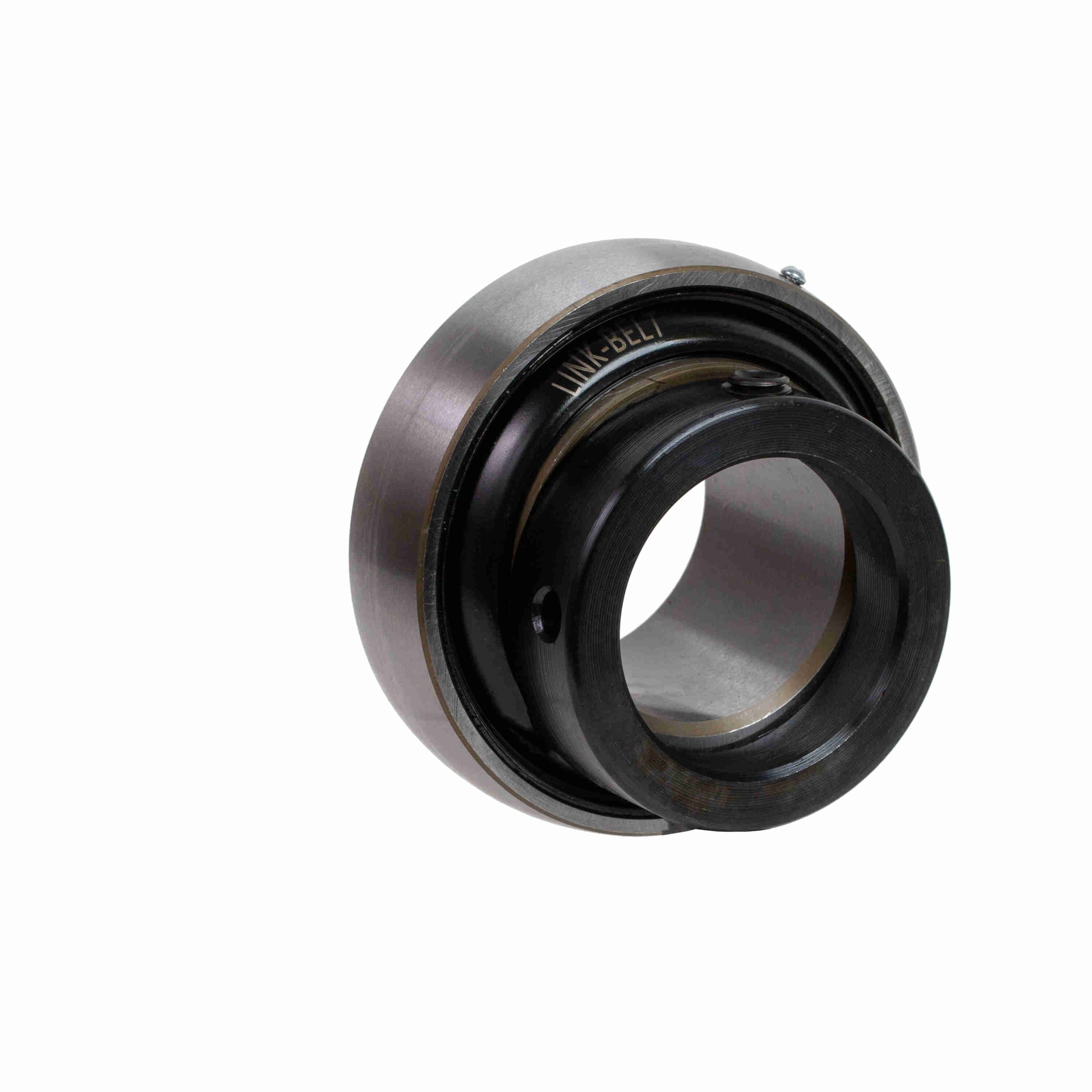

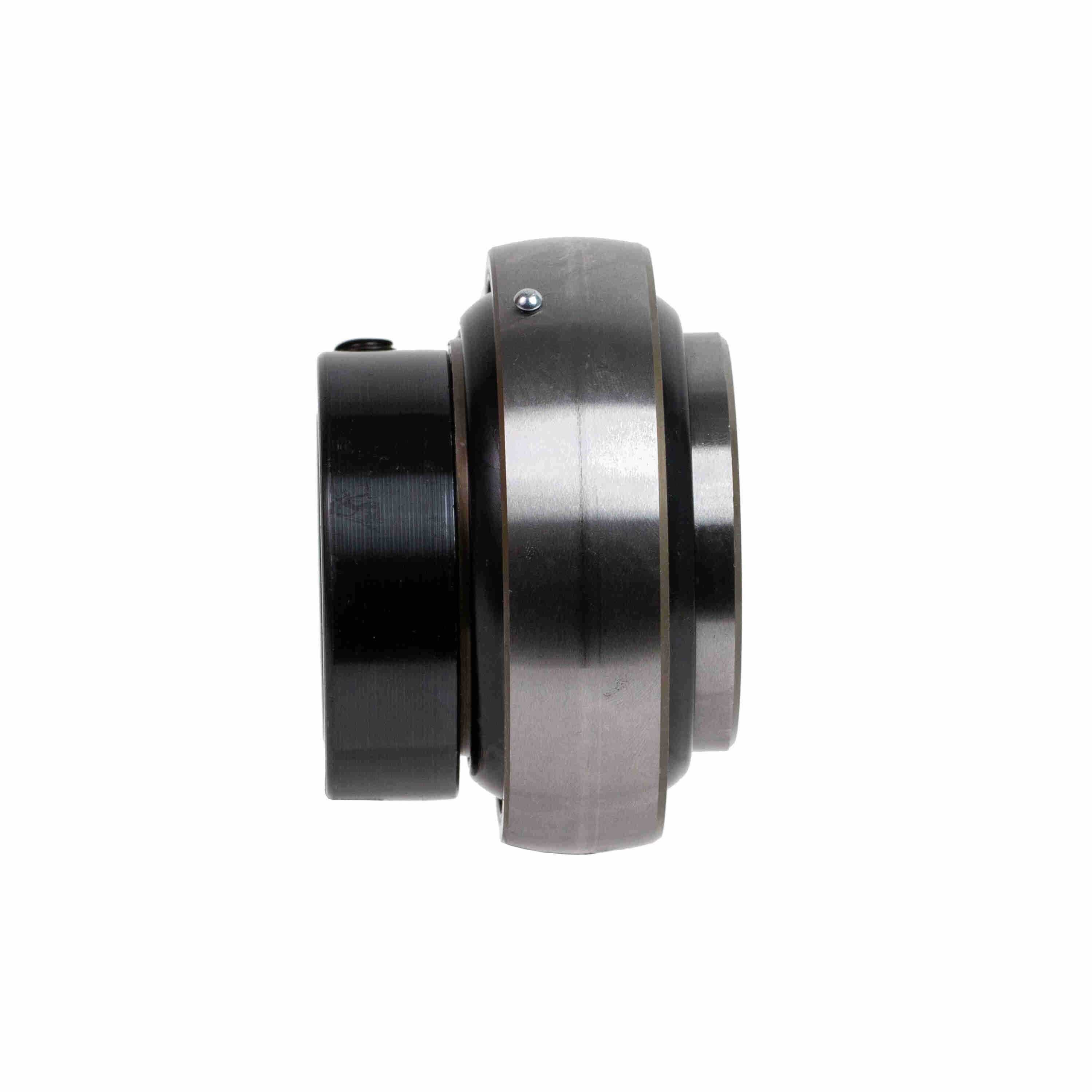

Link-Belt Y231E3LKM Unmounted Replacement Bearings Ball Bearings - Y231E3LKM
Part #:10461823
Catalog #:Y231E3LKM
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 1.9375 in |
Technical Specifications
| Vibration Frequency Inner Ring Defect: | 0.0985 cps | Mounted Clearance: | C3 STANDARD |
| Service Instructions: | BR3-007 LB 200 BALL-300 BALL | Lubrication Type: | EXXON RONEX MP STD |
| Product: | Y200 | Co Static Load Rating: | 5220 lb |
| Primary Seal: | BUNA TRIPLE LIP SEAL OLD STYLE | Maximum Speed (RPM): | 550 rpm |
| Locking Type: | Eccentric | Locking Device Kit: | W2315S |
| Size Code: | 210 | Vibration Frequency Roller Spin: | 0.0445 cps |
| Bearing Type: | Standard Duty | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Vibration Frequency Outer Ring Defect: | 0.0682 cps |
| Retainer Type: | NYLON | C Dynamic Load Rating: | 7920 lb |
General Specifications
| UPC: | 782934880971 | Weight: | 2.07 LB |
| HTC: | 8482105052 | Country of Origin: | Mexico |
