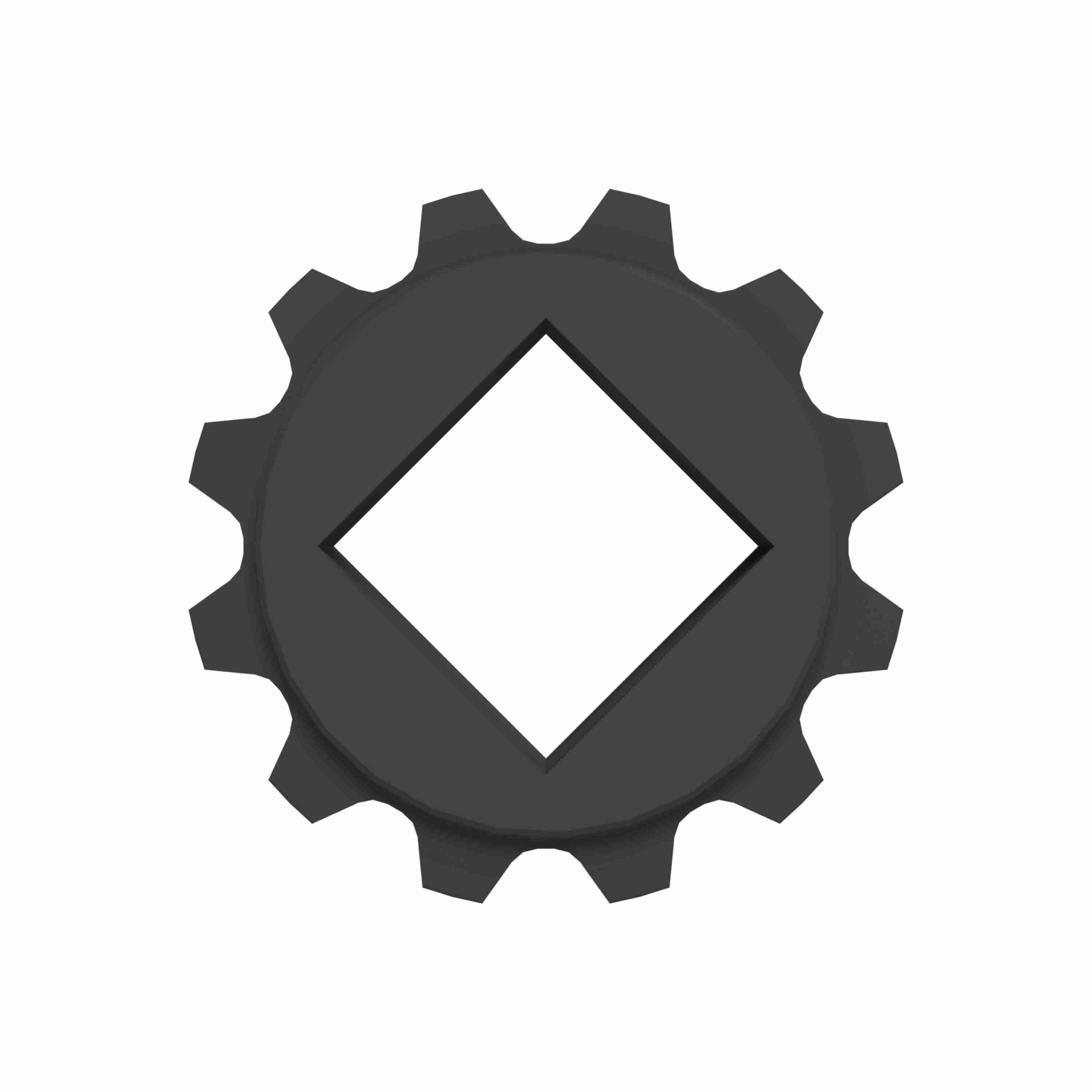

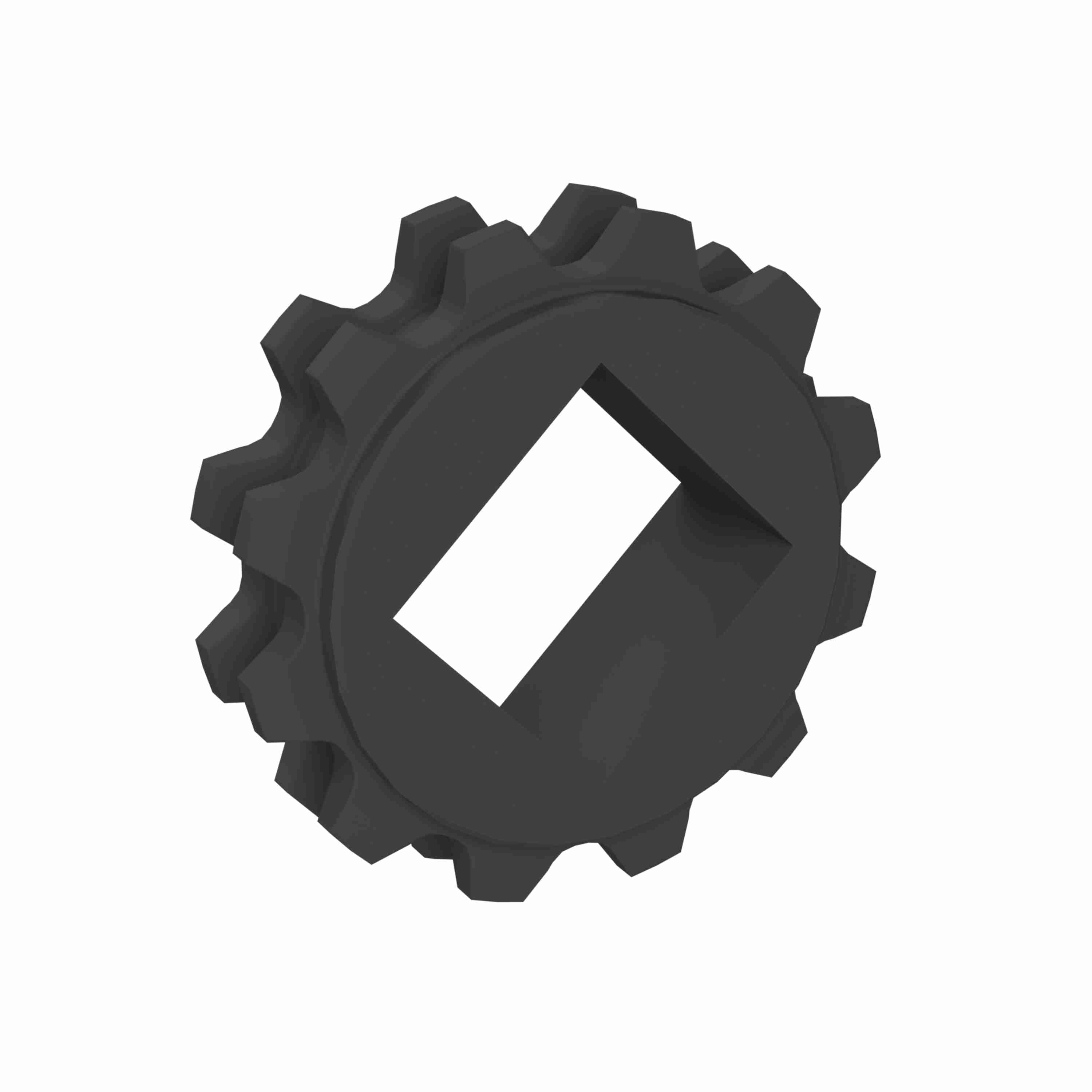

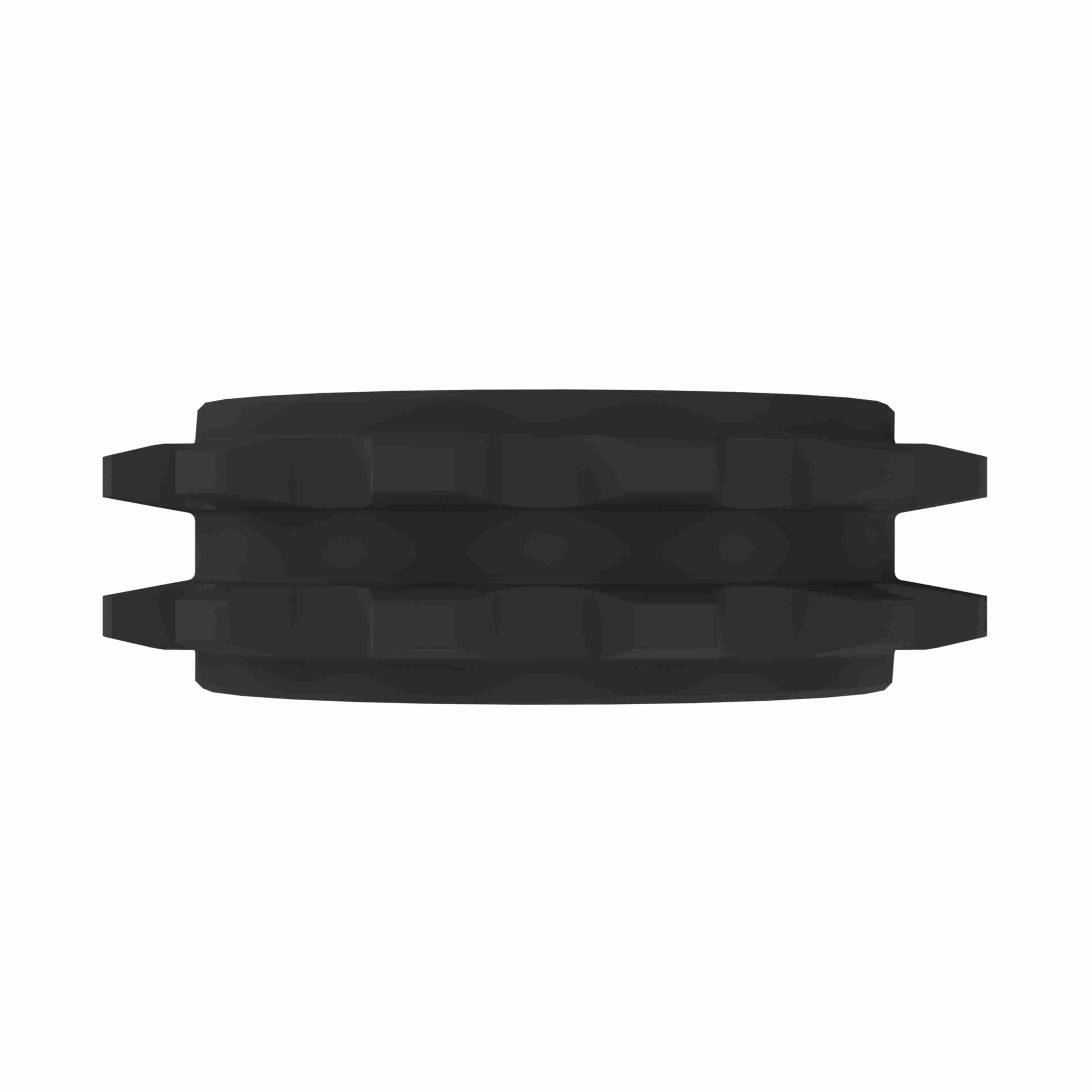

Rexnord 1500 Series Solid One Piece Molded Nylon Sprocket with 12 Teeth and a 25mm Square Bore - 114-3608-2
Part #:10013438
Catalog #:114-3608-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | None | Pitch Diameter (in): | 2.282 |
| Sprocket Construction: | Molded Non-Split Sprocket | Chain Number: | 1500 |
| Sprocket Series: | 1500 | Pitch Diameter (mm): | 57.96 |
| Body Style: | Block | Bore Type: | Shaft-Ready |
| Hub Type: | C-HUB | Material: | Nylon |
| Bore Shape: | Square | Number of Teeth: | 12 |
| Product Group: | MatTop® | Bore Diameter (mm): | 25 mm |
| Number of Keyways: | 0 | Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 793699425376 | Weight: | 0.09 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
