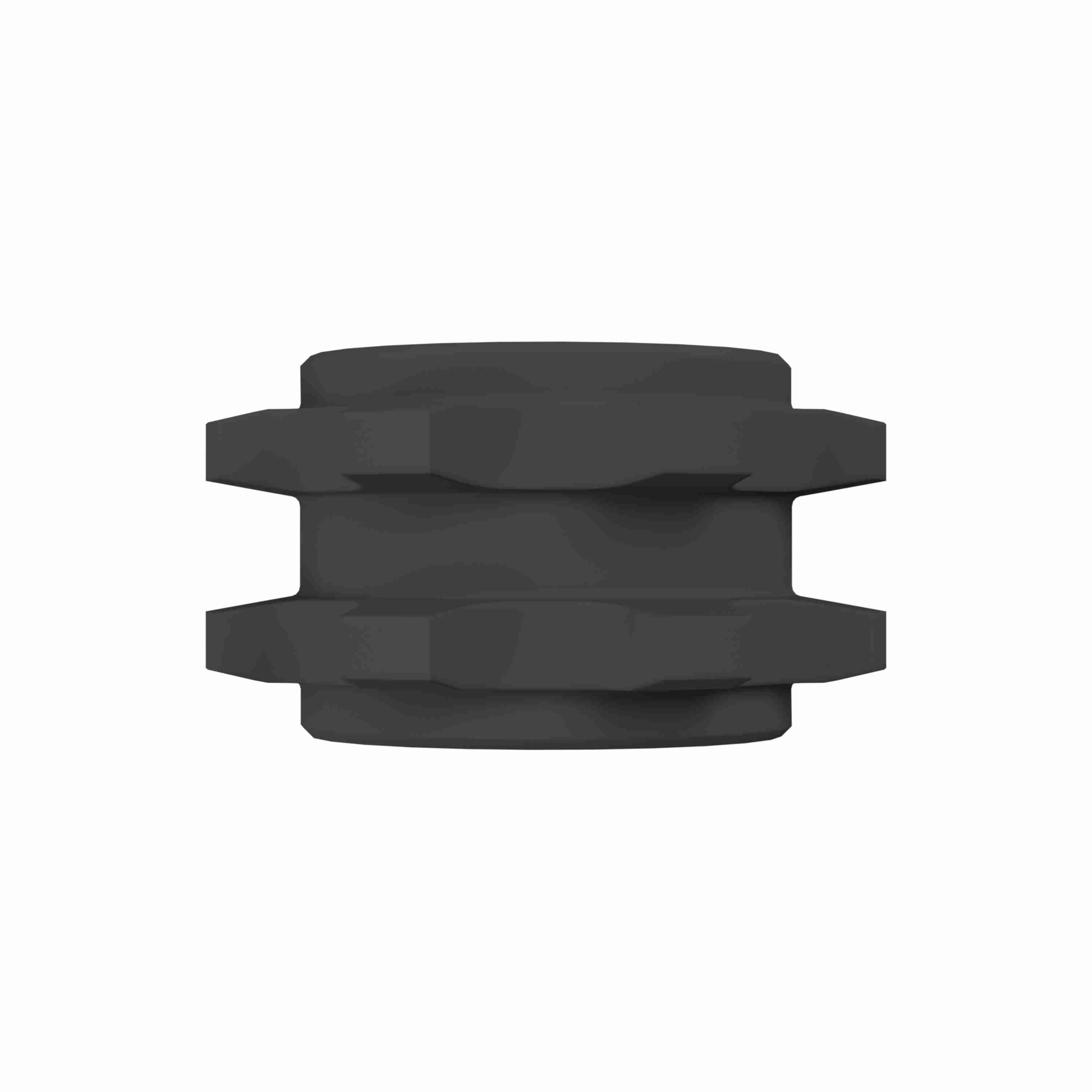

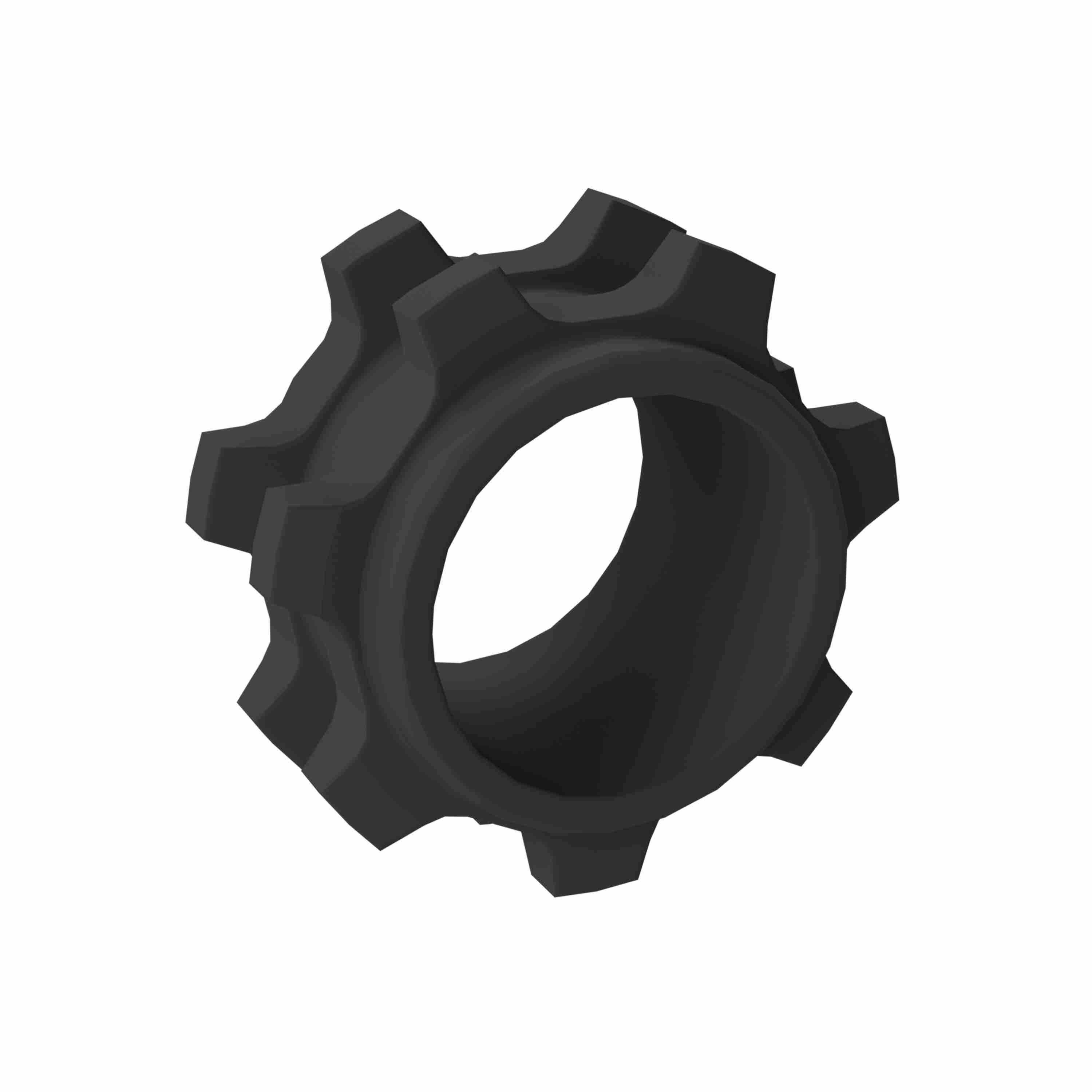

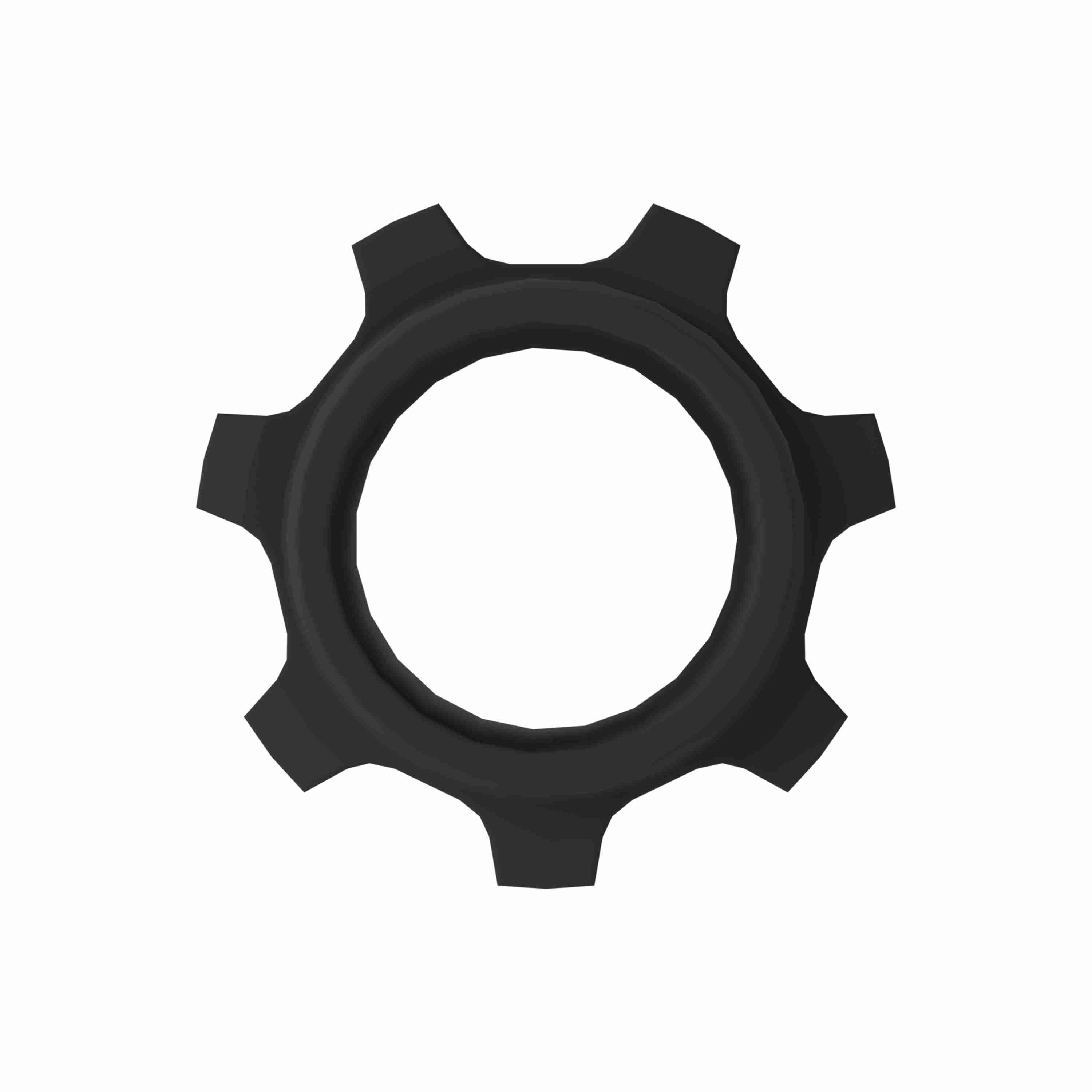

Rexnord 1500 Series Solid One Piece Molded Nylon Sprocket with 7 Teeth and 20mm Round Idler Bore - 614-301-4
Part #:10015532
Catalog #:614-301-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (mm): | 34.57 | Chain Number: | 1500 |
| Sprocket Series: | 1500 | Body Style: | Block |
| Product Group: | MatTop® | Pitch Diameter (in): | 1.361 |
| Material: | Nylon | Number of Set Screws: | None |
| Bore Shape: | Round | Product Line: | Chain and Belt Sprockets |
| Sprocket Construction: | Molded Non-Split Sprocket | Bore Diameter (mm): | 20 mm |
| Bore Type: | Idler | Number of Teeth: | 7 |
| Number of Keyways: | 0 |
General Specifications
| UPC: | 793699272758 | Weight: | 0.04 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
