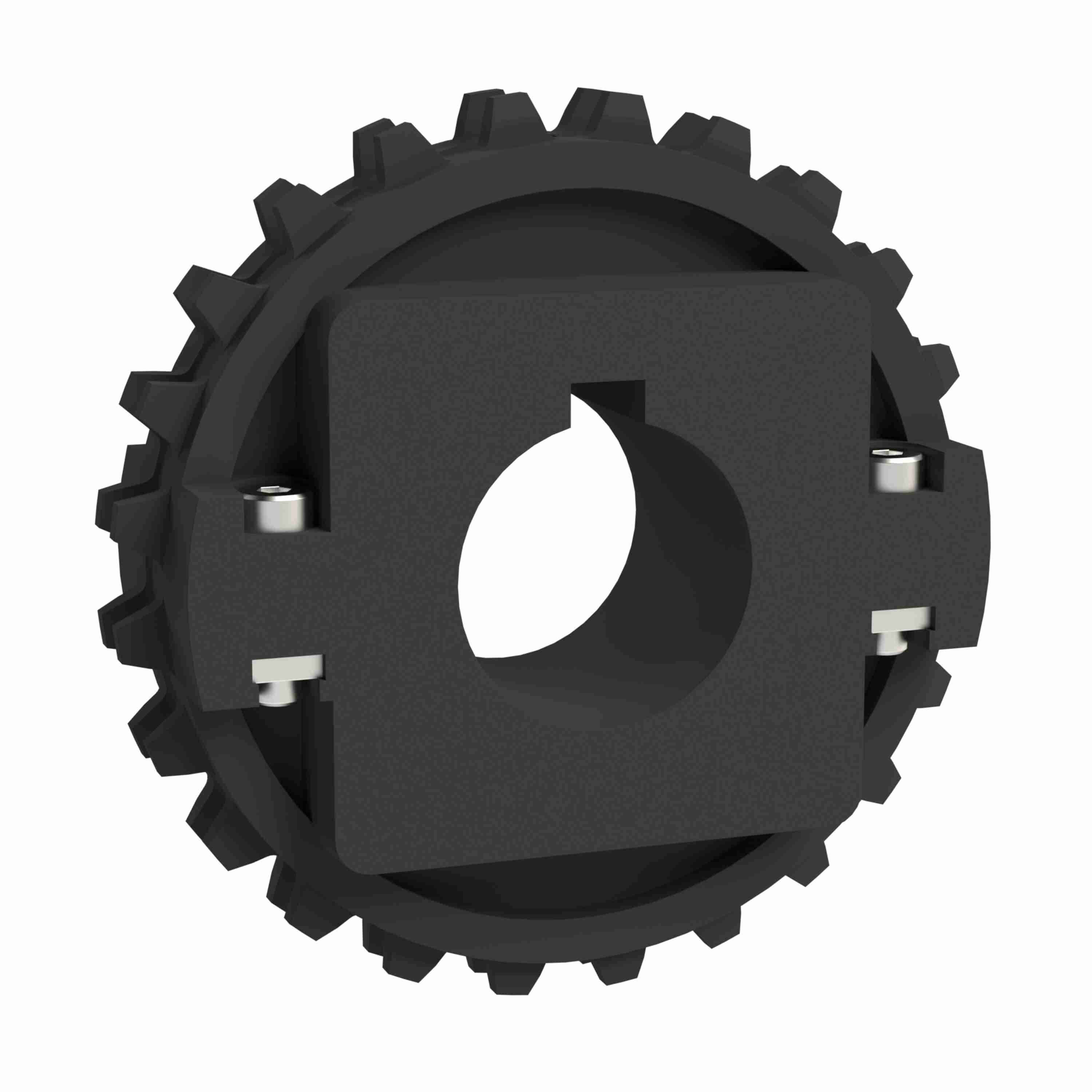

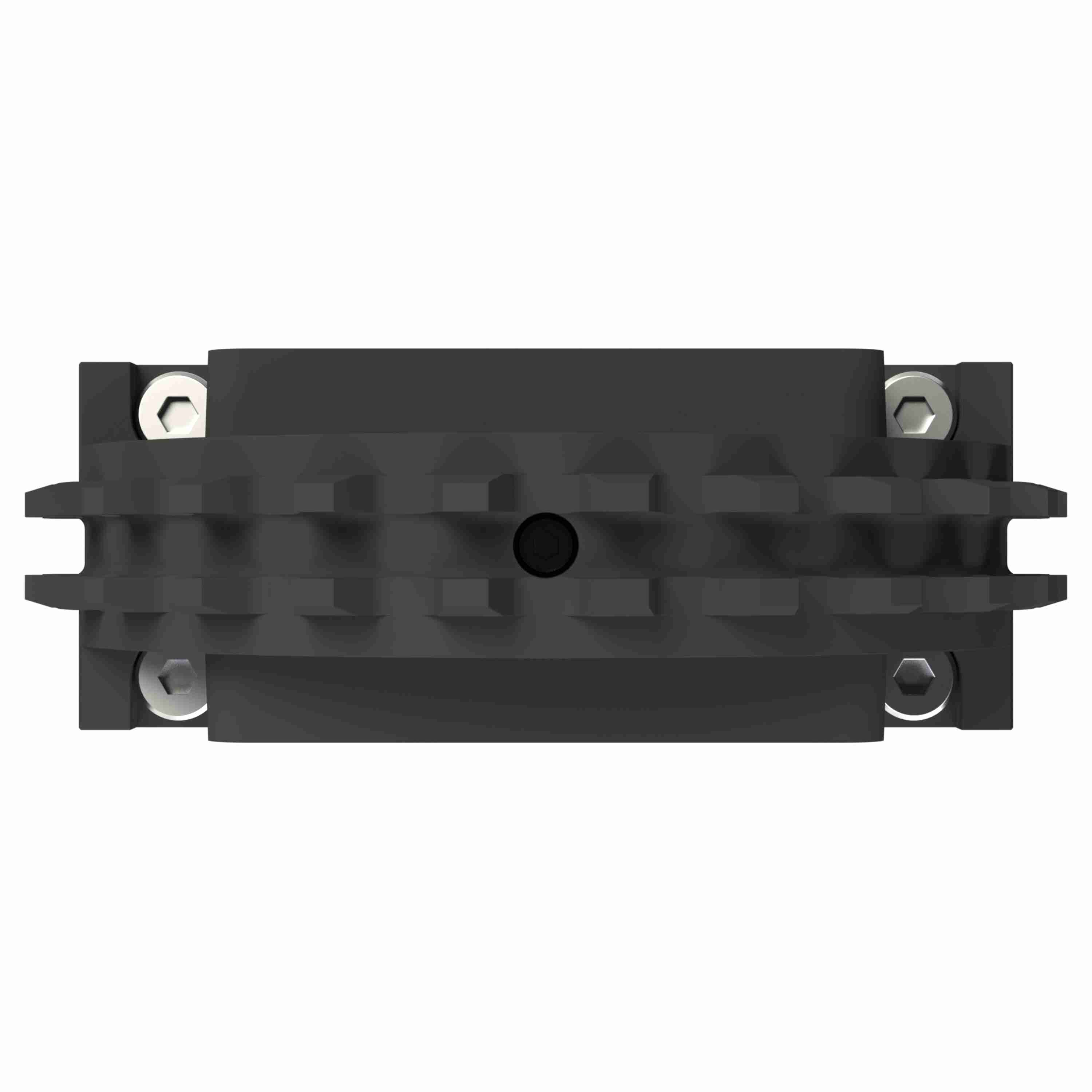

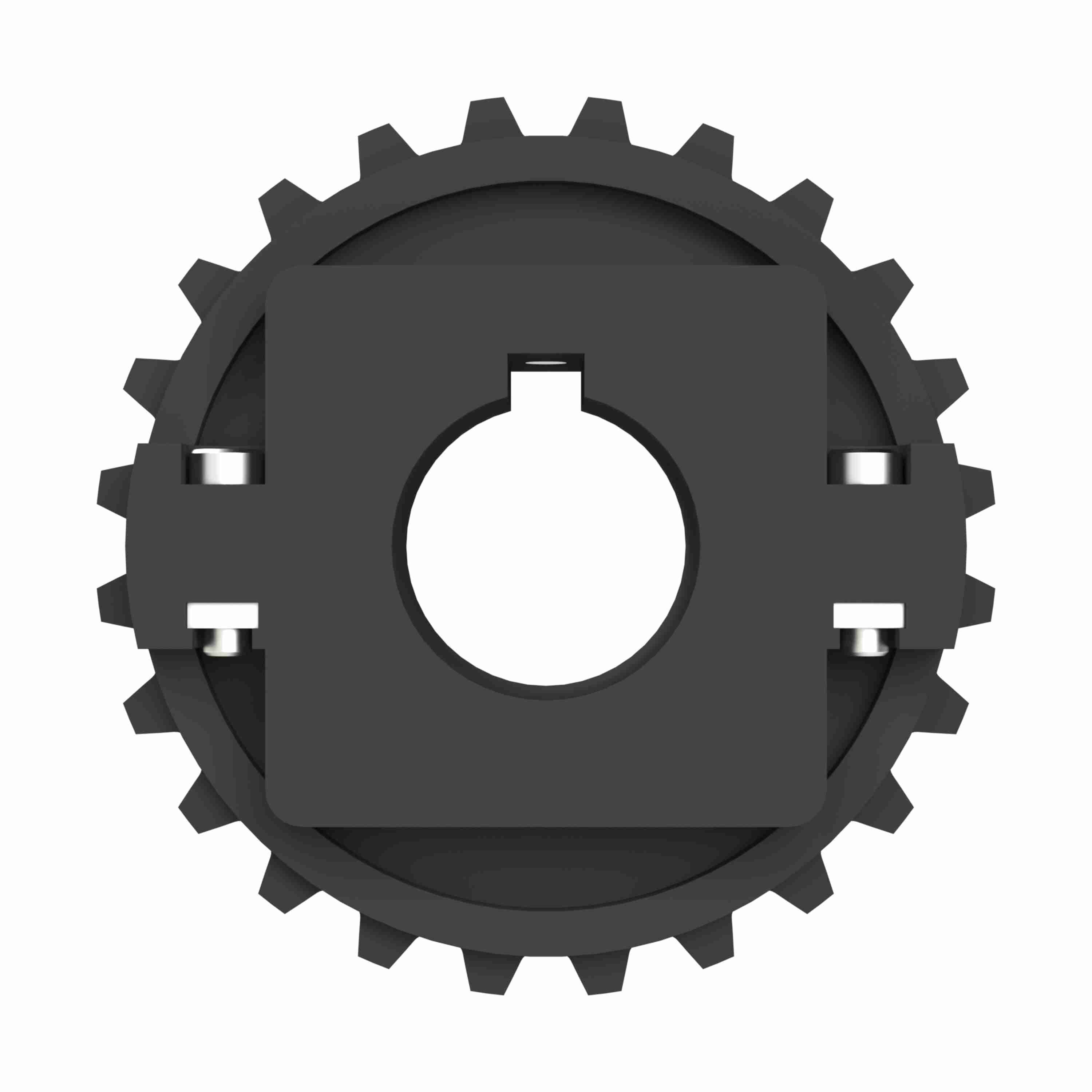

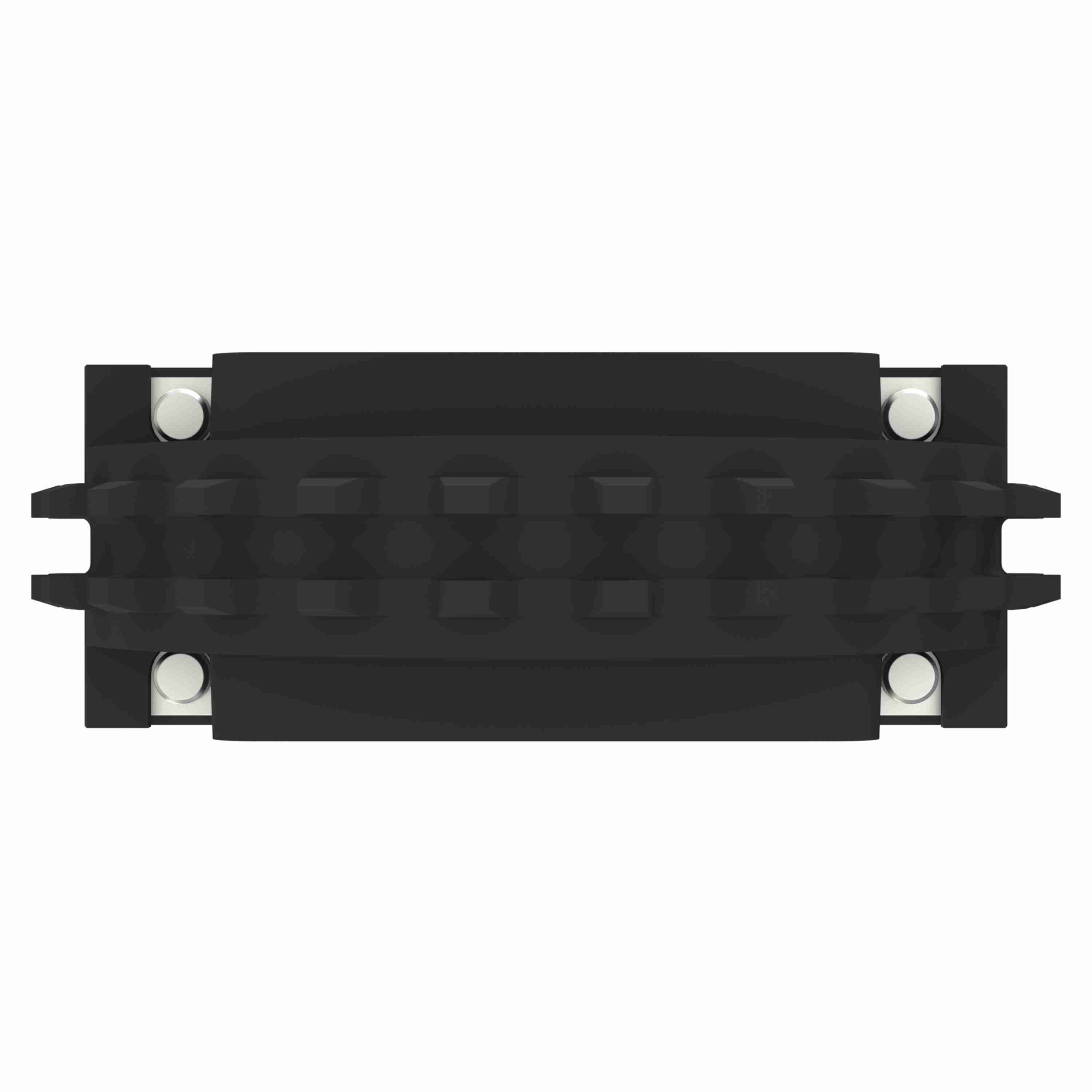

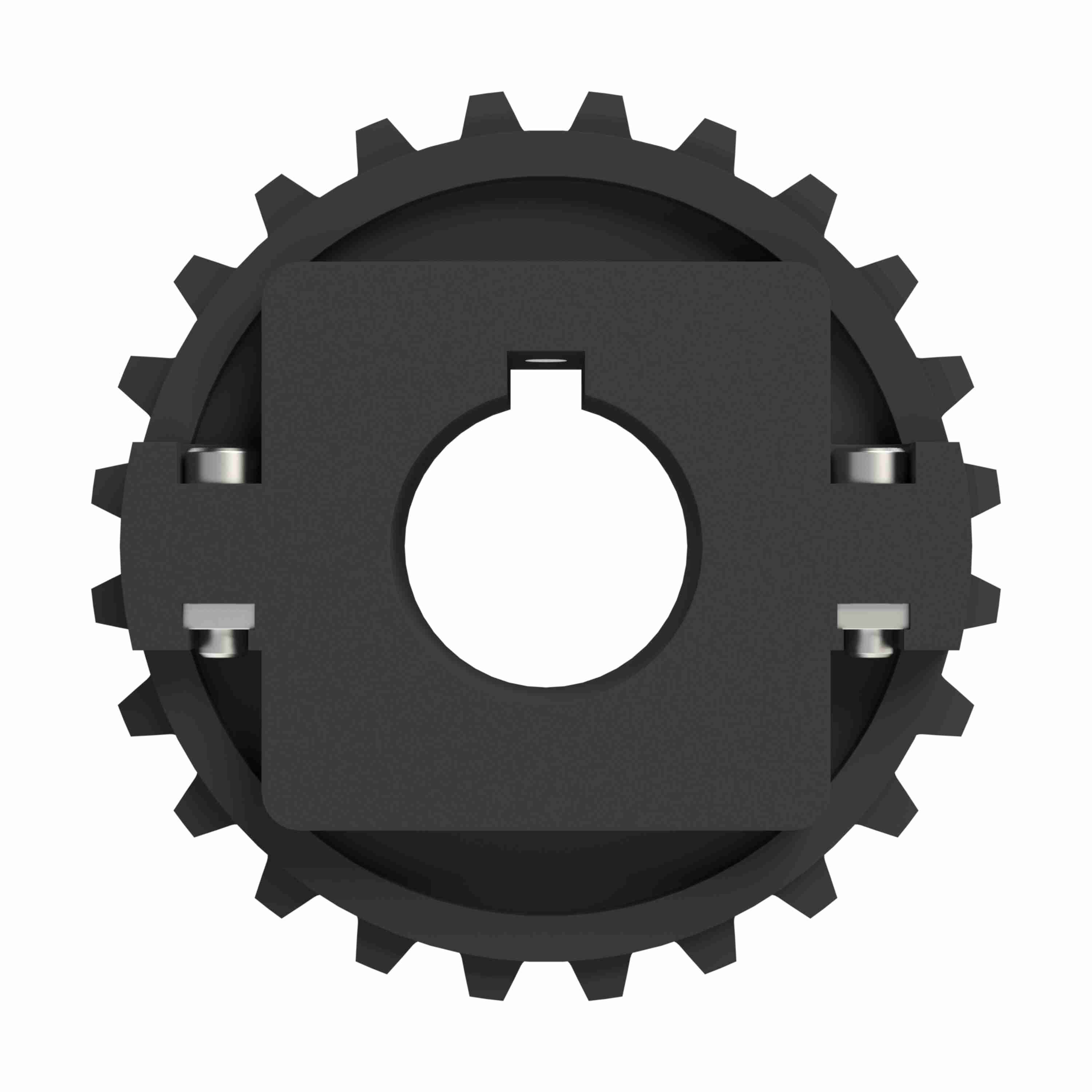

Rexnord 1500 Series Split Molded Nylon Sprocket and a 24 Teeth with 1-1/2in Round Shaft-Ready Bore with Keyway & Setscrew - 614-143-9
Part #:10028506
Catalog #:614-143-9
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (in): | 4.524 | Chain Number: | 1500 |
| Sprocket Series: | 1500 | Material: | Nylon |
| Number of Keyways: | 1 | Product Line: | Chain and Belt Sprockets |
| Number of Teeth: | 24 | Product Group: | MatTop® |
| Sprocket Construction: | Molded Split Sprocket | Bore Shape: | Round |
| Pitch Diameter (mm): | 114.92 | Bore Type: | Shaft-Ready |
| Body Style: | Block | Number of Set Screws: | 1 Setscrew |
| Bore Diameter (in): | 1-1/2 in |
General Specifications
| UPC: | 793699262100 | Weight: | 0.53 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
