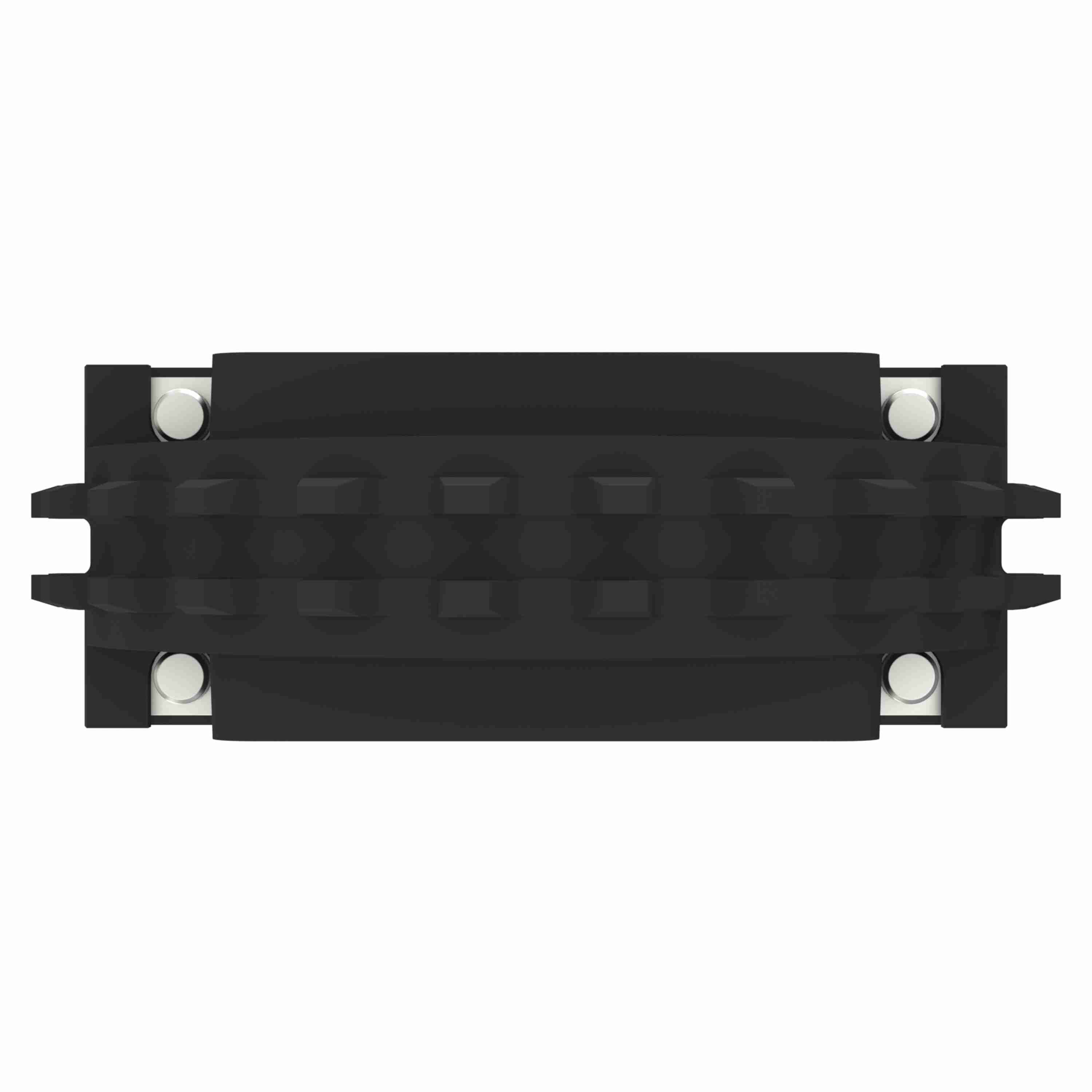

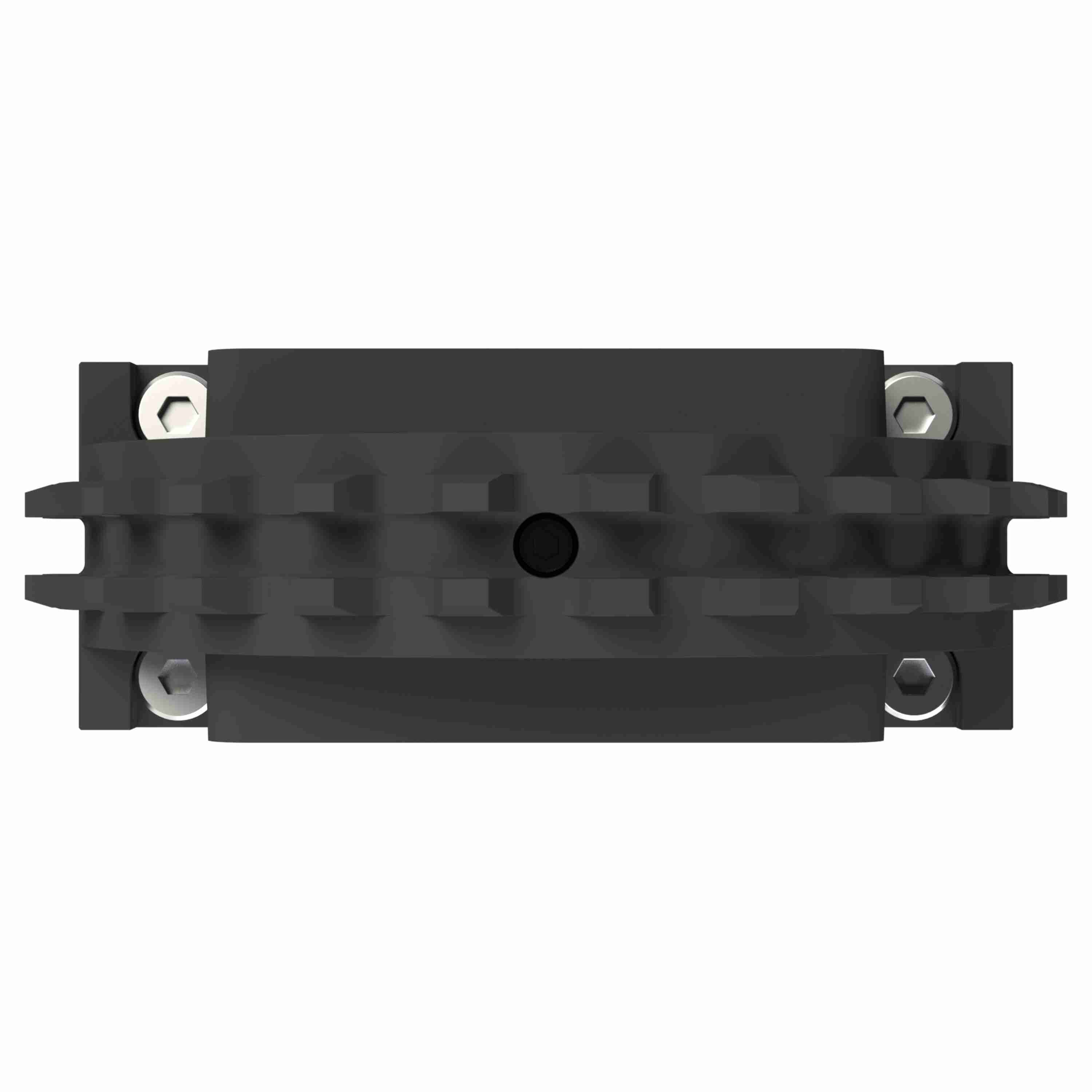

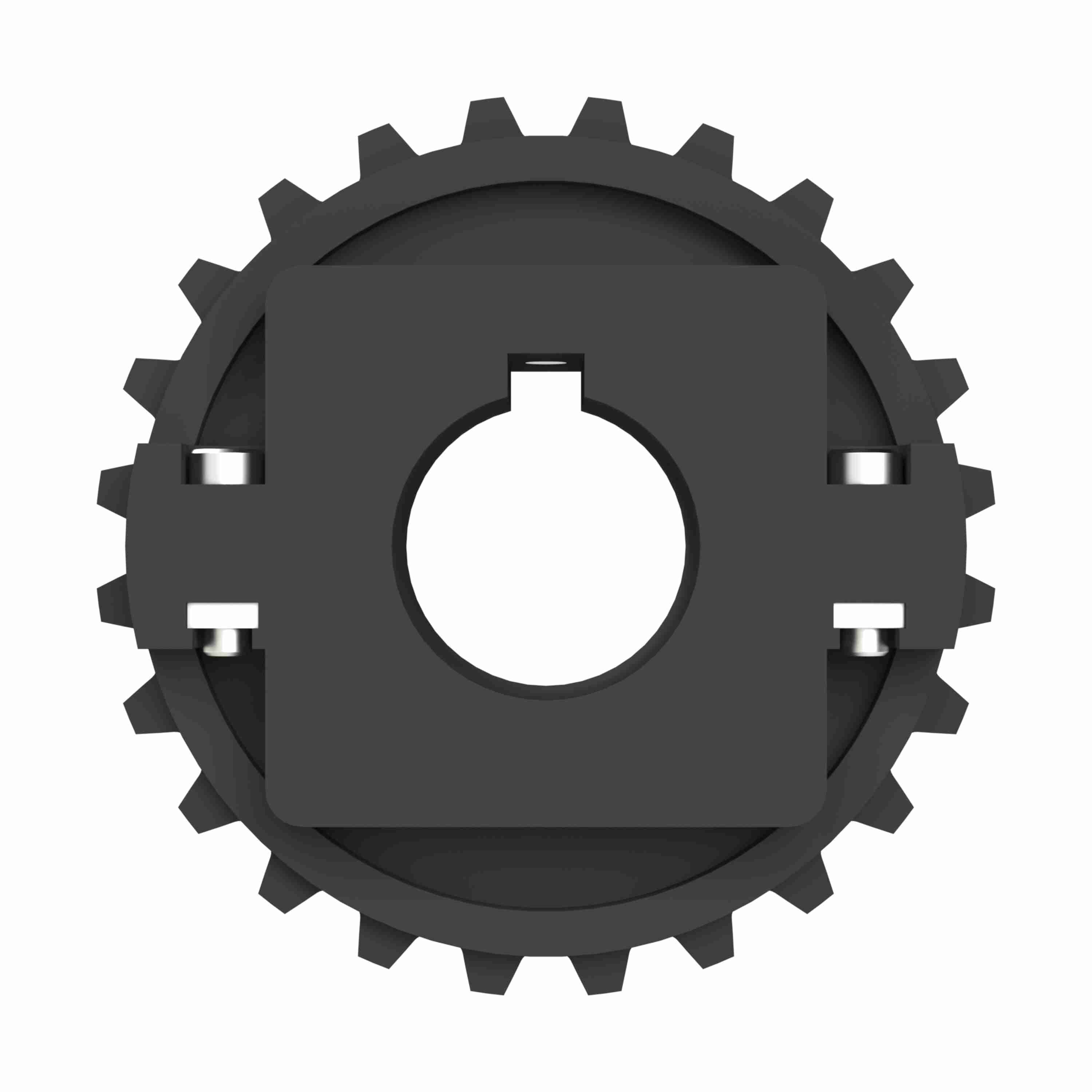

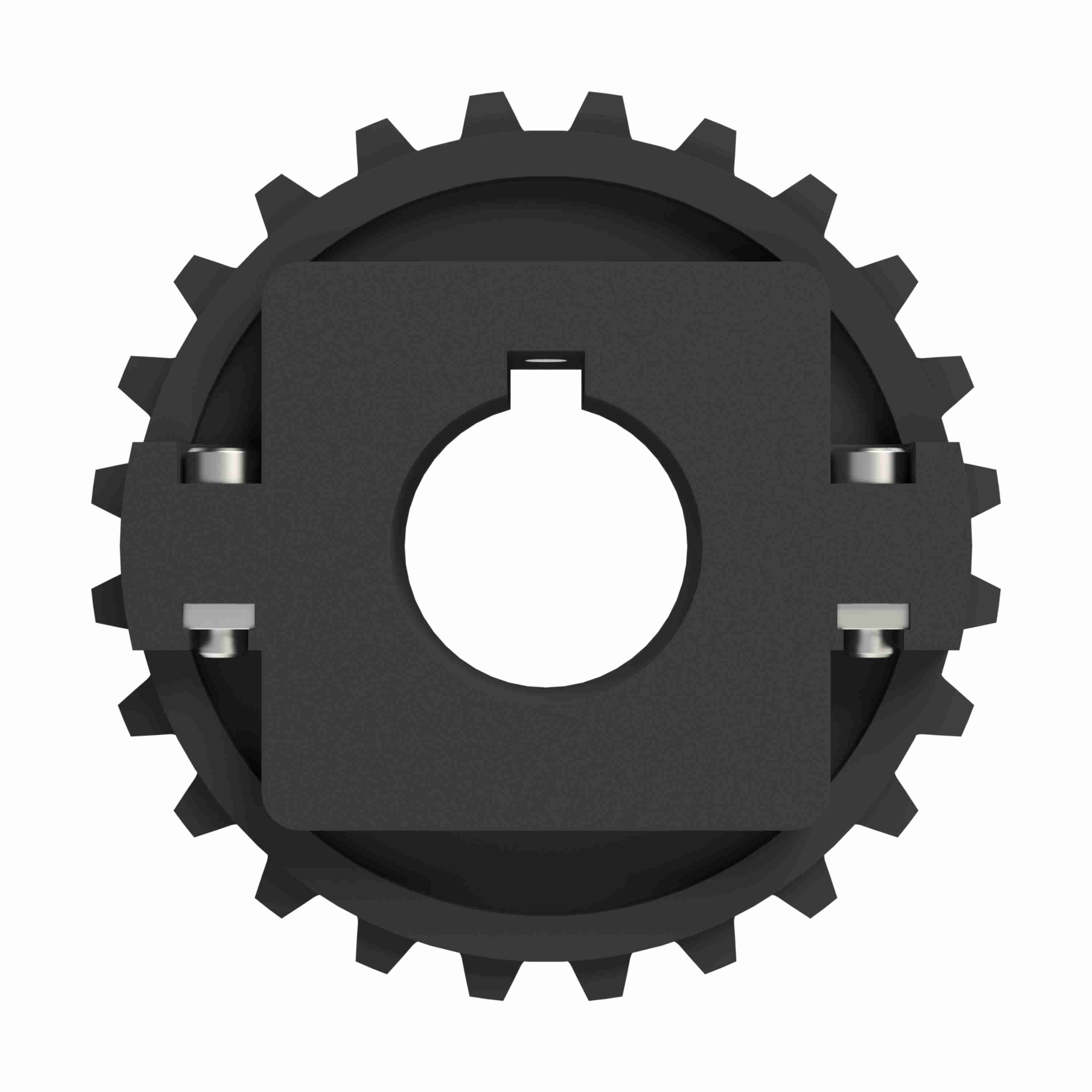

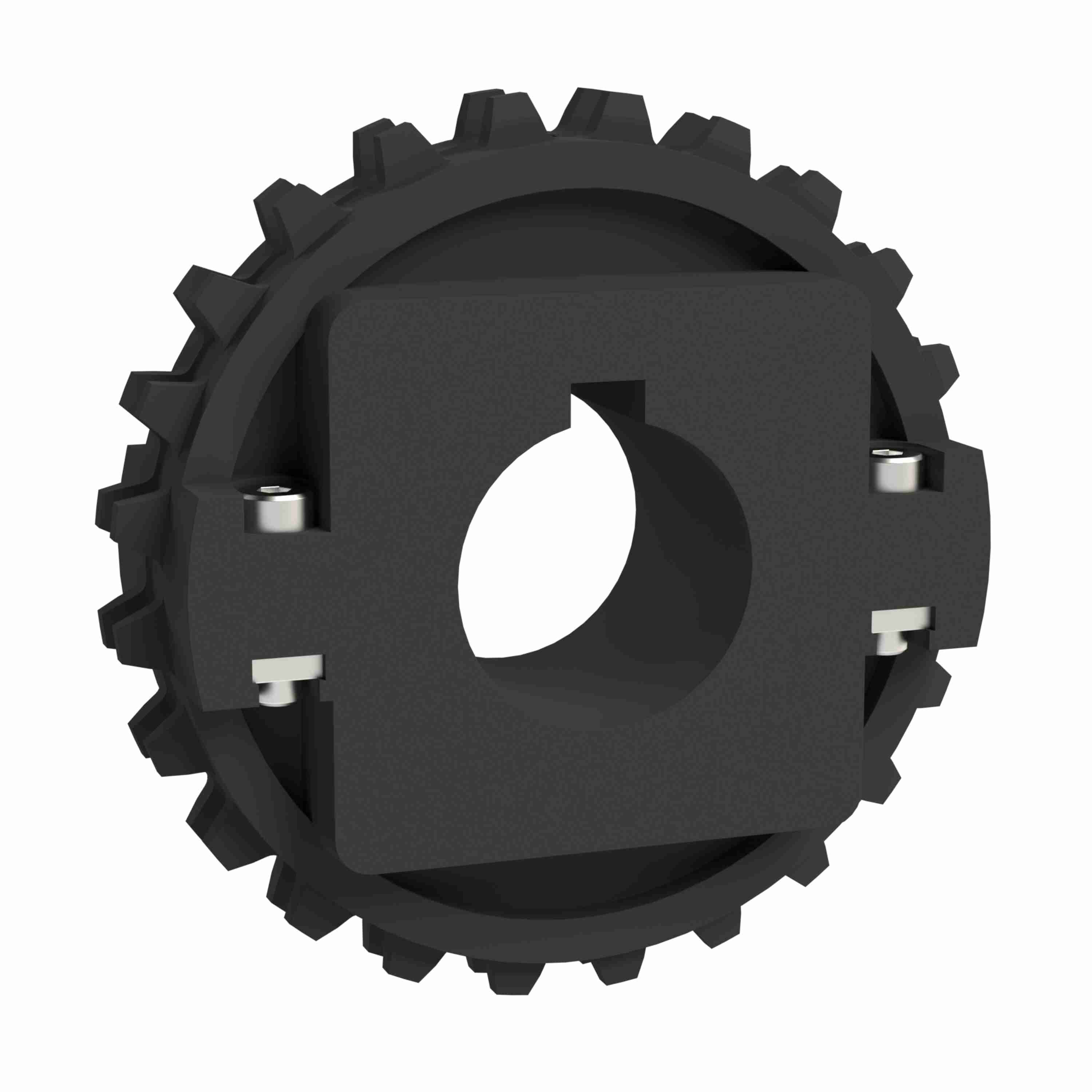

Rexnord 1500 Series Split Molded Nylon Sprocket and a 24 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-143-6
Part #:10328470
Catalog #:614-143-6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Split Sprocket | Bore Diameter (in): | 1-7/16 in |
| Chain Number: | 1500 | Number of Teeth: | 24 |
| Pitch Diameter (mm): | 114.92 | Product Group: | MatTop® |
| Number of Keyways: | 1 | Bore Shape: | Round |
| Material: | Nylon | Sprocket Series: | 1500 |
| Body Style: | Block | Bore Type: | Shaft-Ready |
| Hub Type: | C-HUB | Product Line: | Chain and Belt Sprockets |
| Pitch Diameter (in): | 4.524 | Number of Set Screws: | 1 Setscrew |
General Specifications
| UPC: | 782934921766 | Weight: | 0.24 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
