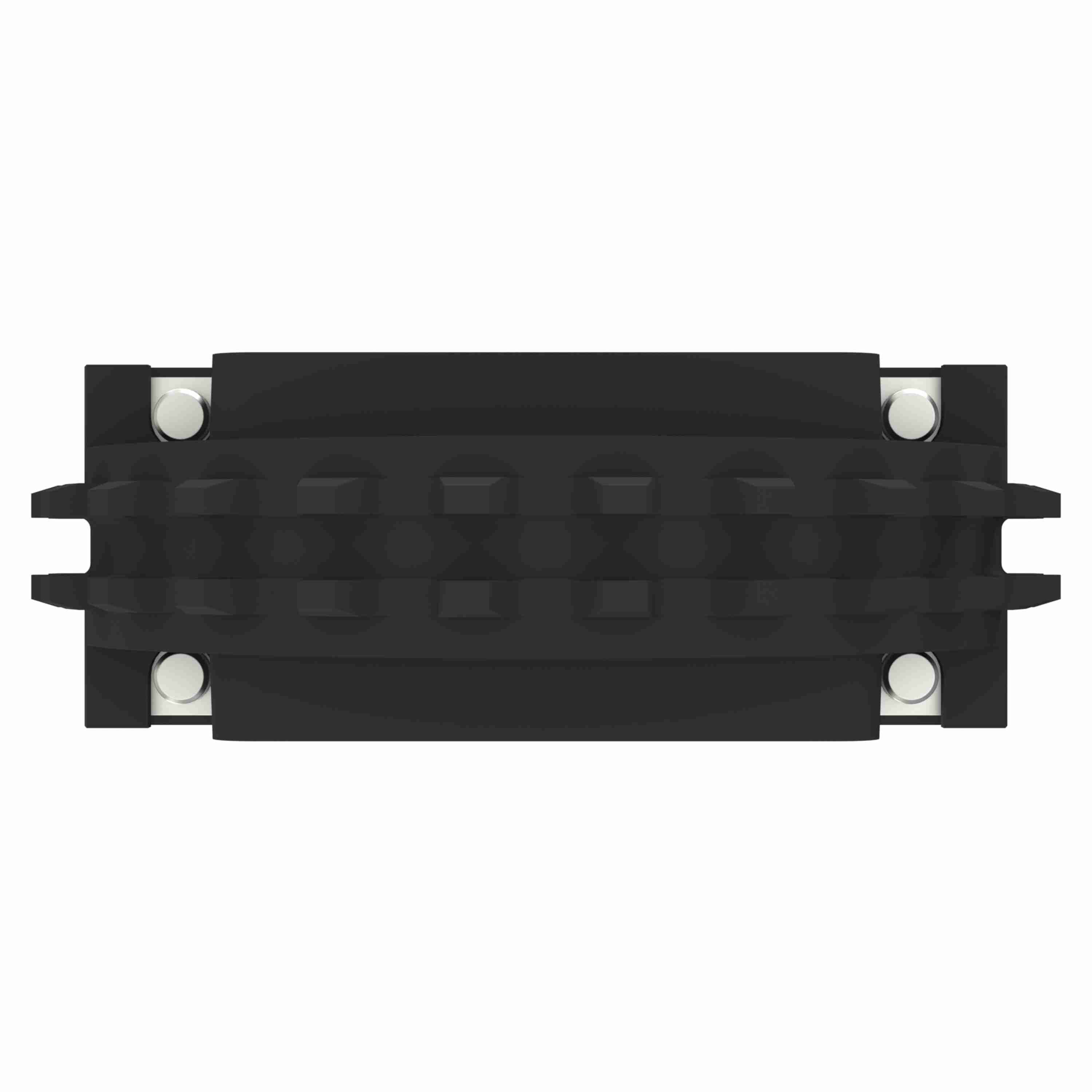

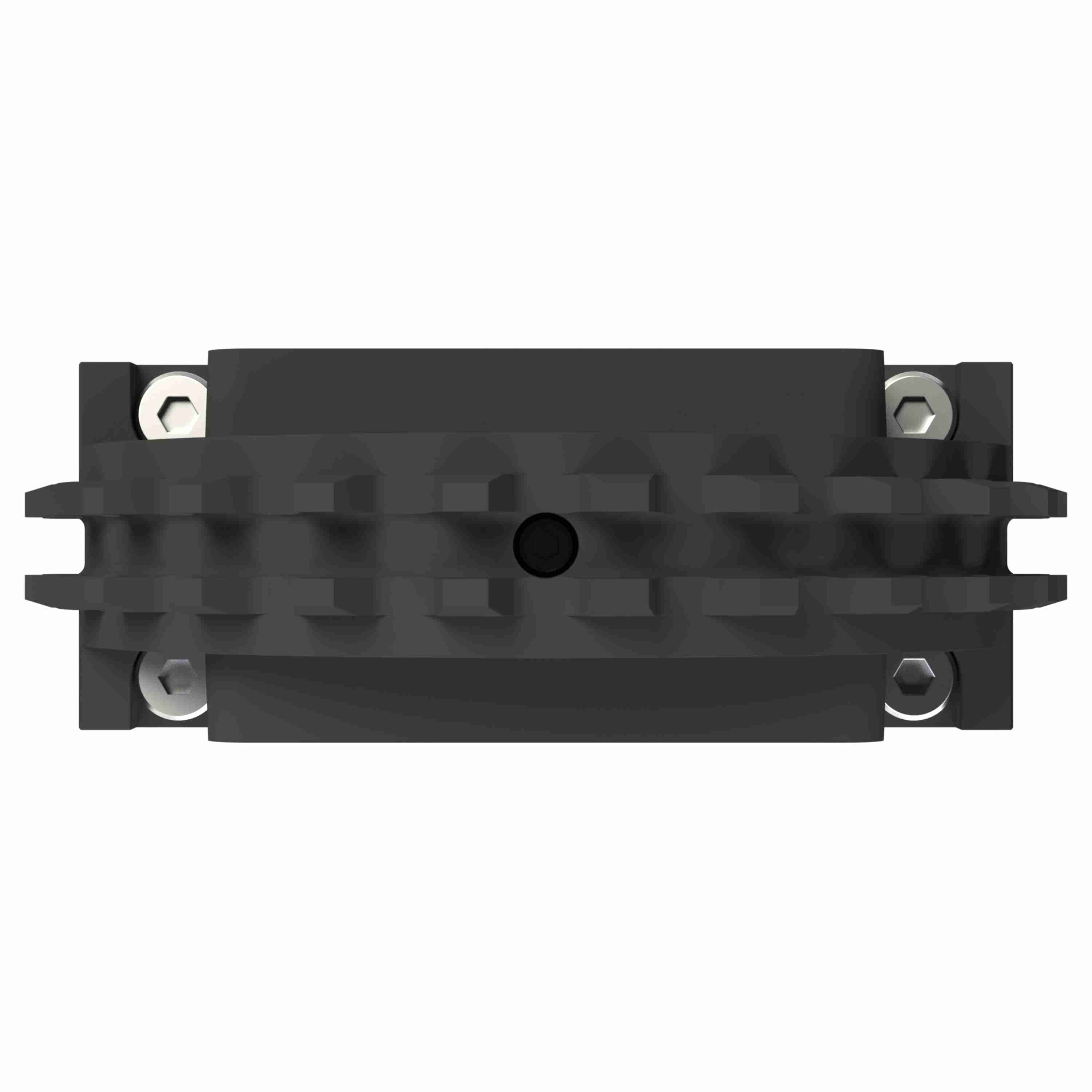

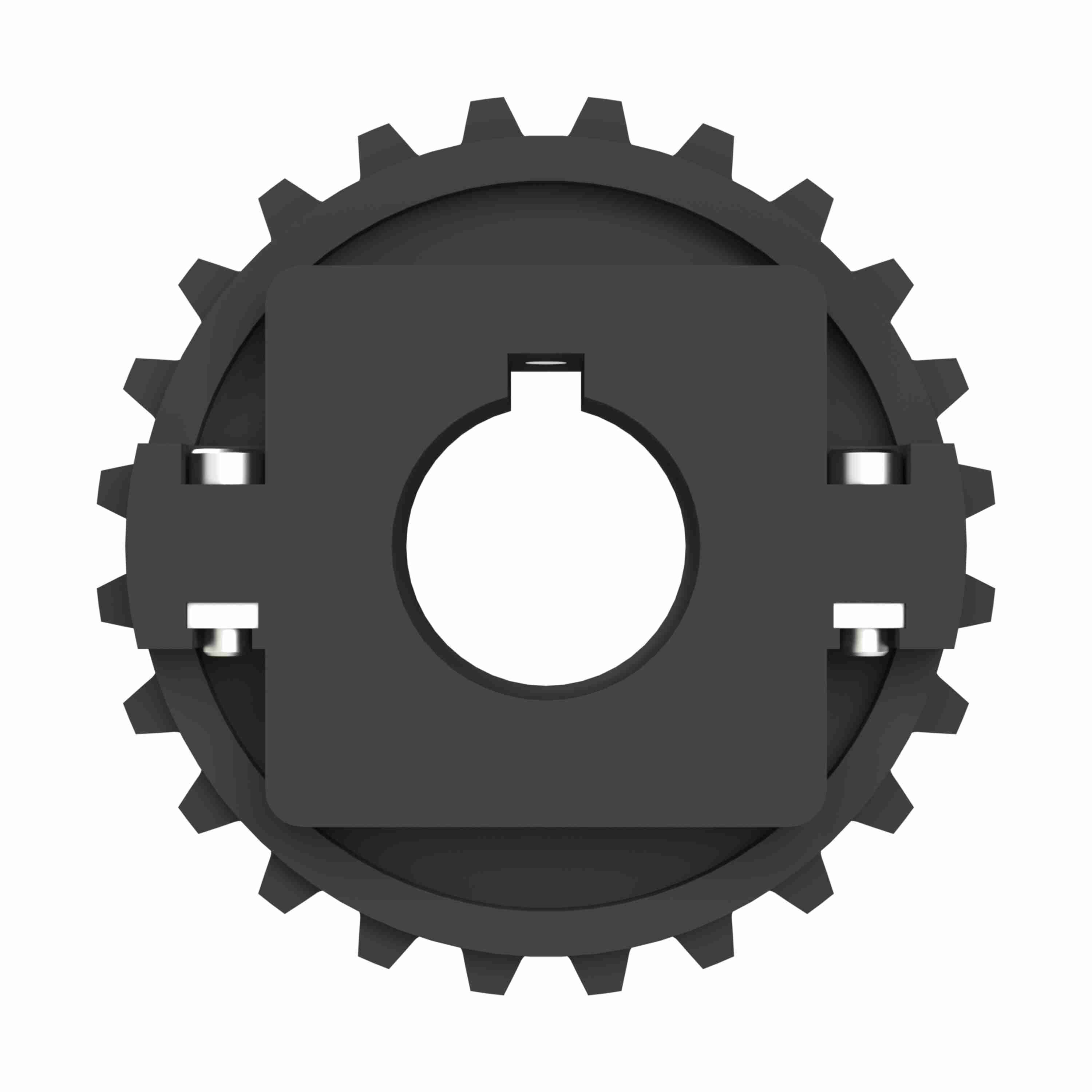

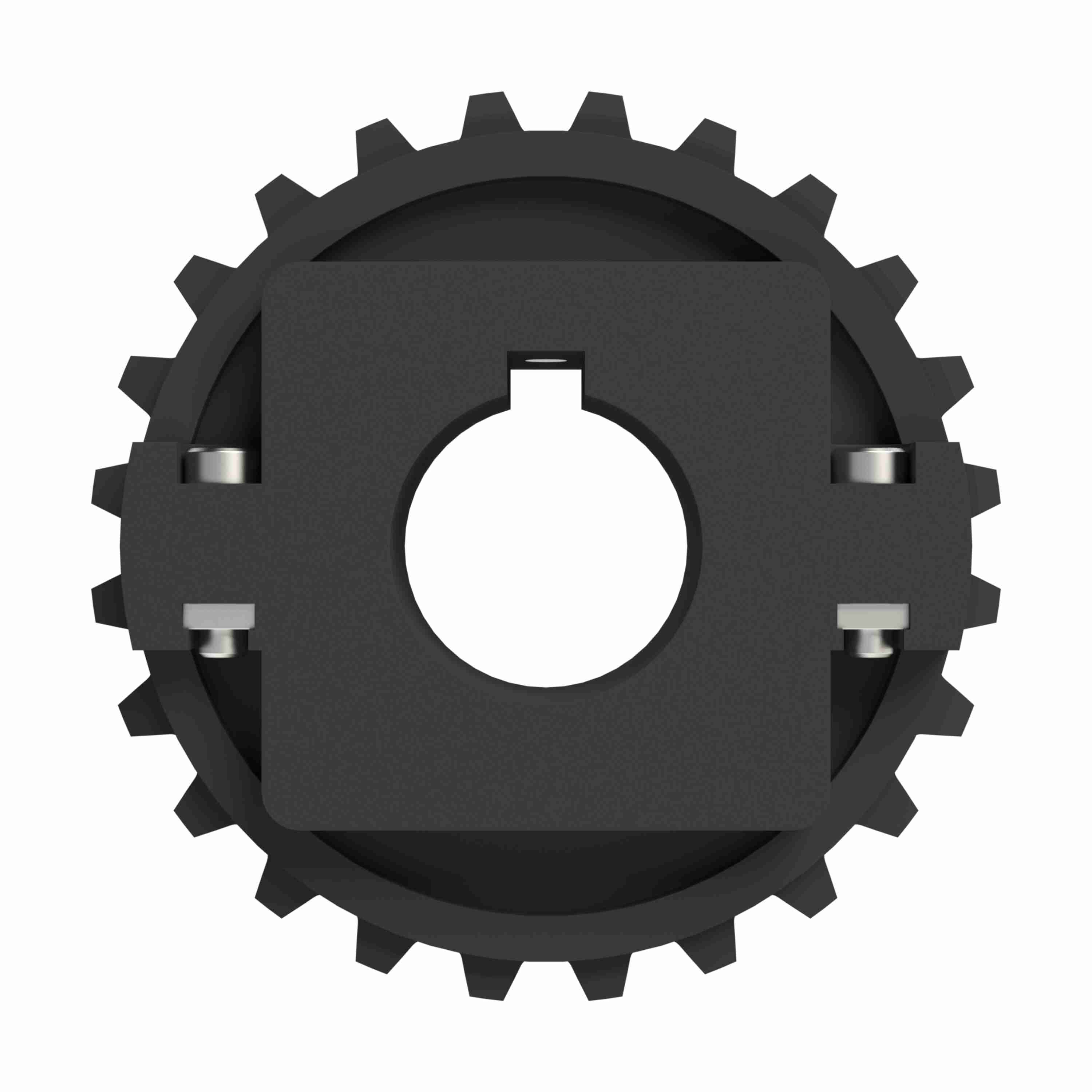

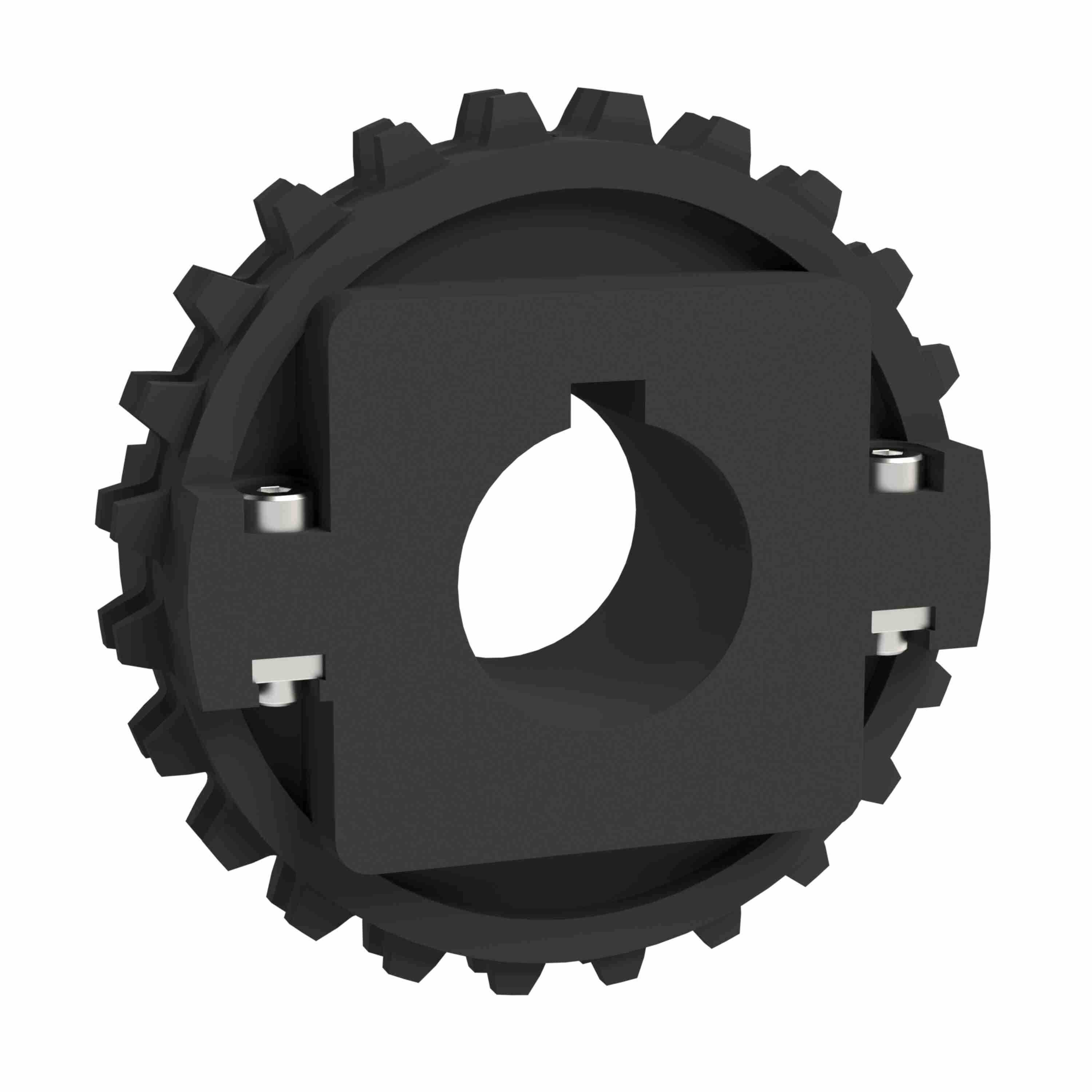

Rexnord 1500 Series Split Molded Nylon Sprocket and a 24 Teeth with 1in Round Shaft-Ready Bore with Keyway & Setscrew - 614-143-1
Part #:10028503
Catalog #:614-143-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Bore Diameter (in): | 1 in |
| Pitch Diameter (in): | 4.524 | Pitch Diameter (mm): | 114.92 |
| Bore Type: | Shaft-Ready | Number of Set Screws: | 1 Setscrew |
| Material: | Nylon | Number of Keyways: | 1 |
| Number of Teeth: | 24 | Sprocket Construction: | Molded Split Sprocket |
| Body Style: | Block | Chain Number: | 1500 |
| Product Group: | MatTop® | Sprocket Series: | 1500 |
| Bore Shape: | Round |
General Specifications
| UPC: | 793699407518 | Weight: | 0.53 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
