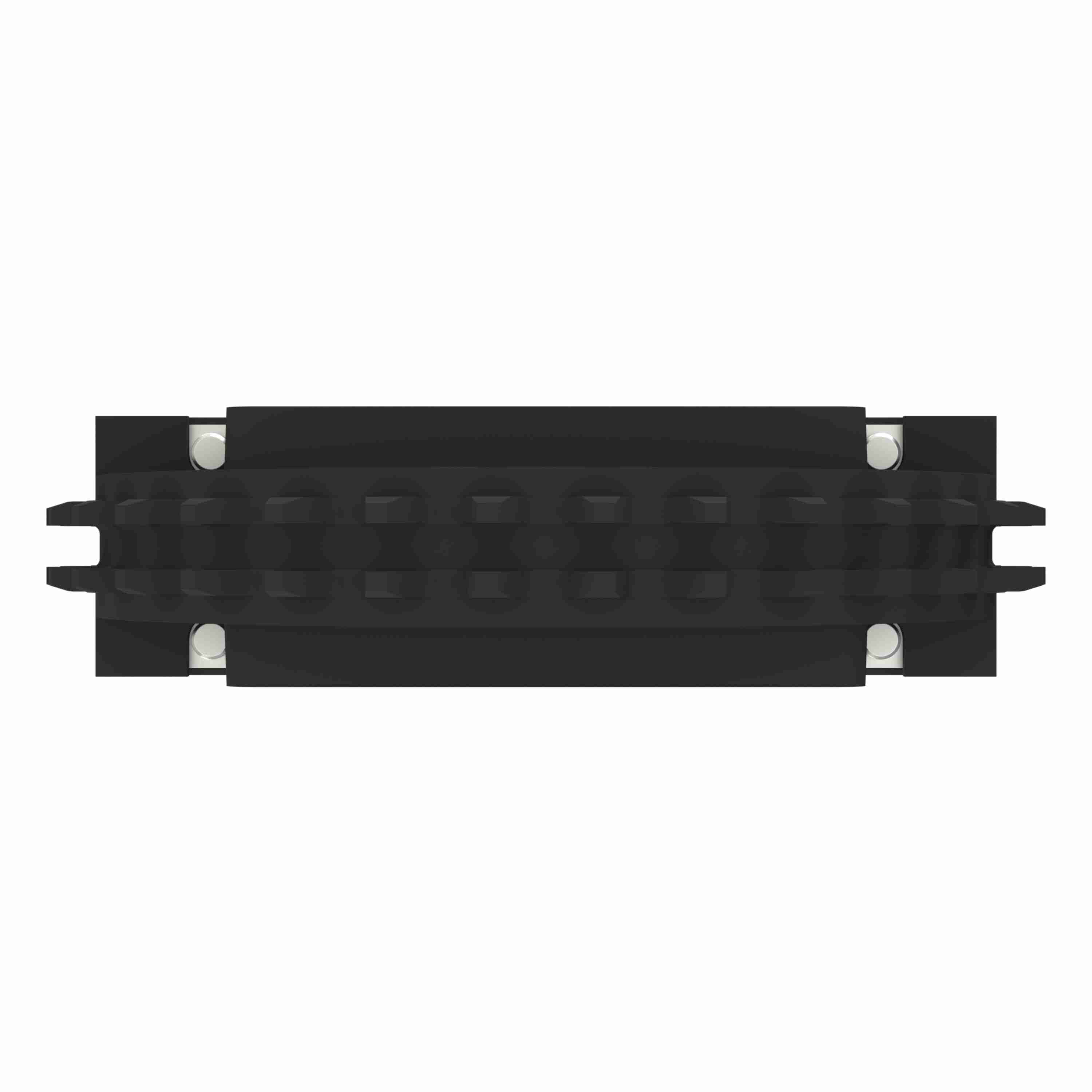

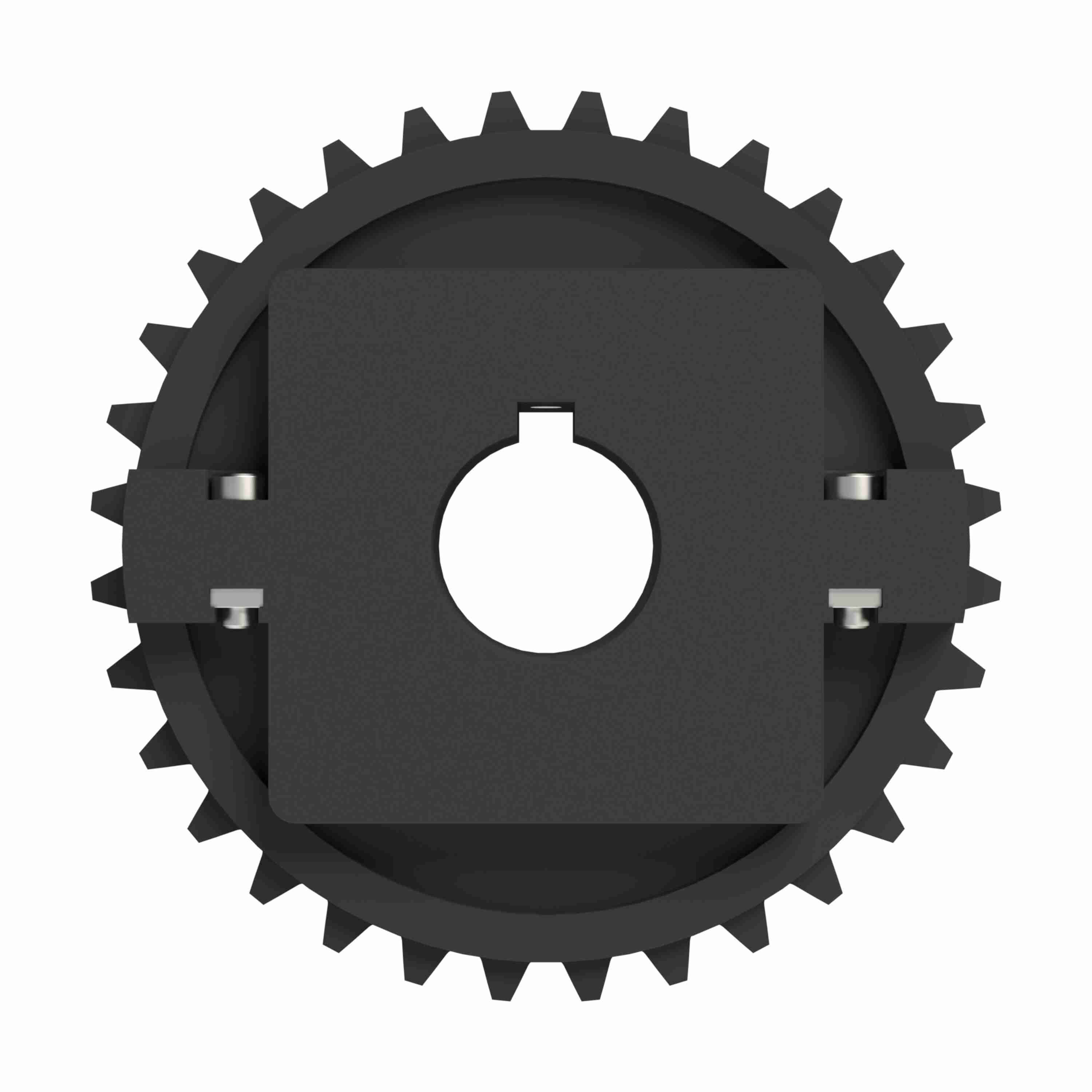

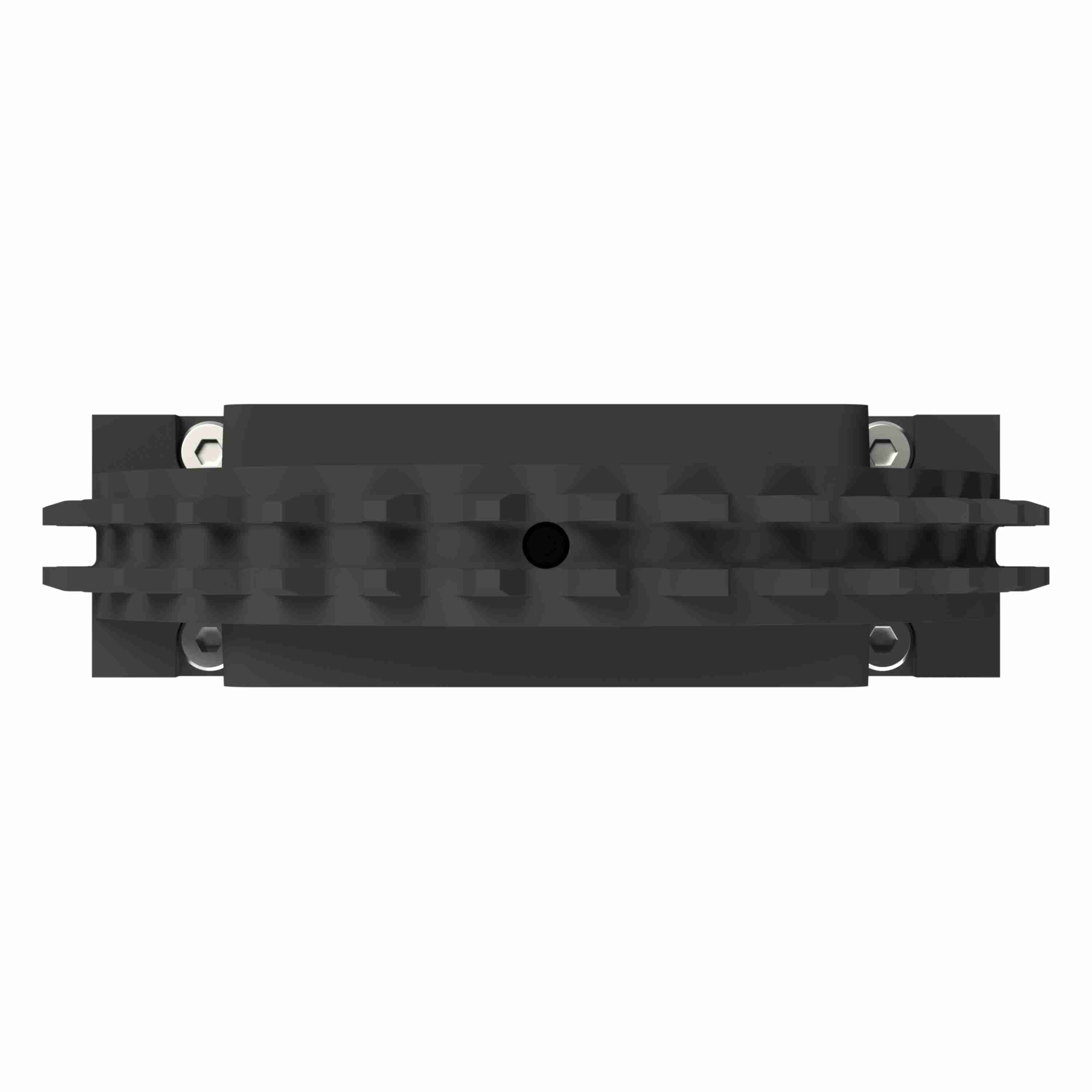

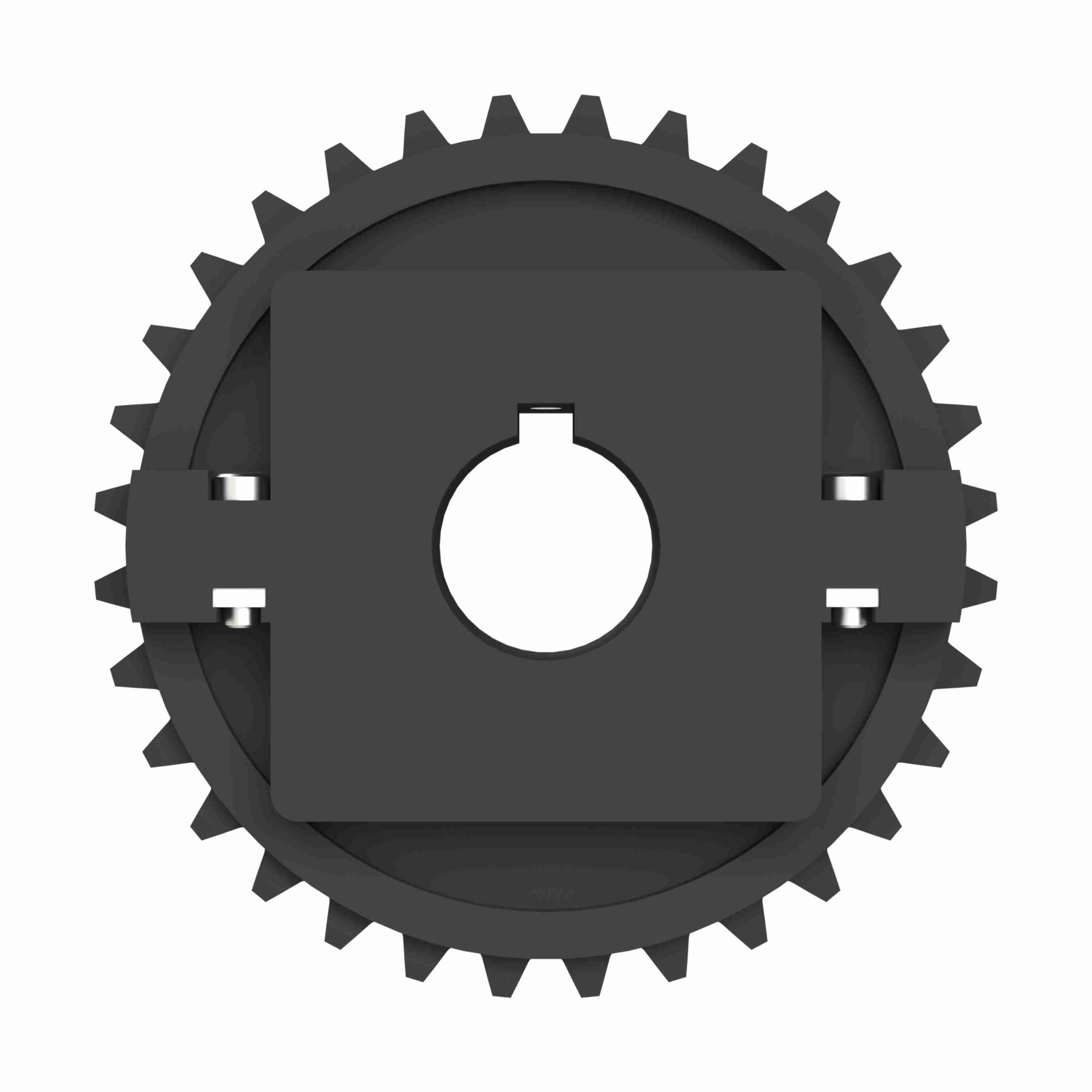

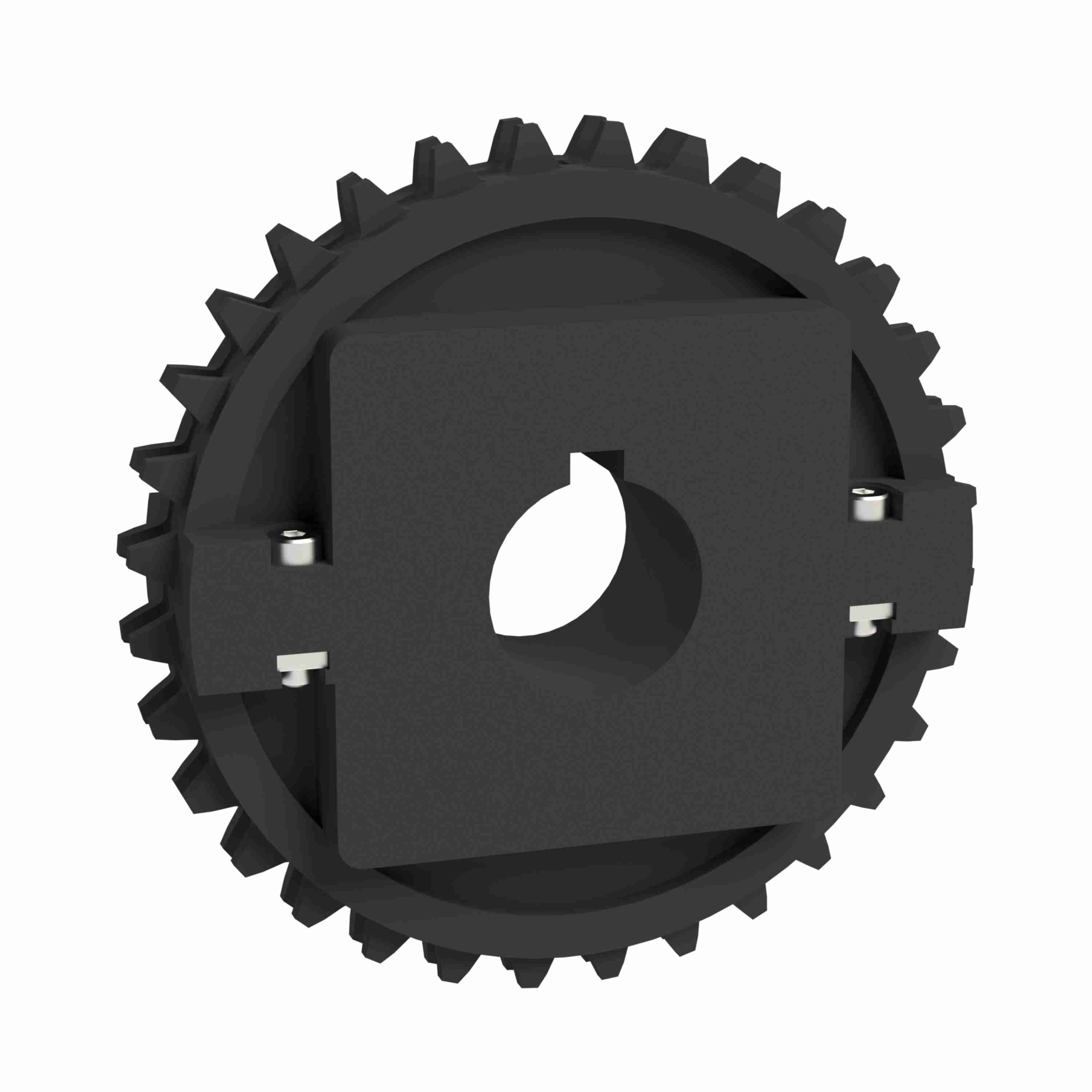

Rexnord 1500 Series Split Molded Nylon Sprocket and a 32 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-181-3
Part #:10028523
Catalog #:614-181-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Round | Pitch Diameter (in): | 6.025 |
| Product Line: | Chain and Belt Sprockets | Bore Type: | Shaft-Ready |
| Chain Number: | 1500 | Pitch Diameter (mm): | 153.03 |
| Number of Keyways: | 1 | Body Style: | Block |
| Product Group: | MatTop® | Sprocket Construction: | Molded Split Sprocket |
| Bore Diameter (in): | 1-1/4 in | Number of Teeth: | 32 |
| Sprocket Series: | 1500 | Number of Set Screws: | 1 Setscrew |
| Material: | Nylon |
General Specifications
| UPC: | 793699251869 | Weight: | 0.90 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
