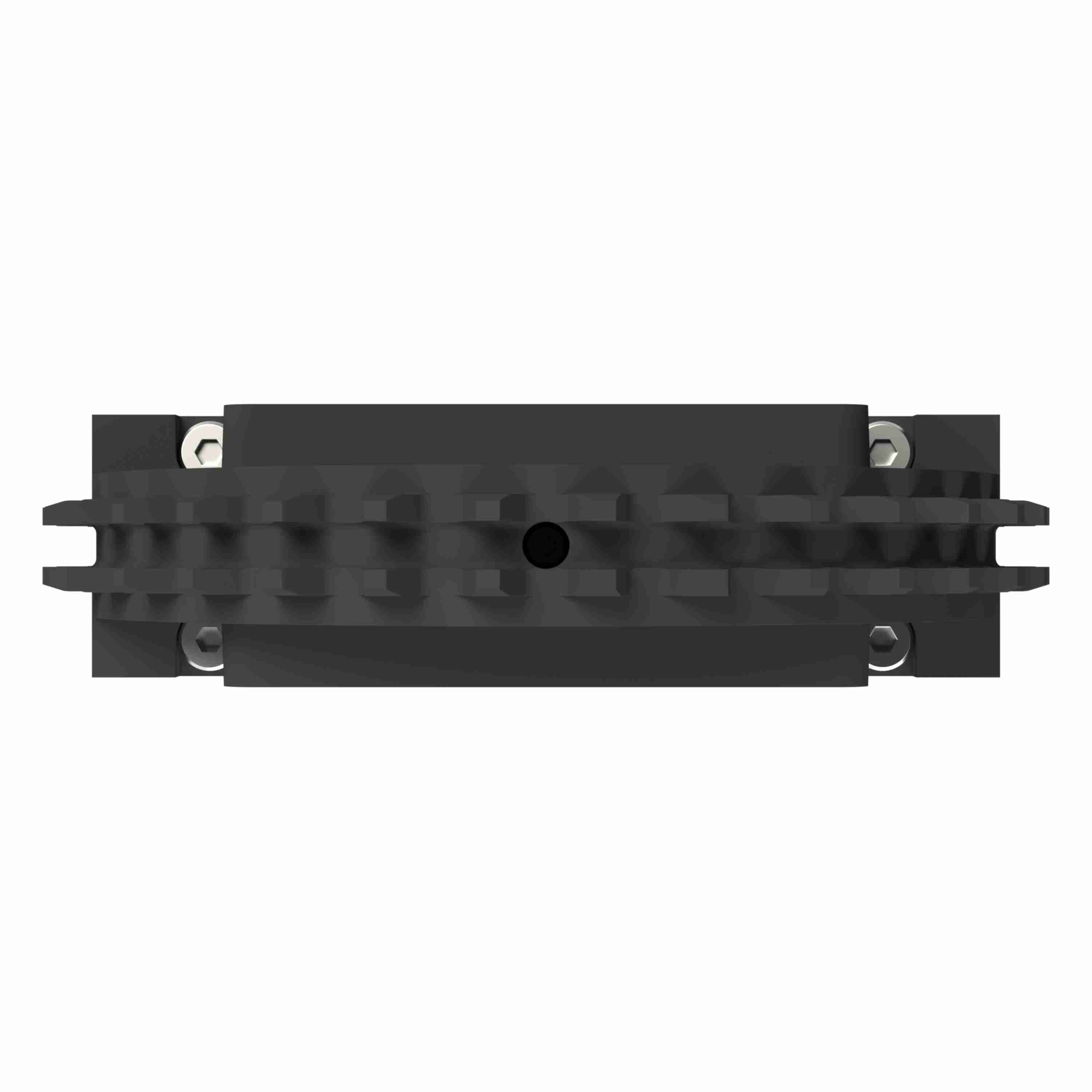

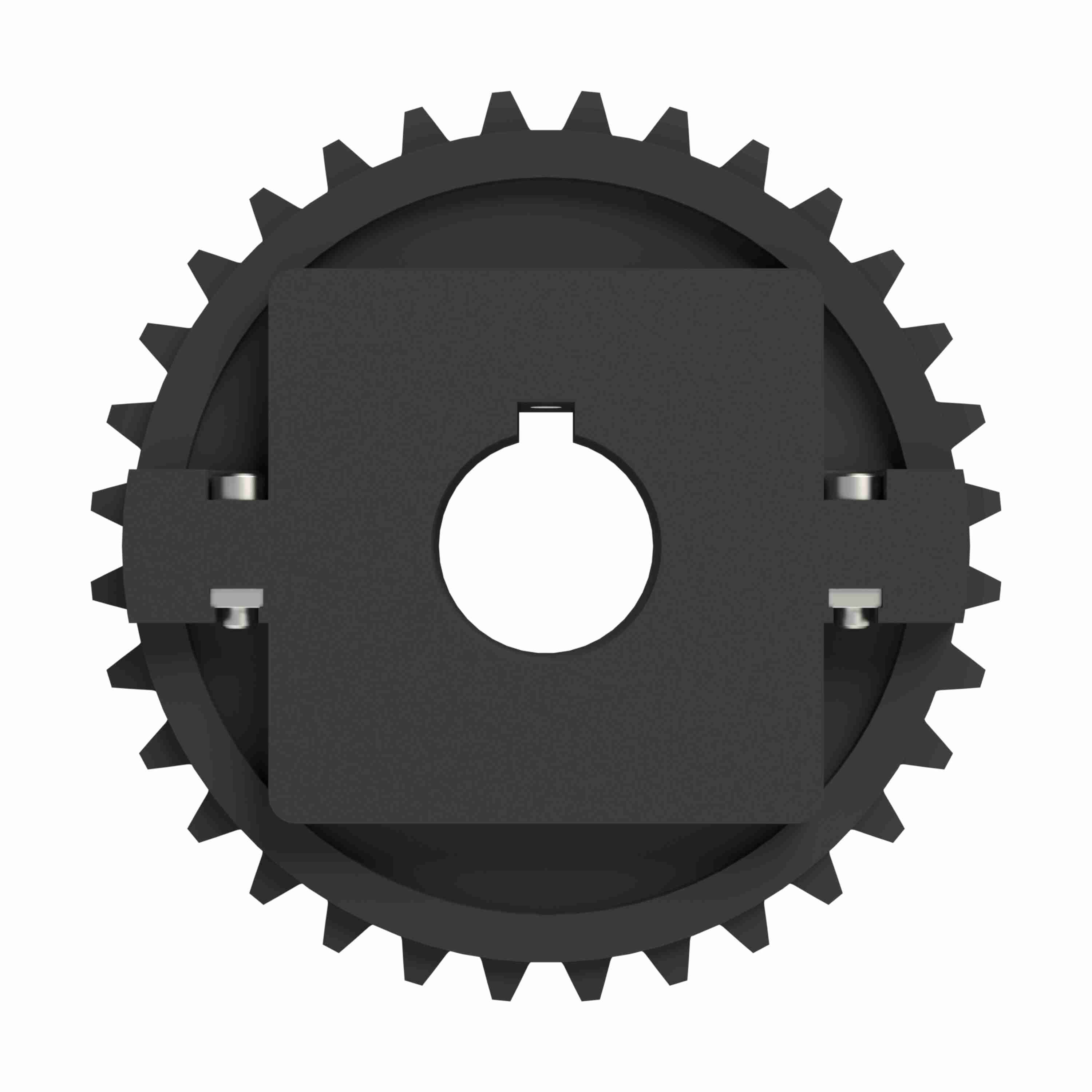

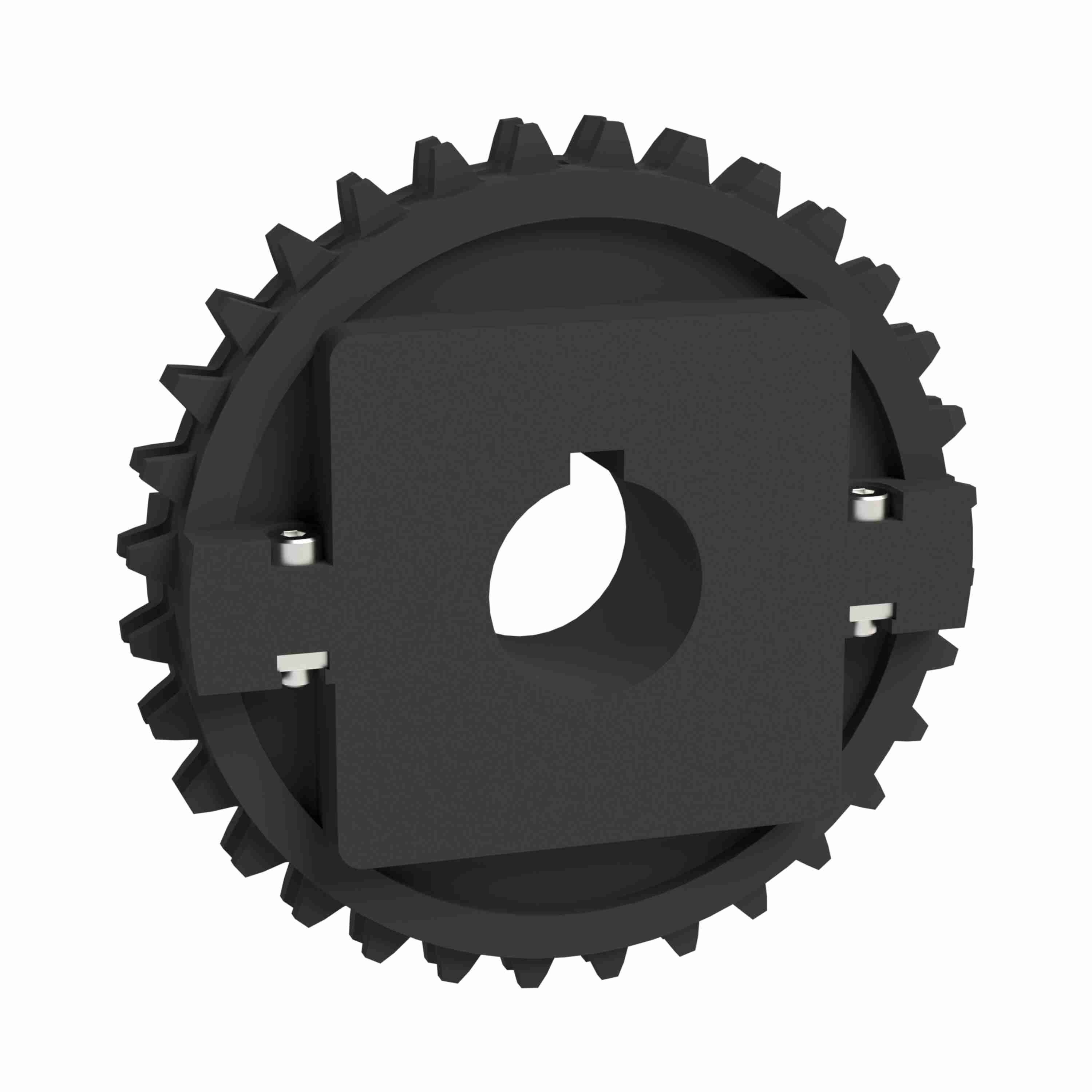

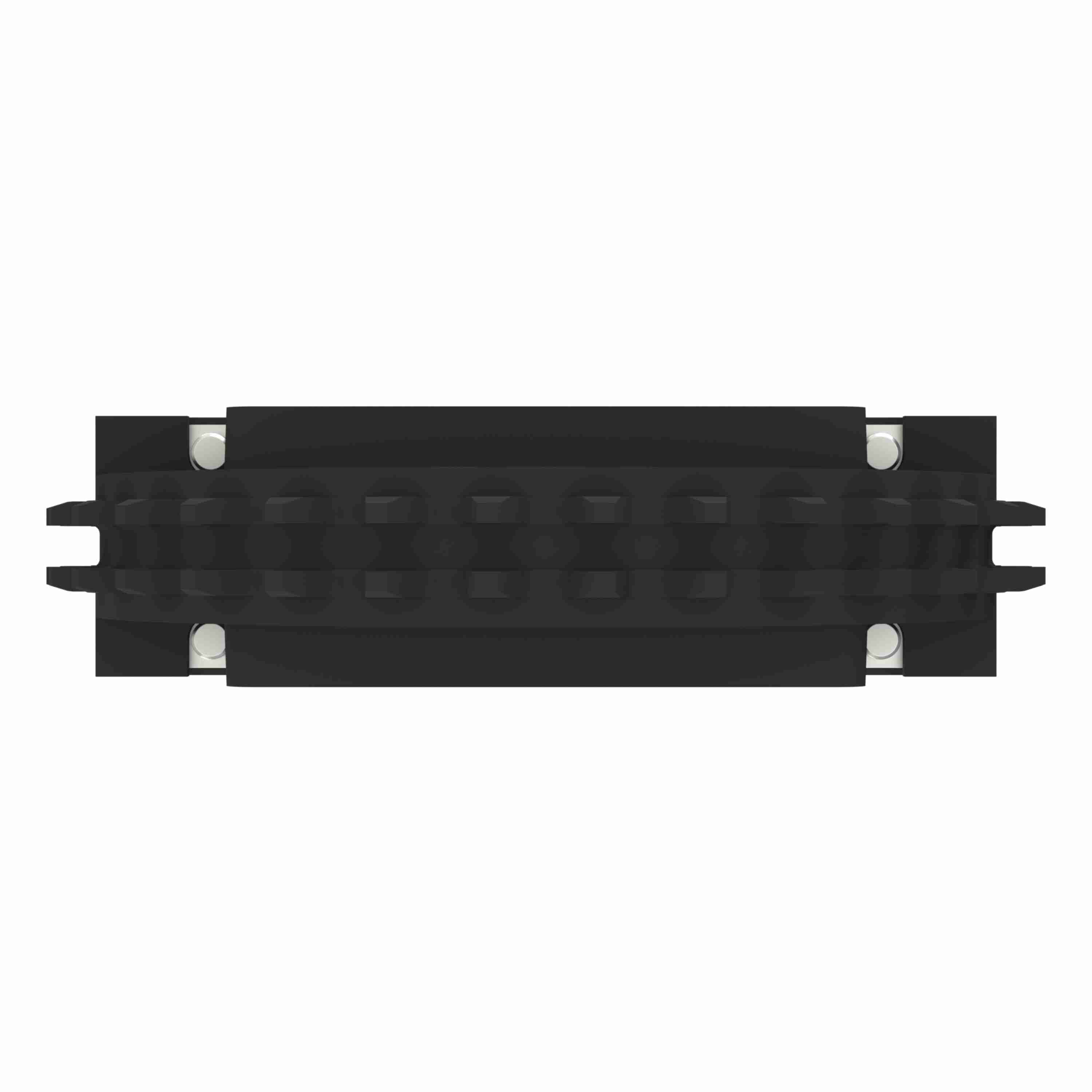

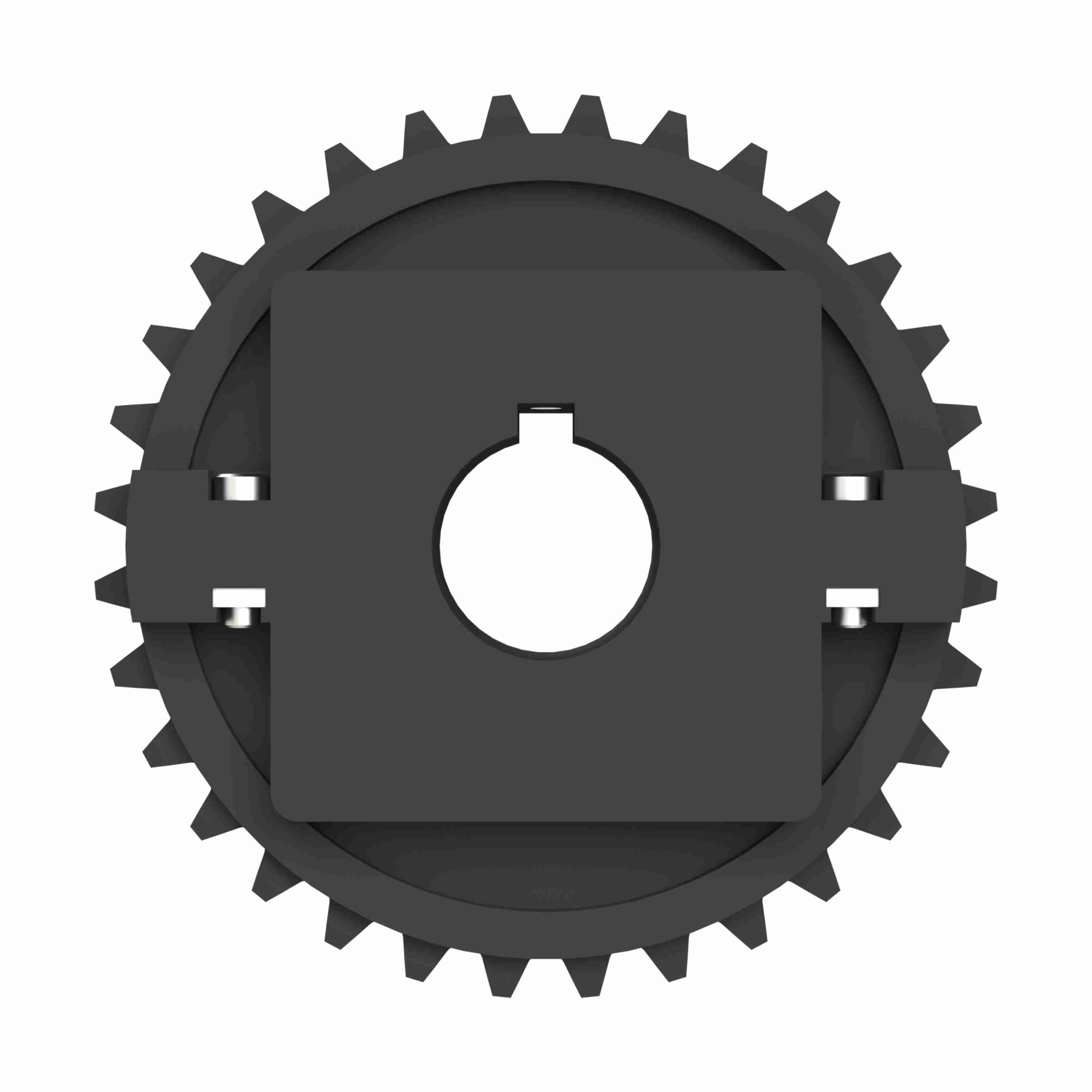

Rexnord 1500 Series Split Molded Nylon Sprocket and a 32 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-181-4
Part #:10028524
Catalog #:614-181-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 32 | Sprocket Series: | 1500 |
| Pitch Diameter (mm): | 153.03 | Number of Keyways: | 1 |
| Bore Shape: | Round | Bore Diameter (in): | 1-7/16 in |
| Number of Set Screws: | 1 Setscrew | Material: | Nylon |
| Product Group: | MatTop® | Pitch Diameter (in): | 6.025 |
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Sprocket Construction: | Molded Split Sprocket | Chain Number: | 1500 |
| Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 793699407891 | Weight: | 0.71 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
