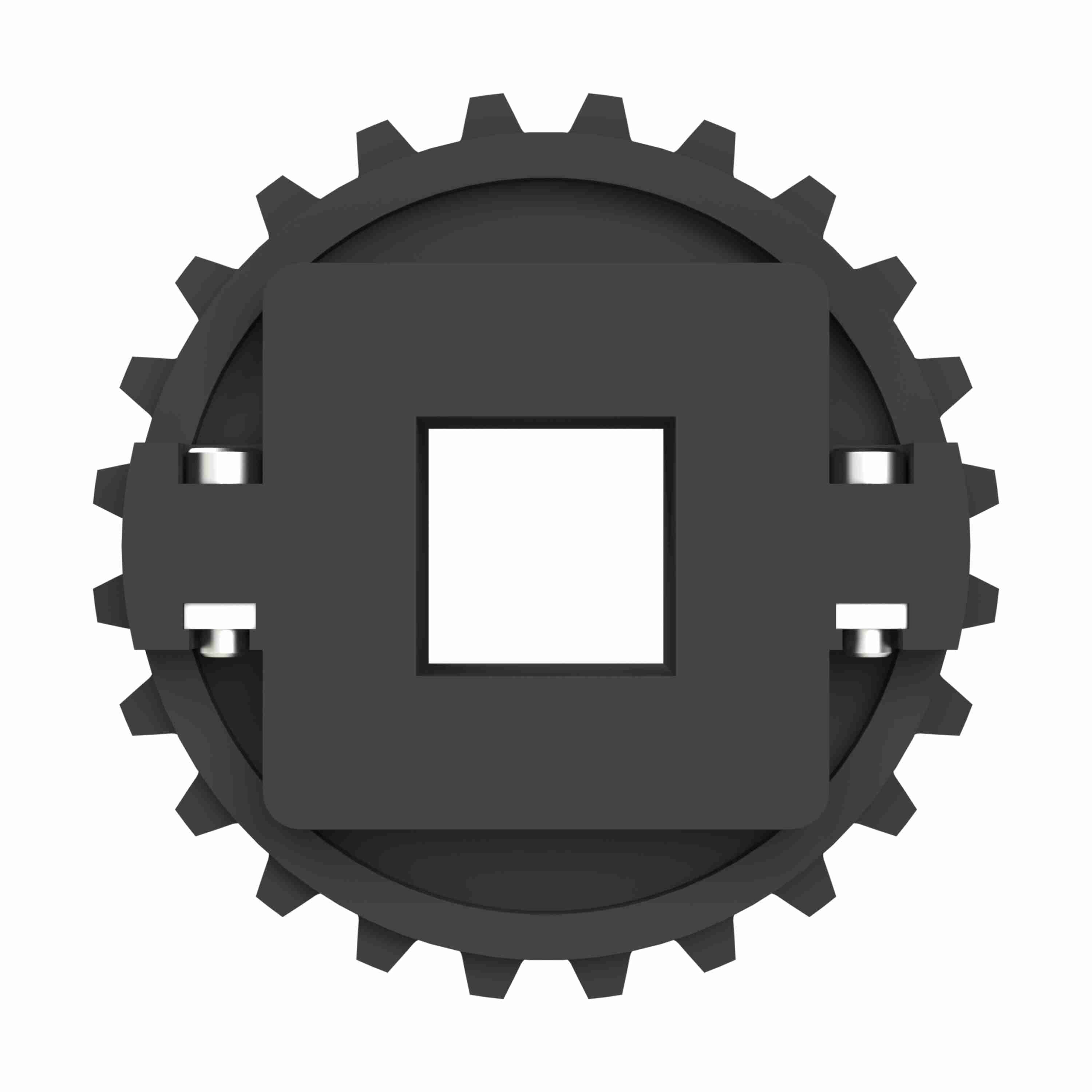

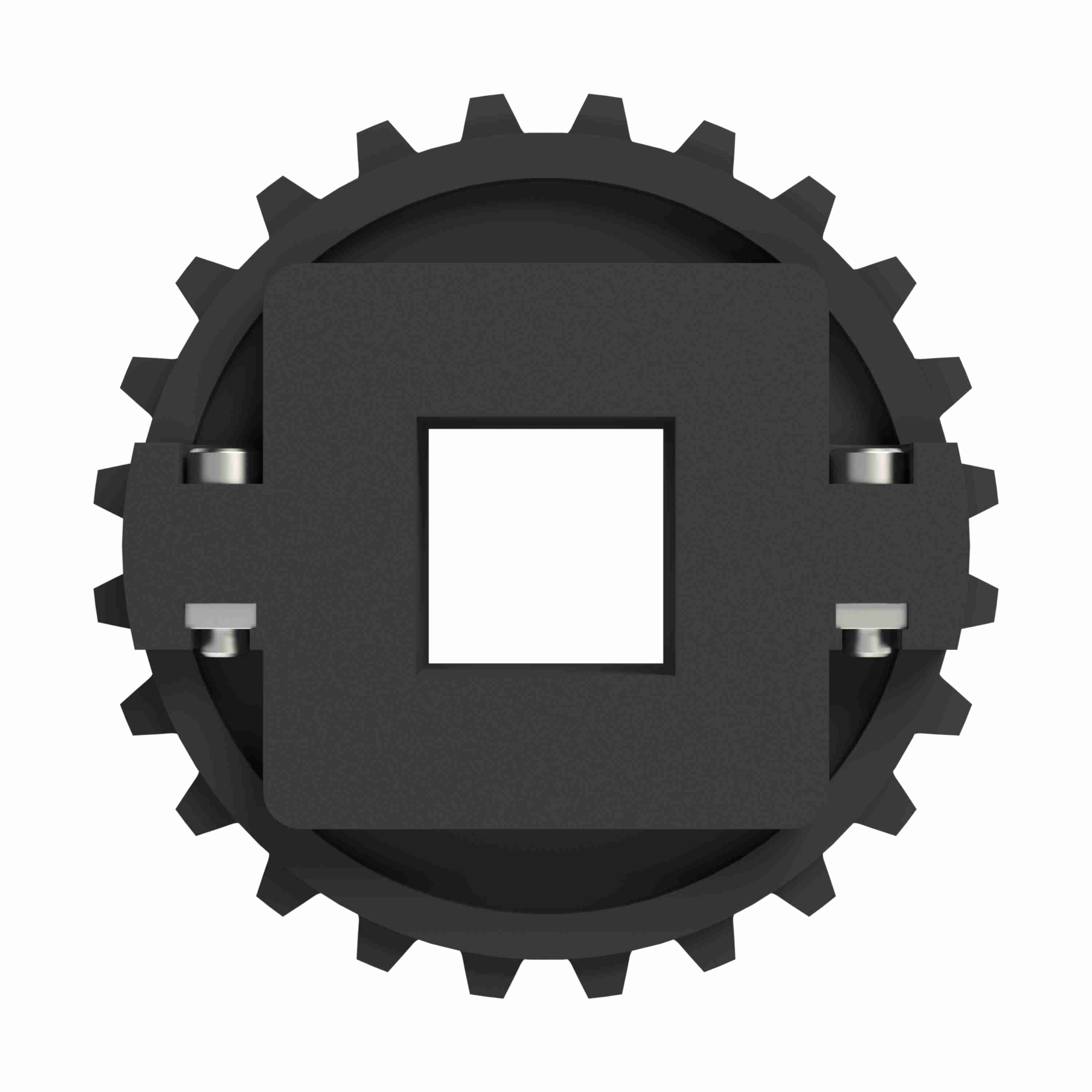

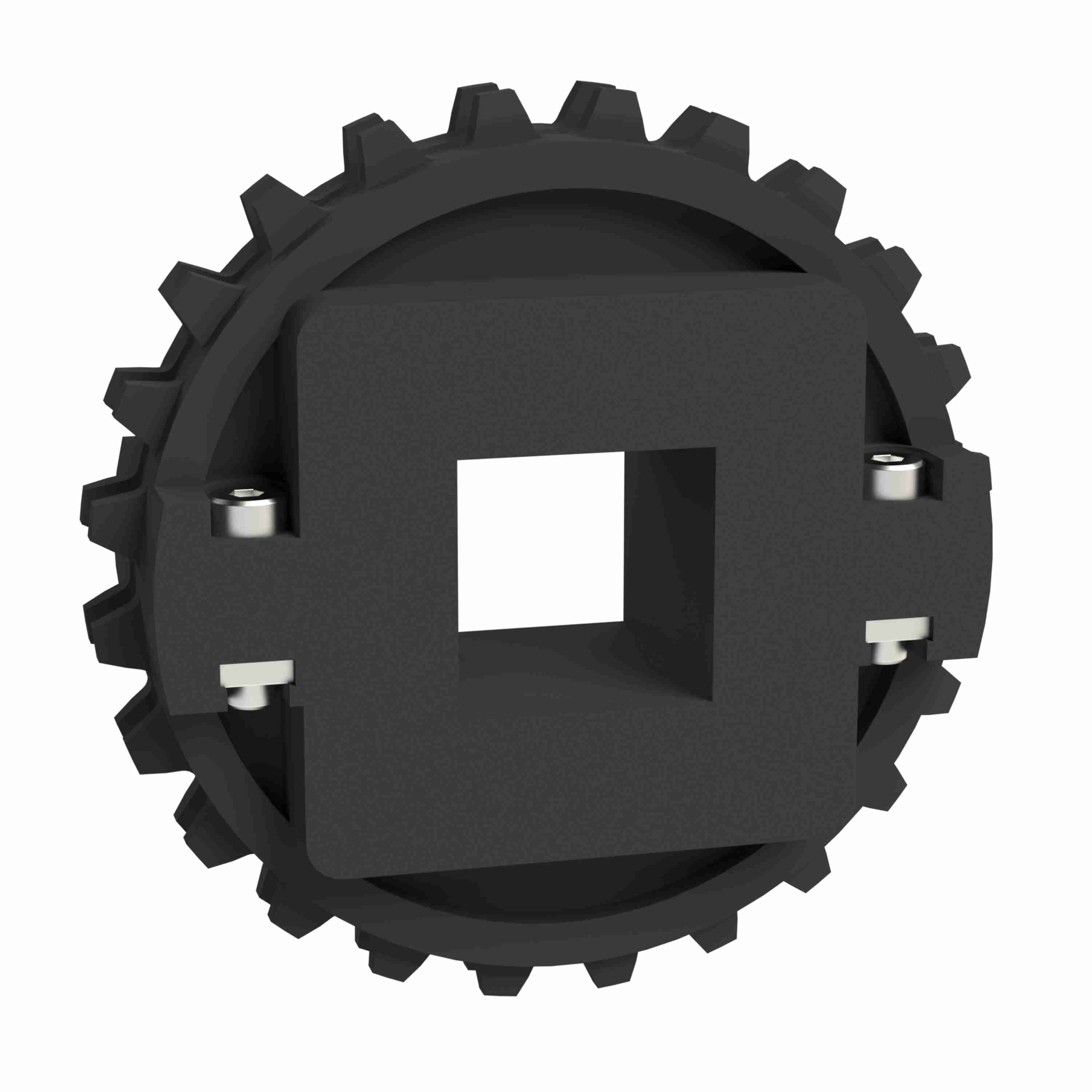

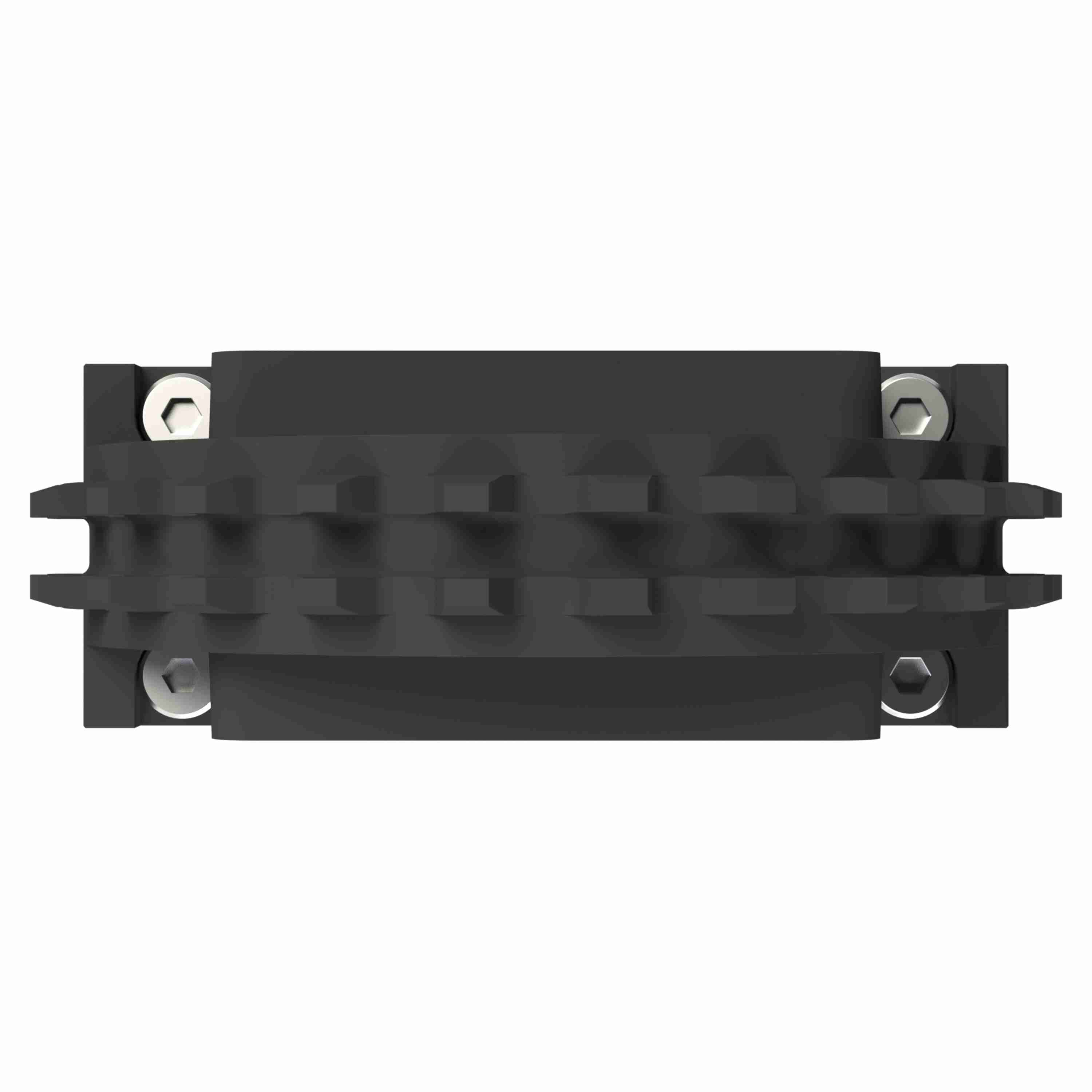

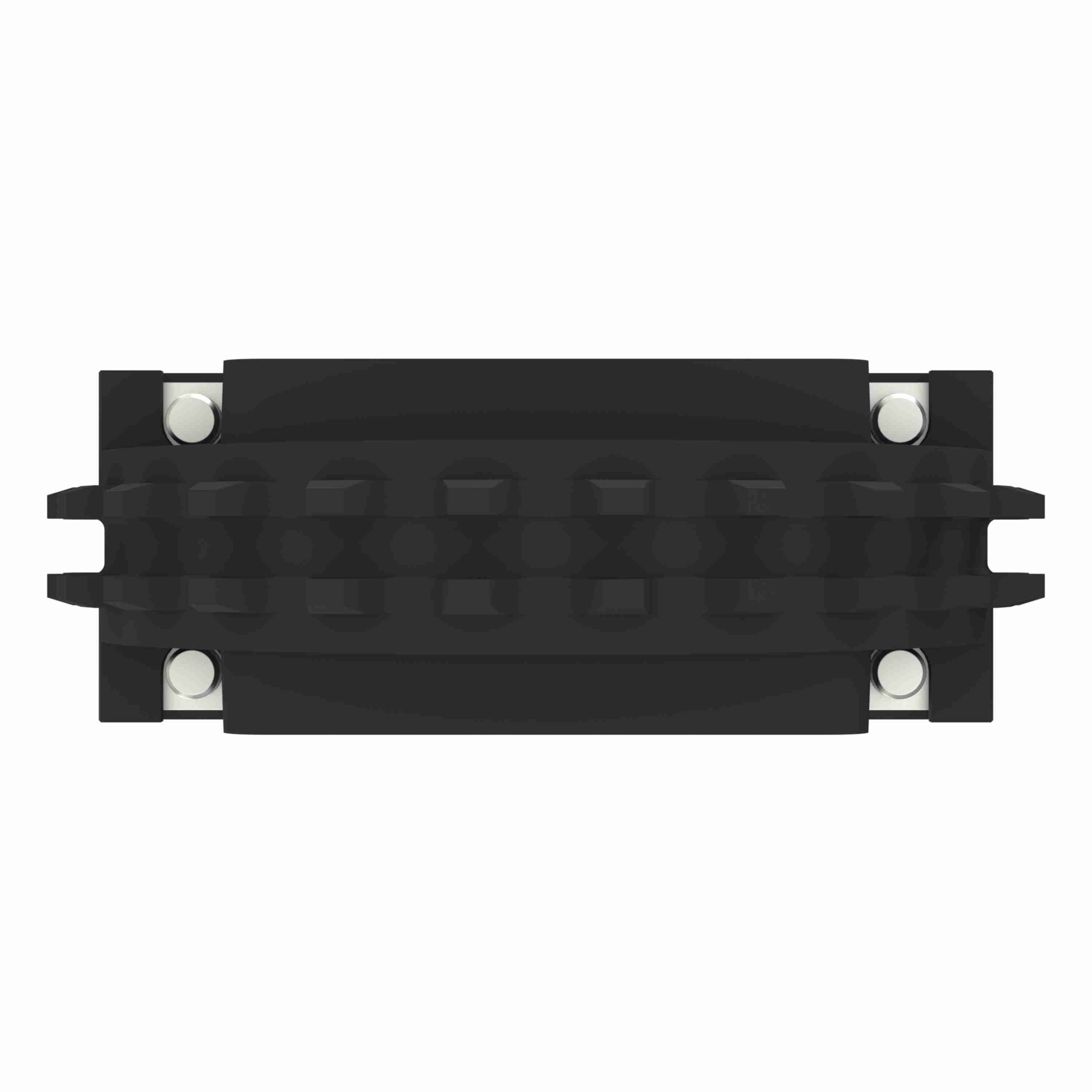

Rexnord 1500 Series Split Molded Nylon Sprocket with 24 Teeth and a 1-1/4in Square Bore - 614-347-1
Part #:10308640
Catalog #:614-347-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Split Sprocket | Sprocket Series: | 1500 |
| Pitch Diameter (in): | 4.524 | Number of Set Screws: | None |
| Product Line: | Chain and Belt Sprockets | Bore Shape: | Square |
| Hub Type: | C-HUB | Product Group: | MatTop® |
| Number of Keyways: | 0 | Material: | Nylon |
| Bore Type: | Shaft-Ready | Chain Number: | 1500 |
| Number of Teeth: | 24 | Bore Diameter (in): | 1-1/4 in |
| Pitch Diameter (mm): | 114.92 | Body Style: | Block |
General Specifications
| UPC: | 782934768064 | Weight: | 0.53 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
