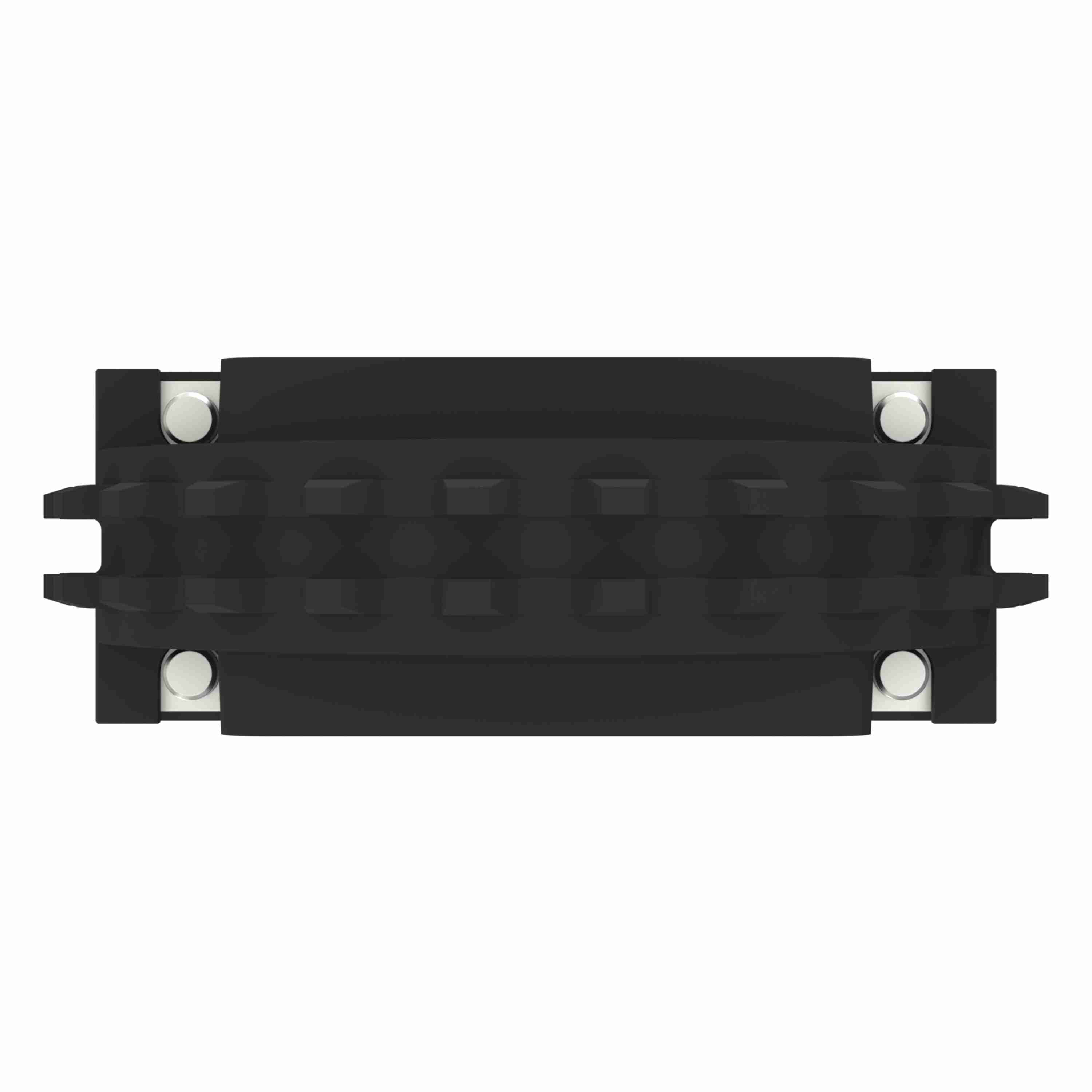

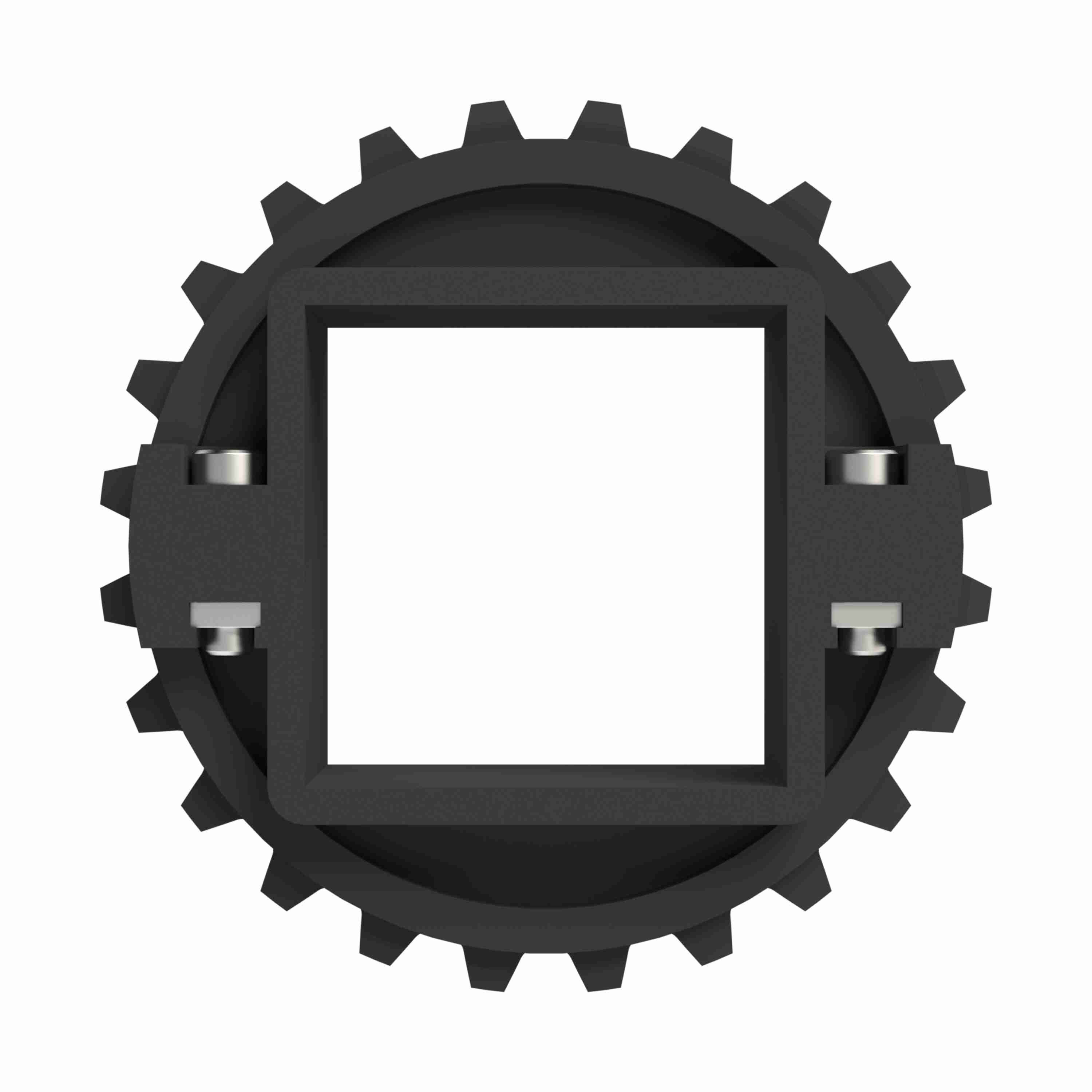

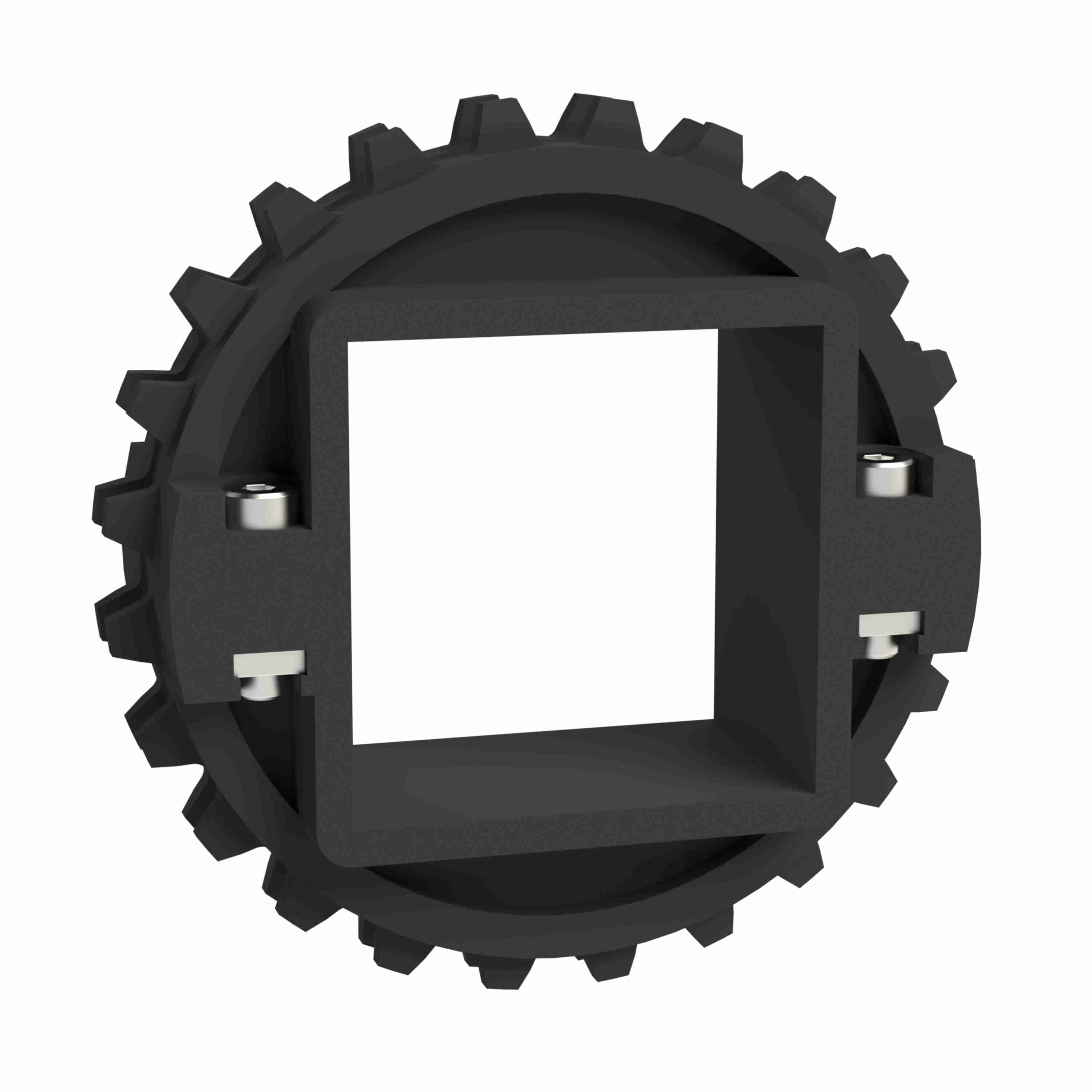

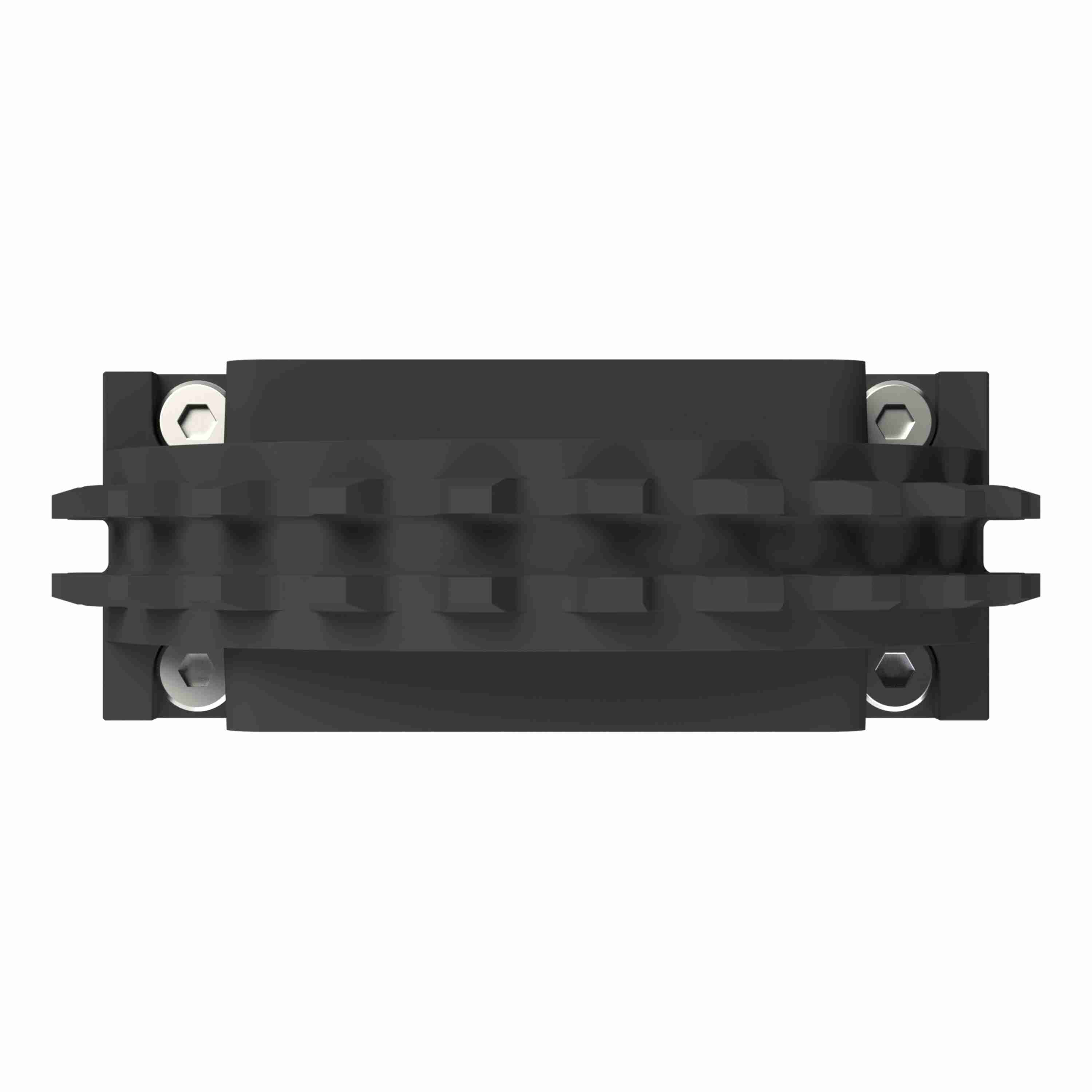

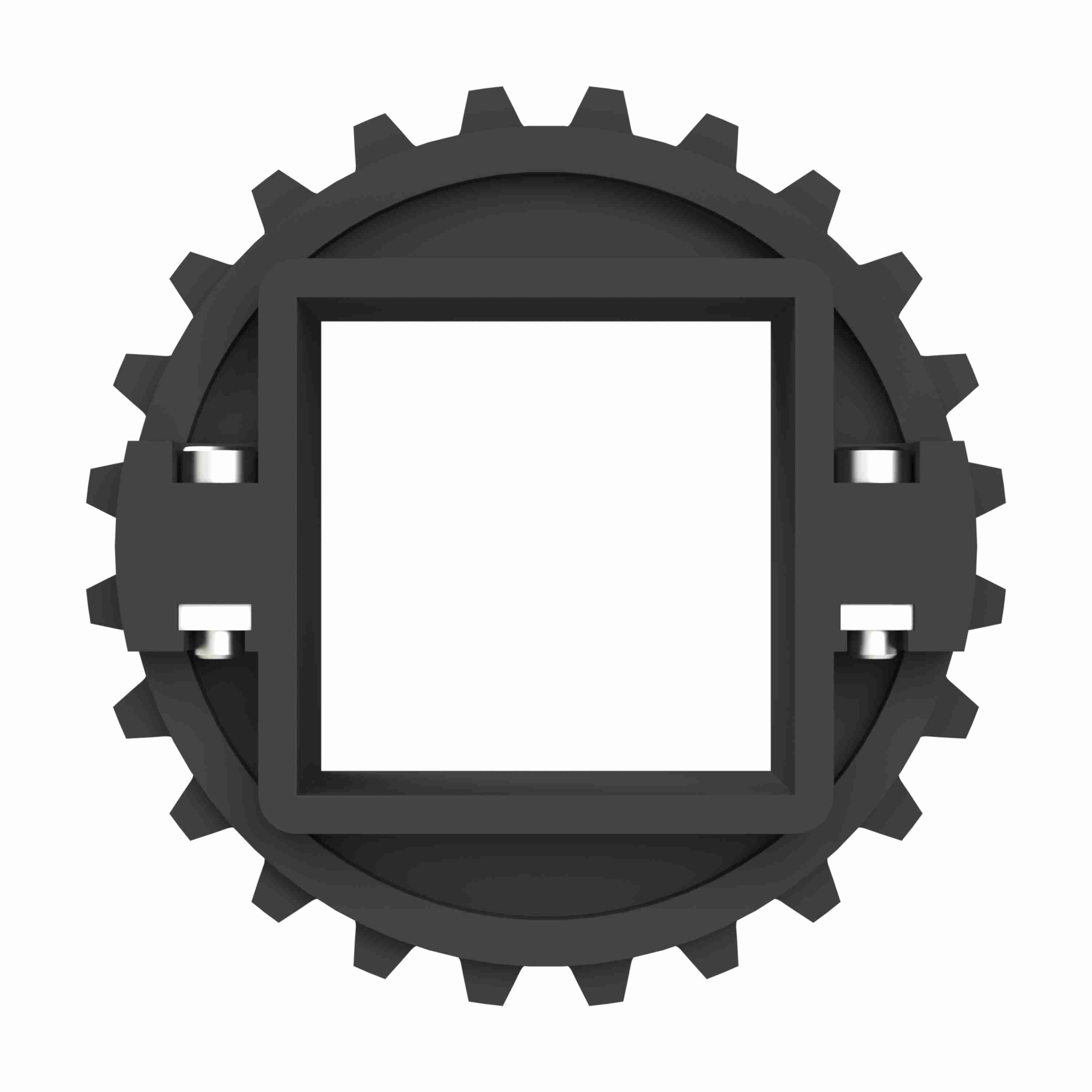

Rexnord 1500 Series Split Molded Nylon Sprocket with 24 Teeth and a 60mm Square Bore - 614-142-1
Part #:10333775
Catalog #:614-142-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Keyways: | 0 | Body Style: | Block |
| Bore Type: | Shaft-Ready | Sprocket Series: | 1500 |
| Bore Shape: | Square | Pitch Diameter (in): | 4.524 |
| Material: | Nylon | Bore Diameter (mm): | 60 mm |
| Product Group: | MatTop® | Chain Number: | 1500 |
| Number of Set Screws: | None | Sprocket Construction: | Molded Split Sprocket |
| Number of Teeth: | 24 | Pitch Diameter (mm): | 114.92 |
| Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 782934921773 | Weight: | 0.53 LB |
| HTC: | 8483901050 | Country of Origin: | Mexico |
