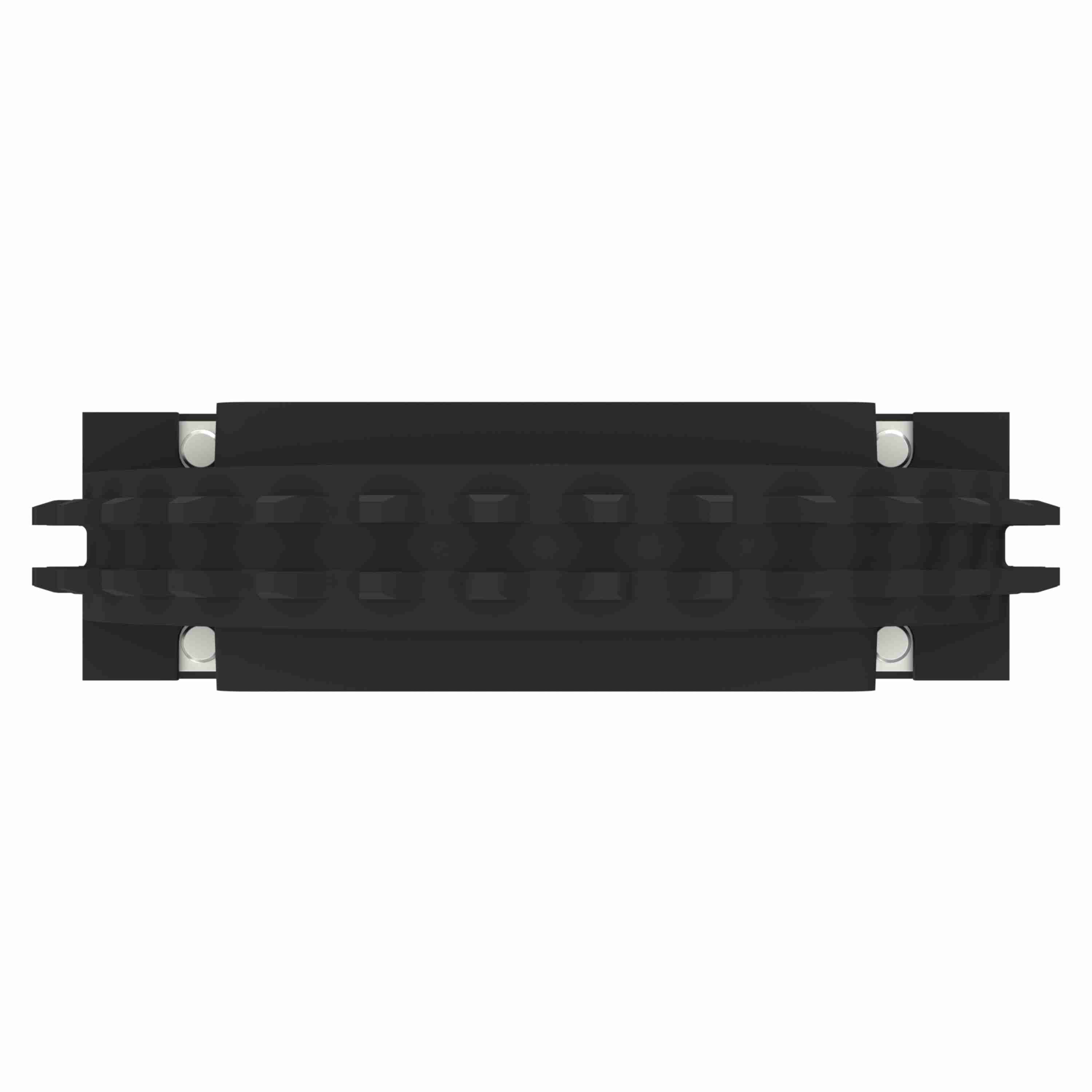

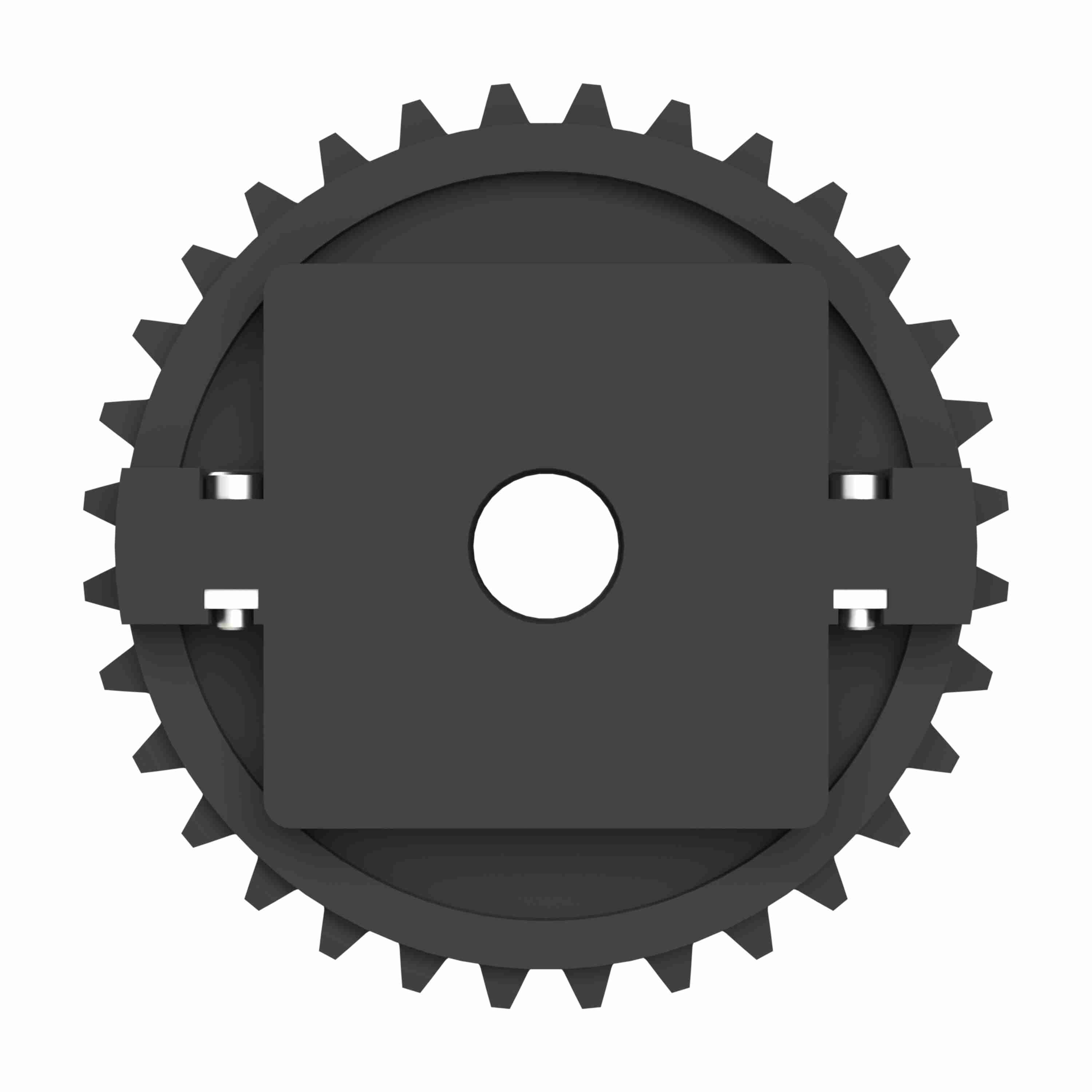

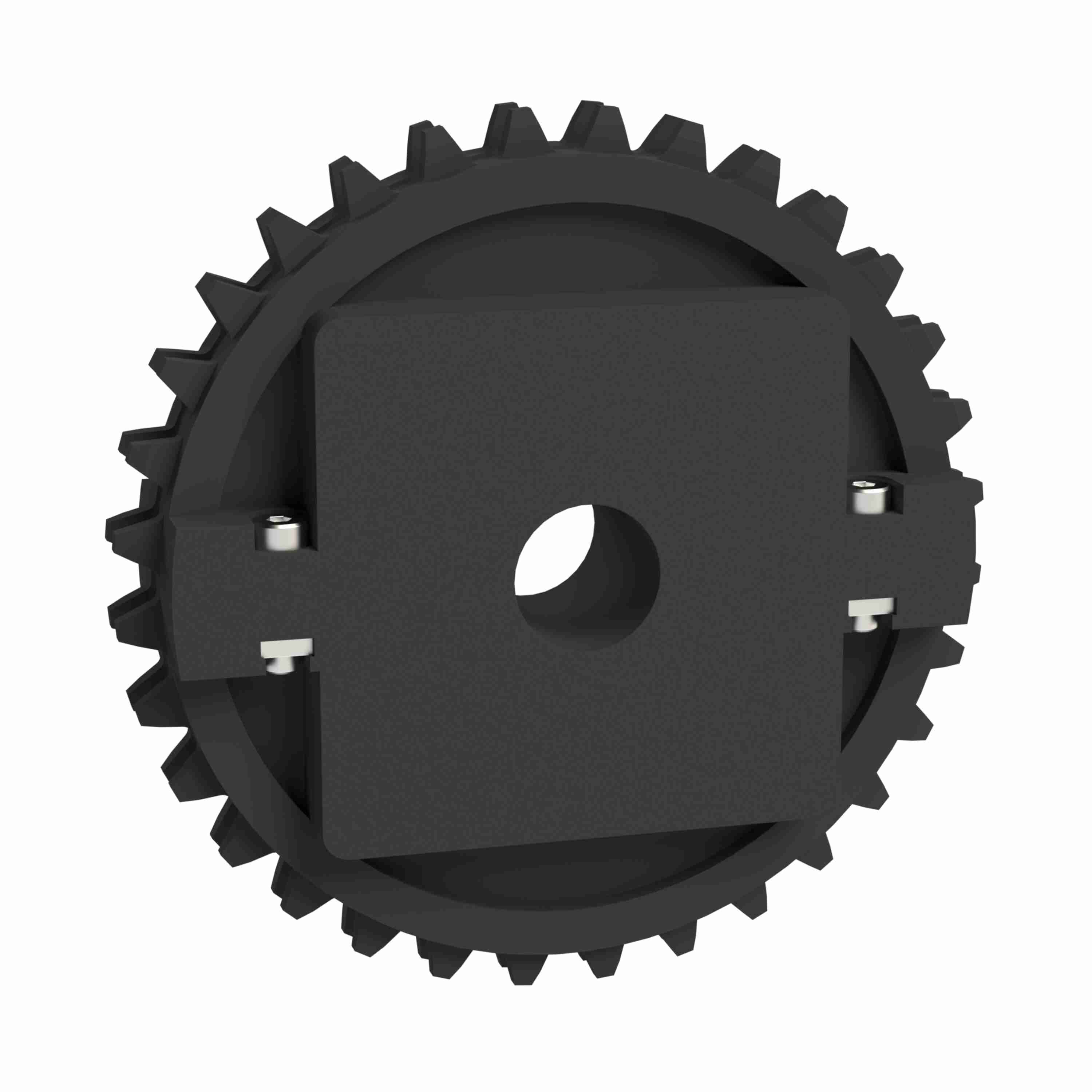

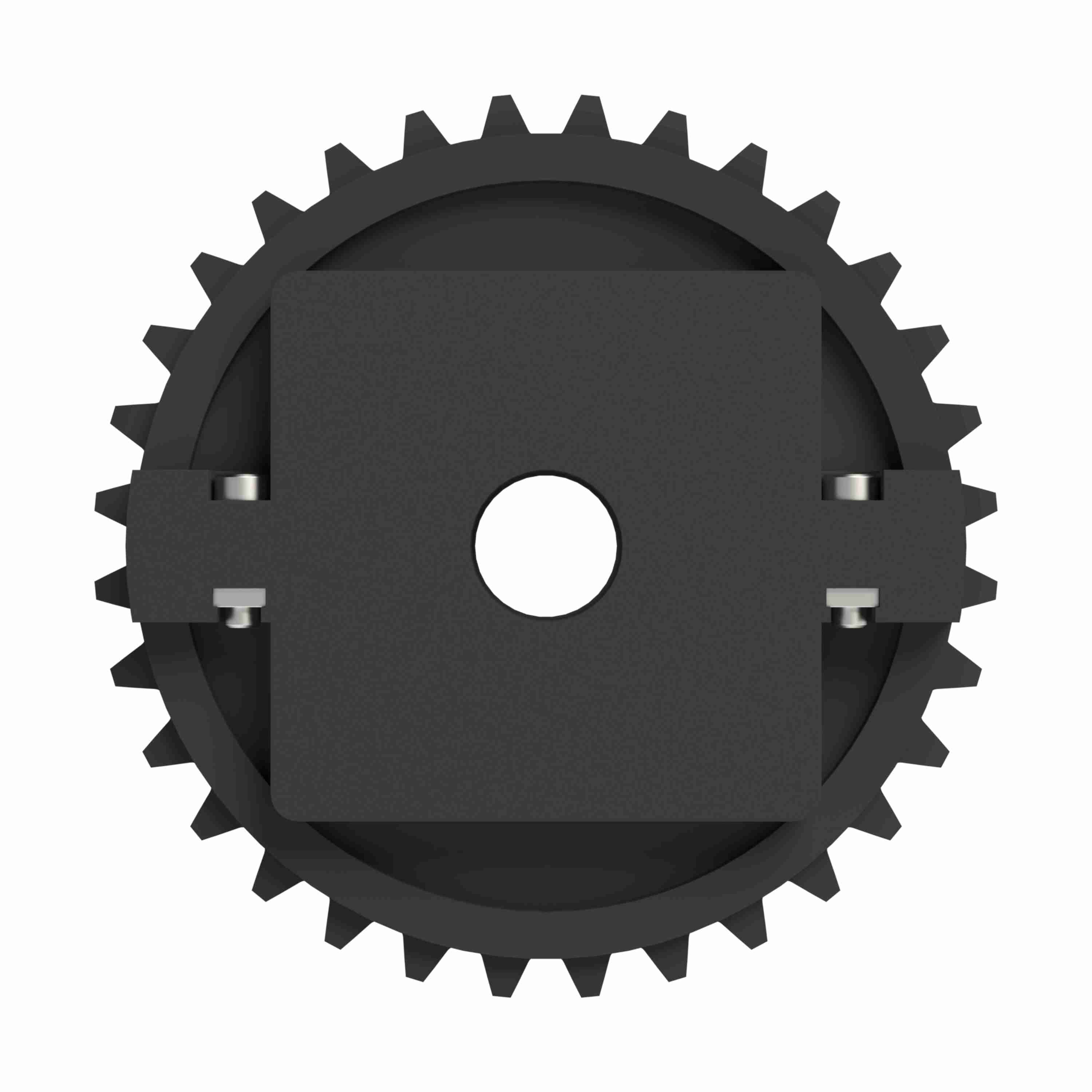

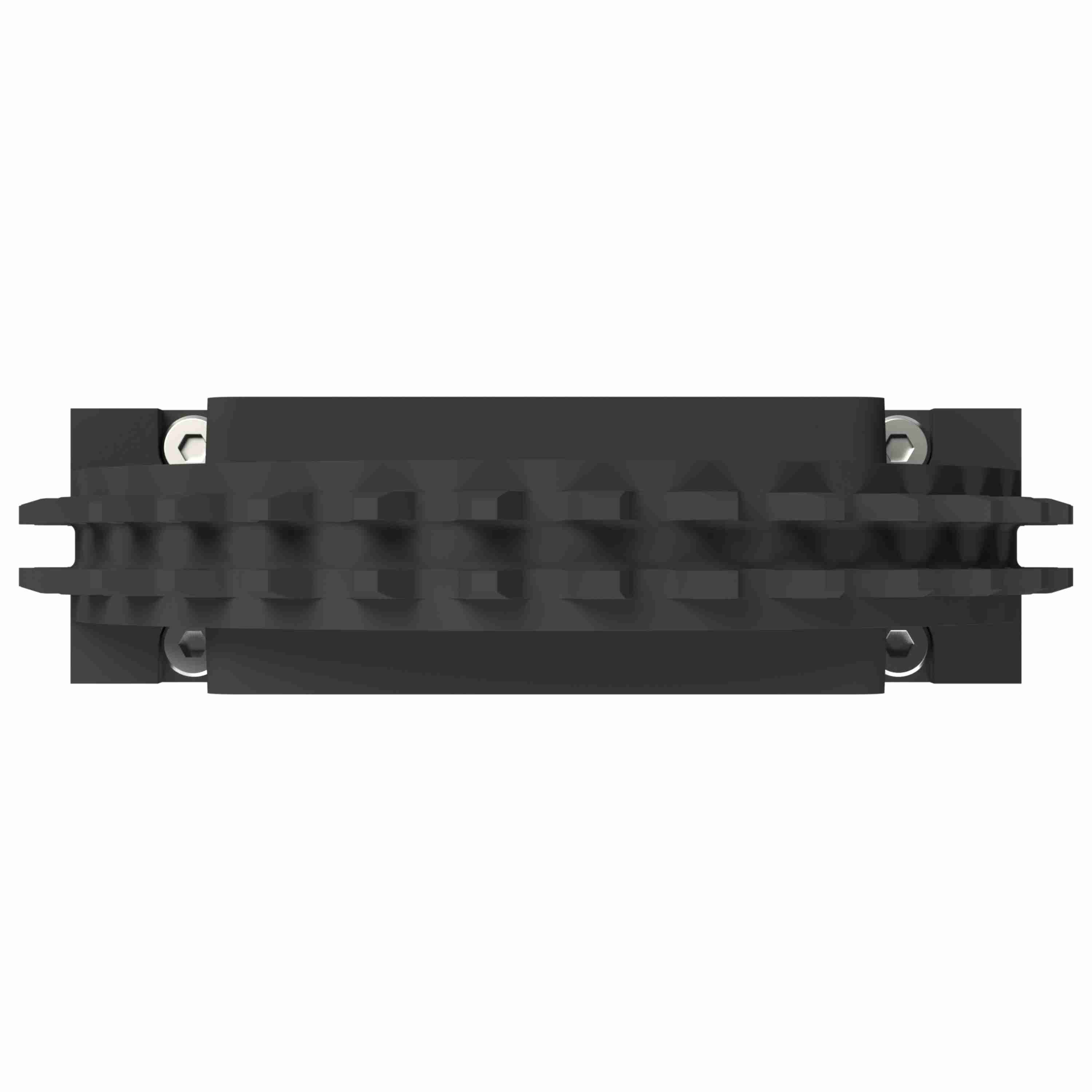

Rexnord 1500 Series Split Molded Nylon Sprocket with 32 Teeth and 1in Round Idler Bore - 614-181-7
Part #:10028517
Catalog #:614-181-7
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Split Sprocket | Bore Diameter (in): | 1 in |
| Product Group: | MatTop® | Chain Number: | 1500 |
| Bore Shape: | Round | Number of Keyways: | 0 |
| Material: | Nylon | Product Line: | Chain and Belt Sprockets |
| Bore Type: | Idler | Number of Teeth: | 32 |
| Hub Type: | C-HUB | Pitch Diameter (in): | 6.025 |
| Pitch Diameter (mm): | 153.03 | Body Style: | Block |
| Number of Set Screws: | None | Sprocket Series: | 1500 |
General Specifications
| UPC: | 793699407945 | Weight: | 0.71 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
