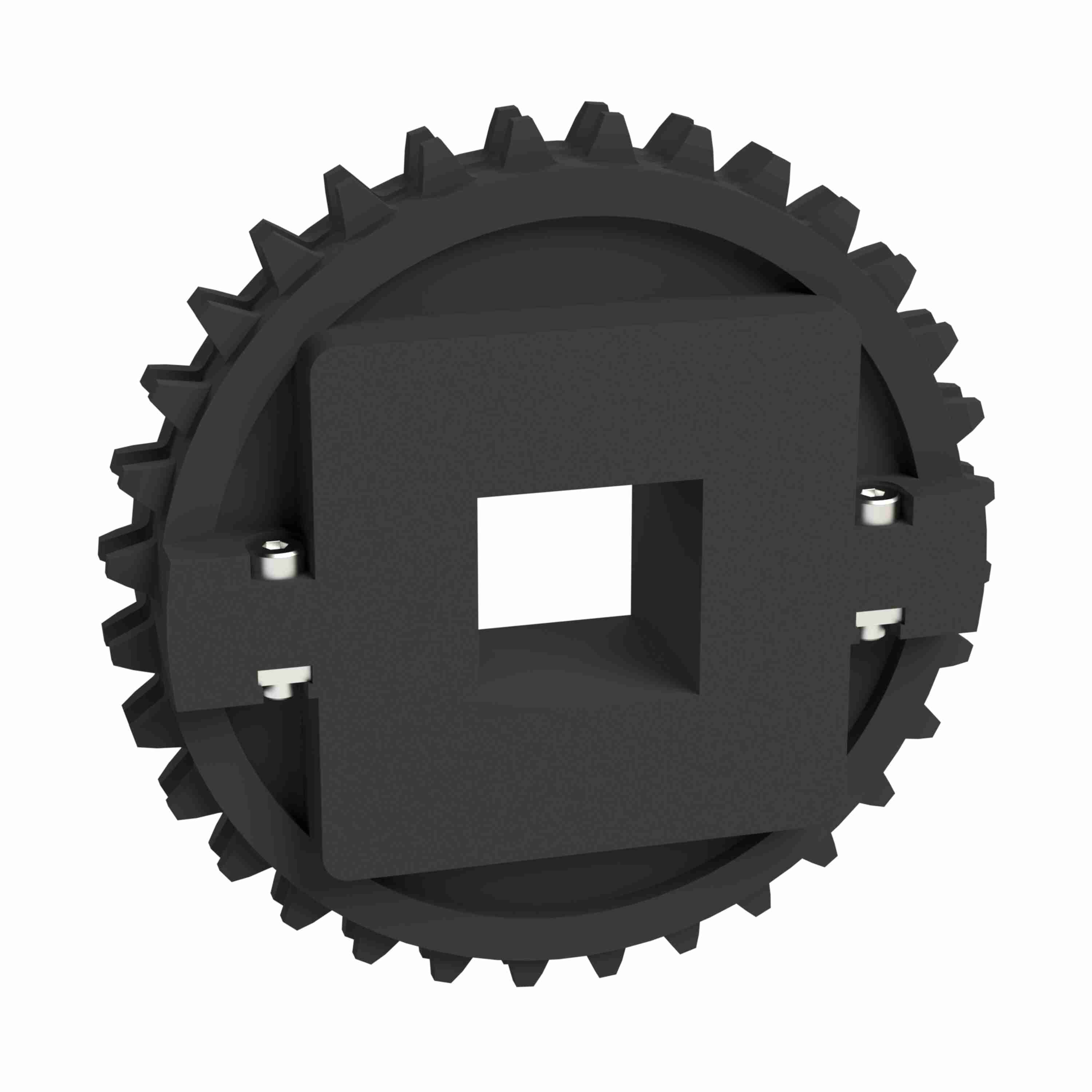

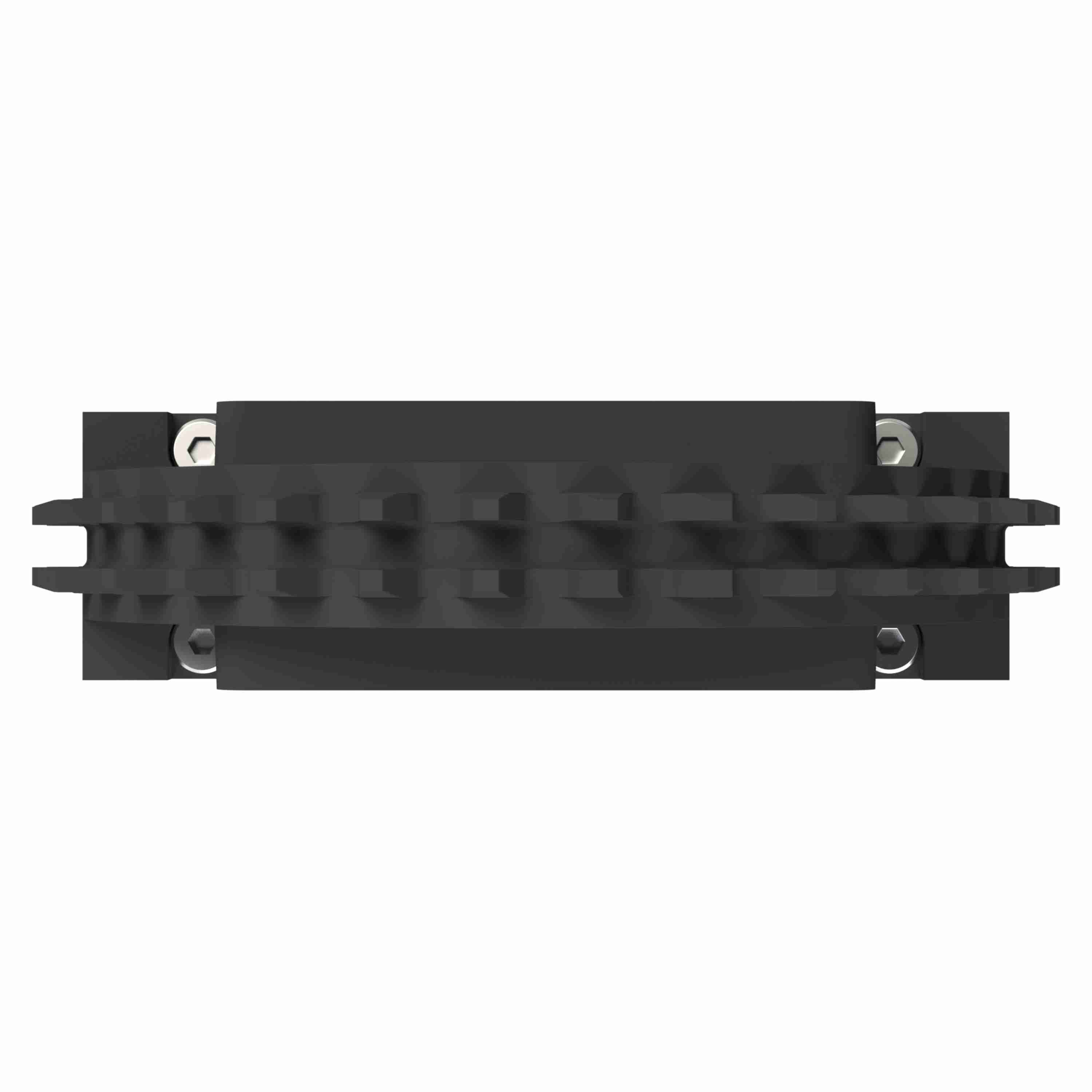

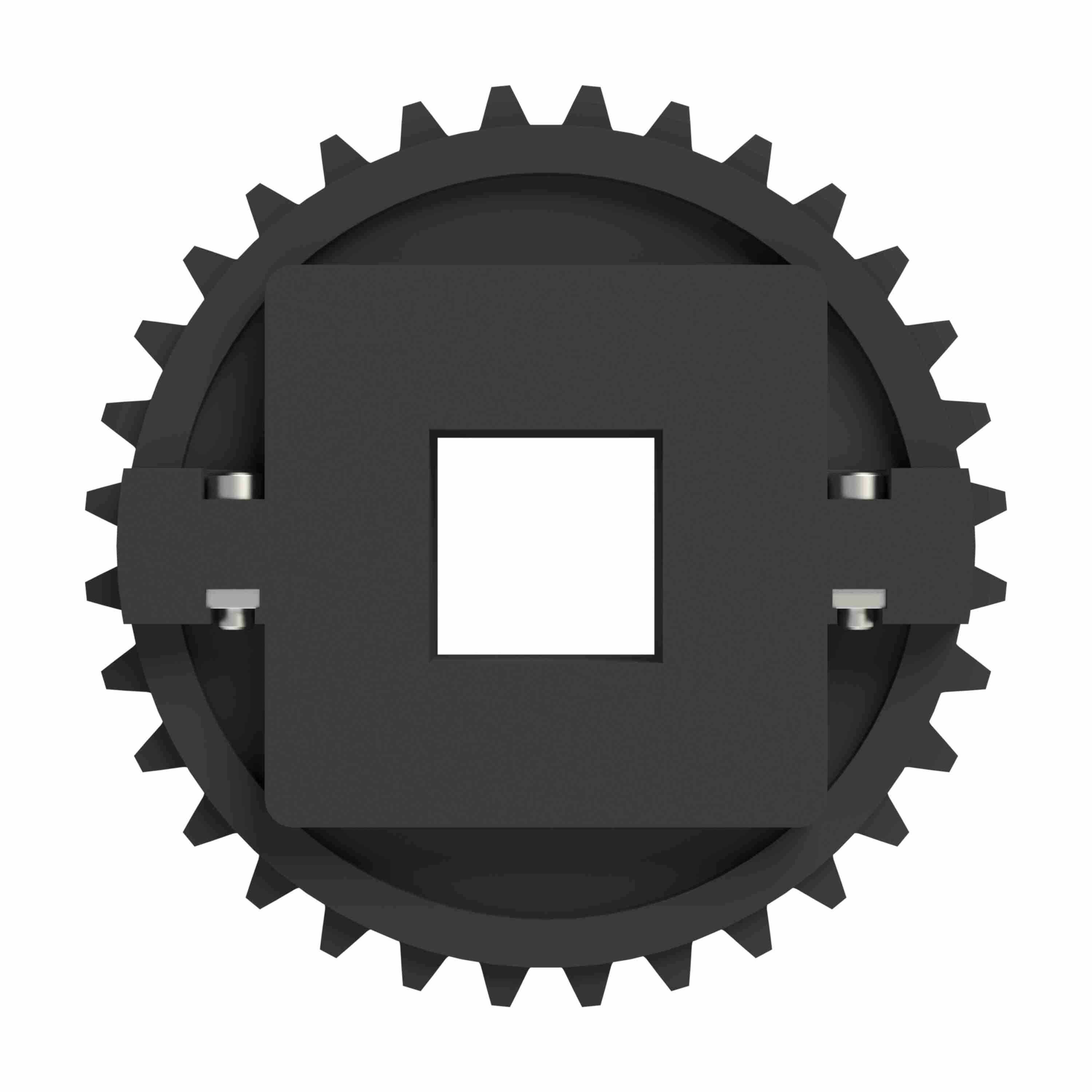

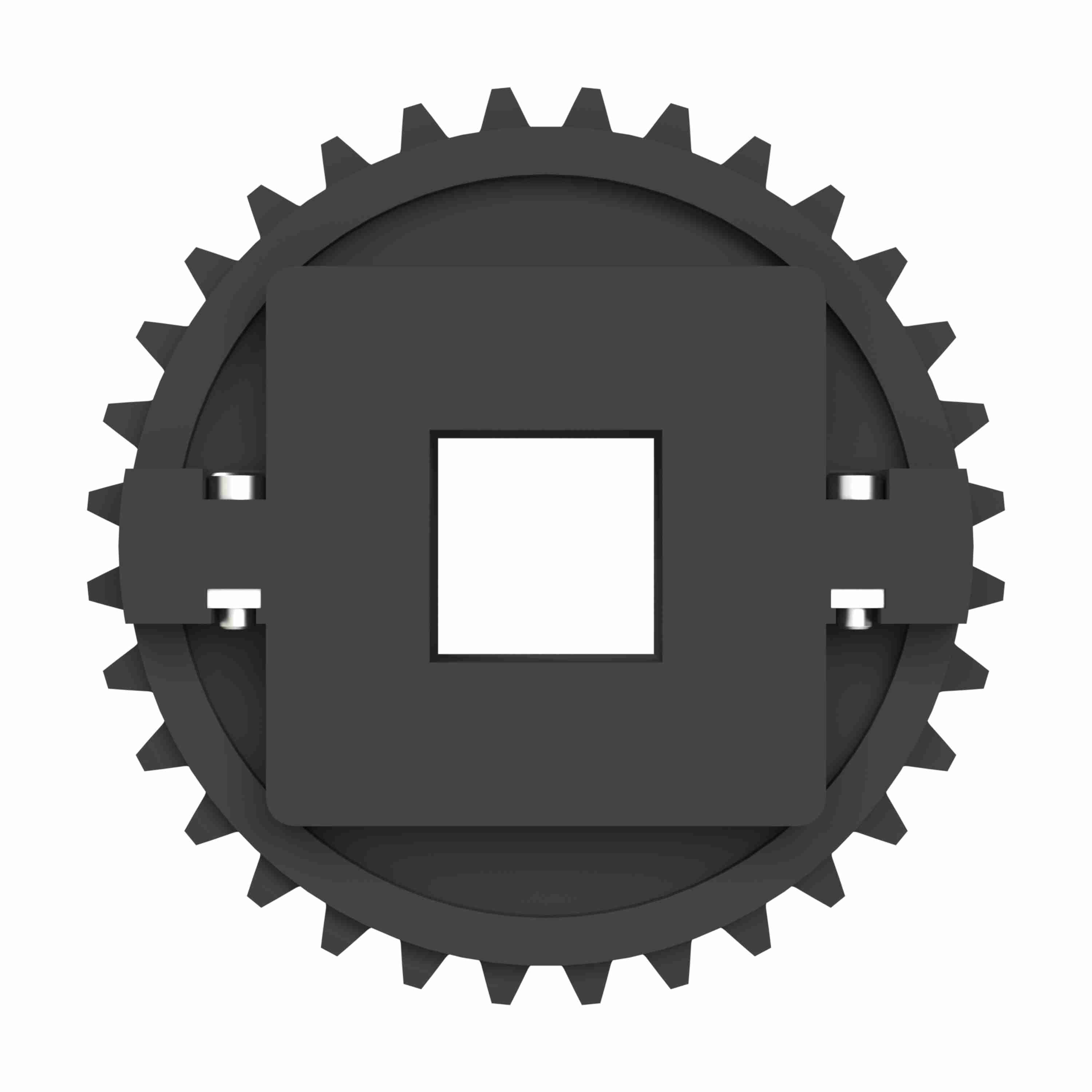

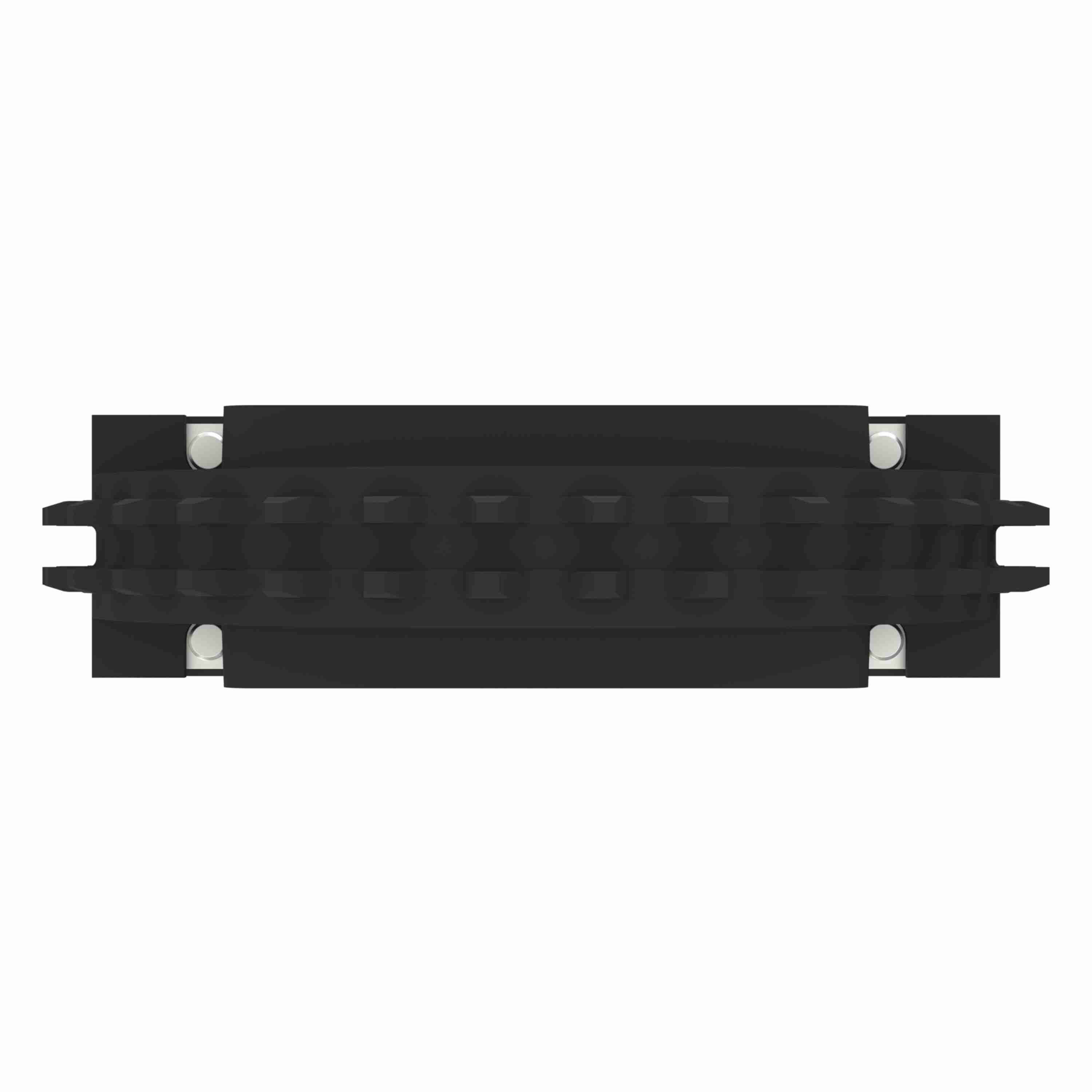

Rexnord 1500 Series Split Molded Nylon Sprocket with 32 Teeth and a 1-1/4in Square Bore - 614-148-5
Part #:10283099
Catalog #:614-148-5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Chain Number: | 1500 |
| Sprocket Series: | 1500 | Hub Type: | C-HUB |
| Sprocket Construction: | Molded Split Sprocket | Bore Type: | Shaft-Ready |
| Body Style: | Block | Bore Diameter (in): | 1-1/4 in |
| Number of Teeth: | 32 | Pitch Diameter (mm): | 153.03 |
| Number of Keyways: | 0 | Product Line: | Chain and Belt Sprockets |
| Product Group: | MatTop® | Bore Shape: | Square |
| Pitch Diameter (in): | 6.025 | Number of Set Screws: | None |
General Specifications
| UPC: | 782934730467 | Weight: | 1.10 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
