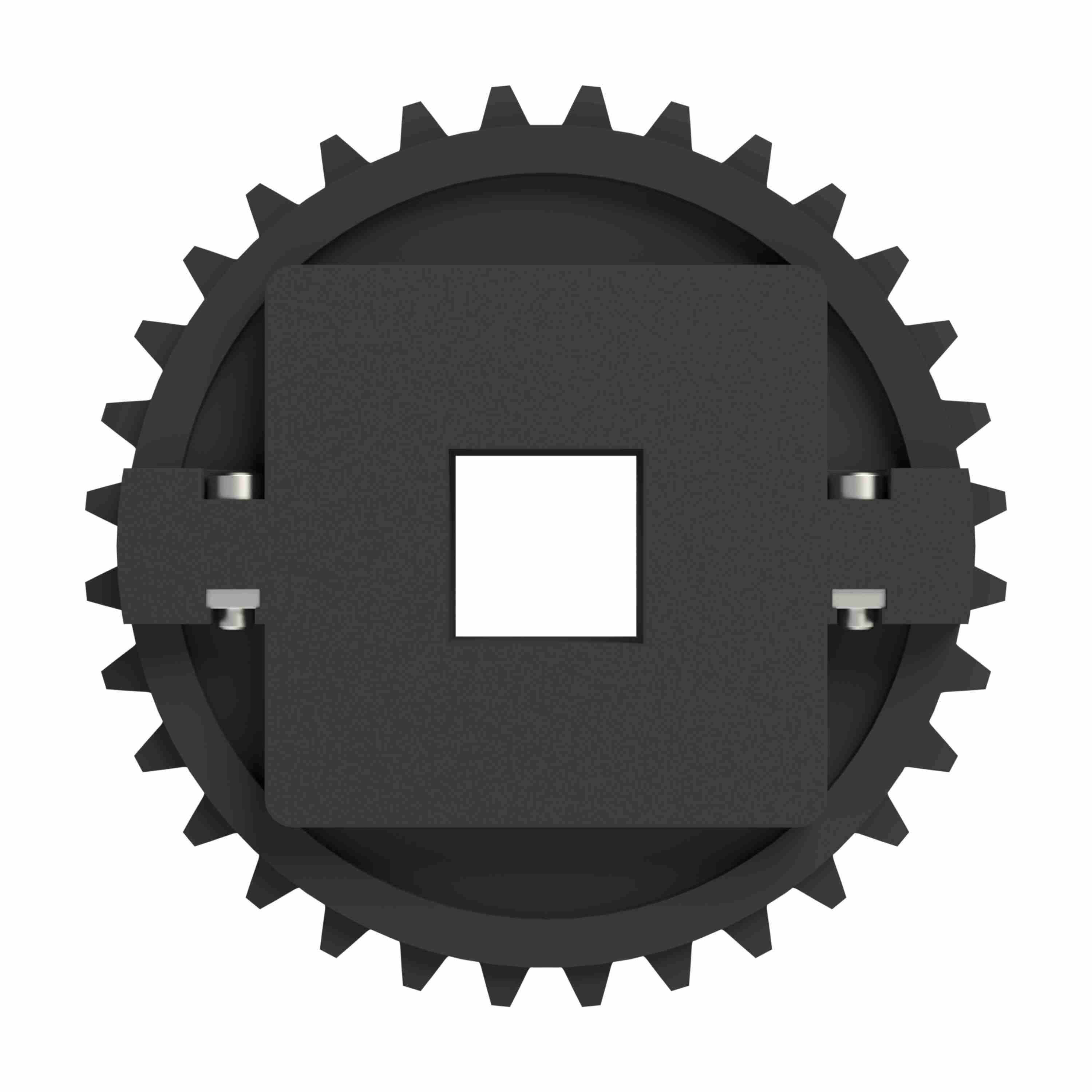

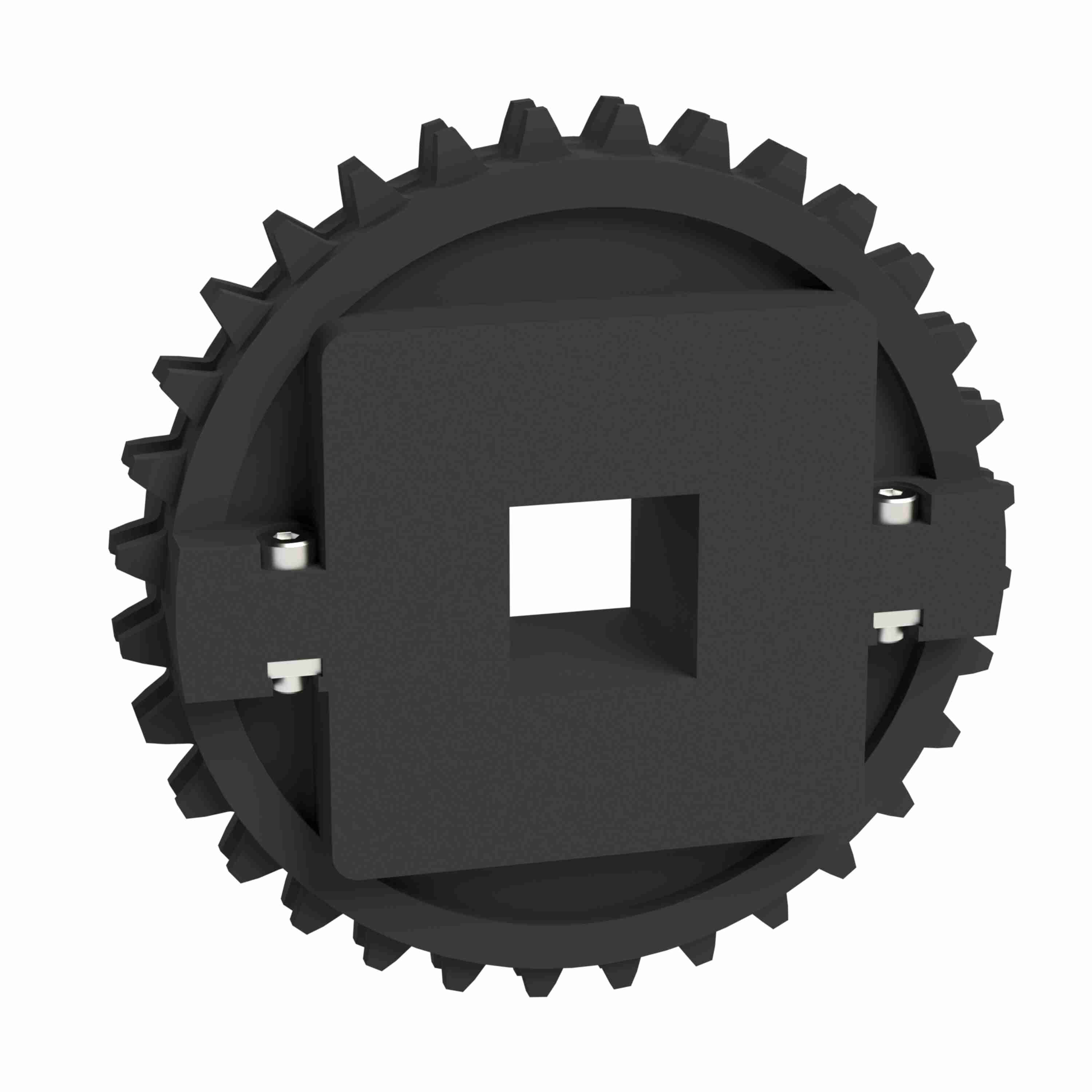

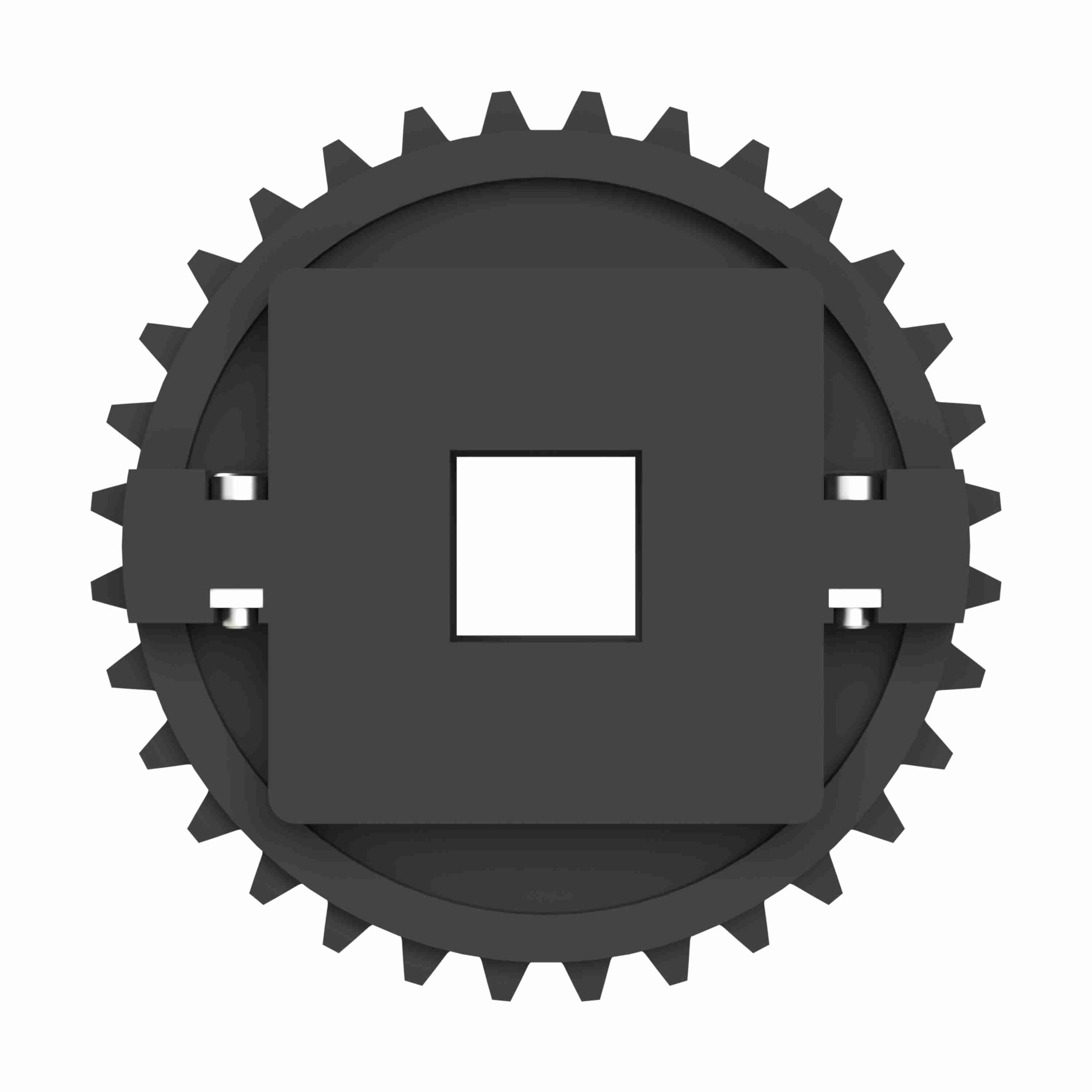

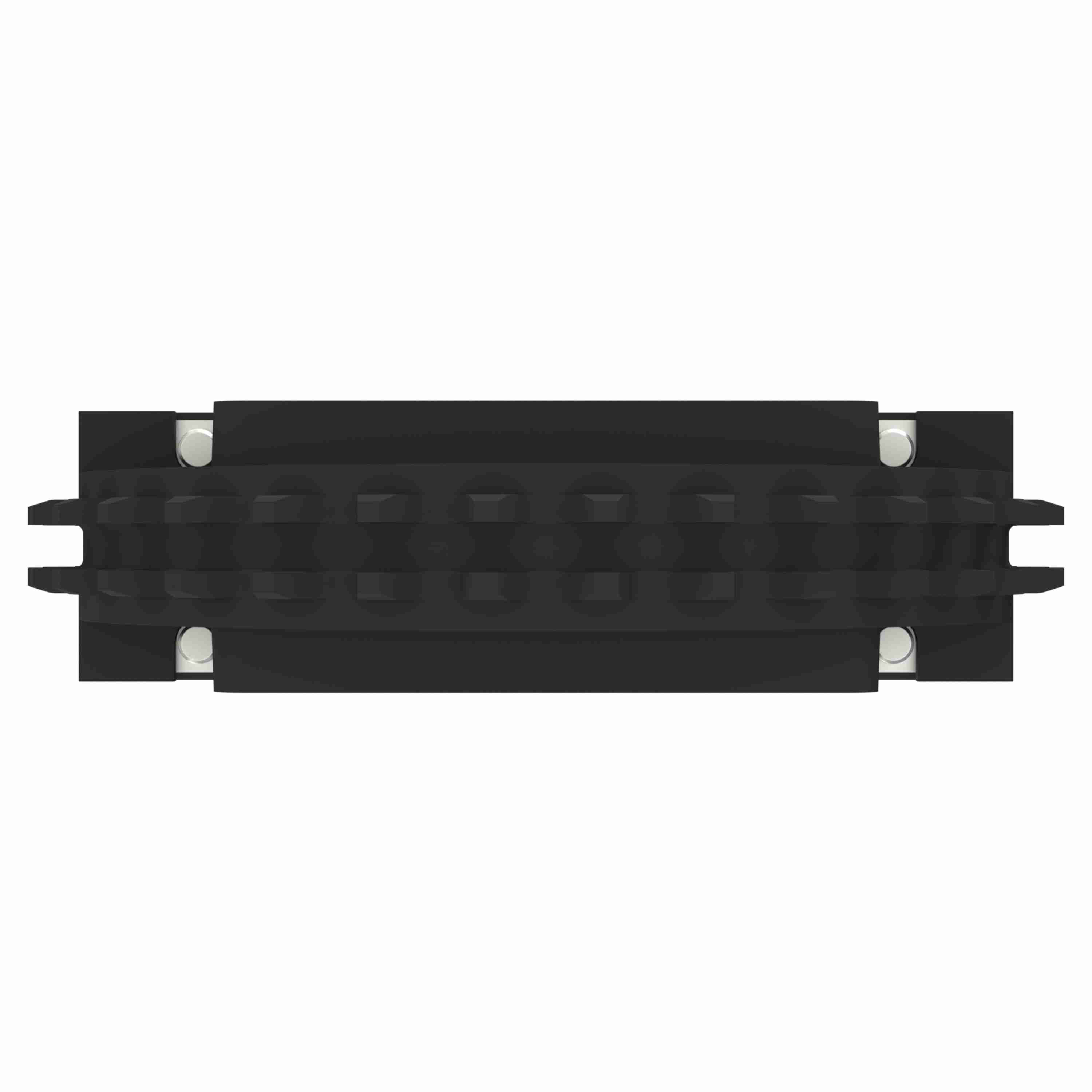

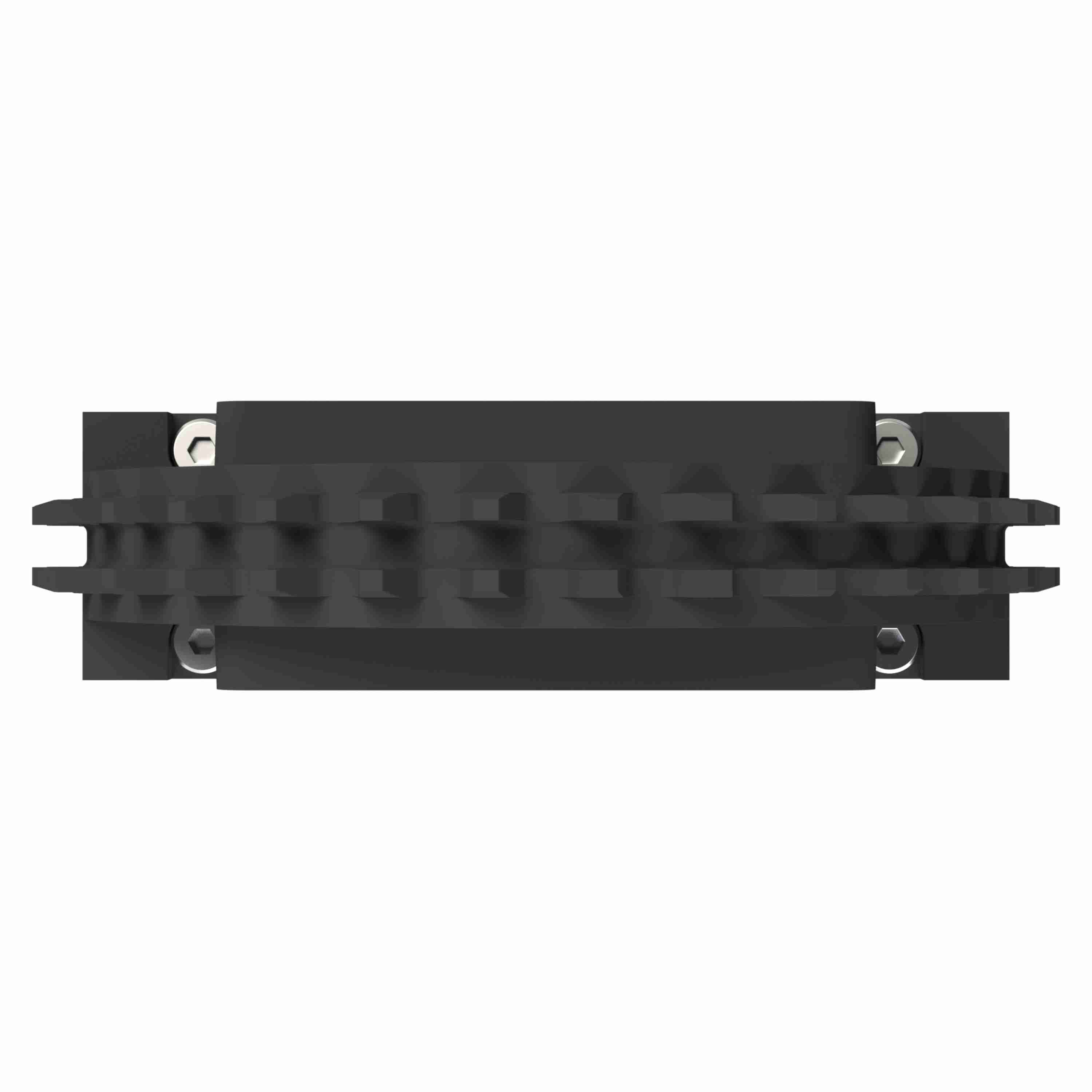

Rexnord 1500 Series Split Molded Nylon Sprocket with 32 Teeth and a 2-1/2in Square Bore - 614-148-3
Part #:10028525
Catalog #:614-148-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Series: | 1500 | Number of Set Screws: | None |
| Bore Diameter (in): | 2-1/2 in | Chain Number: | 1500 |
| Number of Teeth: | 32 | Pitch Diameter (mm): | 153.03 |
| Material: | Nylon | Body Style: | Block |
| Sprocket Construction: | Molded Split Sprocket | Bore Type: | Shaft-Ready |
| Bore Shape: | Square | Product Group: | MatTop® |
| Pitch Diameter (in): | 6.025 | Number of Keyways: | 0 |
| Product Line: | Chain and Belt Sprockets |
General Specifications
| UPC: | 793699408034 | Weight: | 0.71 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
