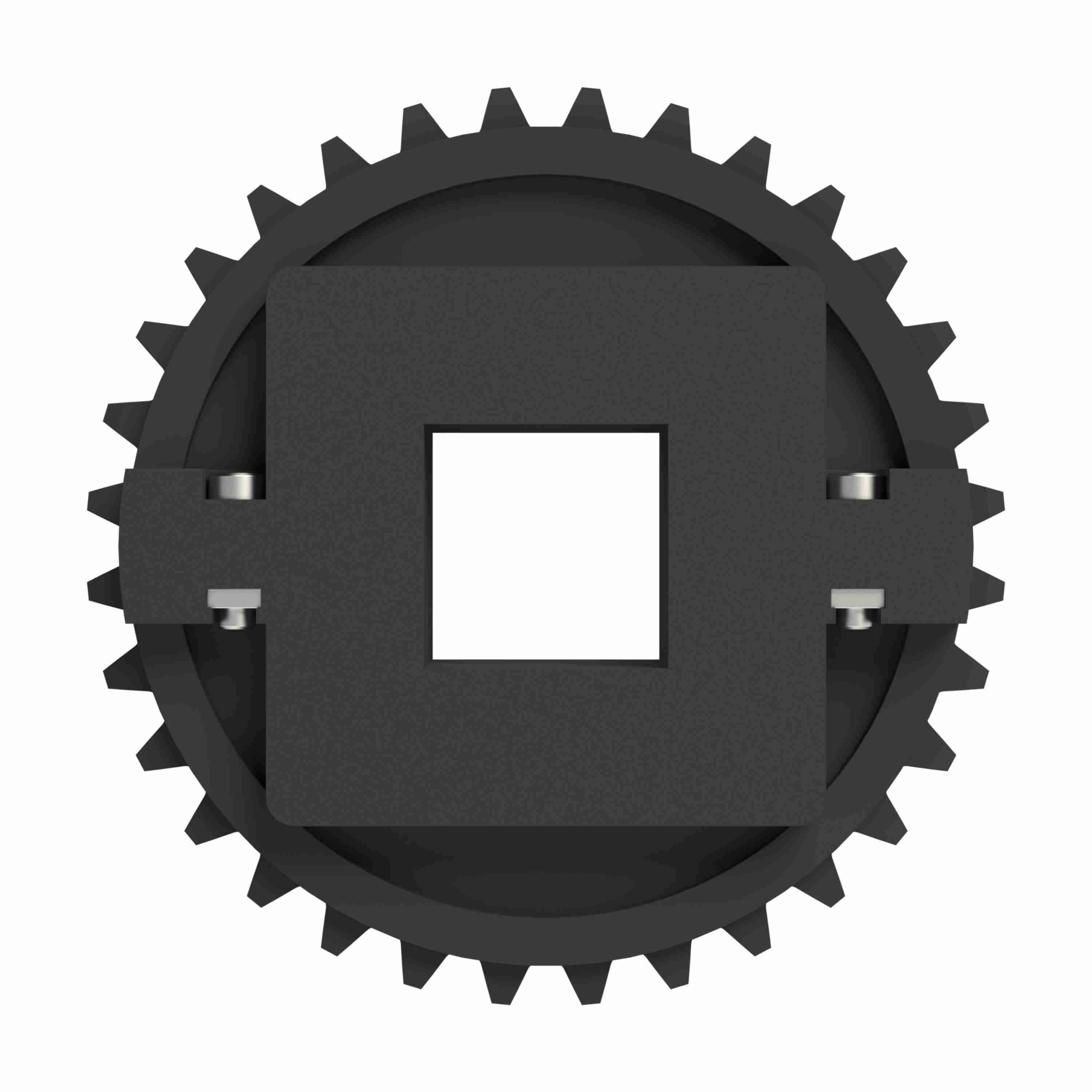

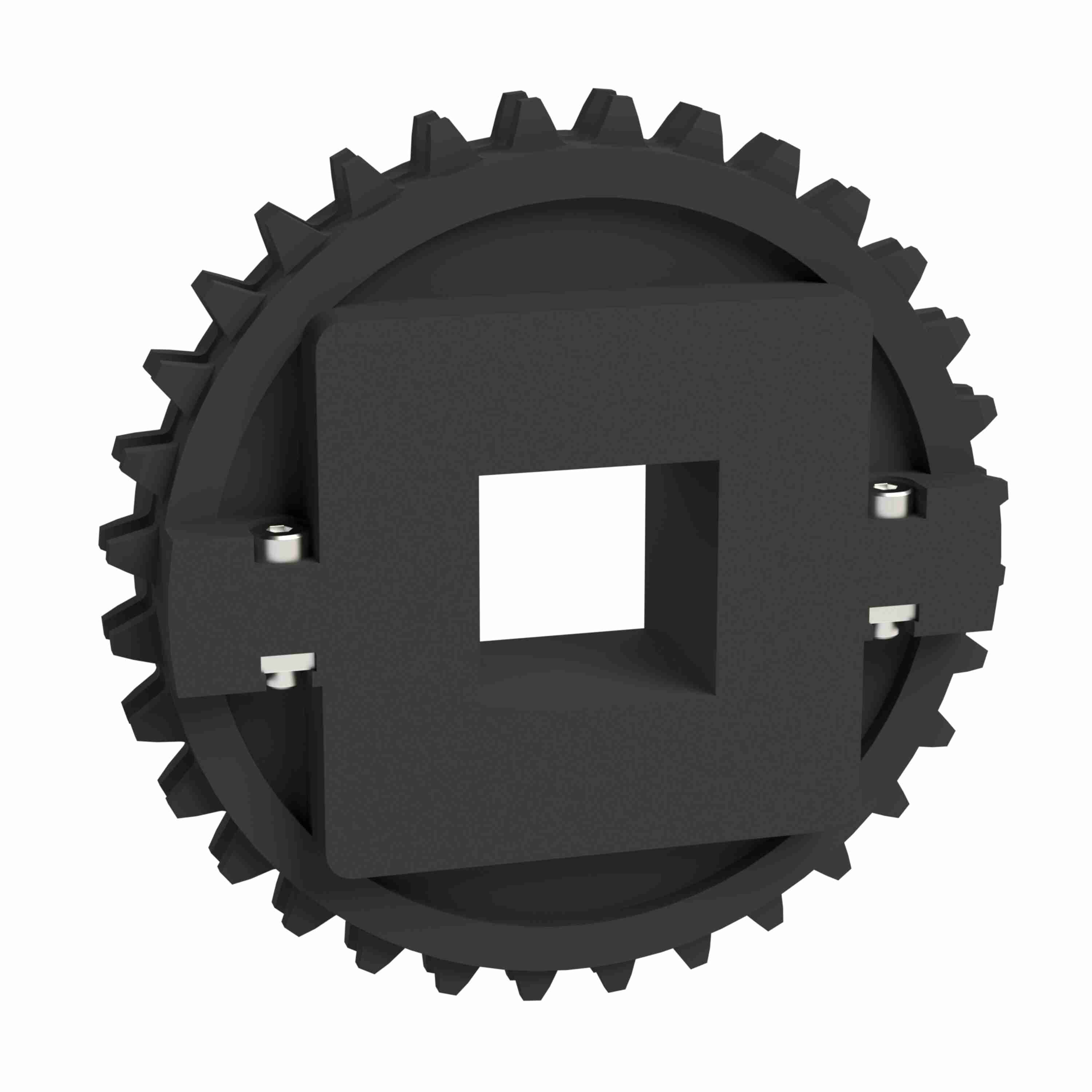

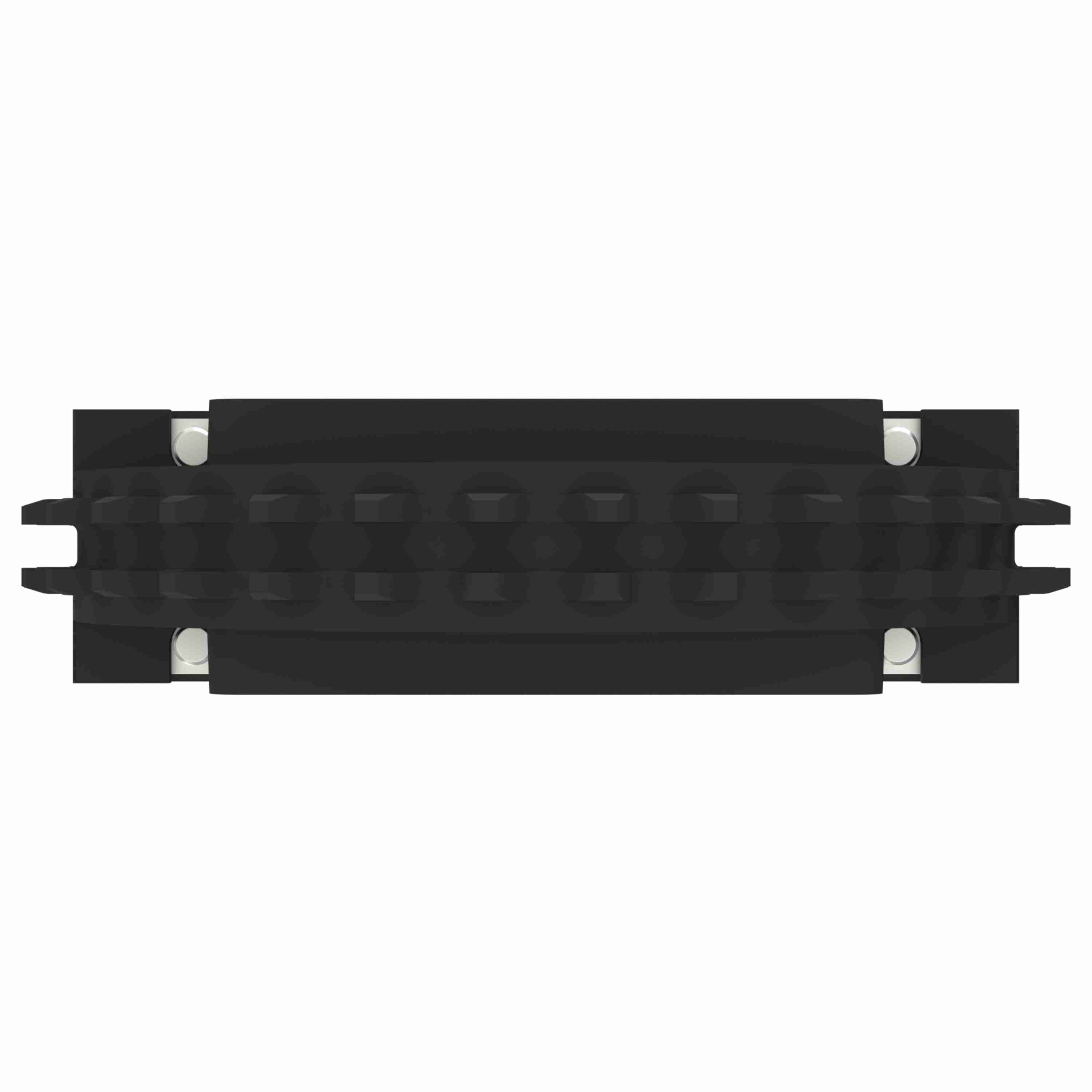

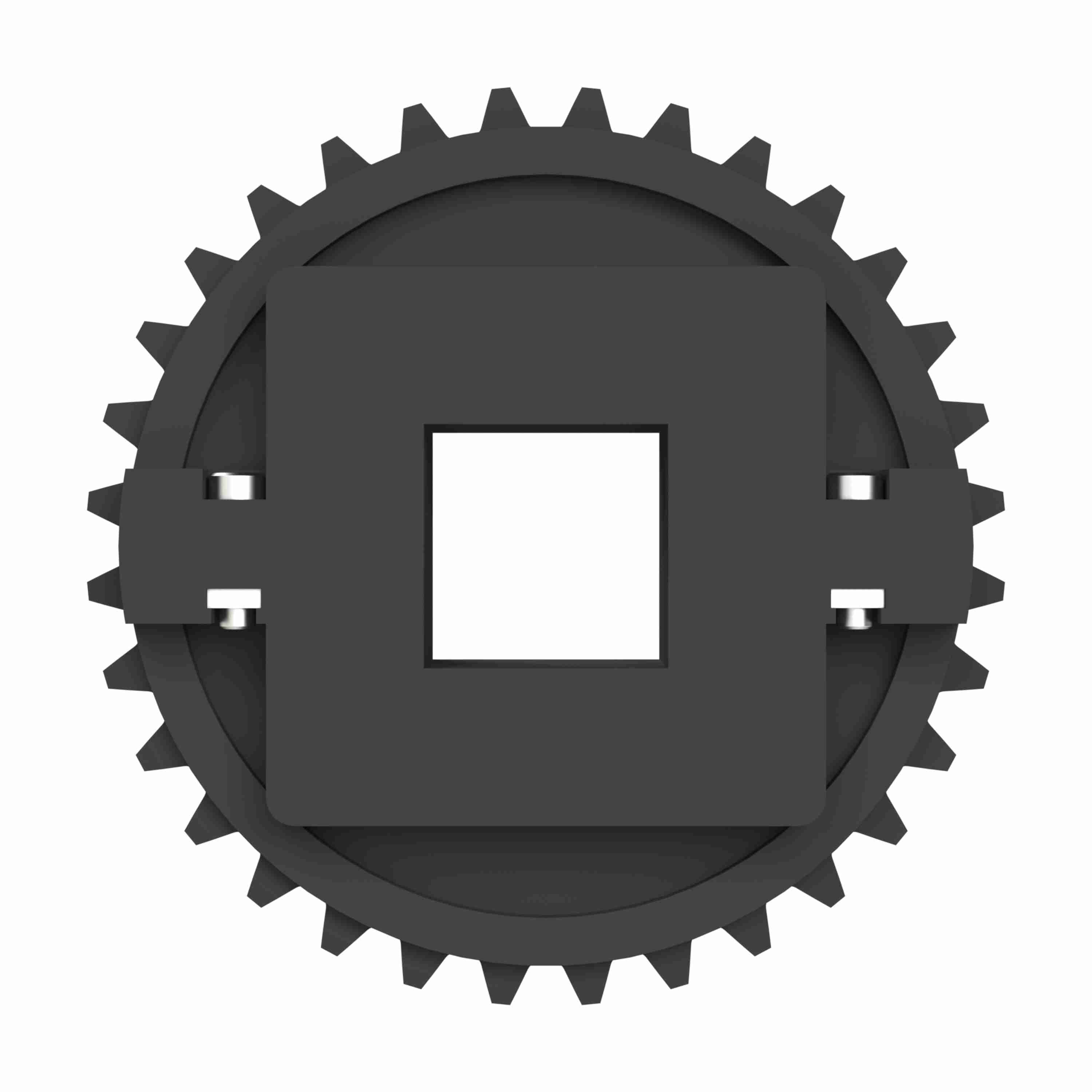

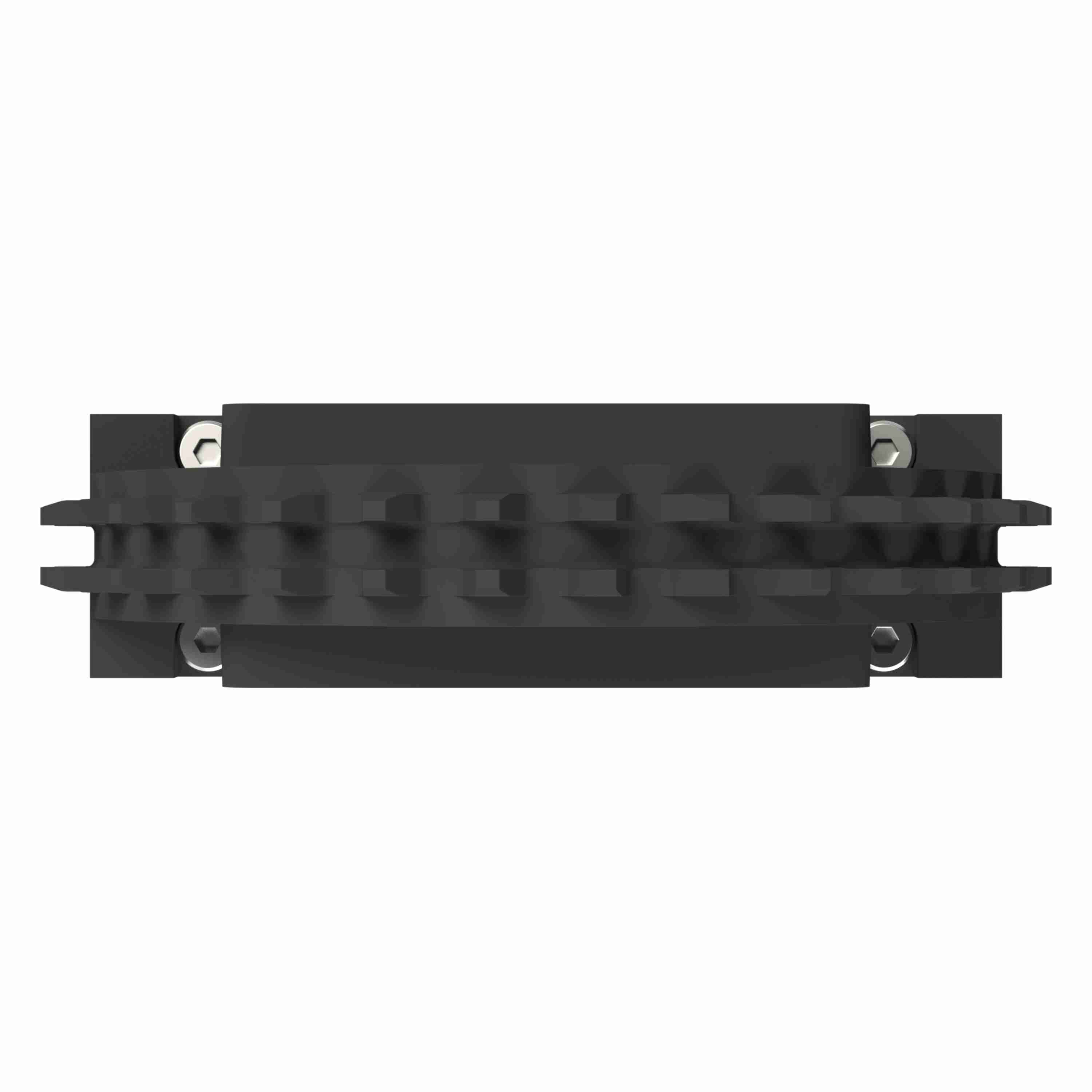

Rexnord 1500 Series Split Molded Nylon Sprocket with 32 Teeth and a 40mm Square Bore - 614-211-1
Part #:10028530
Catalog #:614-211-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | None | Product Line: | Chain and Belt Sprockets |
| Body Style: | Block | Pitch Diameter (in): | 6.025 |
| Number of Keyways: | 0 | Material: | Nylon |
| Chain Number: | 1500 | Pitch Diameter (mm): | 153.03 |
| Number of Teeth: | 32 | Bore Diameter (mm): | 40 mm |
| Bore Type: | Shaft-Ready | Product Group: | MatTop® |
| Sprocket Series: | 1500 | Sprocket Construction: | Molded Split Sprocket |
| Bore Shape: | Square |
General Specifications
| UPC: | 793699262285 | Weight: | 0.52 KG |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
