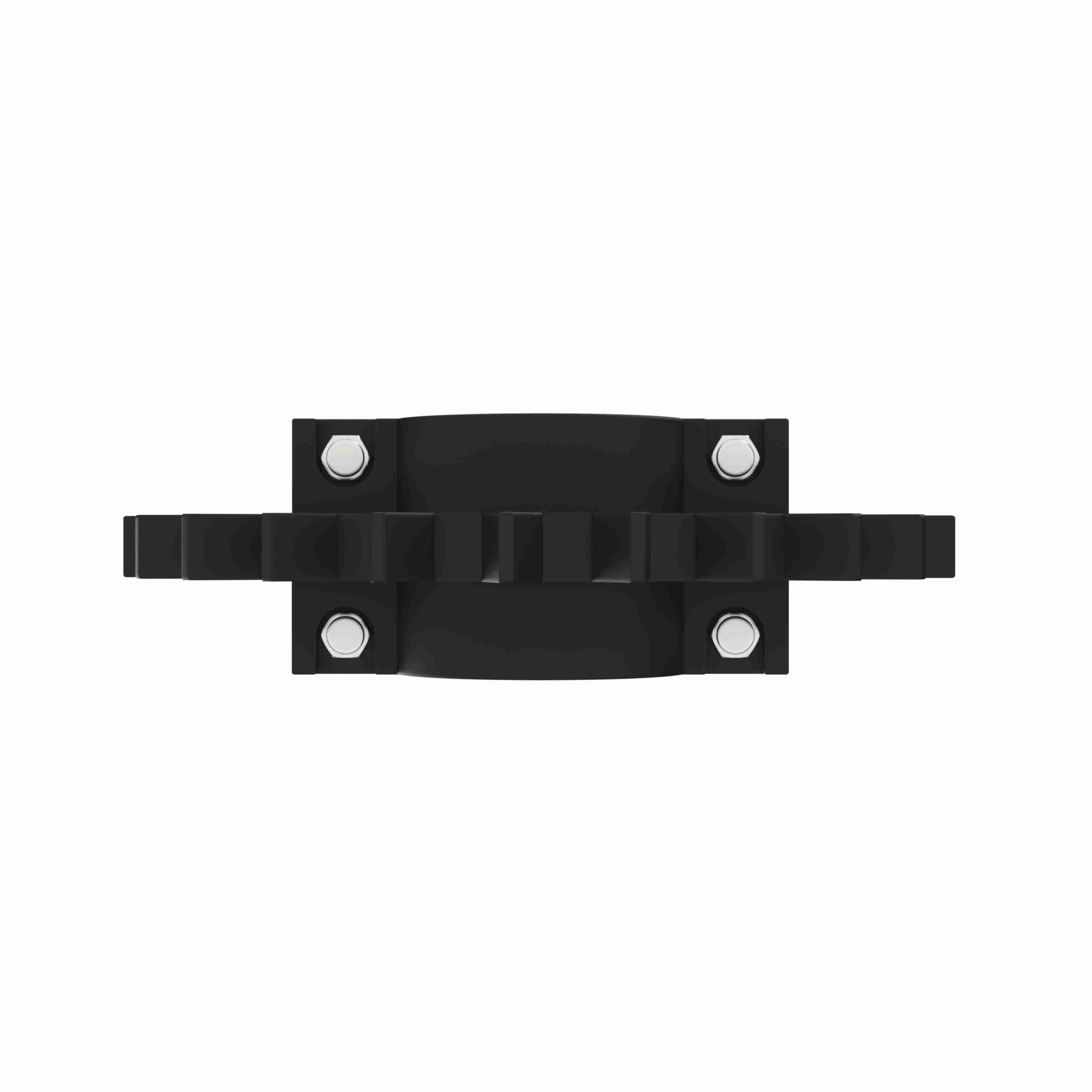

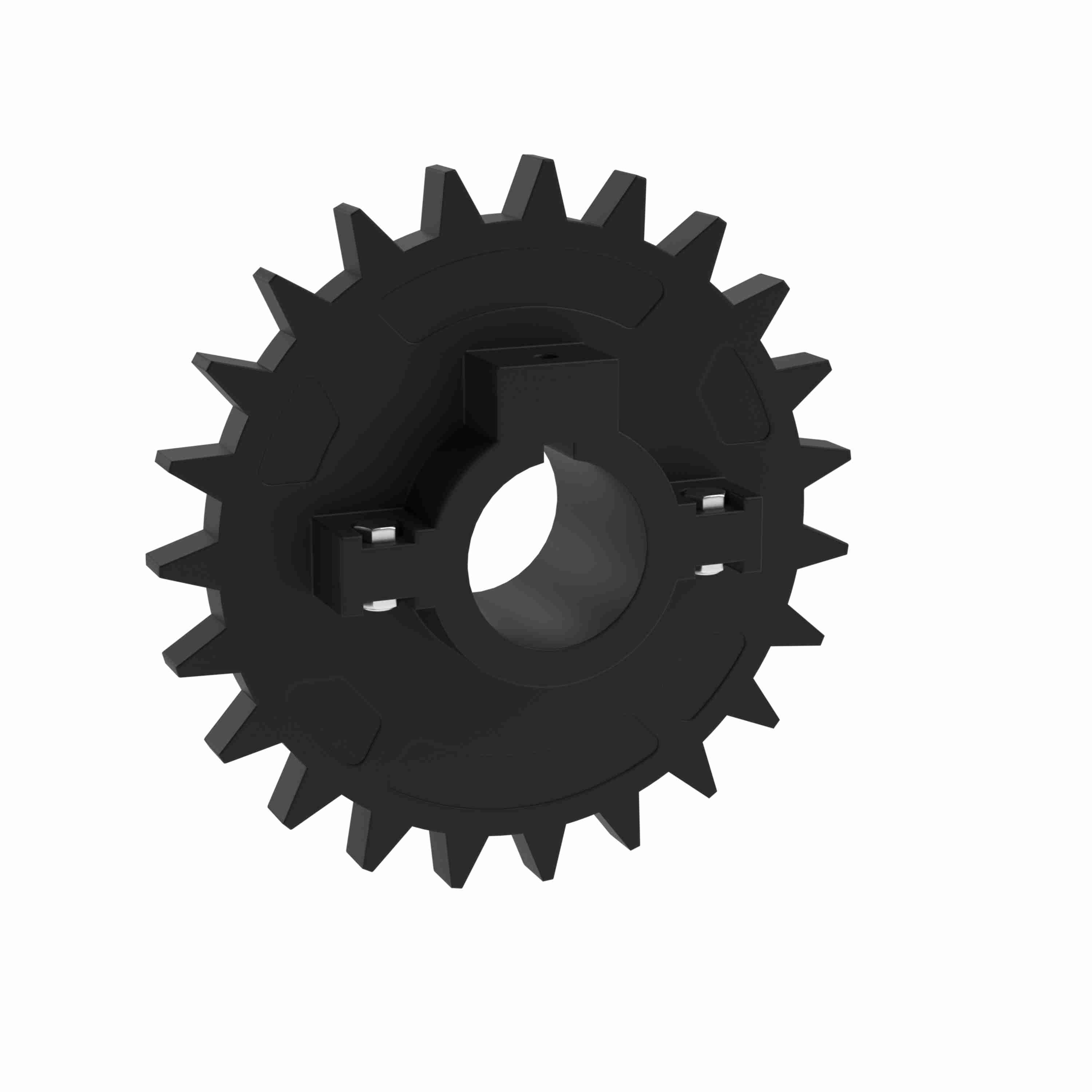

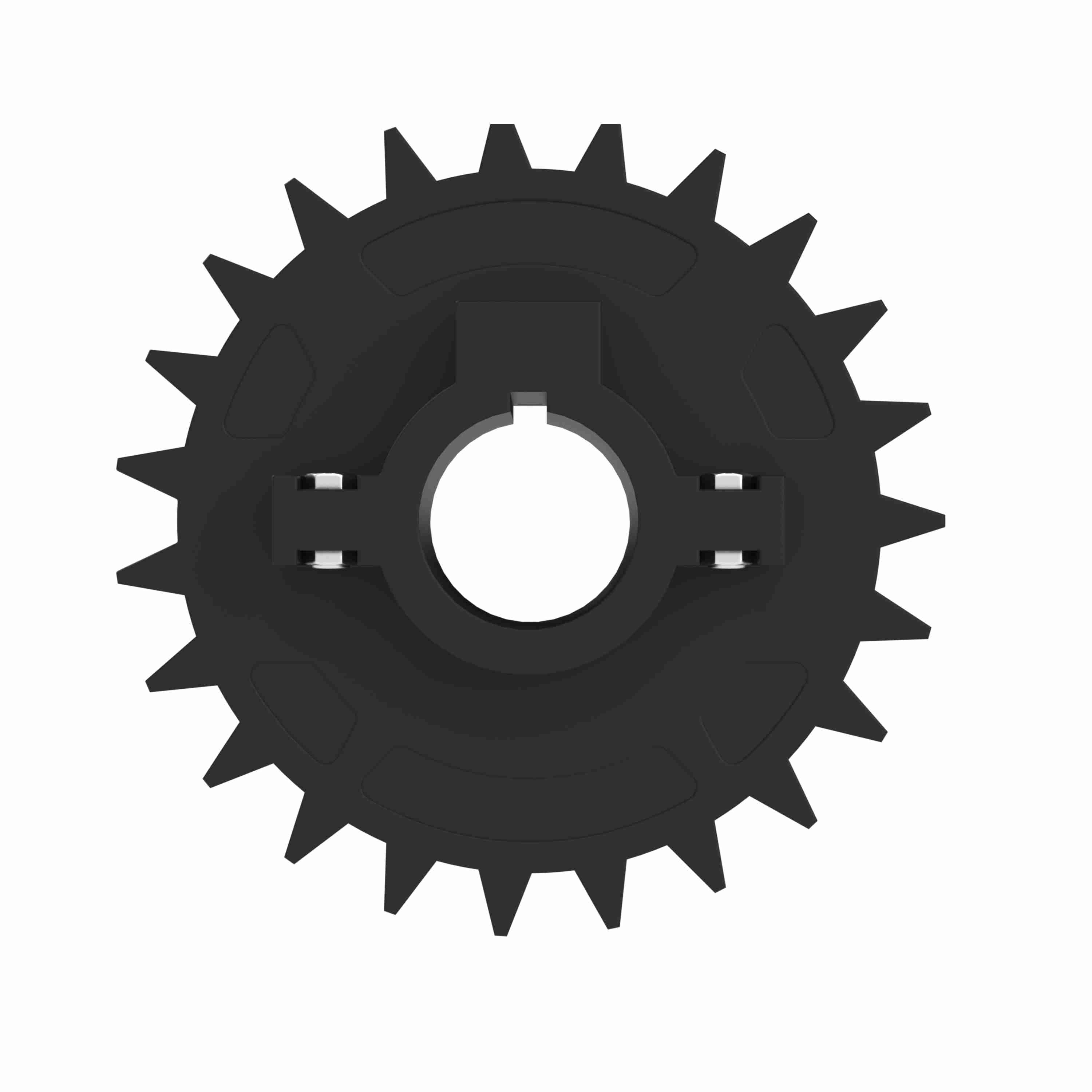

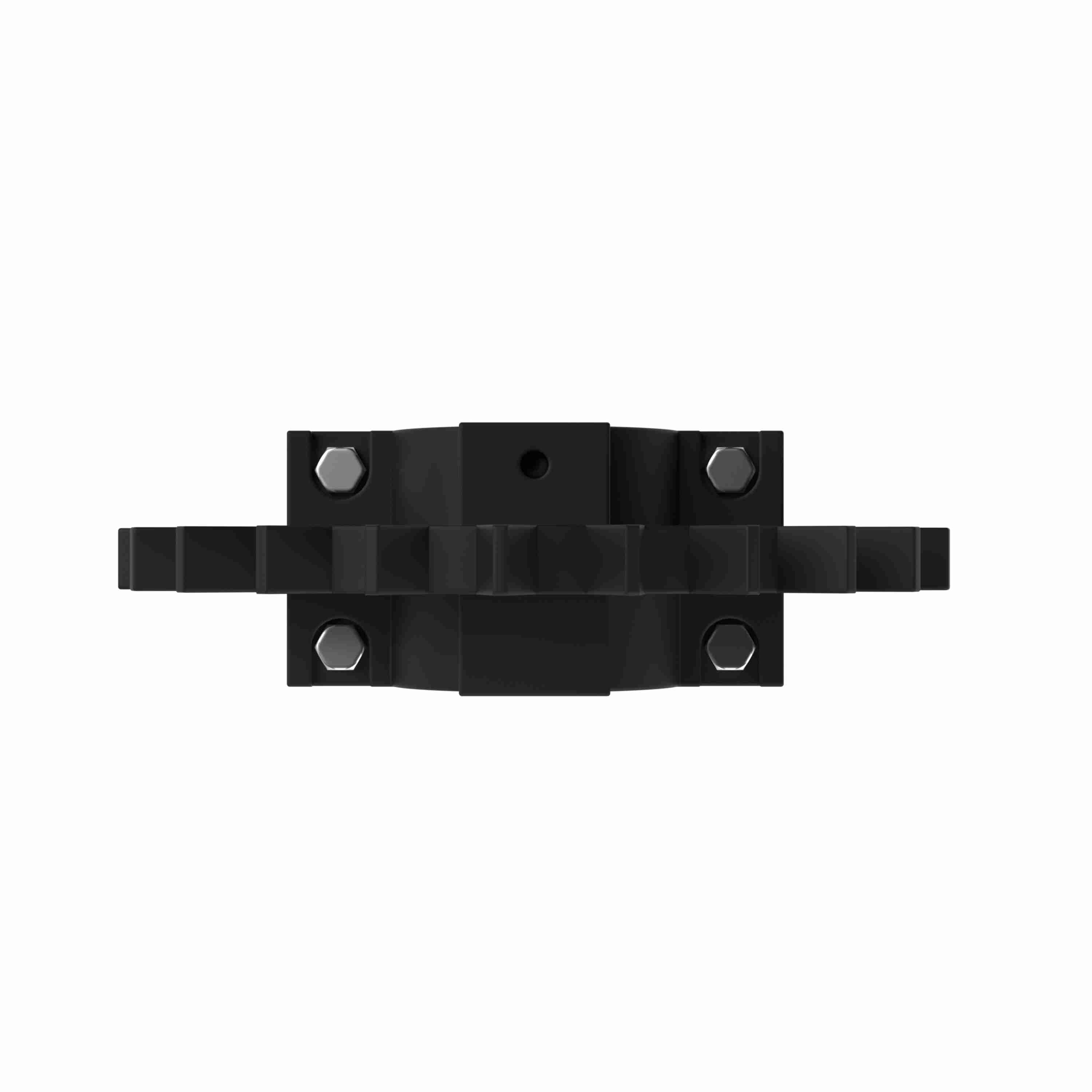

Rexnord 1873 Series Split Molded Nylon Sprocket and a 23 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-27-3
Part #:10028564
Catalog #:614-27-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Bore Diameter (in): | 1-1/4 in | Number of Teeth: | 23 |
| Bore Type: | Shaft-Ready | Product Group: | TableTop® |
| Bore Shape: | Round | Chain Number: | 1873 |
| Sprocket Series: | 1873 | Number of Keyways: | 1 |
| Sprocket Construction: | Molded Split Sprocket | Material: | Nylon |
| Pitch Diameter (mm): | 139.9 | Pitch Diameter (in): | 5.508 |
| Number of Set Screws: | 1 Setscrew |
General Specifications
| UPC: | 698210858155 | Weight: | 0.80 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
