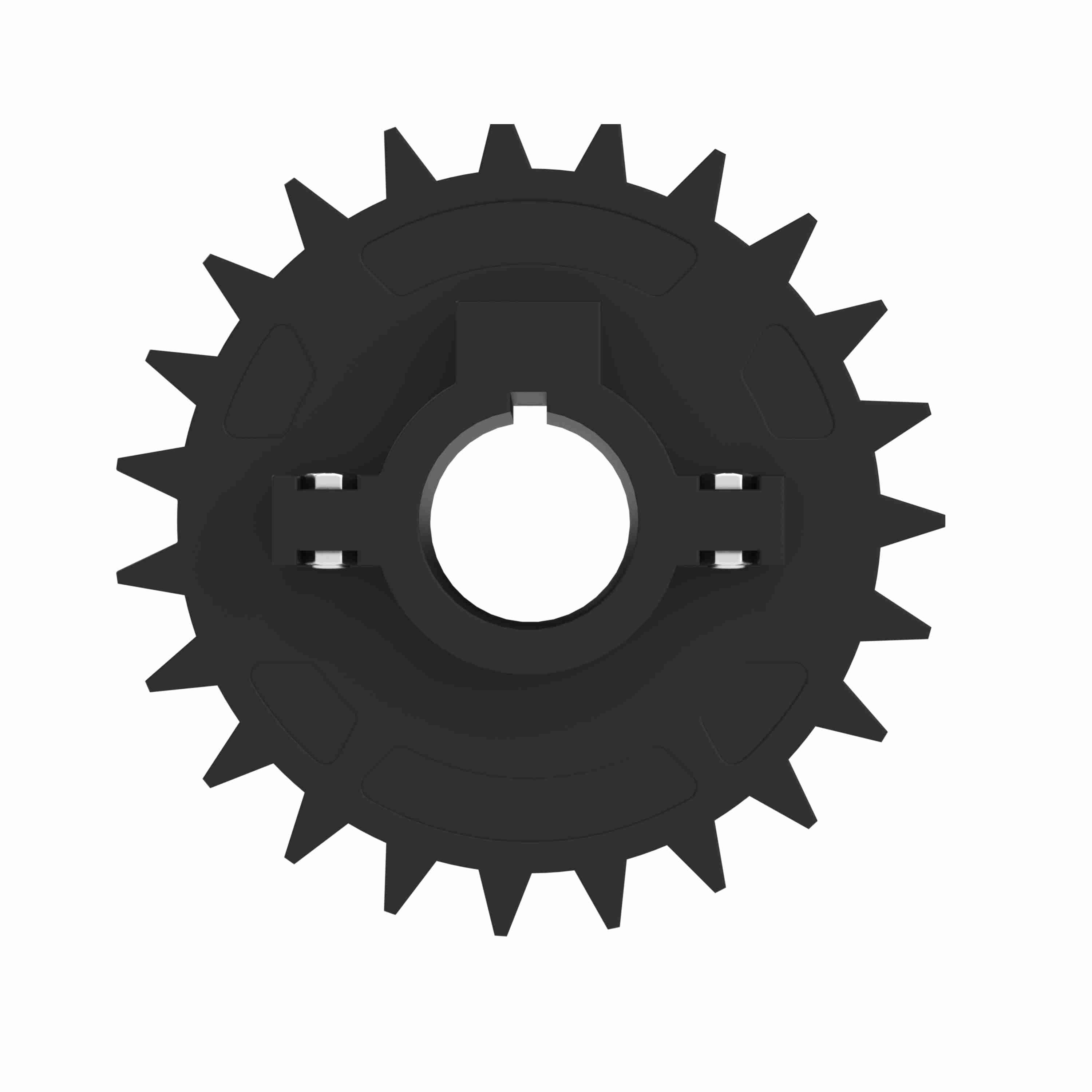

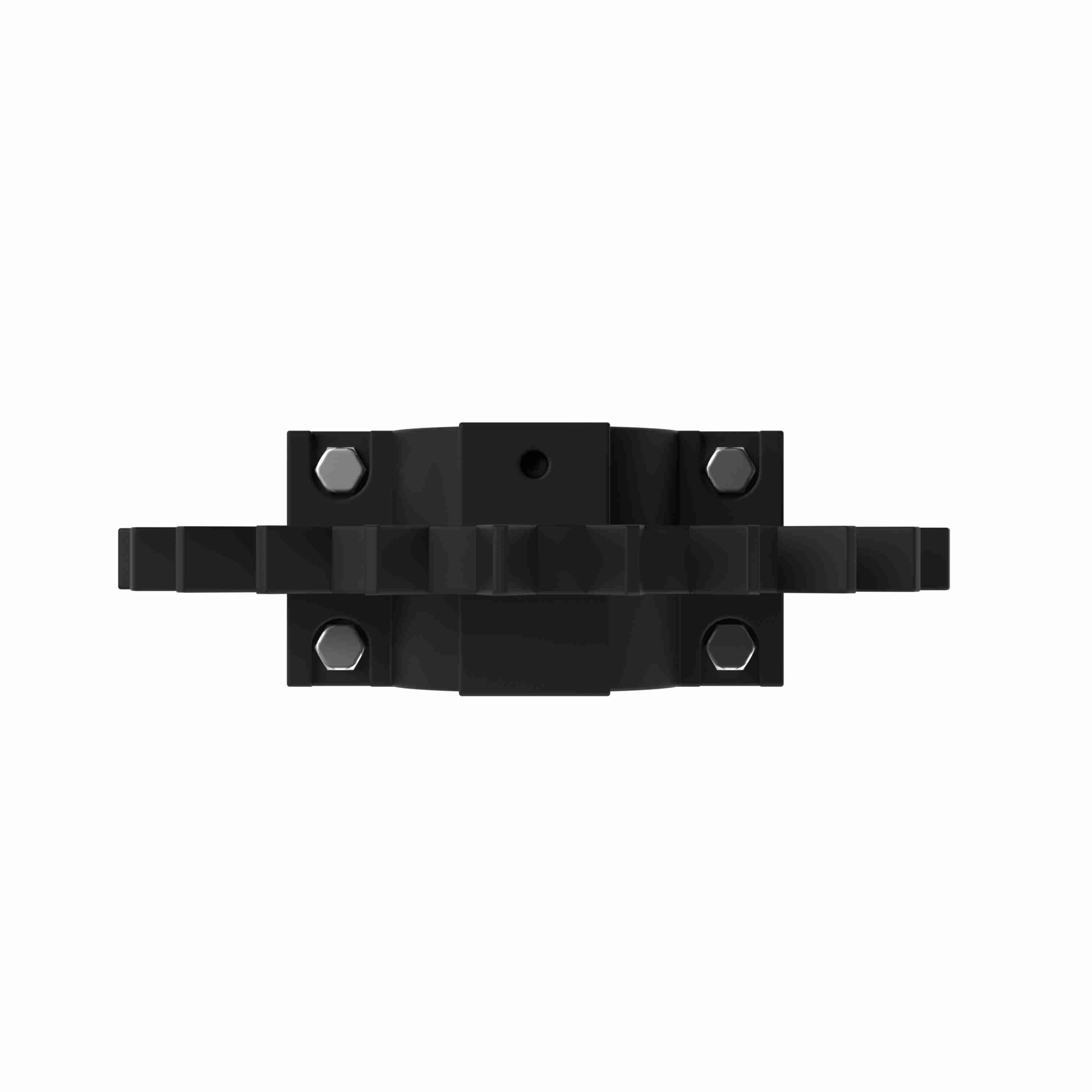

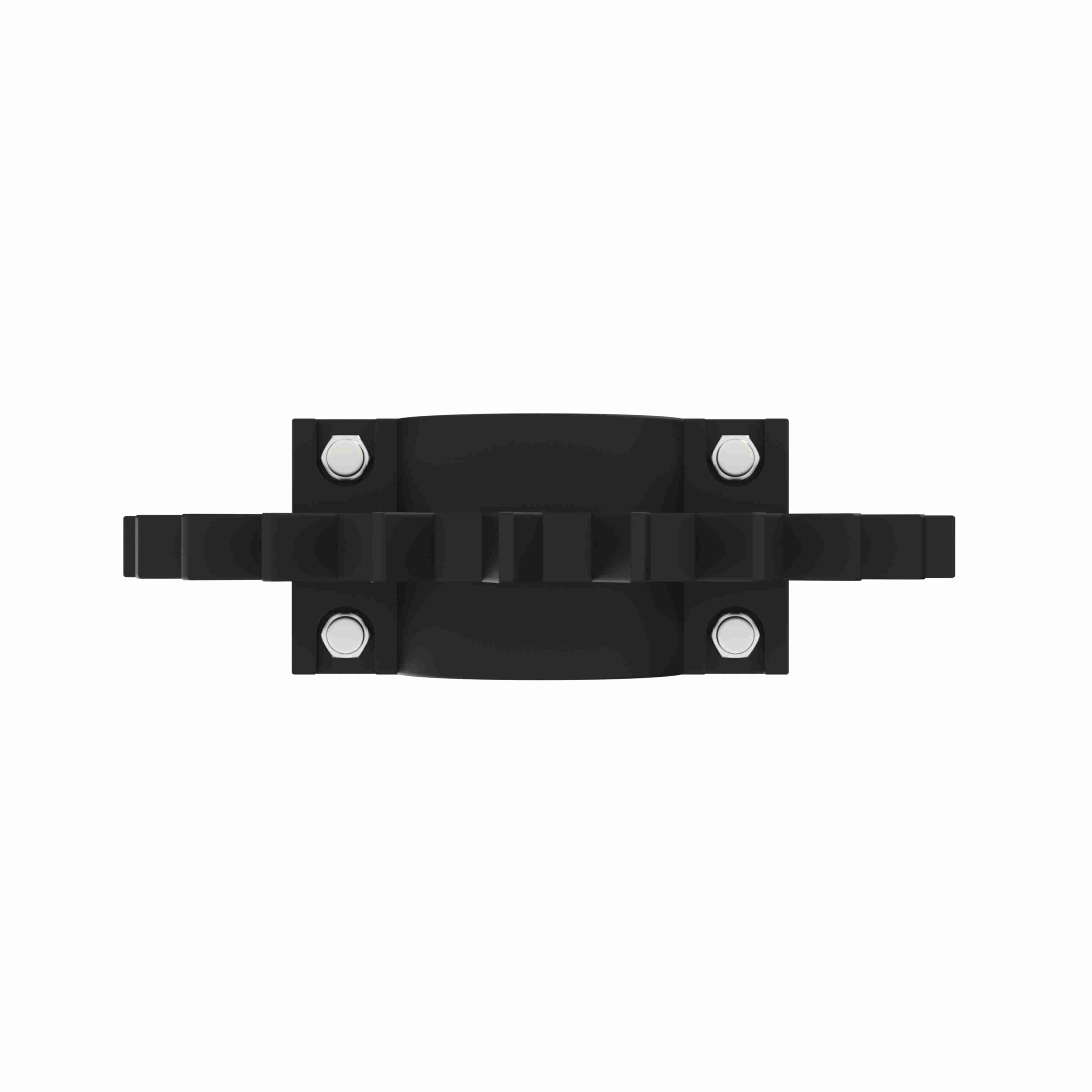

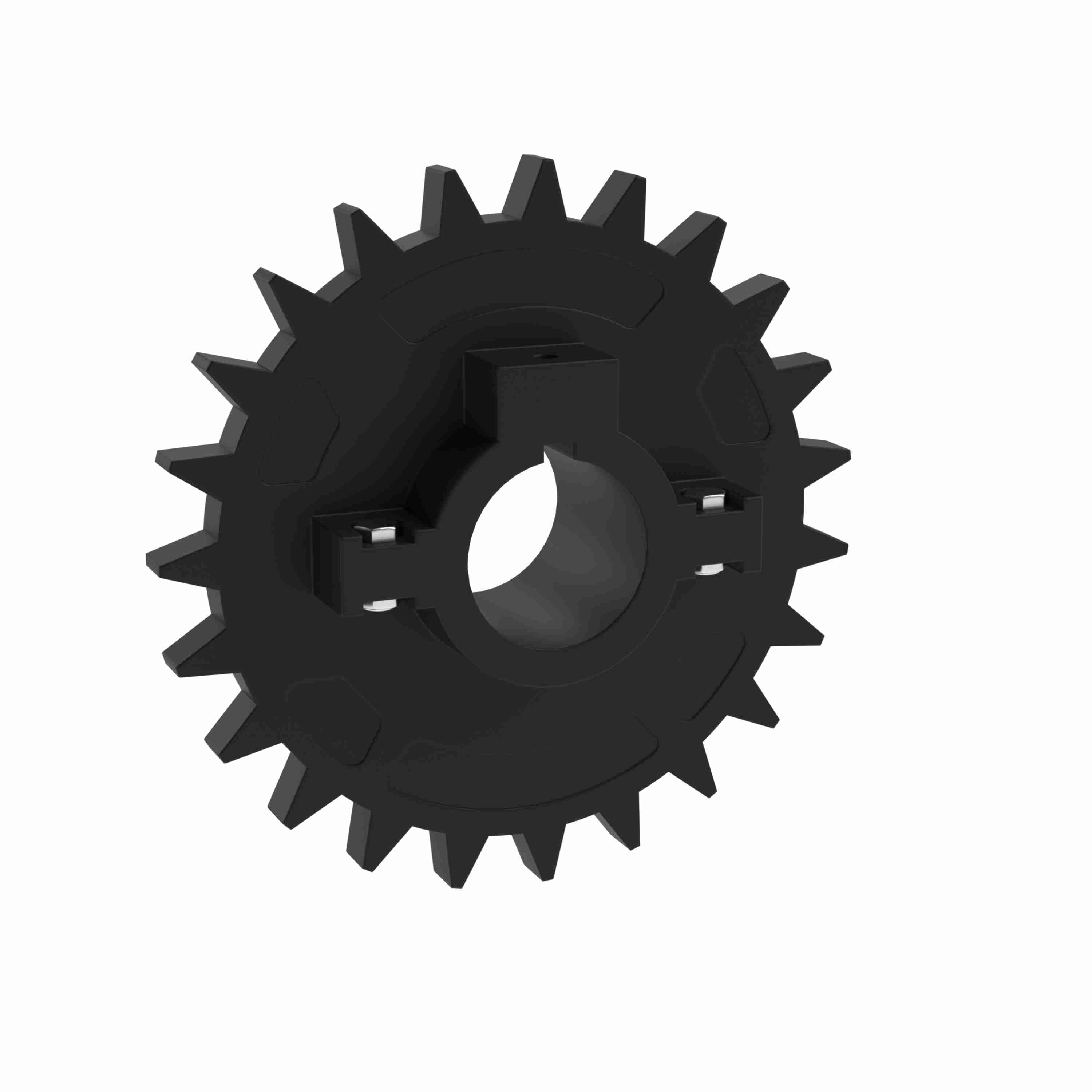

Rexnord 1873 Series Split Molded Nylon Sprocket and a 23 Teeth with 1-7/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-27-4
Part #:10028566
Catalog #:614-27-4
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | 1 Setscrew | Sprocket Series: | 1873 |
| Sprocket Construction: | Molded Split Sprocket | Number of Teeth: | 23 |
| Number of Keyways: | 1 | Material: | Nylon |
| Product Line: | Chain and Belt Sprockets | Bore Type: | Shaft-Ready |
| Pitch Diameter (in): | 5.508 | Product Group: | TableTop® |
| Bore Shape: | Round | Pitch Diameter (mm): | 139.9 |
| Bore Diameter (in): | 1-7/16 in | Chain Number: | 1873 |
| Body Style: | Block |
General Specifications
| UPC: | 698210855949 | Weight: | 0.80 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
