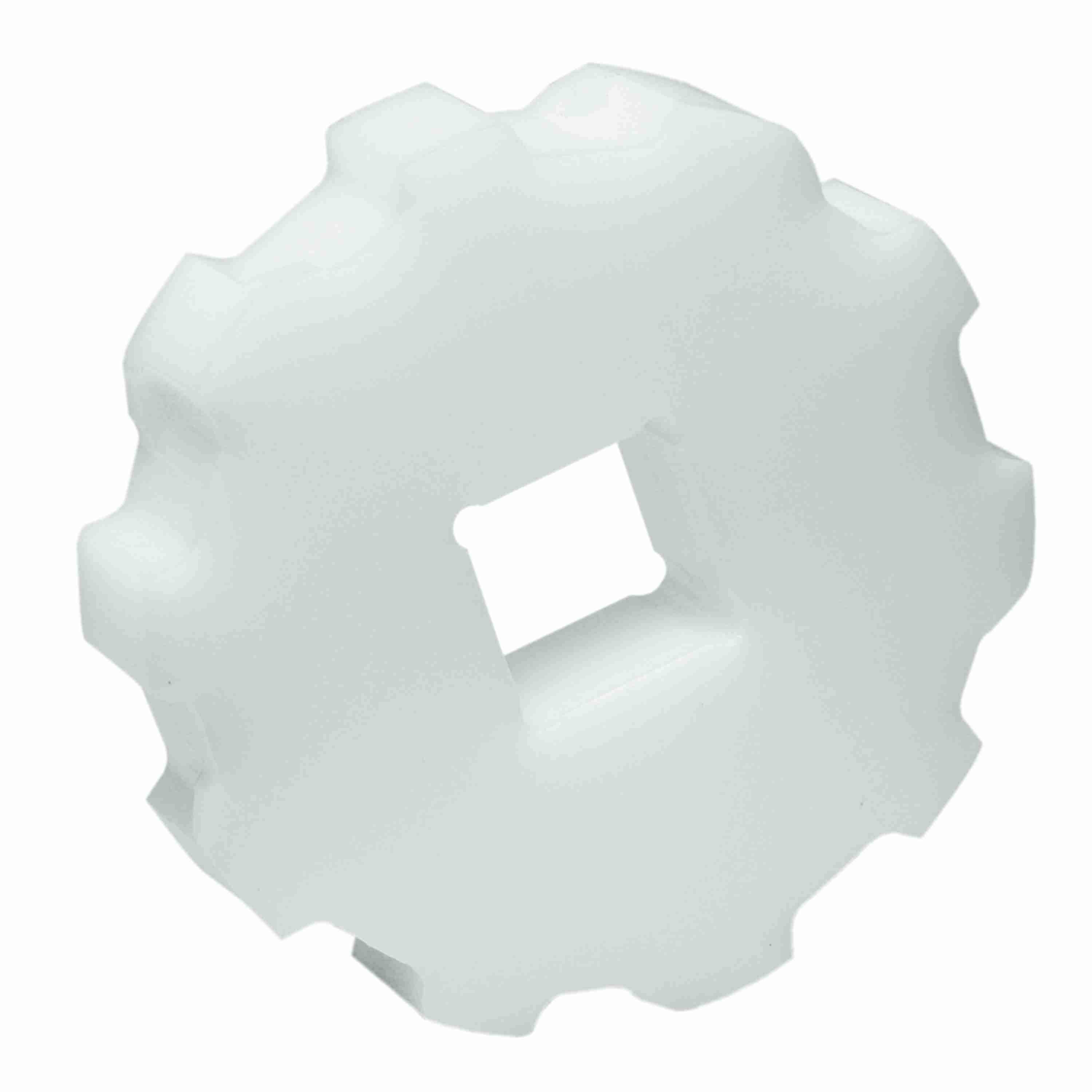

Rexnord 2010 Series Solid One Piece Machined UHMWPE Sprocket with 10 Teeth and a 1-1/2in Square Bore - 897.20.39
Part #:10028476
Catalog #:897.20.39
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Diameter (in): | 1-1/2 in | Bore Shape: | Square |
| Chain Number: | 2010 | Sprocket Series: | 2010 |
| Material: | UHMWPE | Pitch Diameter (in): | 6.472 |
| Product Line: | Chain and Belt Sprockets | Bore Type: | Shaft-Ready |
| Number of Teeth: | 10 | Sprocket Construction: | Machined Non-Split Sprocket |
| Body Style: | Block | Product Group: | MatTop® |
| Pitch Diameter (mm): | 164.39 | Number of Keyways: | 0 |
| Number of Set Screws: | None |
General Specifications
| UPC: | 793699538731 | Weight: | 1.05 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
