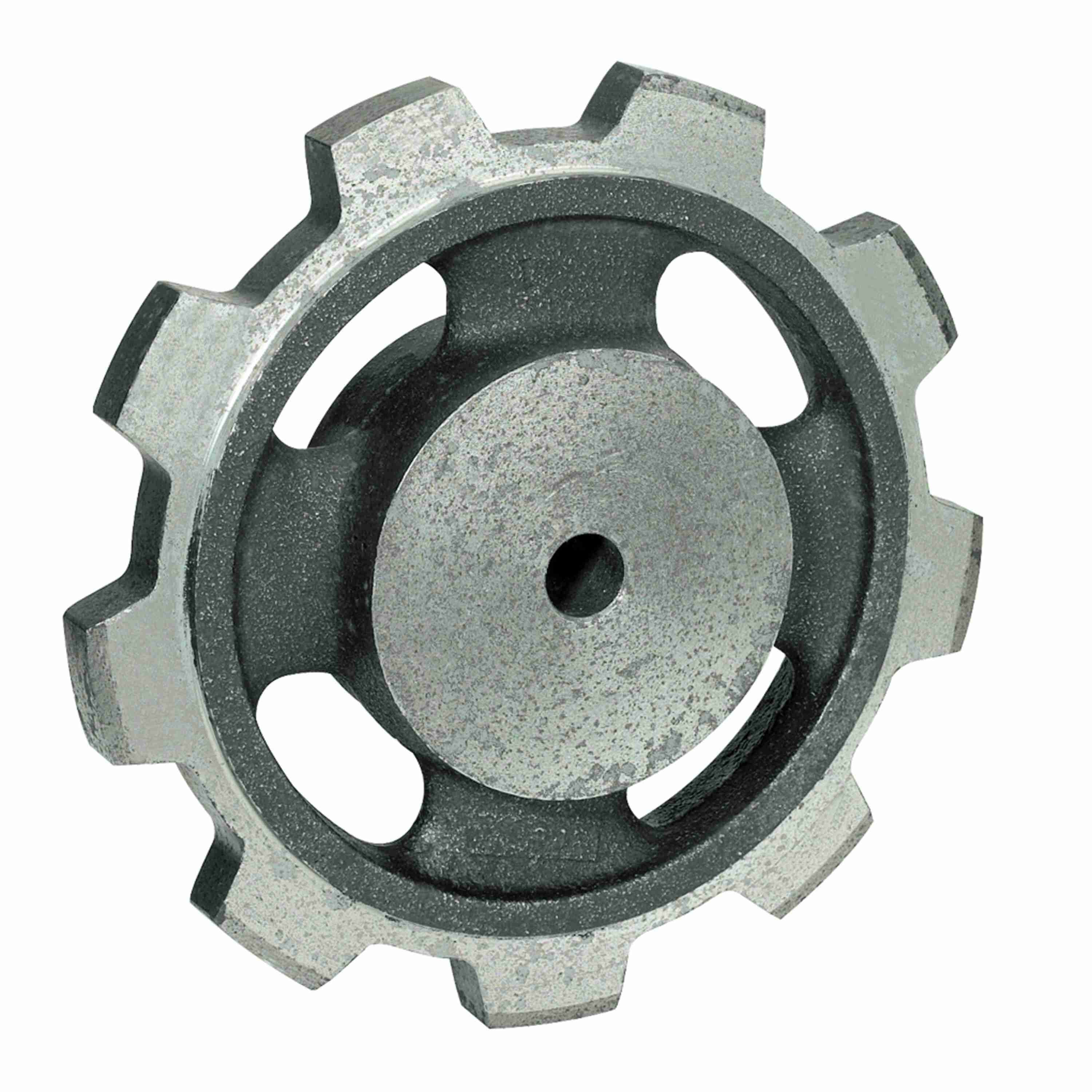

Rexnord 2500 Series Solid One Piece Cast Iron Sprocket with 9 Teeth and a 3/4in Round Rough Stock Bore (RSB) - 414-34-2
Part #:10027438
Catalog #:414-34-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Cast-Iron Non-Split Sprocket | Bore Type: | Rough Stock Bore (RSB) |
| Number of Set Screws: | None | Product Line: | Chain and Belt Sprockets |
| Material: | Cast Iron | Chain Number: | 2500 |
| Number of Teeth: | 9 | Sprocket Series: | 2500 |
| Pitch Diameter (mm): | 148.53 | Number of Keyways: | 0 |
| Bore Diameter (in): | 3/4 in | Bore Shape: | Round |
| Body Style: | Arm | Product Group: | TableTop® |
| Pitch Diameter (in): | 5.848 |
General Specifications
| UPC: | 698210888992 | Weight: | 14.00 LB |
| Packaged Length: | 6.25 IN | Packaged Width: | 6.25 IN |
| Packaged Height: | 1.75 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
