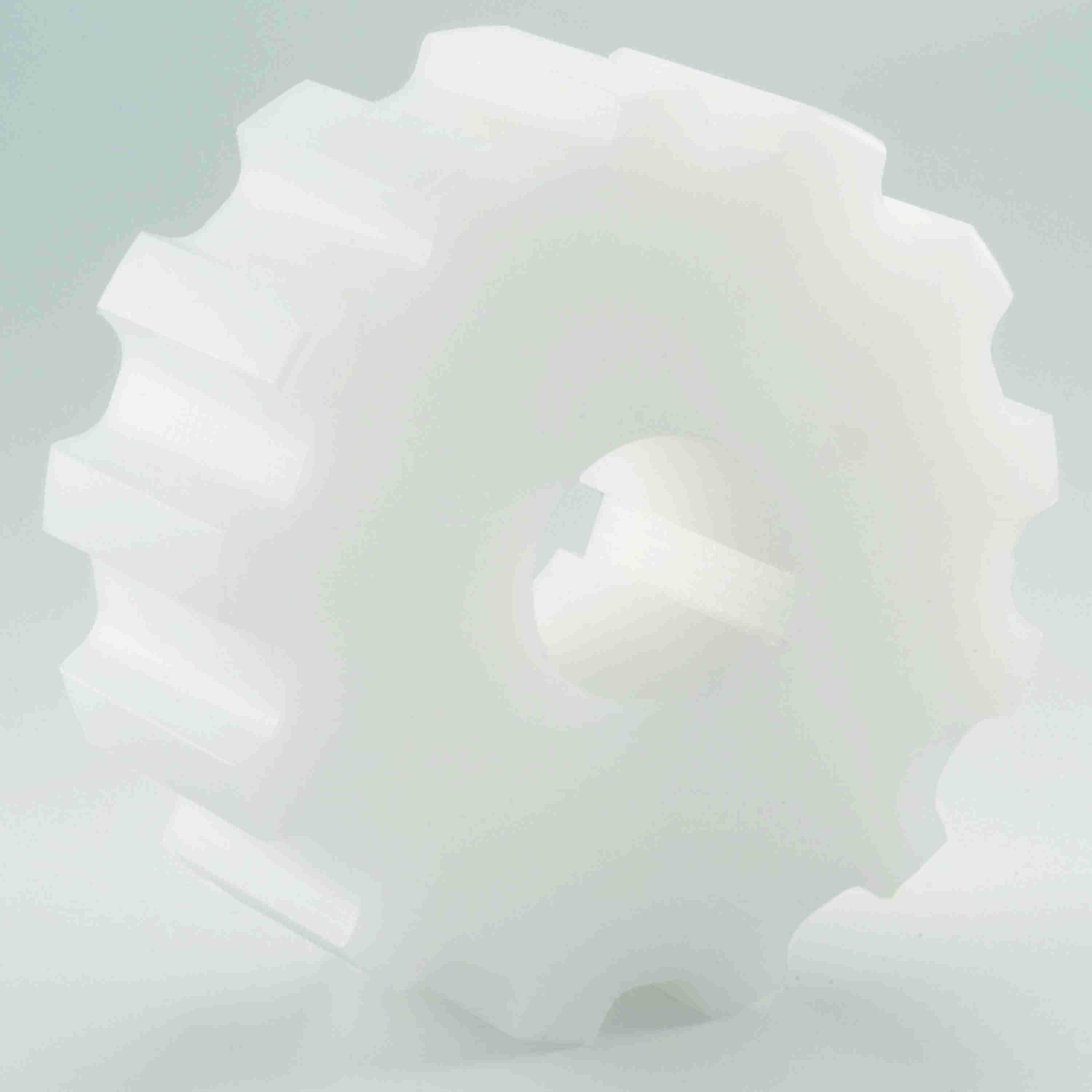

System Plast 515 Series Split Machined Sprocket with 18 Teeth and a 25mm Round Shaft-Ready Bore - 515-18R25M-DMS

Name: System Plast 515 Series Split Machined Sprocket with 18 Teeth and a 25mm Round Shaft-Ready Bore - 515-18R25M-DMS
Brand: System Plast
Availability: OutOfStock

Part #:121571

Catalog #:515-18R25M-DMS

Key Features Product Specs

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

Polyamide, stainless steel screws, zinc plated nuts.
Closed structure, easier to clean and to disinfect.
Split for quick and easy replacement.

How can we improve our Product Information?

Resource Center

3D CAD

File size requires longer download time

Catalog Page

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Technical Specifications

Pitch Diameter (in):	5.759	Bore Type:	Shaft-Ready
Pitch Diameter (mm):	146.27	Sprocket Series:	515
Product Type:	Drive	Product Group:	TableTop®
Product Line:	Chain and Belt Sprockets	Outside Diameter (mm):	146.4 mm
Outside Diameter (in):	5.76377952755906 in	Number of Teeth:	18
Number of Keyways:	1	Bore Diameter (mm):	25 mm
Number of Set Screws:	None	Sprocket Construction:	Machined Split Sprocket
Body Style:	Block	Bore Shape:	Round
Chain Number:	515

General Specifications

UPC:	787405086098	Weight:	1.64 LB
HTC:	8483.90.1050	Country of Origin:	Germany
