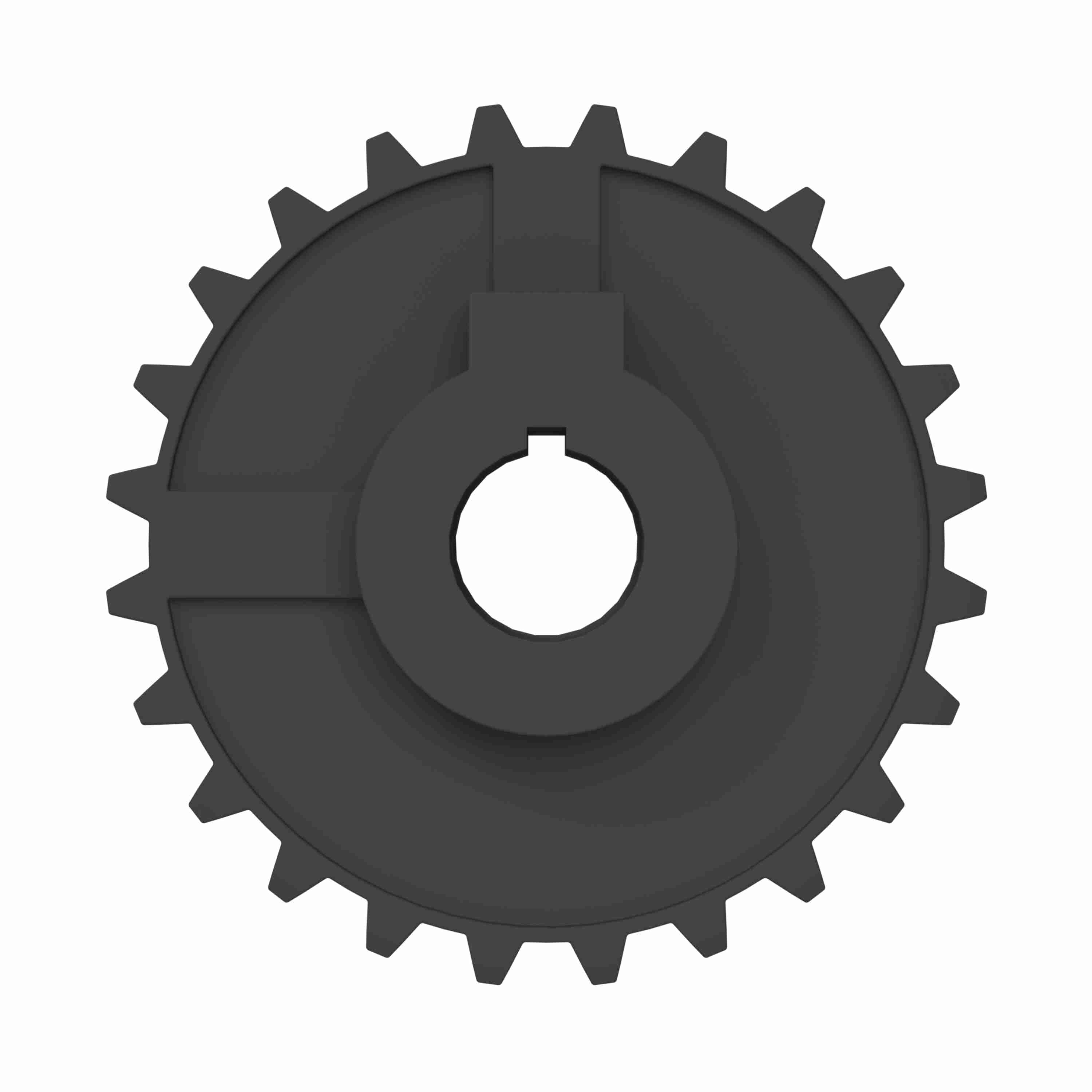

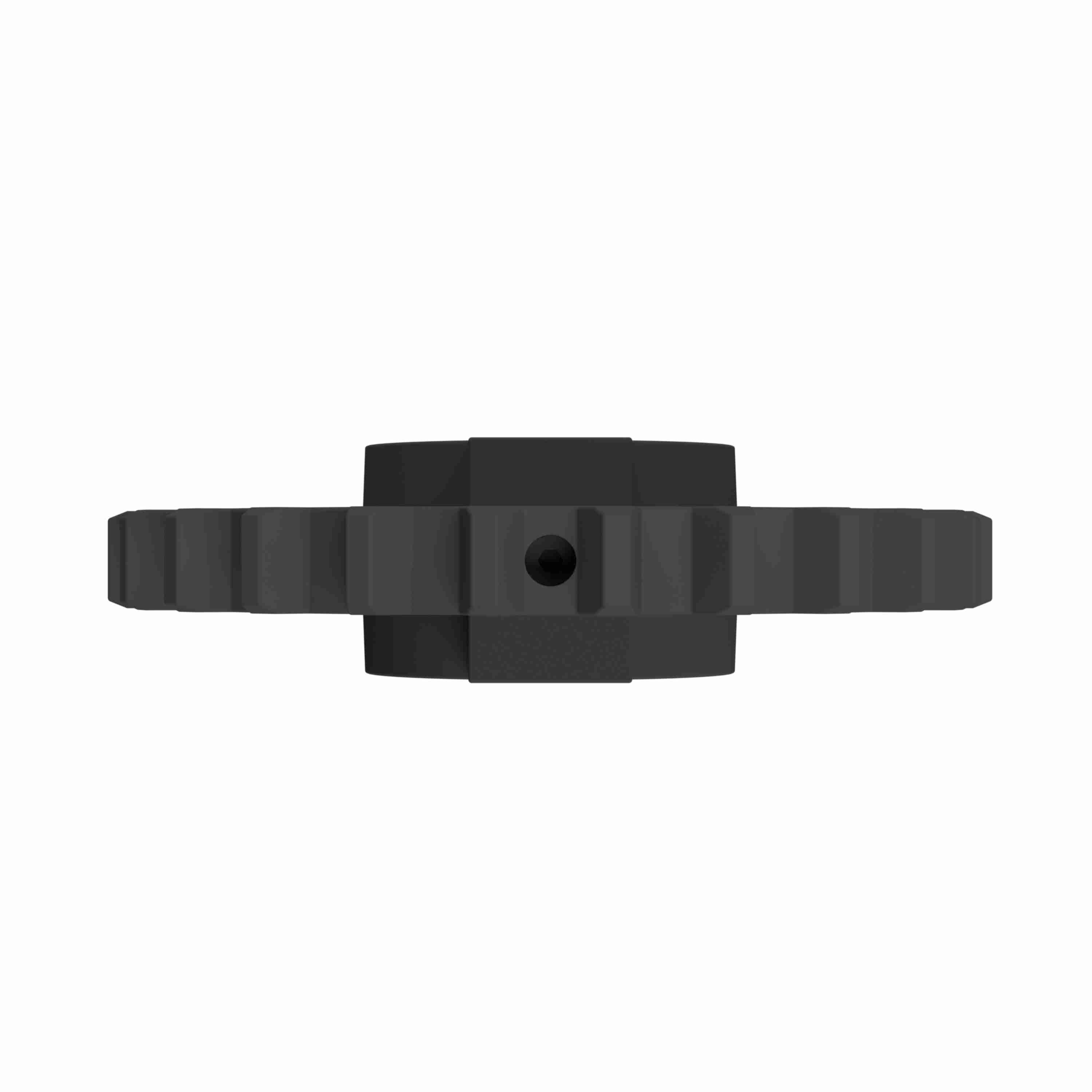

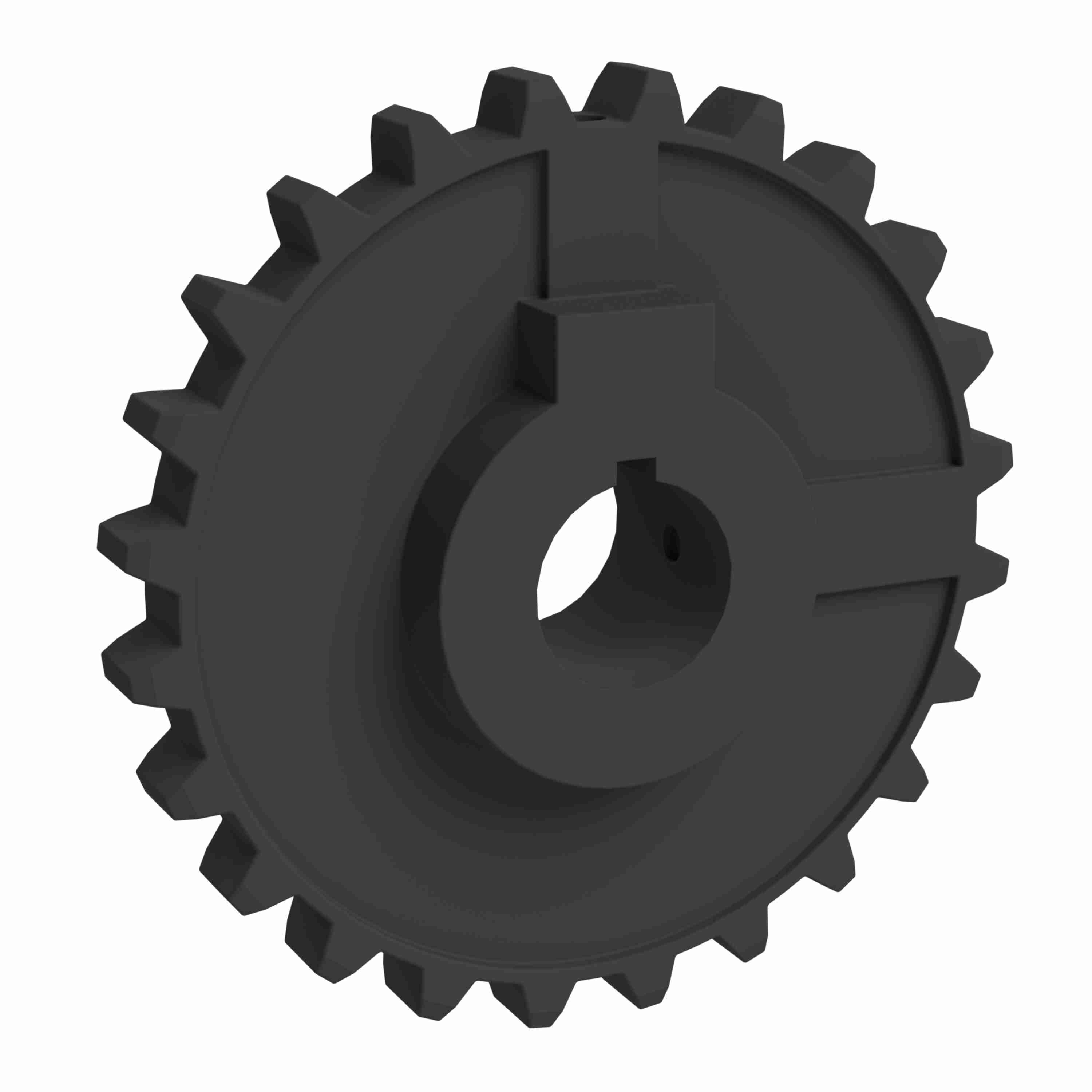

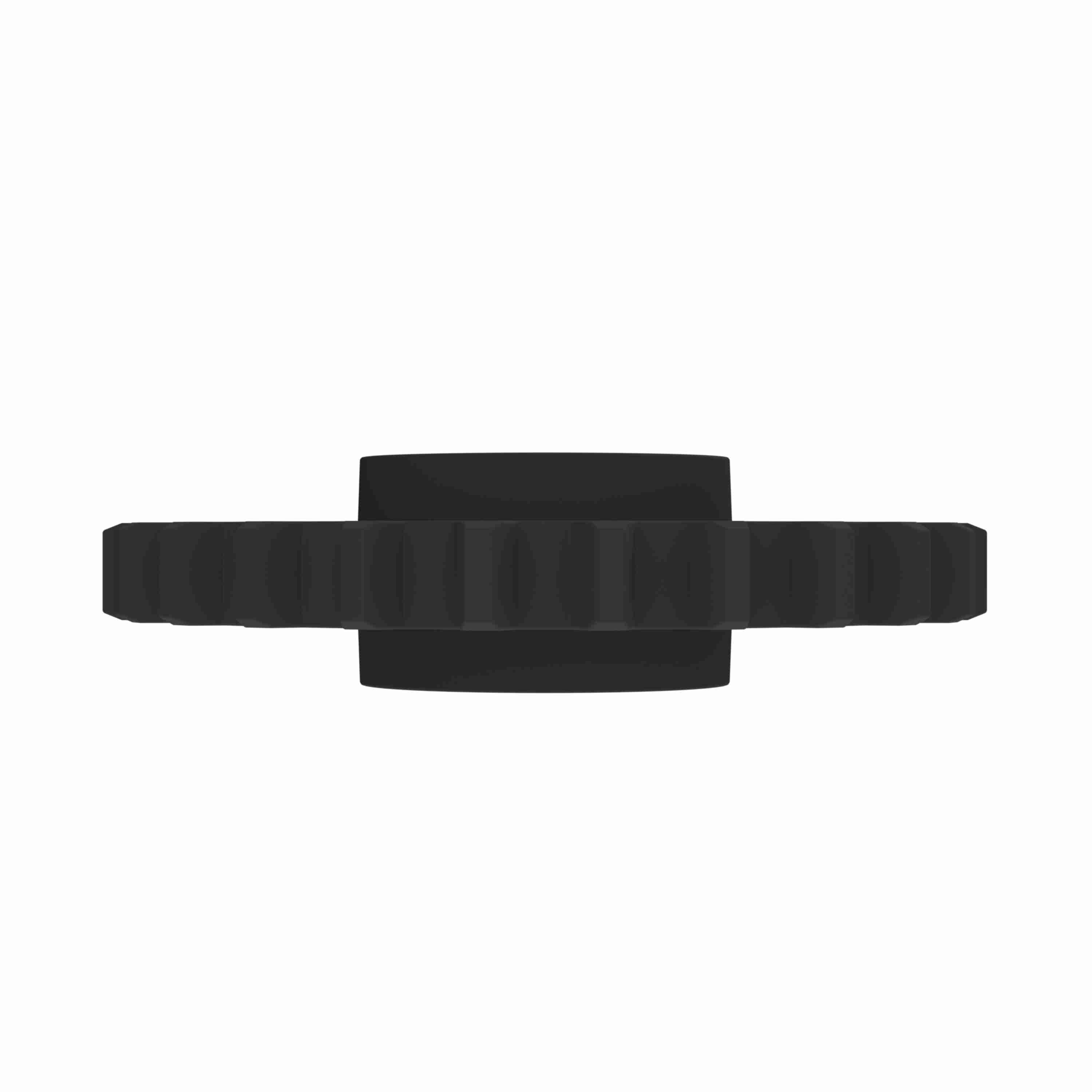

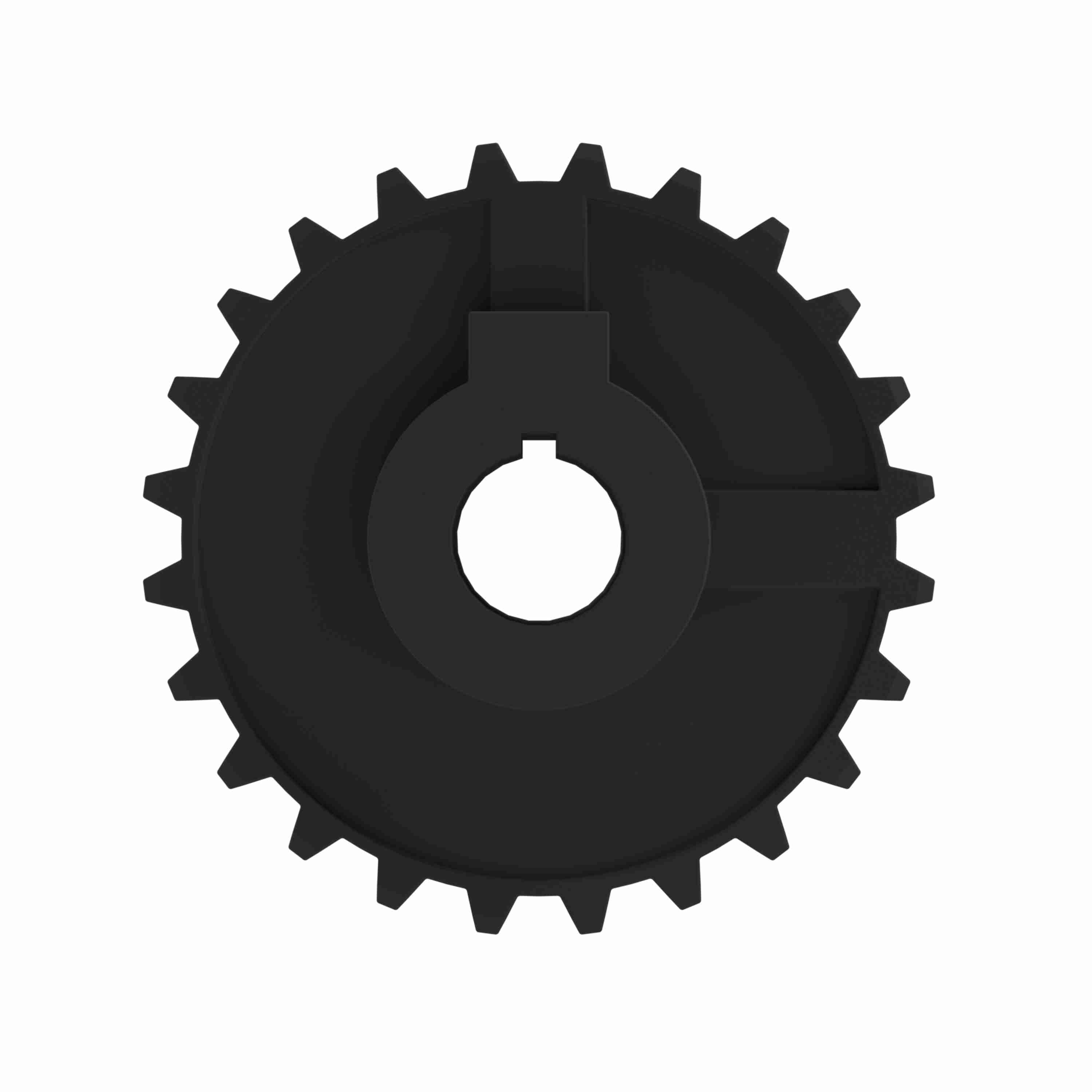

Rexnord 5700 Series Solid One Piece Molded Acetal Sprocket with 24 Teeth and a 1-1/4in Round Shaft-Ready Bore with Keyway & 2 Setscrews - 114-1597-3
Part #:10028481
Catalog #:114-1597-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 24 | Chain Number: | 5700 |
| Bore Type: | Shaft-Ready | Number of Keyways: | 1 |
| Bore Diameter (in): | 1-1/4 in | Body Style: | Block |
| Pitch Diameter (in): | 11.492 | Product Line: | Chain and Belt Sprockets |
| Pitch Diameter (mm): | 291.9 | Material: | Acetal |
| Sprocket Construction: | Molded Non-Split Sprocket | Sprocket Series: | 5700 |
| Product Group: | MatTop® | Number of Set Screws: | 2 Setscrews |
| Bore Shape: | Round |
General Specifications
| UPC: | 793699261493 | Weight: | 0.63 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
