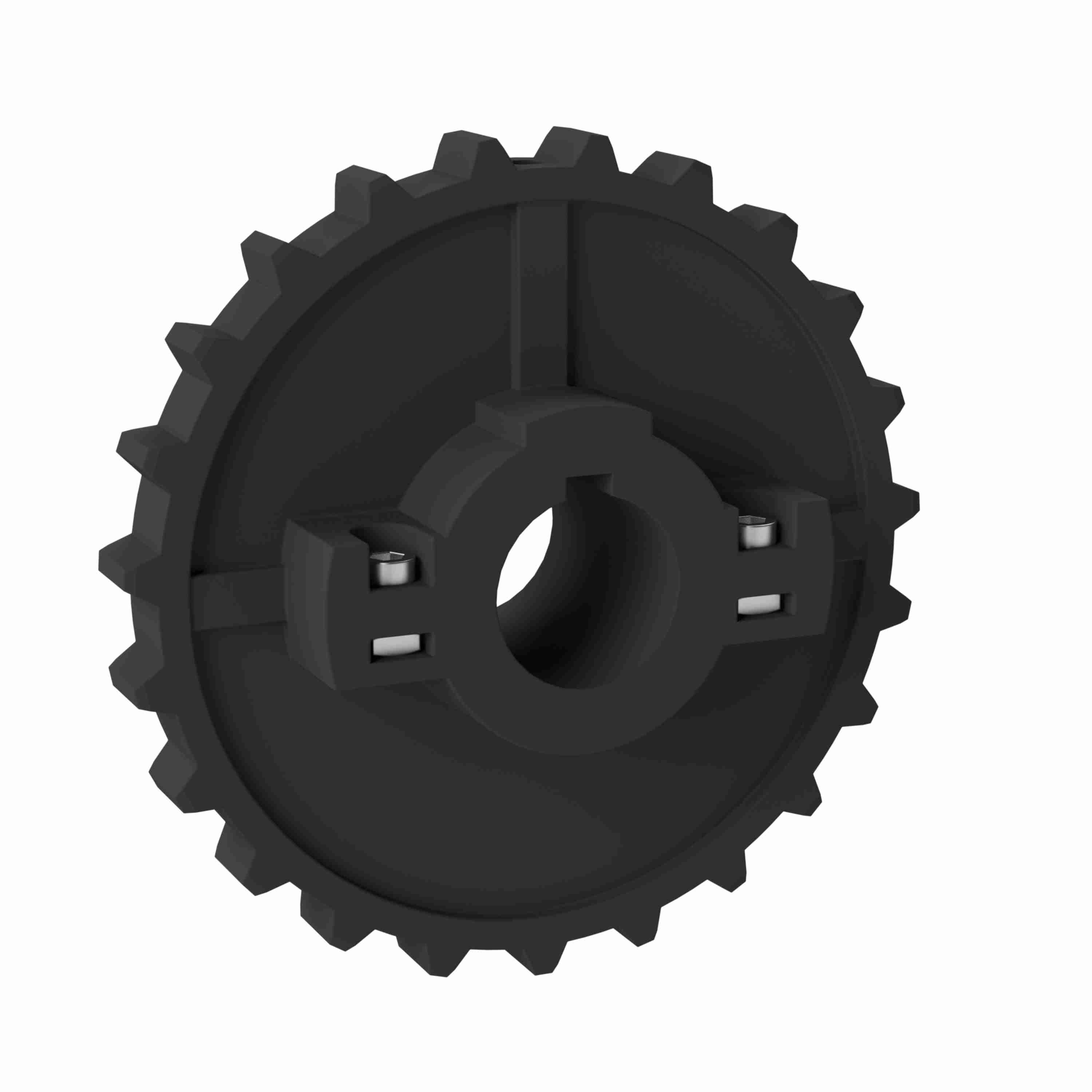

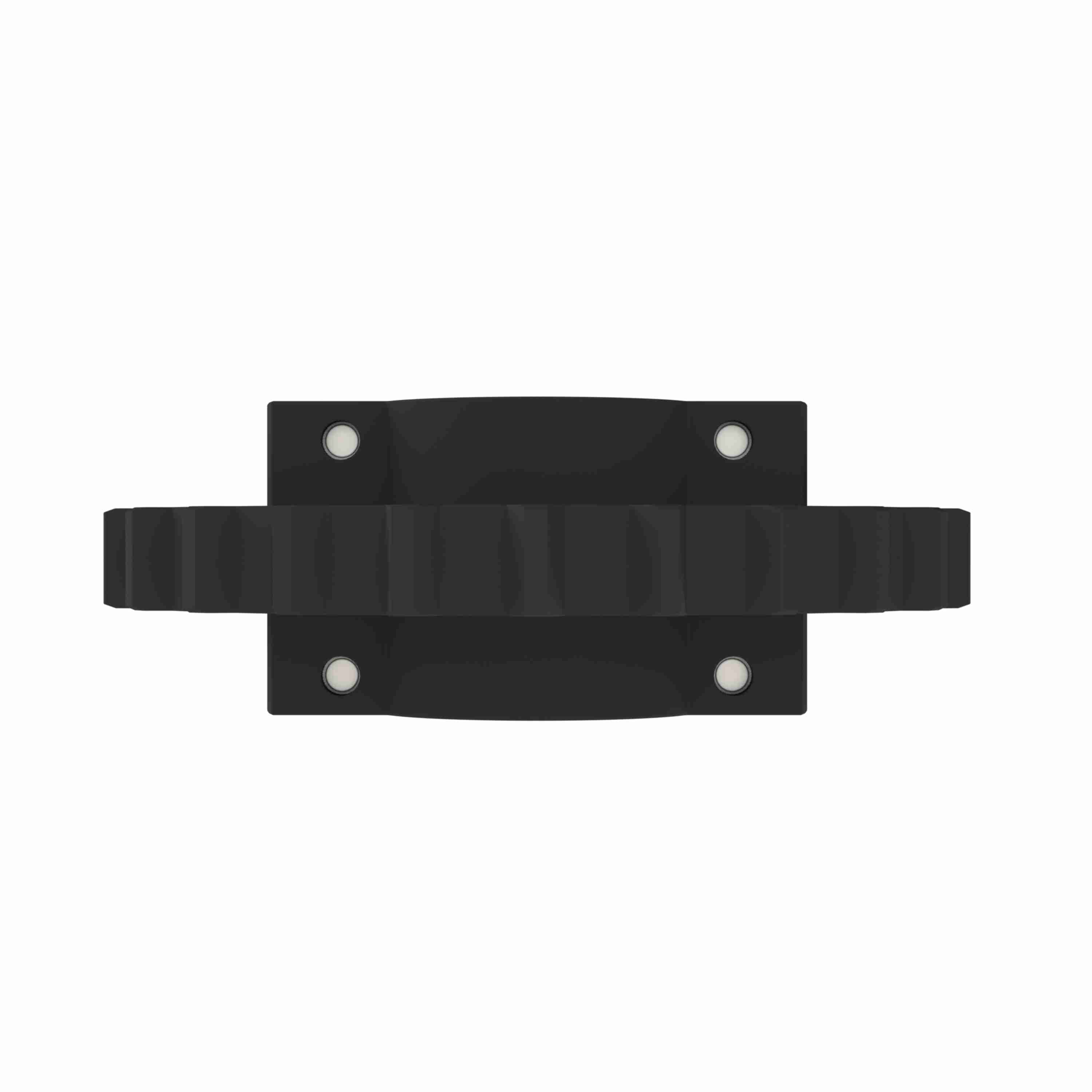

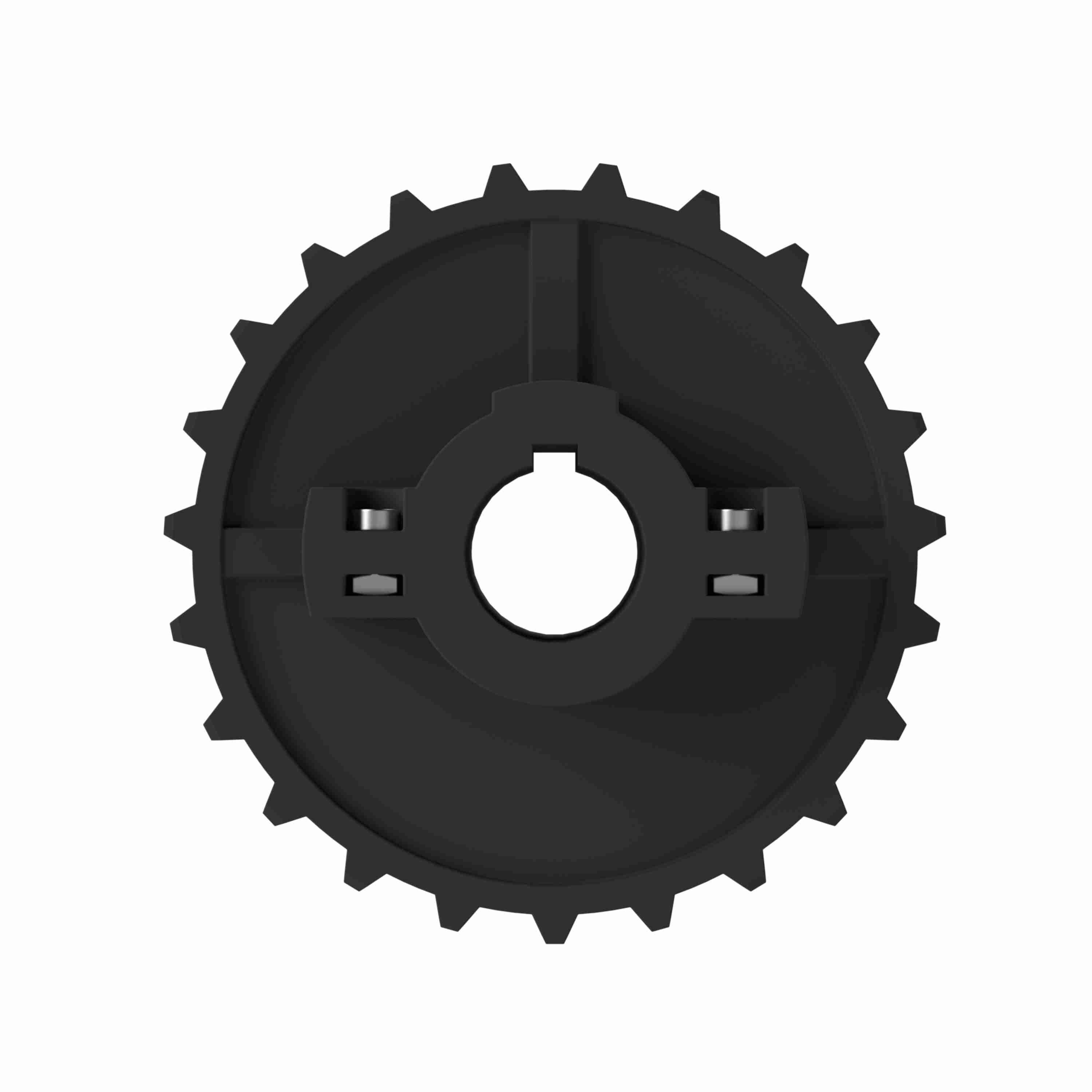

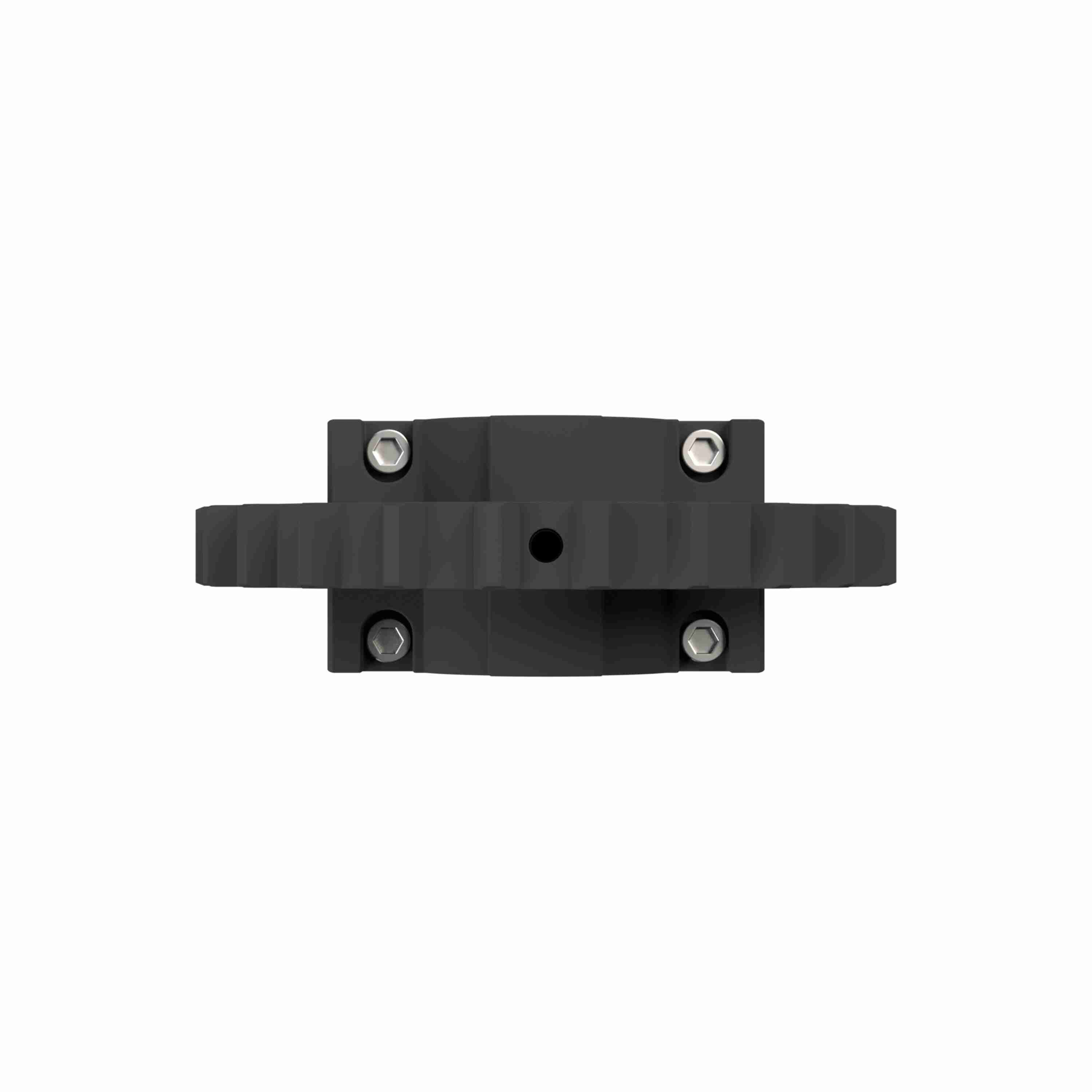

Rexnord 5700 Series Split Molded Nylon Sprocket and a 23 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-58-3
Part #:10028533
Catalog #:614-58-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Chain and Belt Sprockets | Number of Keyways: | 1 |
| Product Group: | MatTop® | Chain Number: | 5700 |
| Bore Diameter (in): | 1-1/4 in | Body Style: | Block |
| Material: | Nylon | Sprocket Construction: | Molded Split Sprocket |
| Pitch Diameter (in): | 11.016 | Number of Teeth: | 23 |
| Bore Shape: | Round | Bore Type: | Shaft-Ready |
| Pitch Diameter (mm): | 279.8 | Sprocket Series: | 5700 |
| Number of Set Screws: | 1 Setscrew |
General Specifications
| UPC: | 793699414714 | Weight: | 0.91 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
