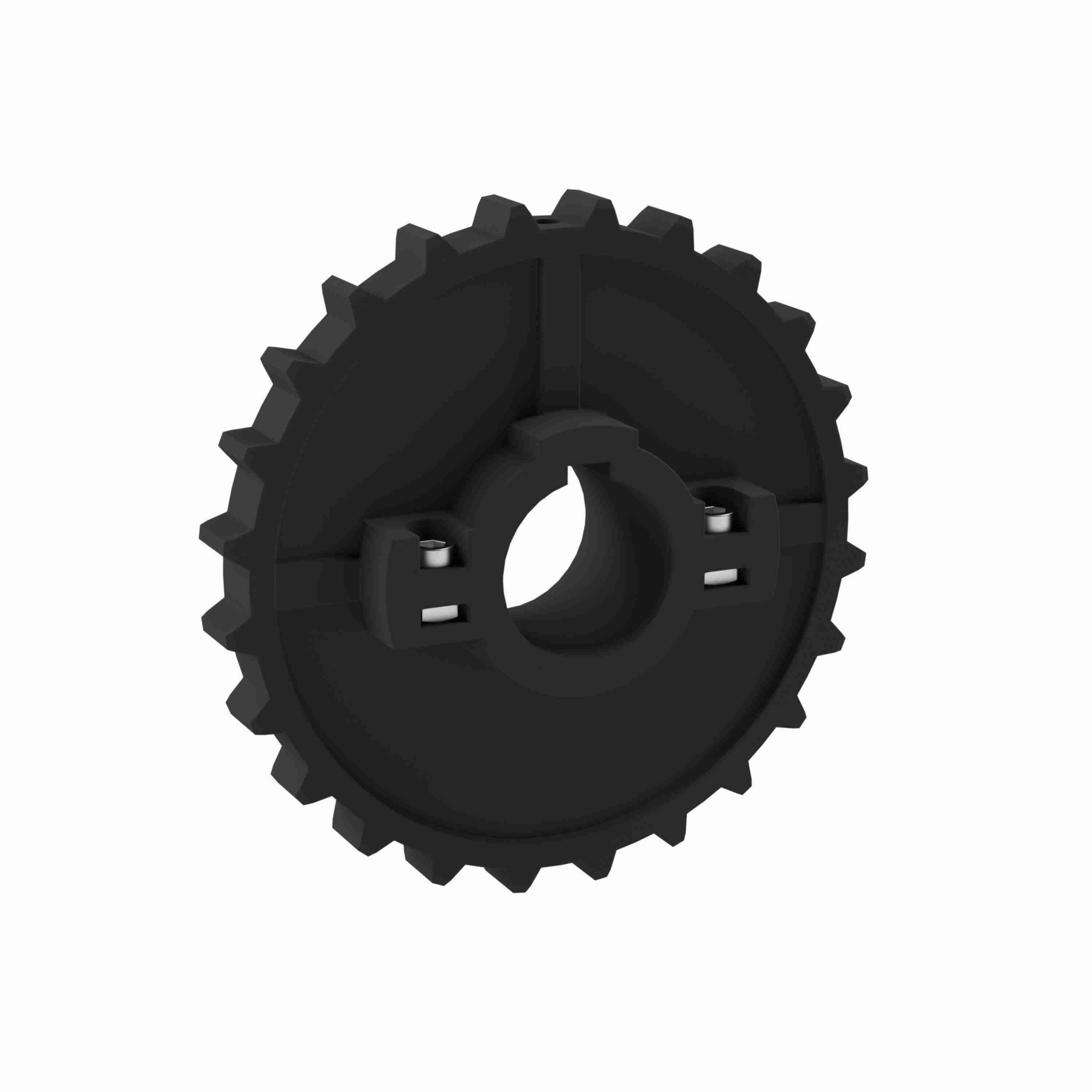

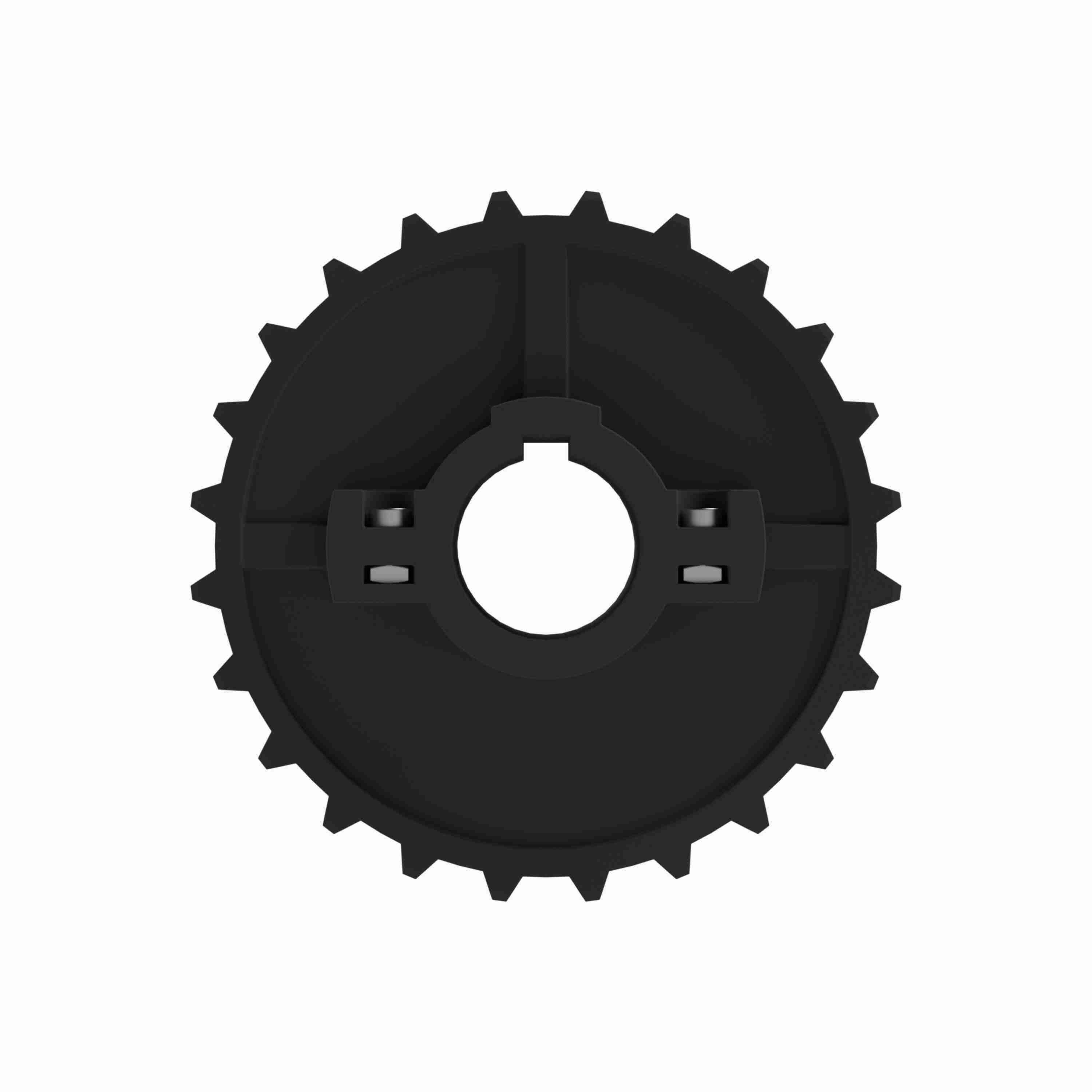

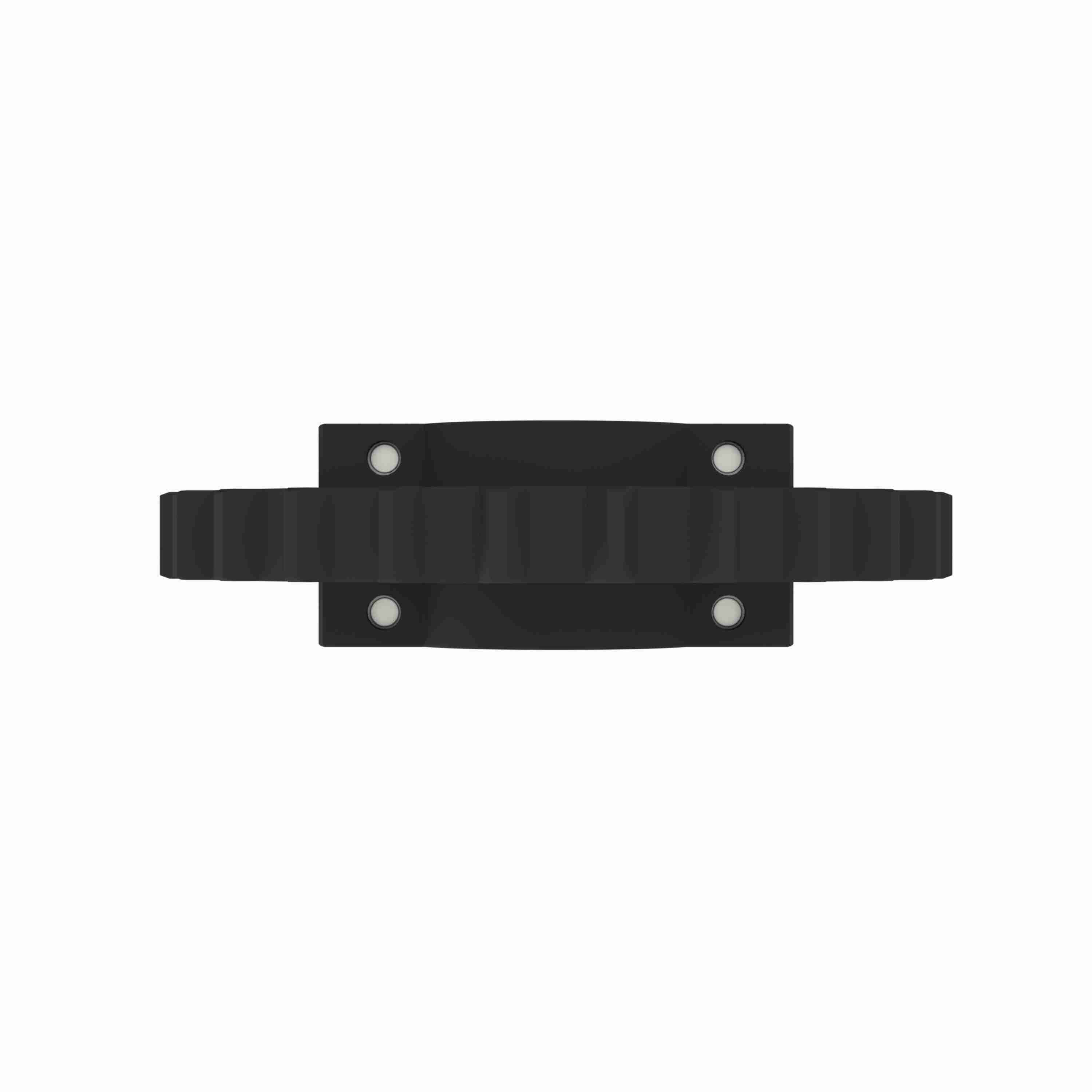

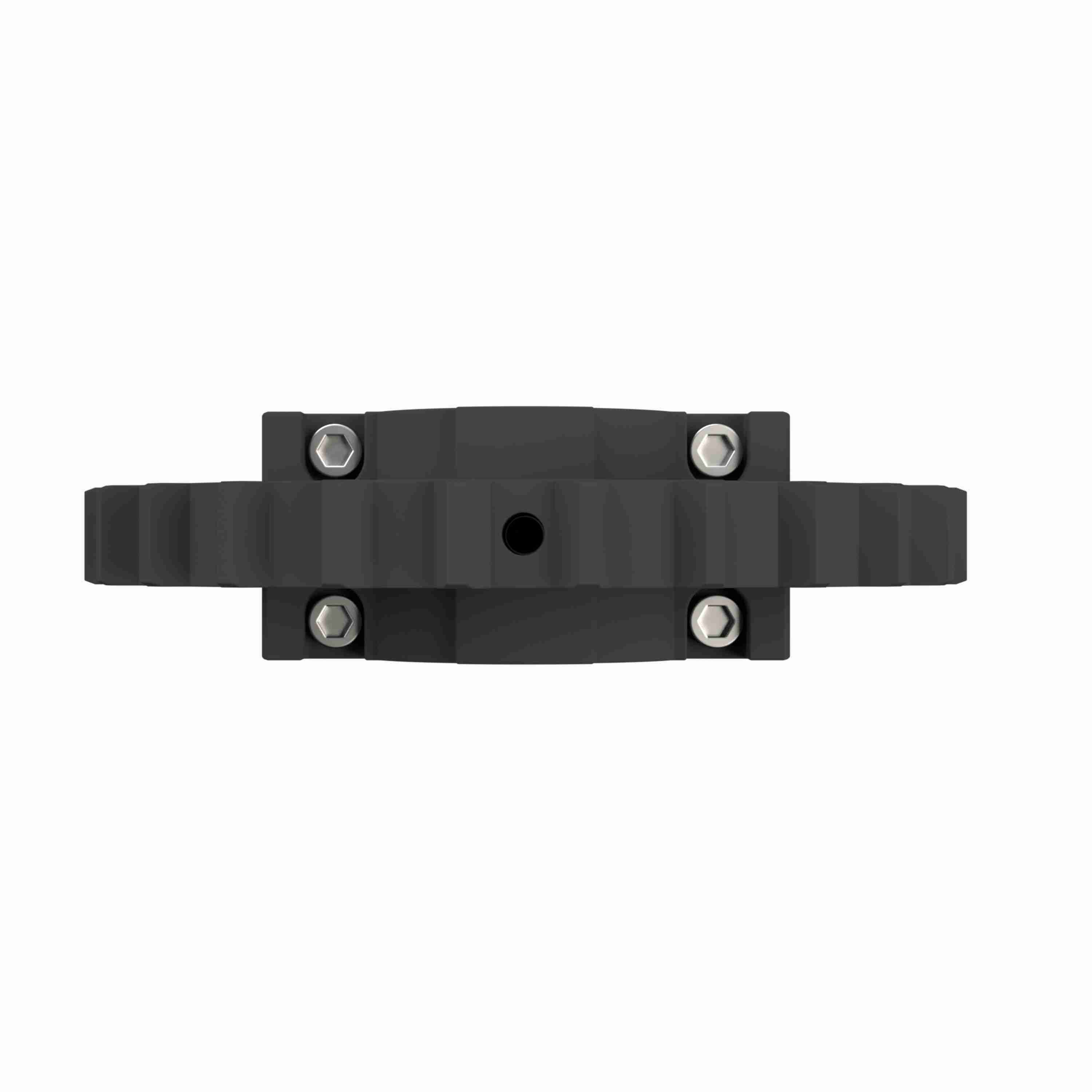

Rexnord 5700 Series Split Molded Nylon Sprocket and a 24 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-59-3
Part #:10028537
Catalog #:614-59-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Material: | Nylon | Bore Shape: | Round |
| Body Style: | Block | Pitch Diameter (mm): | 291.9 |
| Sprocket Construction: | Molded Split Sprocket | Bore Diameter (in): | 1-1/4 in |
| Chain Number: | 5700 | Product Line: | Chain and Belt Sprockets |
| Number of Set Screws: | 1 Setscrew | Pitch Diameter (in): | 11.492 |
| Product Group: | MatTop® | Sprocket Series: | 5700 |
| Number of Teeth: | 24 | Number of Keyways: | 1 |
| Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 698210881399 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
