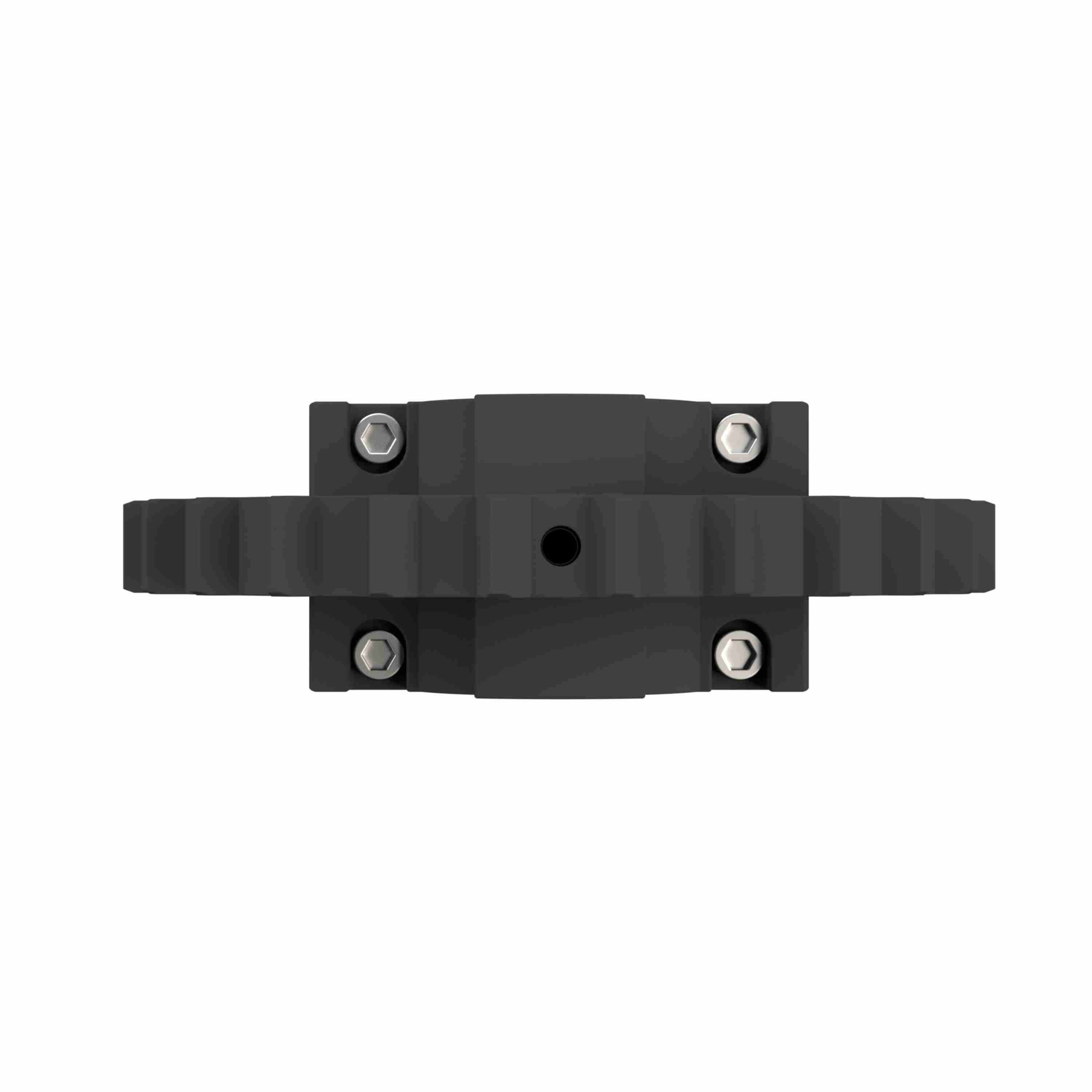

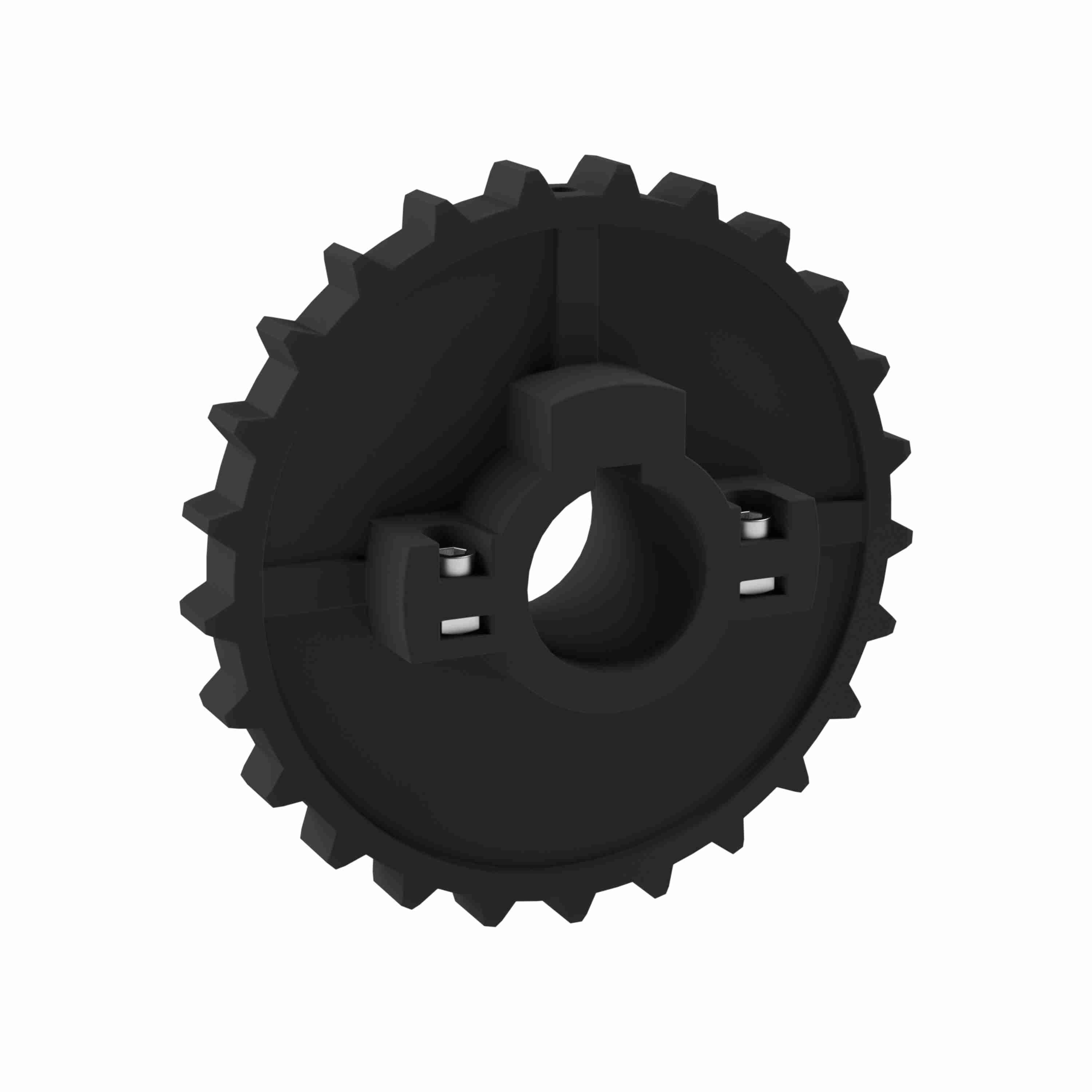

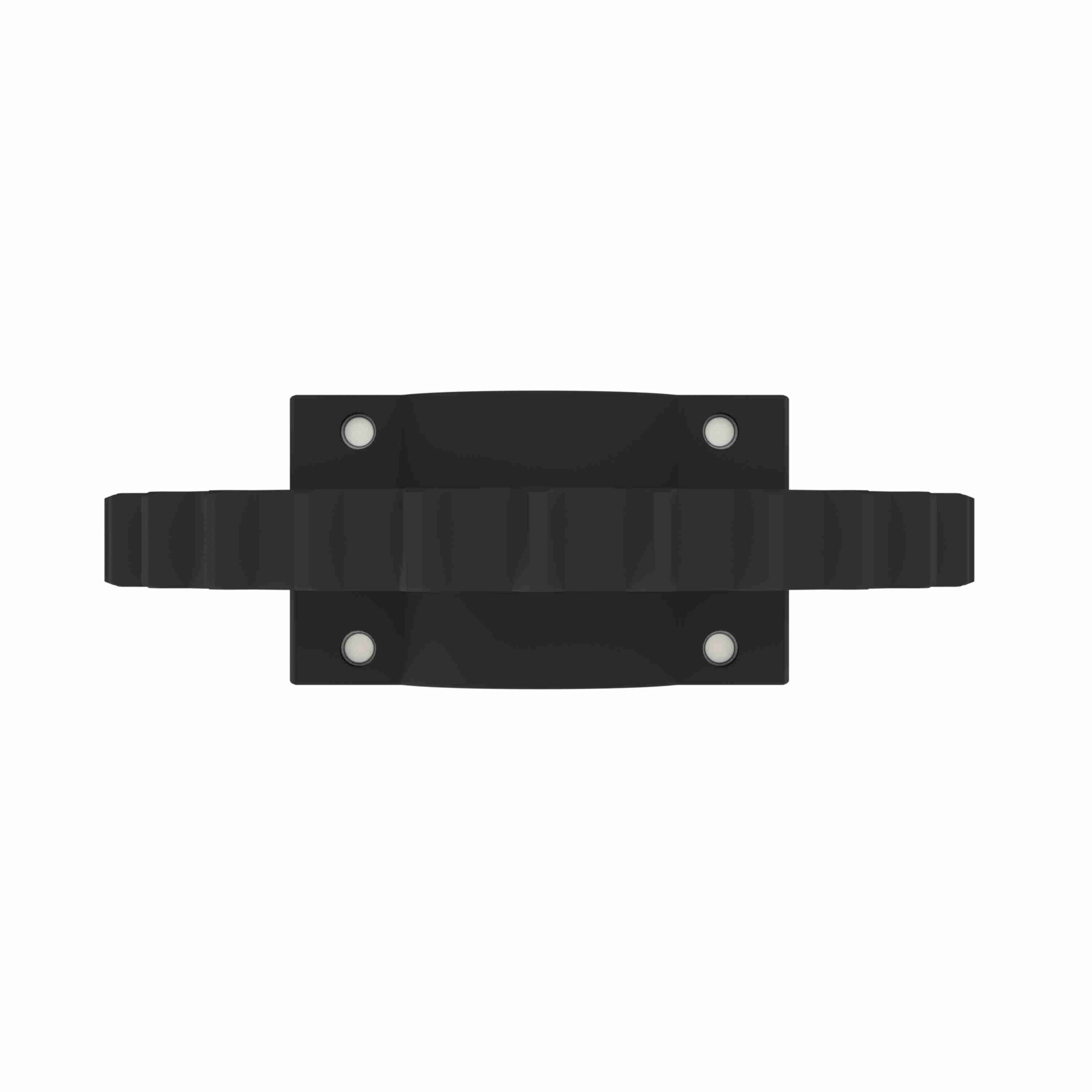

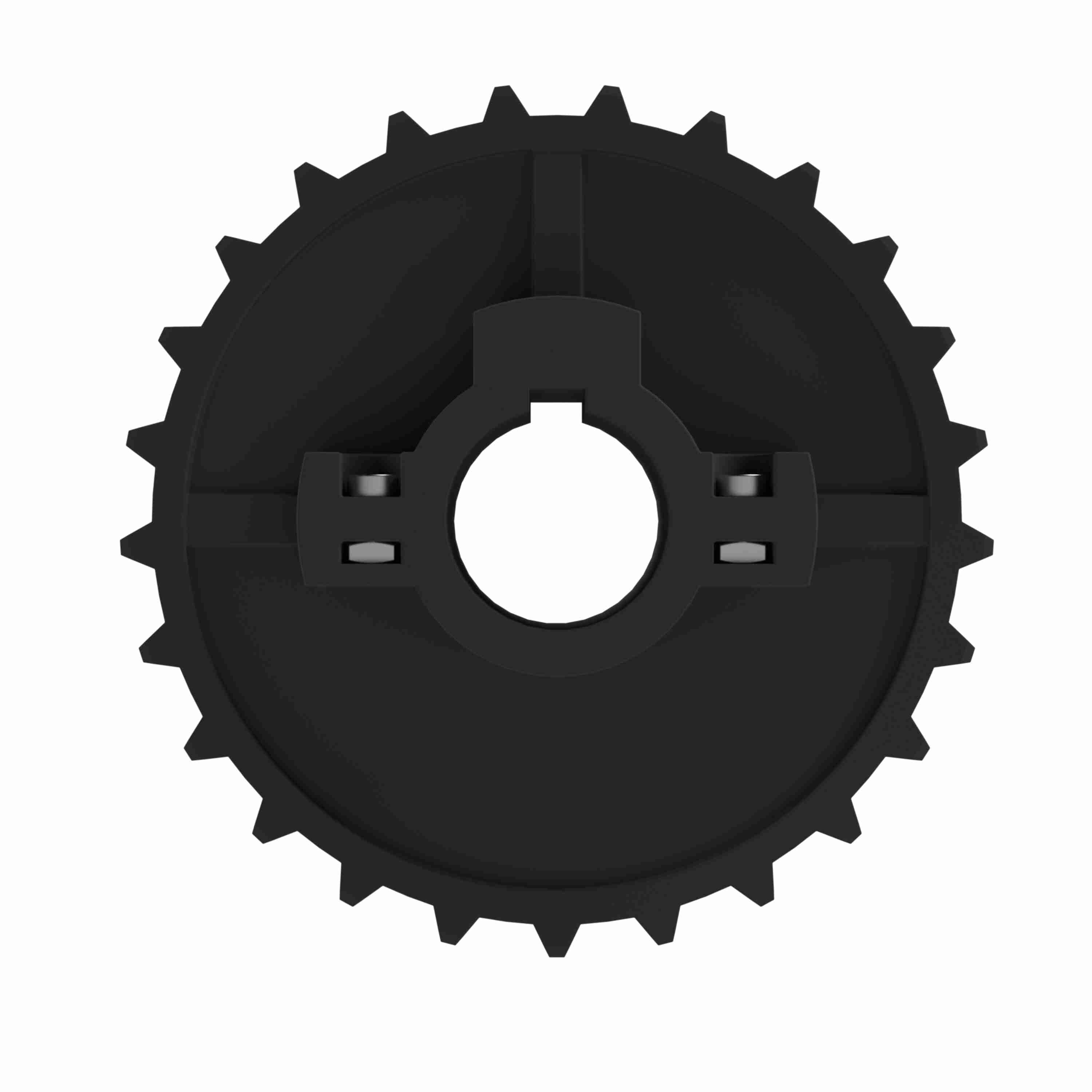

Rexnord 5700 Series Split Molded Nylon Sprocket and a 25 Teeth with 1-3/8in Round Shaft-Ready Bore with Keyway & Setscrew - 614-64-14
Part #:10028543
Catalog #:614-64-14
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (in): | 11.968 | Number of Keyways: | 1 |
| Material: | Nylon | Body Style: | Block |
| Bore Type: | Shaft-Ready | Chain Number: | 5700 |
| Number of Teeth: | 25 | Bore Diameter (in): | 1-3/8 in |
| Number of Set Screws: | 1 Setscrew | Sprocket Series: | 5700 |
| Product Line: | Chain and Belt Sprockets | Product Group: | MatTop® |
| Pitch Diameter (mm): | 303.99 | Bore Shape: | Round |
| Sprocket Construction: | Molded Split Sprocket |
General Specifications
| UPC: | 793699101812 | Weight: | 1.27 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
