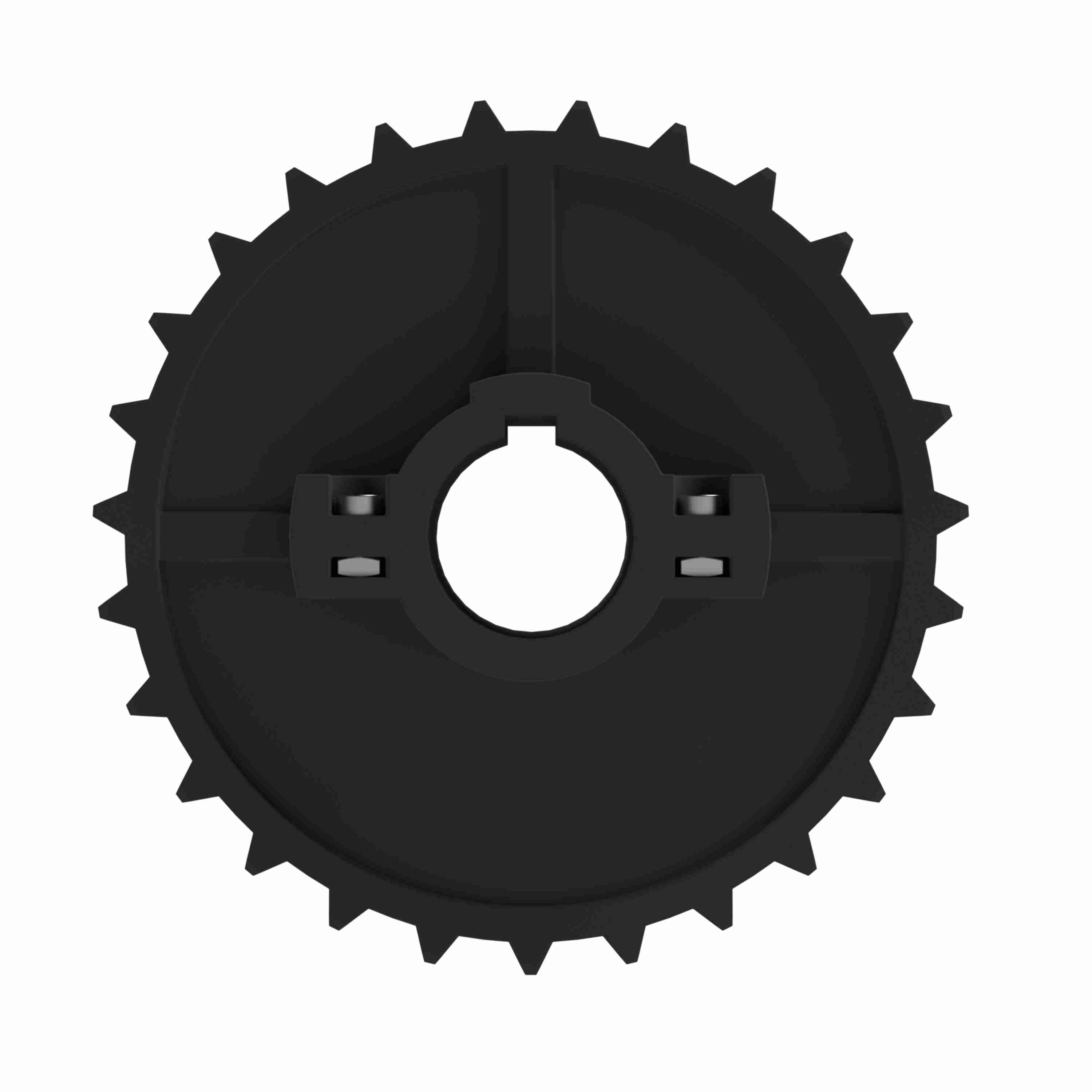

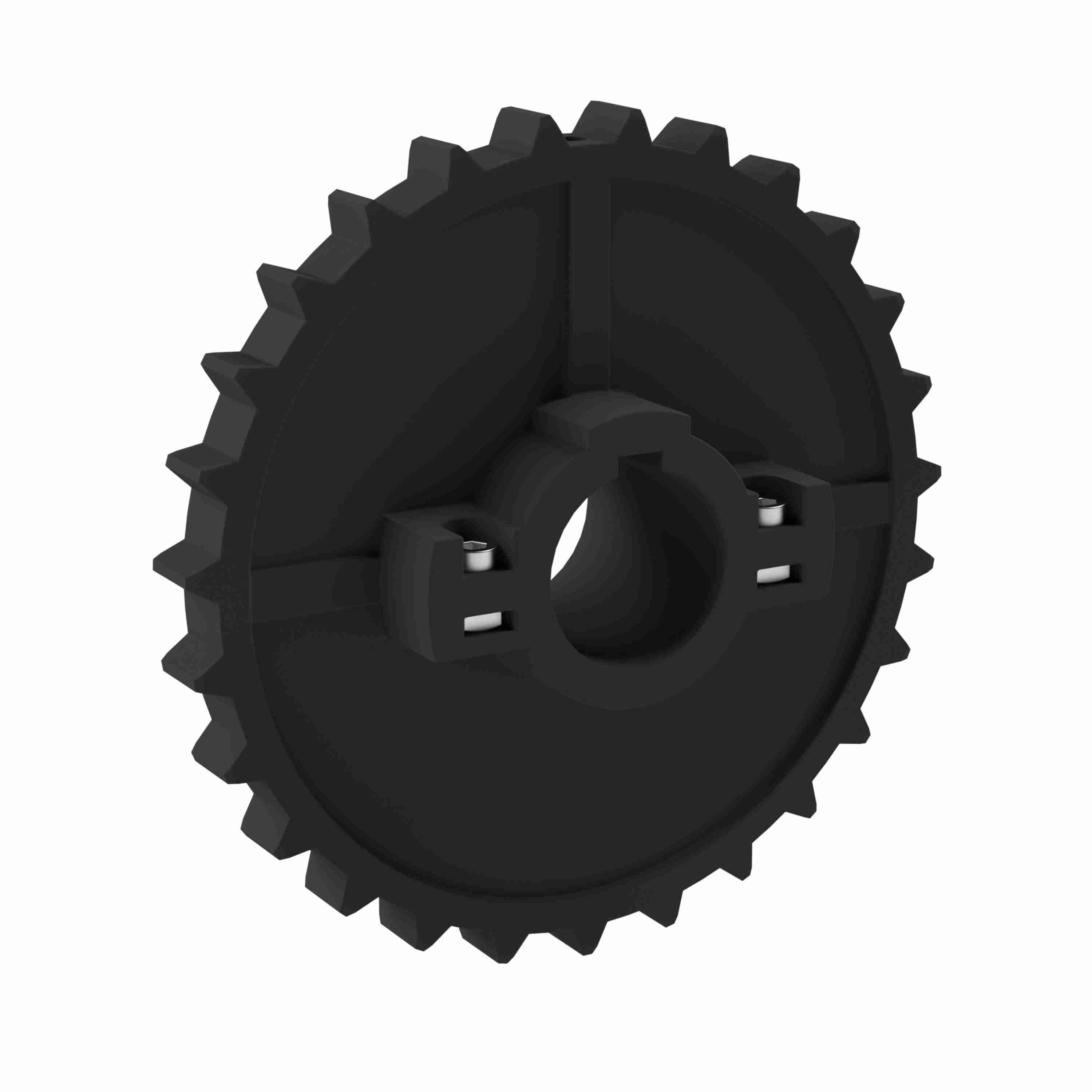

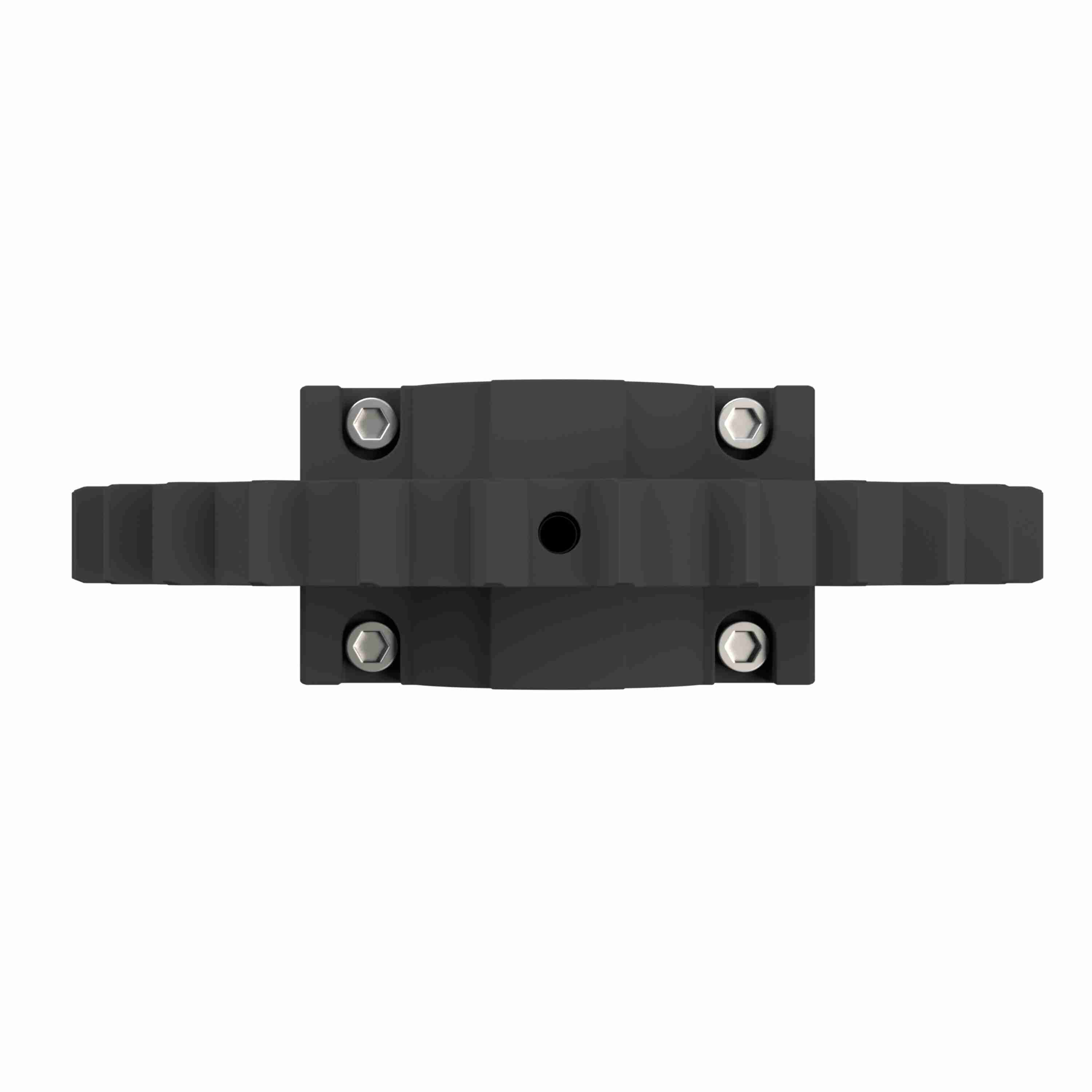

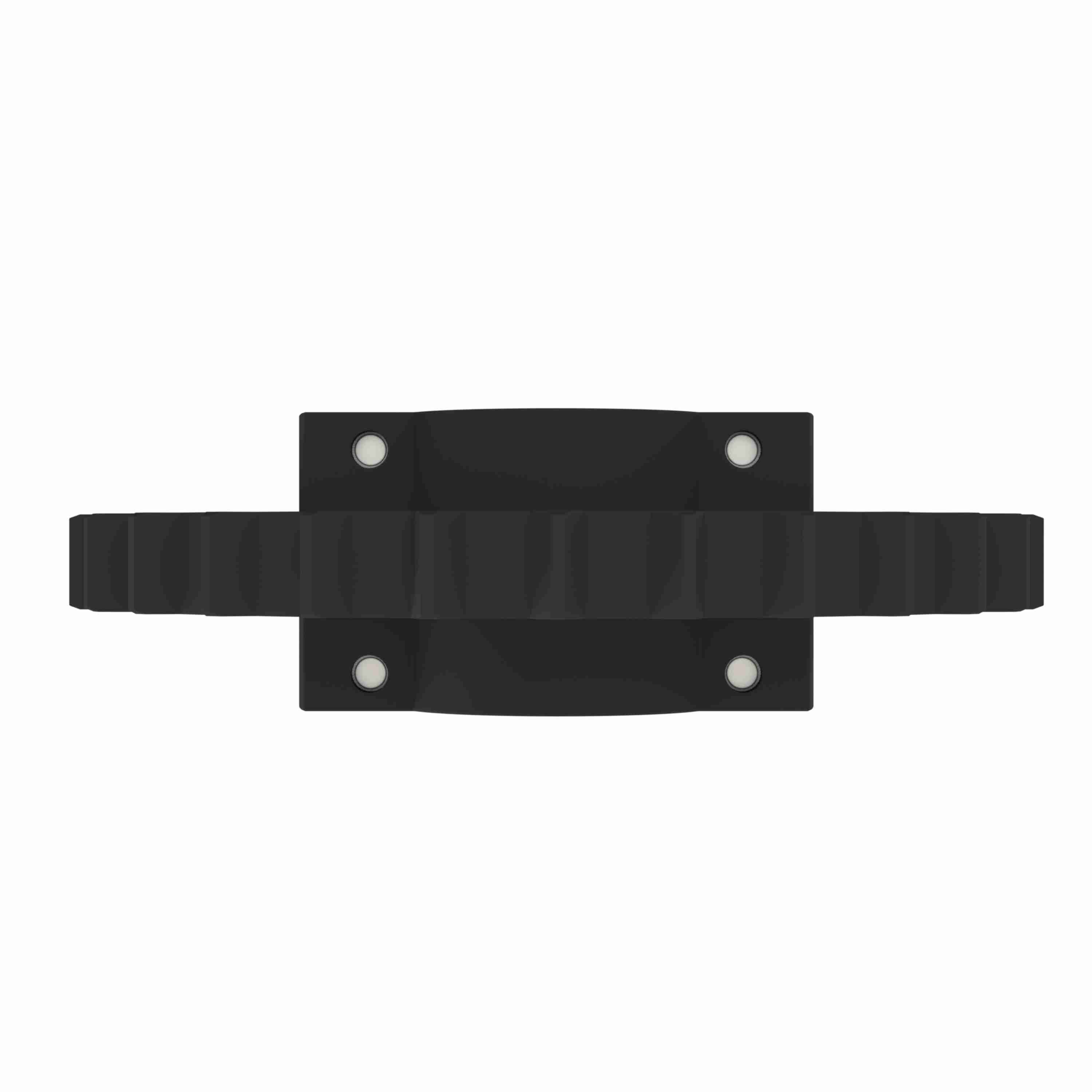

Rexnord 5700 Series Split Molded Nylon Sprocket and a 27 Teeth with 1-1/2in Round Shaft-Ready Bore with Keyway & Setscrew - 614-57-11
Part #:10028546
Catalog #:614-57-11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Body Style: | Block | Number of Set Screws: | 1 Setscrew |
| Bore Shape: | Round | Bore Diameter (in): | 1-1/2 in |
| Number of Keyways: | 1 | Sprocket Series: | 5700 |
| Sprocket Construction: | Molded Split Sprocket | Material: | Nylon |
| Chain Number: | 5700 | Product Group: | MatTop® |
| Pitch Diameter (mm): | 328.19 | Bore Type: | Shaft-Ready |
| Number of Teeth: | 27 | Product Line: | Chain and Belt Sprockets |
| Pitch Diameter (in): | 12.921 |
General Specifications
| UPC: | 698210122188 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
