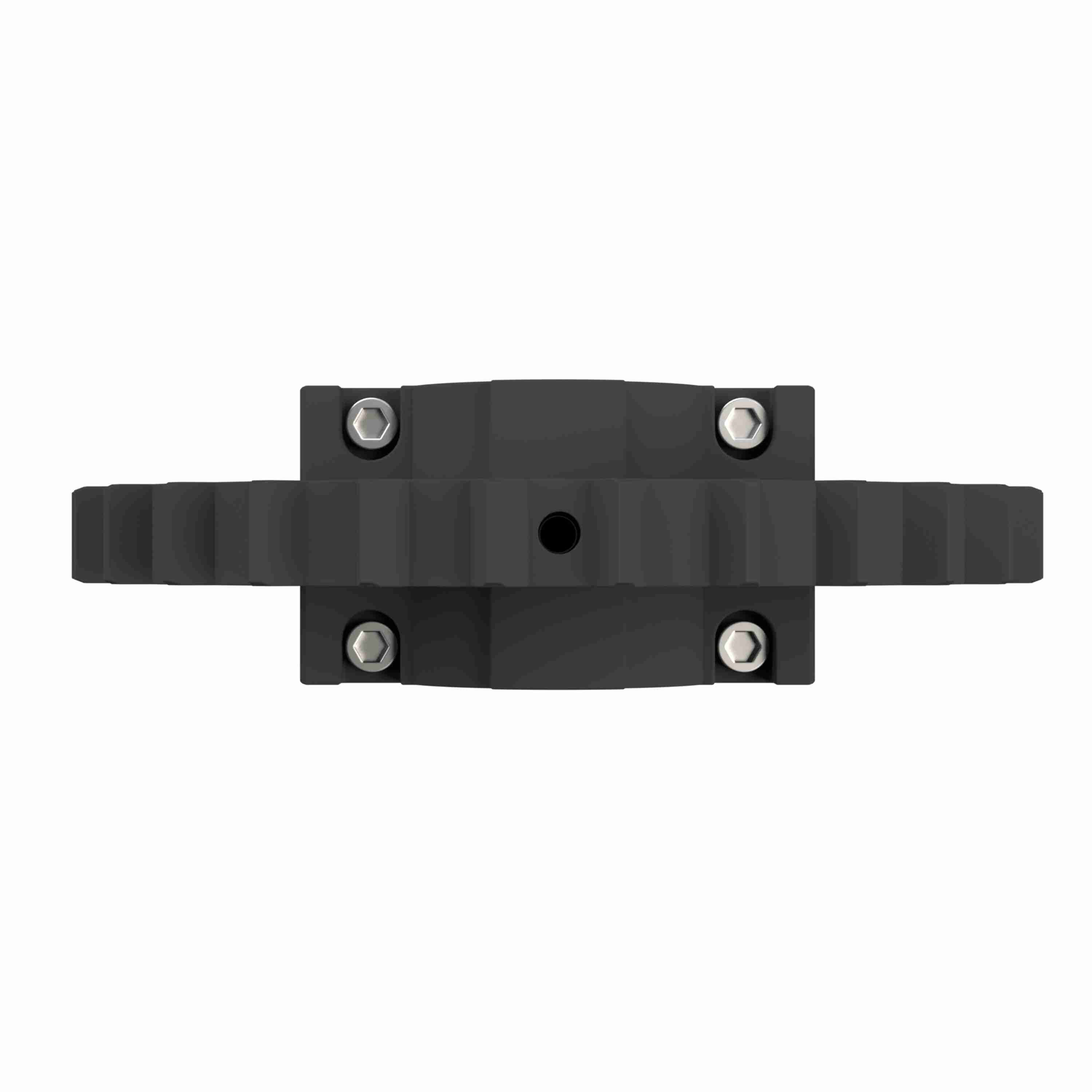

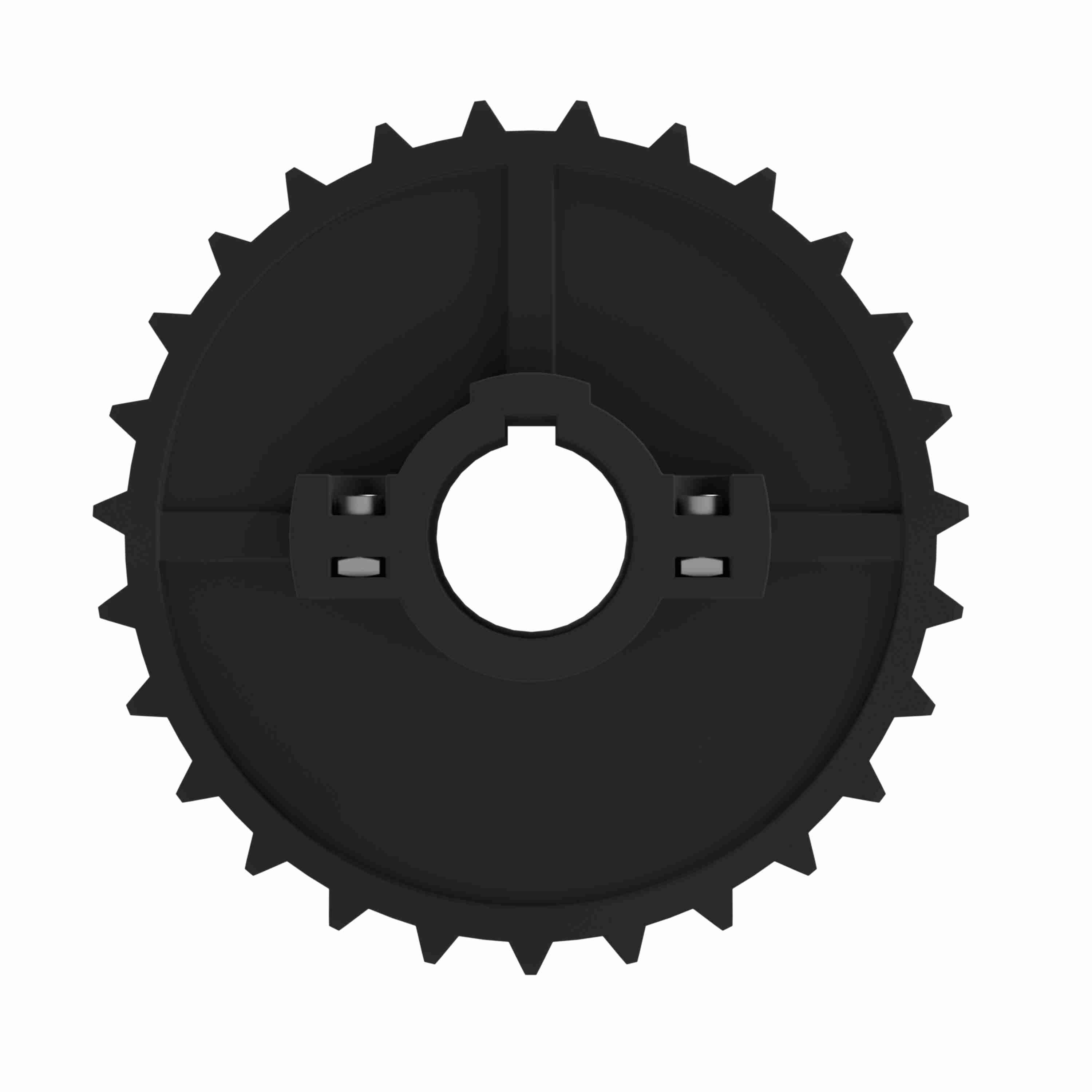

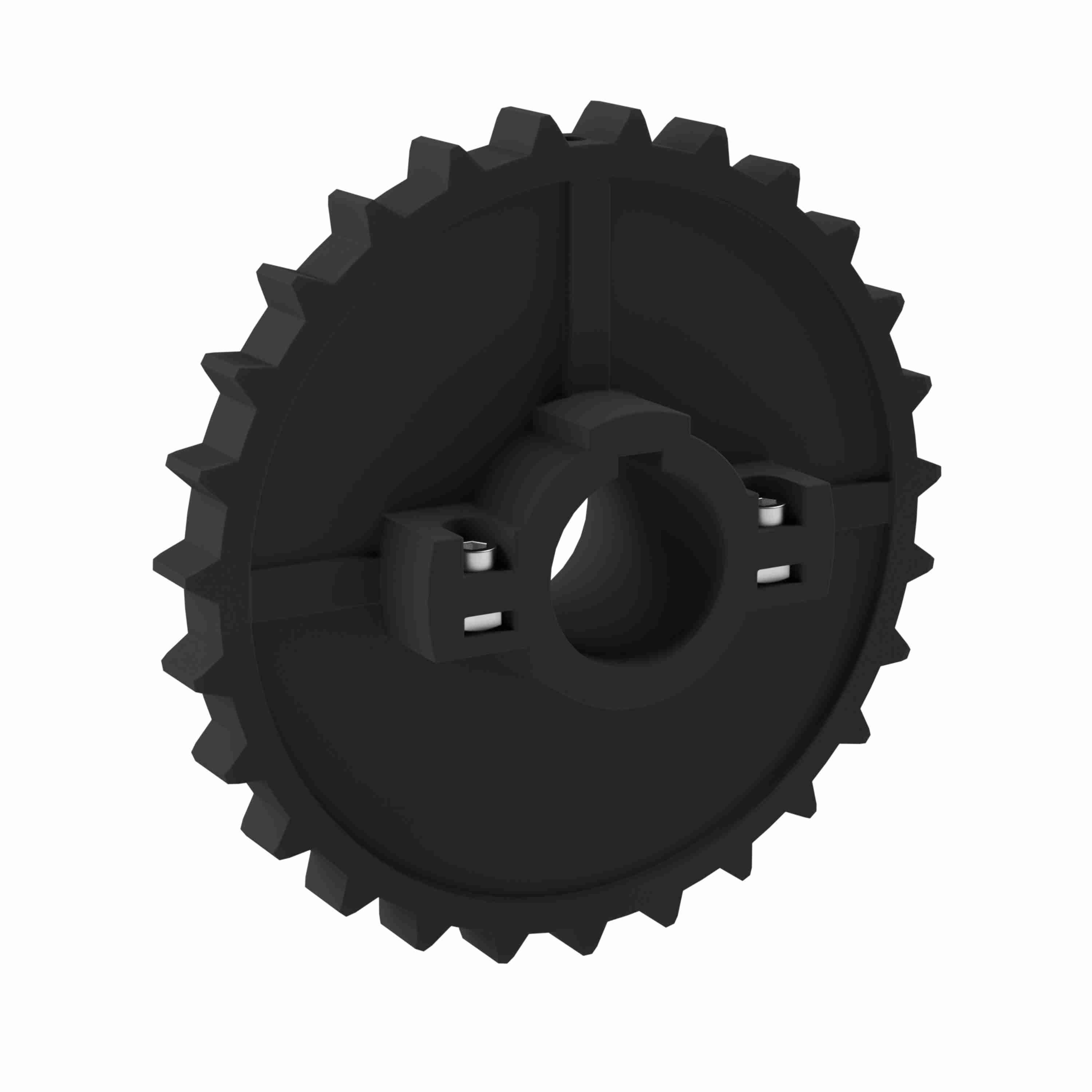

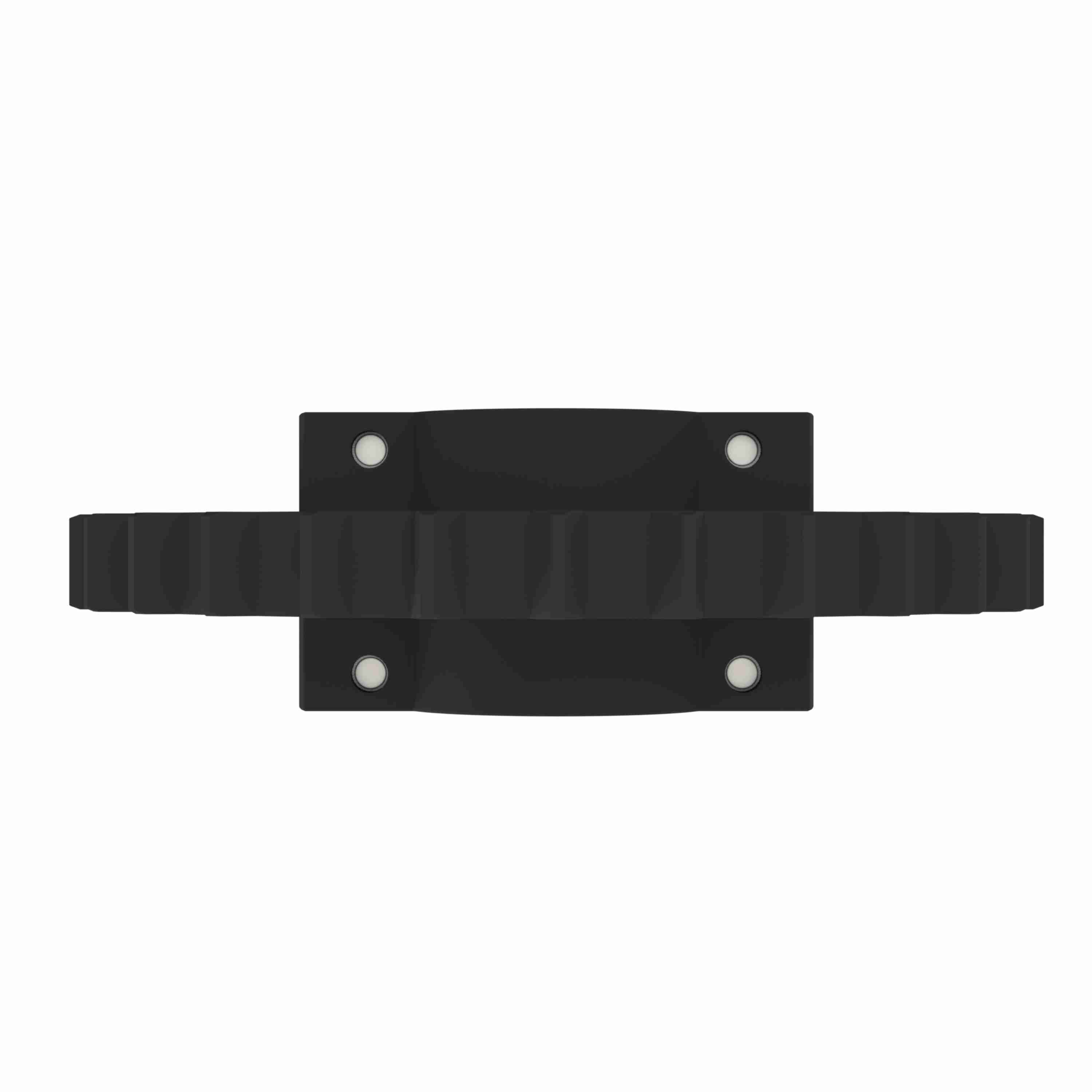

Rexnord 5700 Series Split Molded Nylon Sprocket and a 27 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-57-3
Part #:10028548
Catalog #:614-57-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | MatTop® | Chain Number: | 5700 |
| Sprocket Series: | 5700 | Number of Keyways: | 1 |
| Number of Set Screws: | 1 Setscrew | Material: | Nylon |
| Pitch Diameter (in): | 12.921 | Sprocket Construction: | Molded Split Sprocket |
| Product Line: | Chain and Belt Sprockets | Bore Diameter (in): | 1-1/4 in |
| Pitch Diameter (mm): | 328.19 | Number of Teeth: | 27 |
| Bore Type: | Shaft-Ready | Body Style: | Block |
| Bore Shape: | Round |
General Specifications
| UPC: | 698210122171 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
