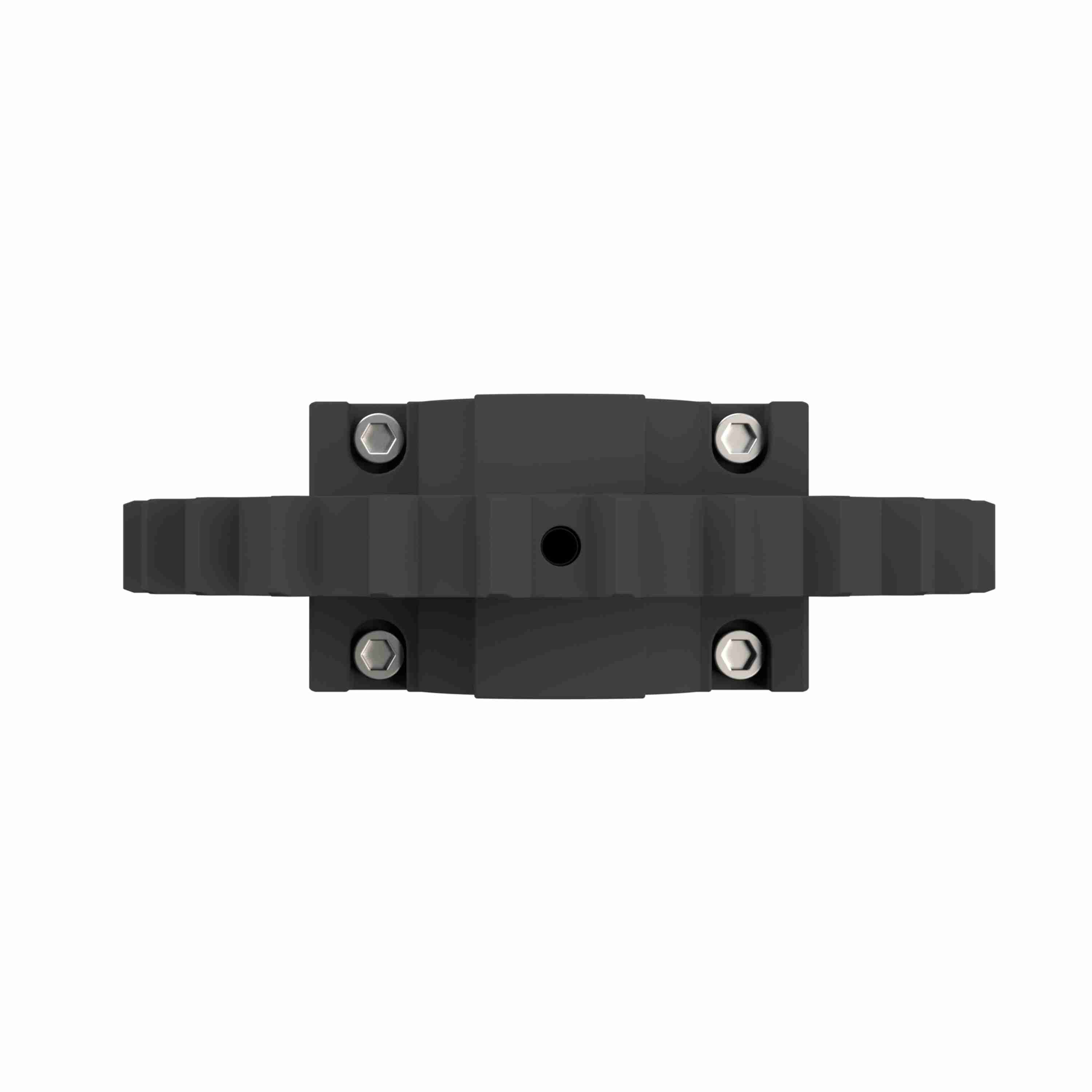

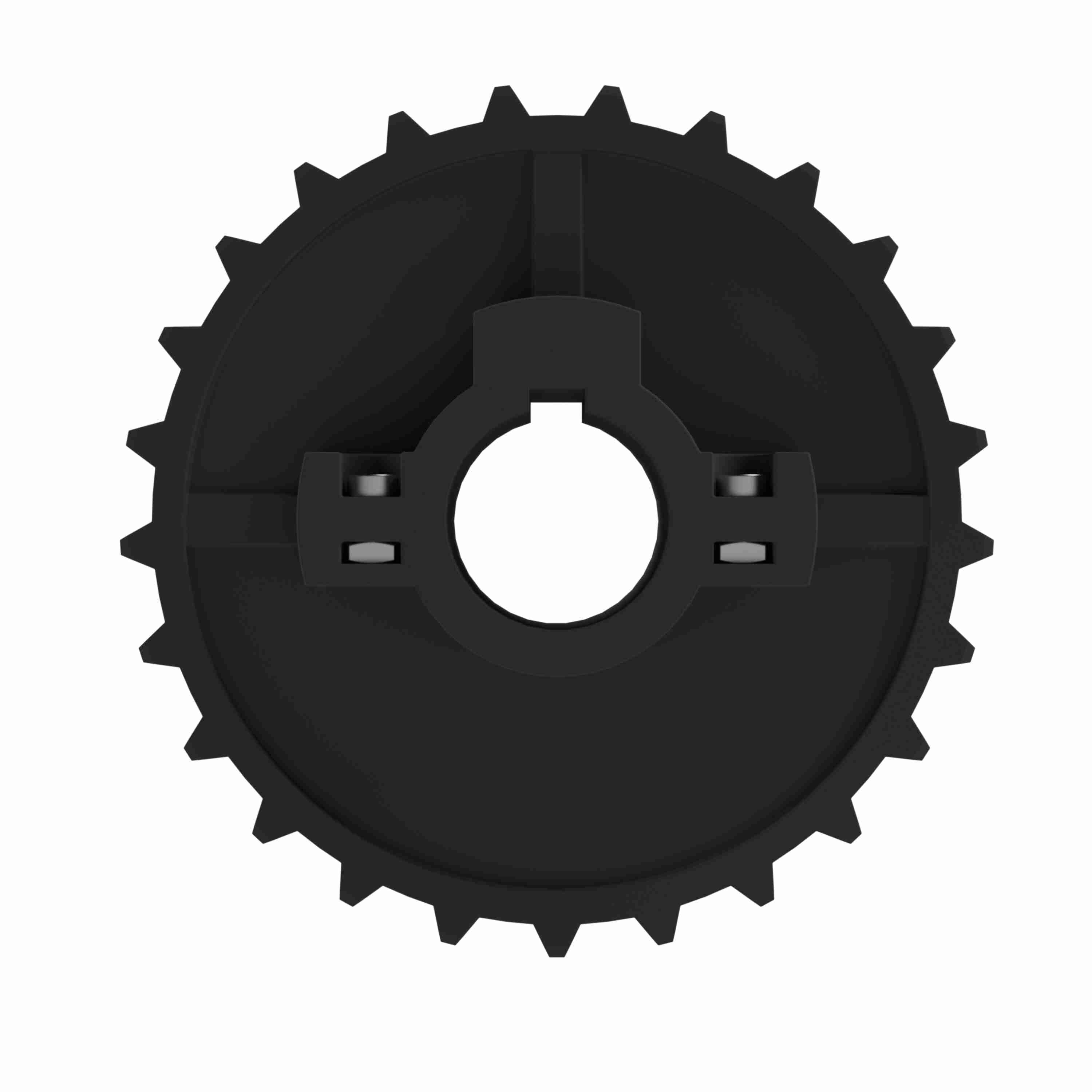

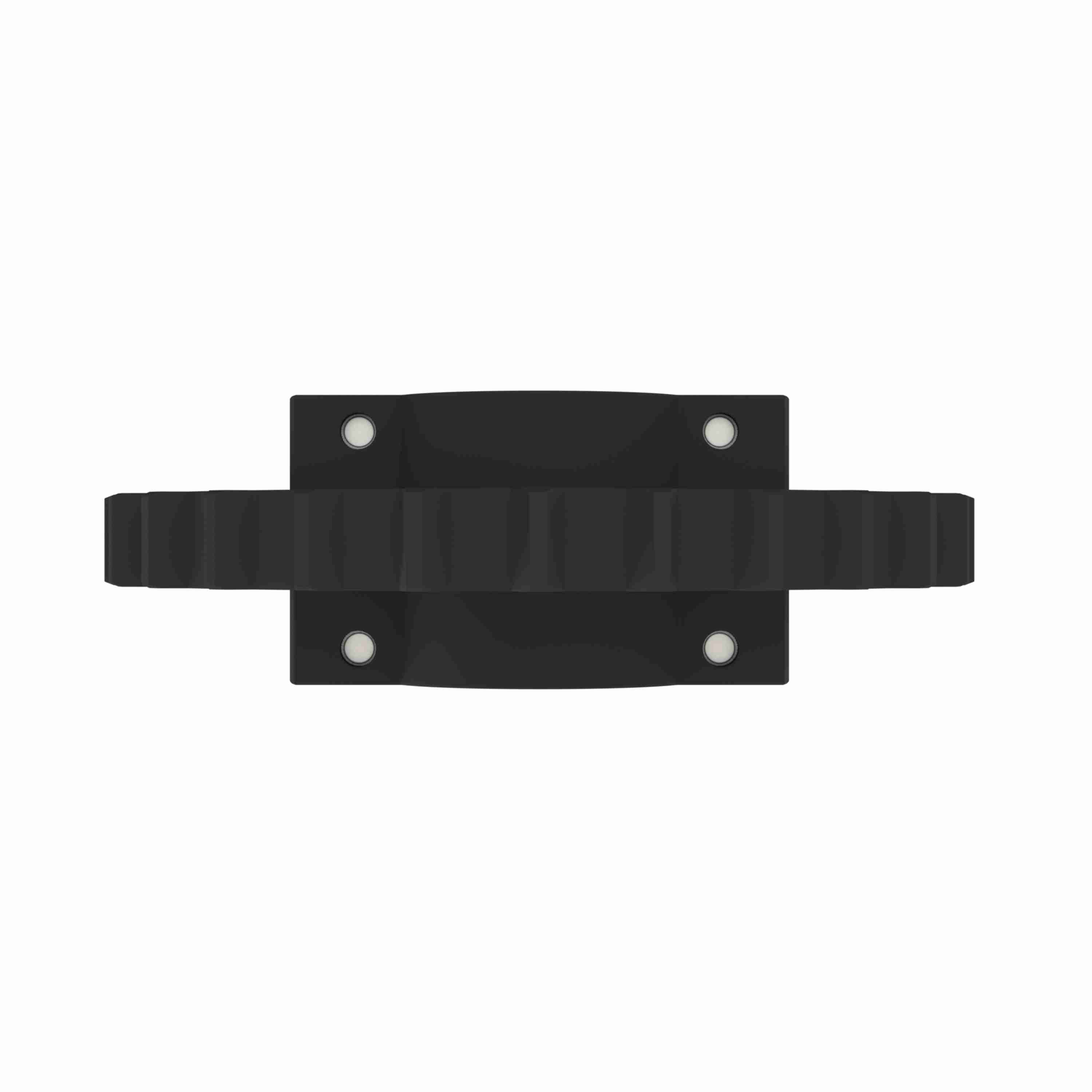

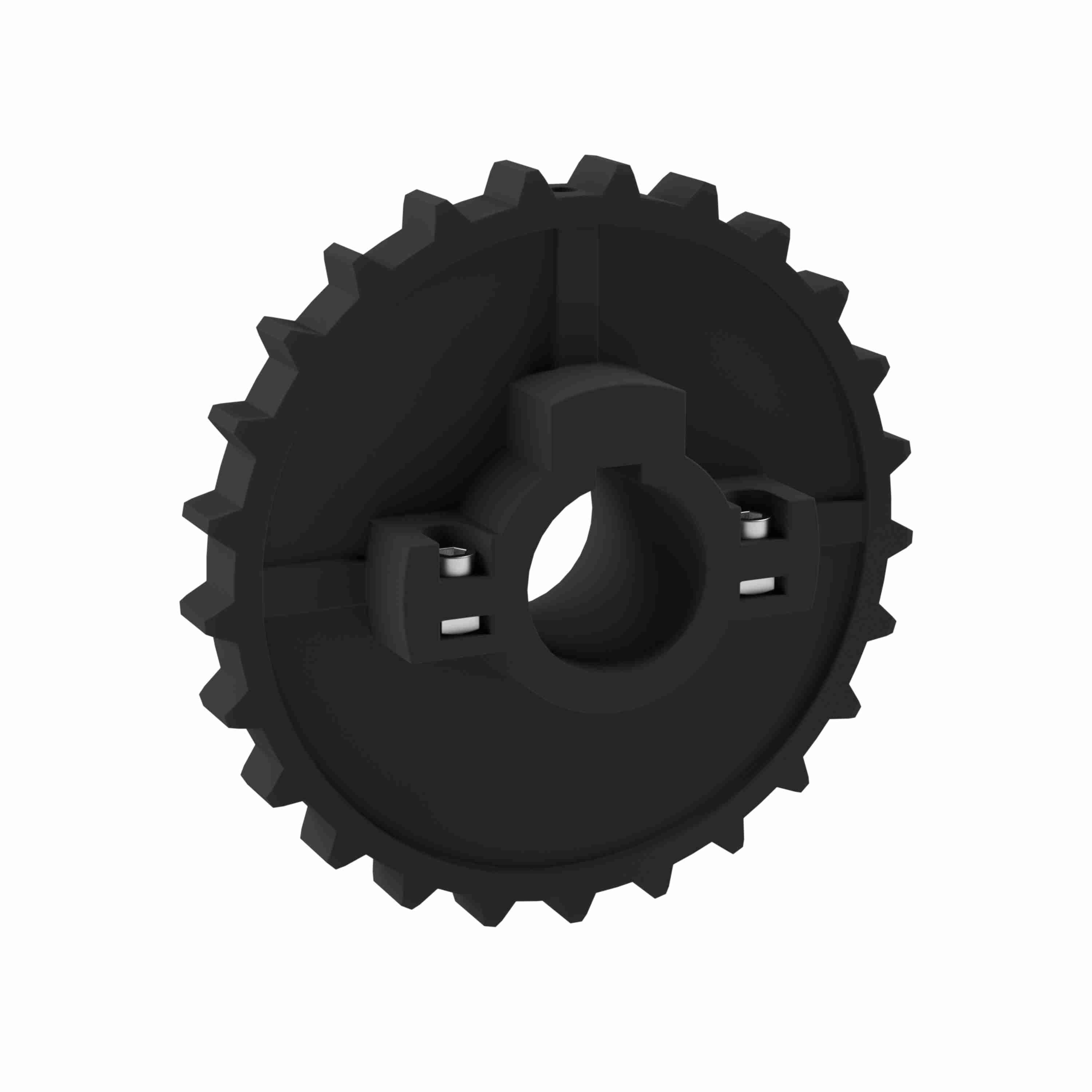

Rexnord 5700 Series Split Molded Nylon Sprocket with 25 Teeth and 30mm Round Shaft-Ready Bore with Keyway - 614-64-30
Part #:10334019
Catalog #:614-64-30
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Keyways: | 1 | Bore Shape: | Round |
| Product Line: | Chain and Belt Sprockets | Pitch Diameter (mm): | 303.99 |
| Sprocket Construction: | Molded Split Sprocket | Number of Set Screws: | None |
| Number of Teeth: | 25 | Body Style: | Block |
| Material: | Nylon | Pitch Diameter (in): | 11.968 |
| Product Group: | MatTop® | Hub Type: | C-HUB |
| Bore Diameter (mm): | 30 mm | Sprocket Series: | 5700 |
| Chain Number: | 5700 | Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 782934817274 | Weight: | 0.47 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
