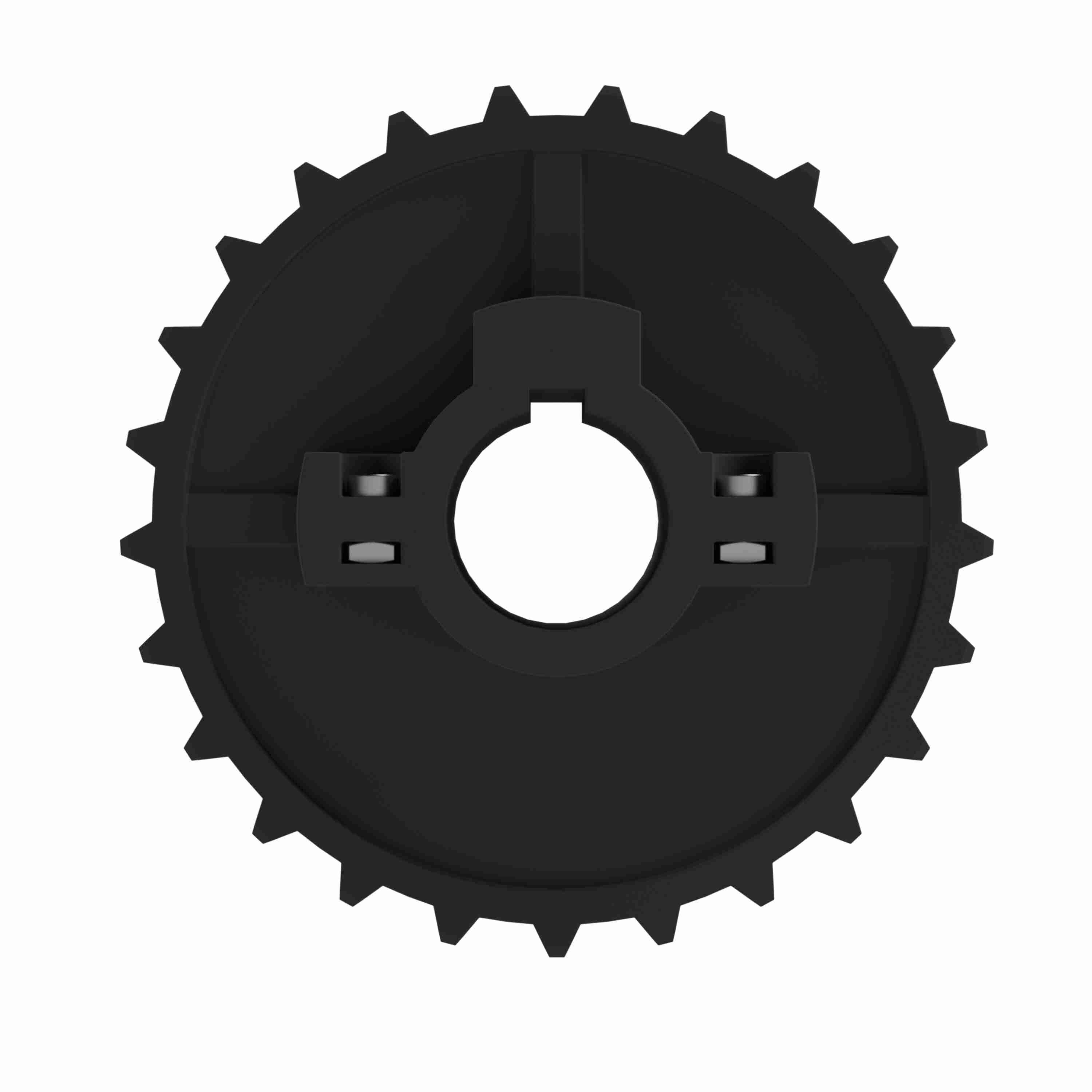

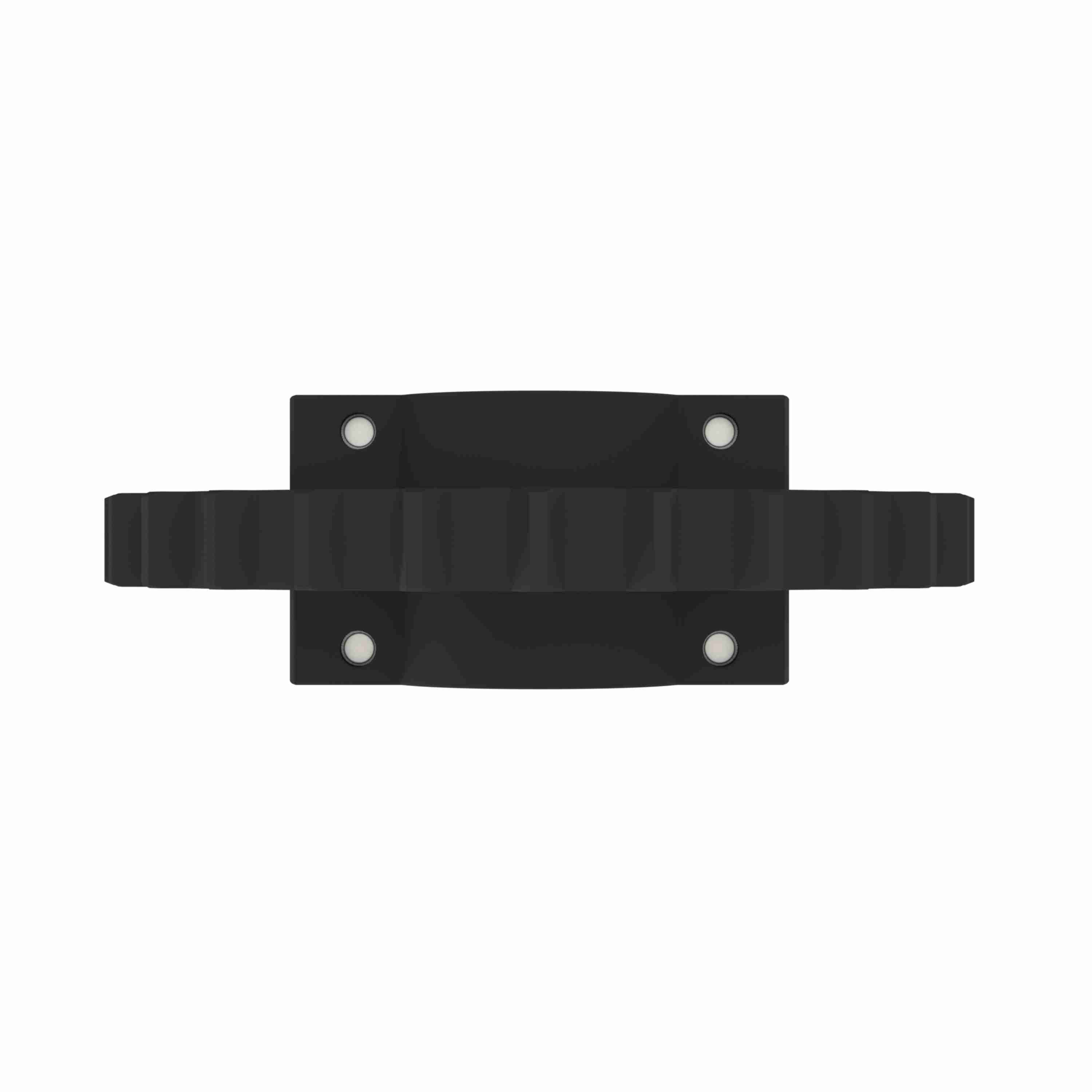

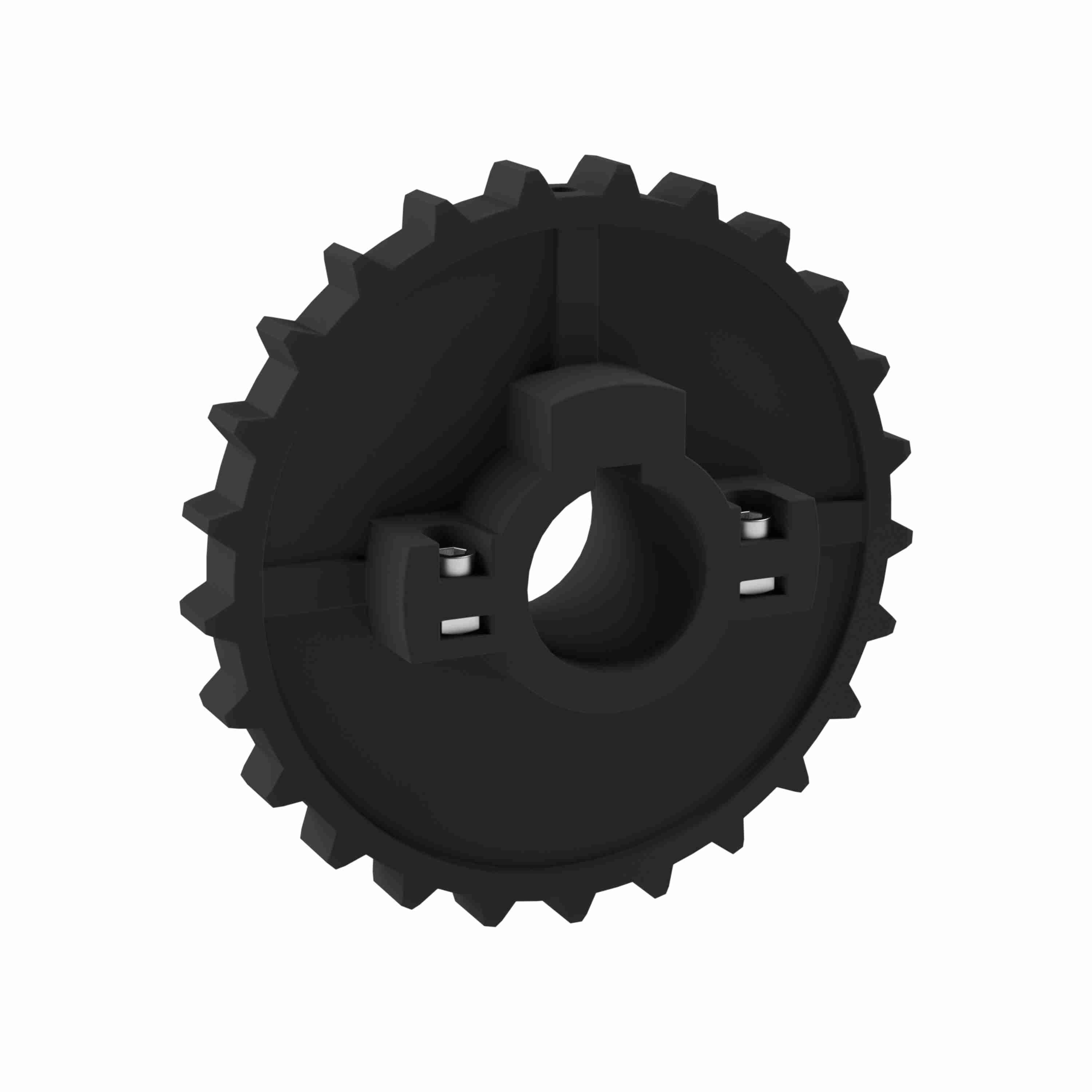

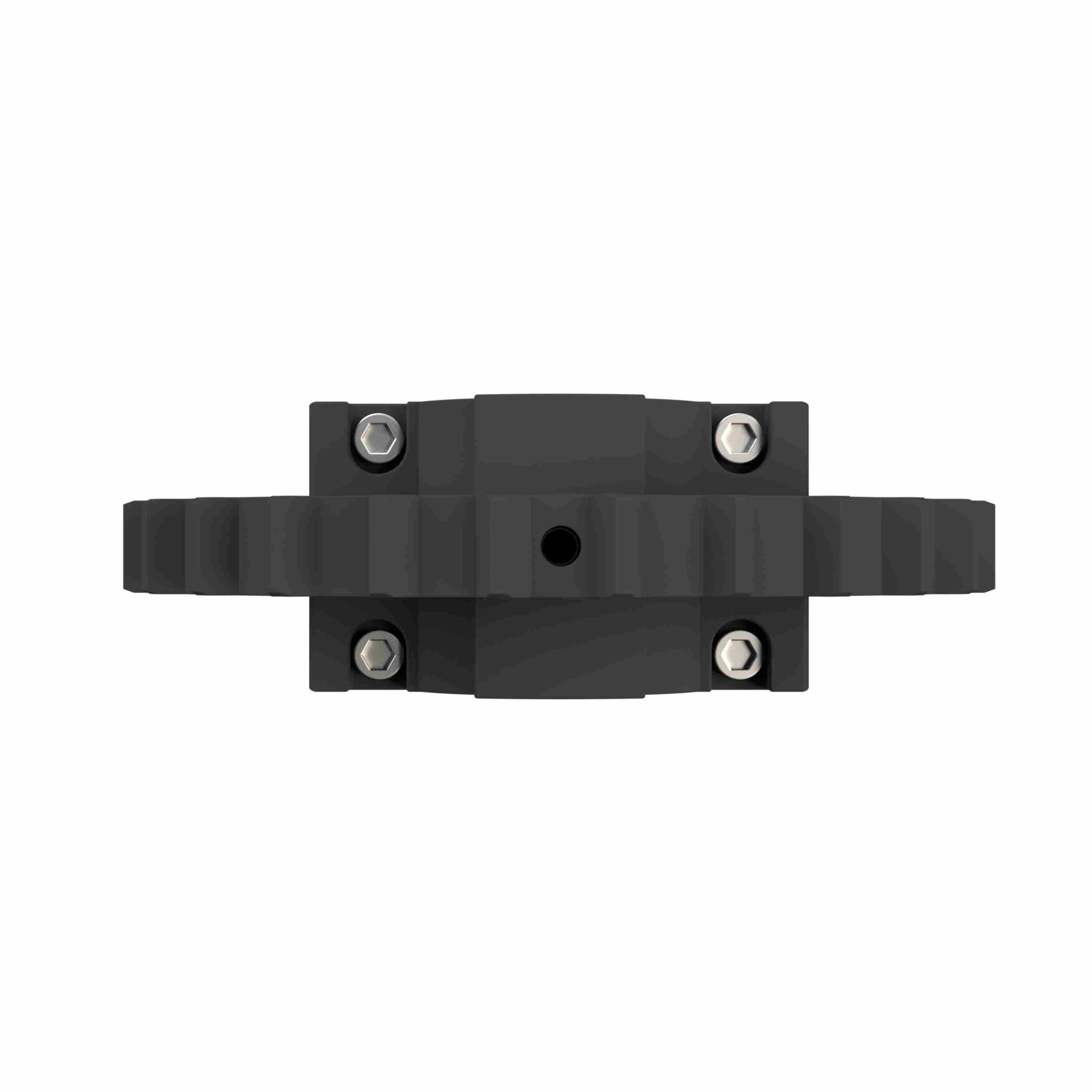

Rexnord 5700 Series Split Molded Nylon Sprocket with 25 Teeth and 50mm Round Shaft-Ready Bore with Keyway - 614-64-50
Part #:10334023
Catalog #:614-64-50
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 5700 | Sprocket Series: | 5700 |
| Bore Shape: | Round | Product Line: | Chain and Belt Sprockets |
| Body Style: | Block | Number of Keyways: | 1 |
| Number of Set Screws: | None | Hub Type: | C-HUB |
| Bore Type: | Shaft-Ready | Pitch Diameter (in): | 11.968 |
| Product Group: | MatTop® | Sprocket Construction: | Molded Split Sprocket |
| Pitch Diameter (mm): | 303.99 | Material: | Nylon |
| Number of Teeth: | 25 | Bore Diameter (mm): | 50 mm |
General Specifications
| UPC: | 782934816949 | Weight: | 0.47 LB |
| HTC: | 8483901050 | Country of Origin: | Mexico |
