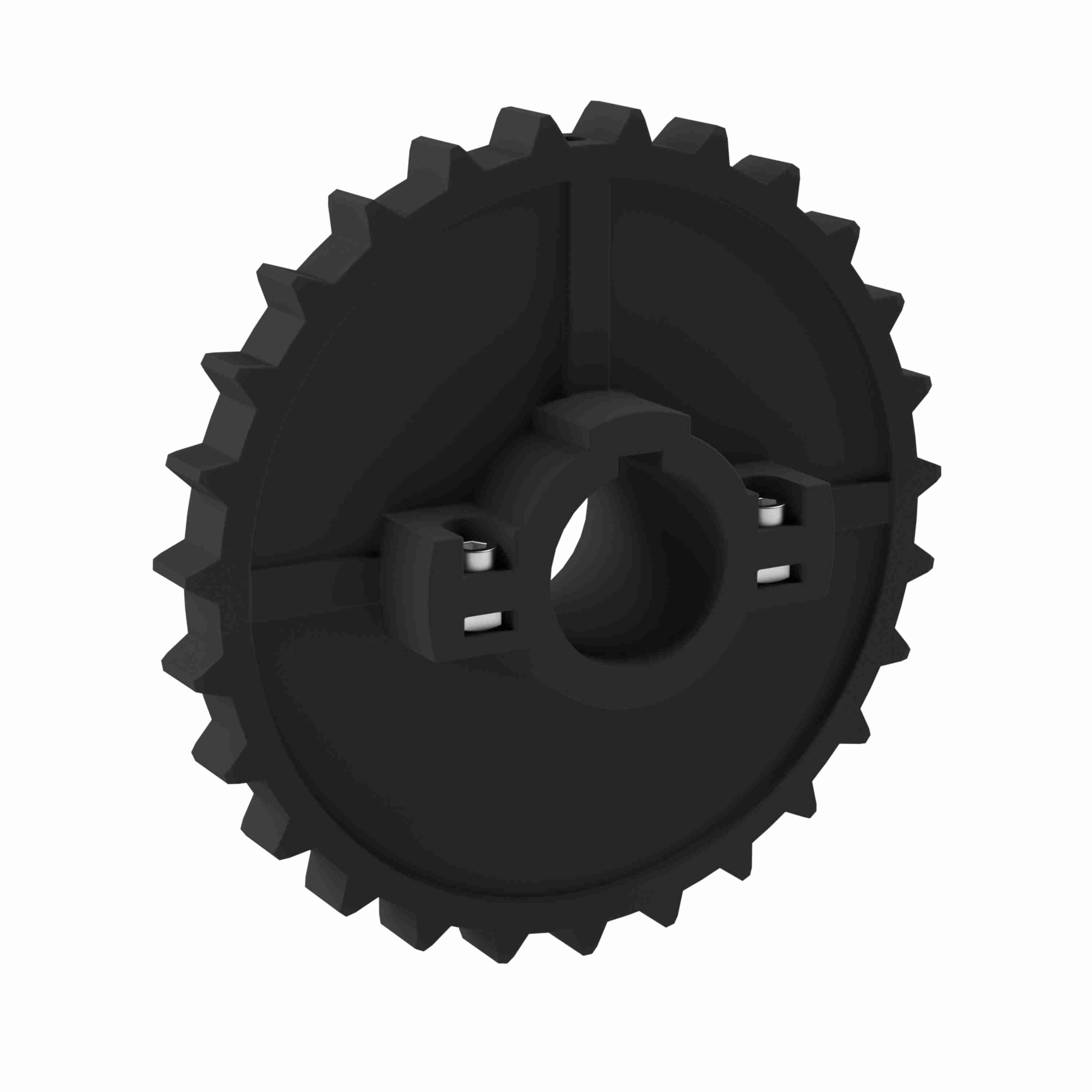

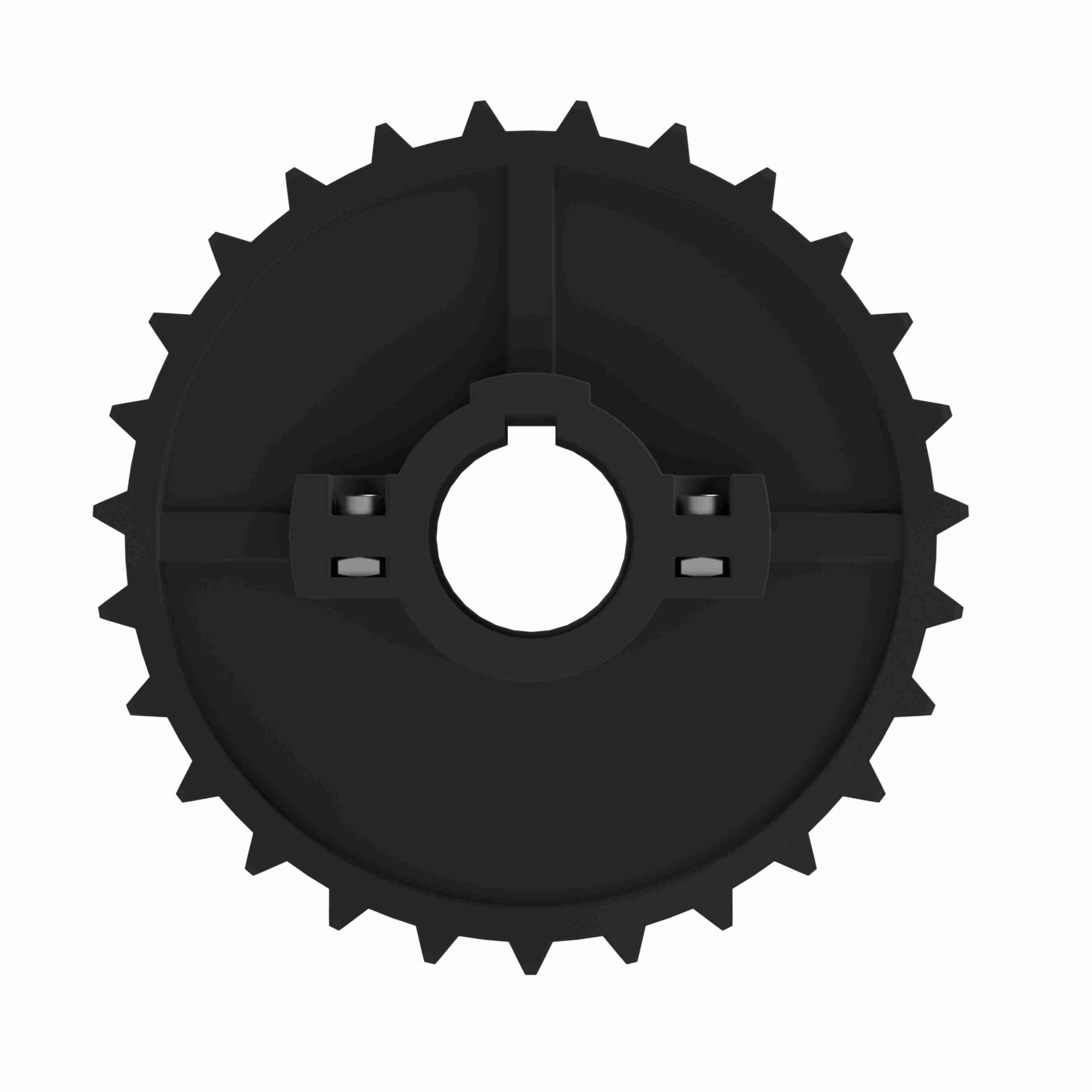

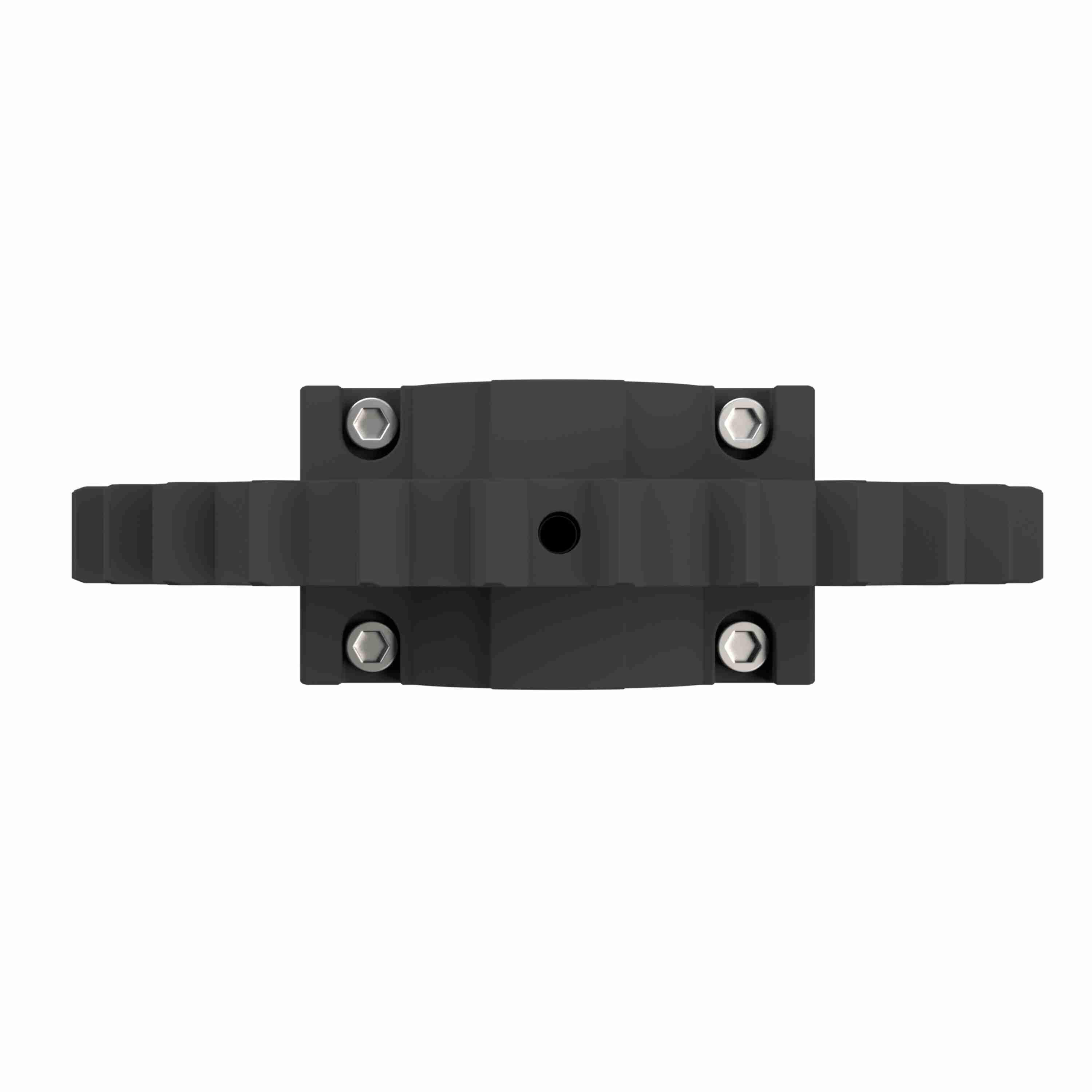

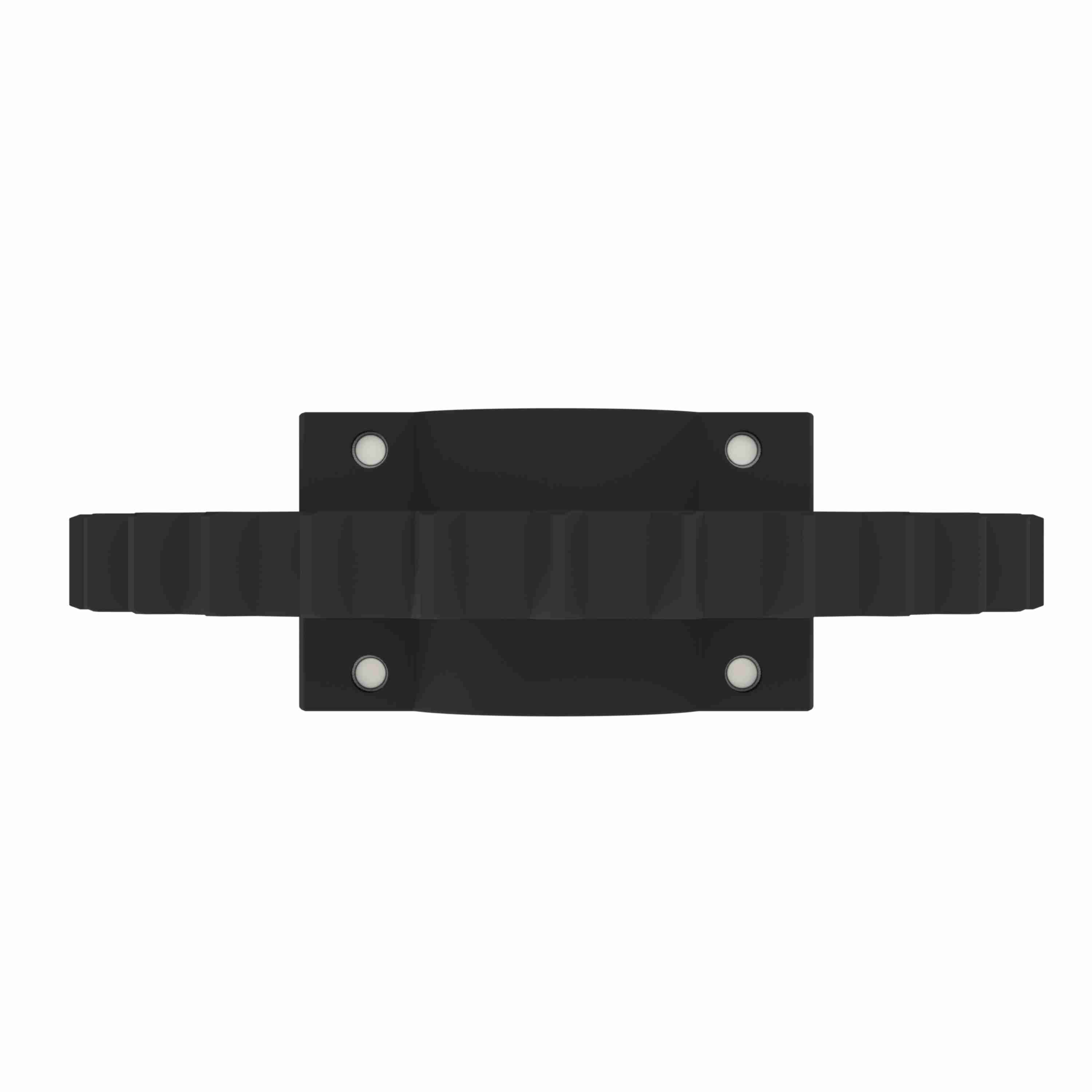

Rexnord 5700 Series Split Molded Nylon Sprocket with 27 Teeth and 40mm Round Shaft-Ready Bore with Keyway - 614-57-40
Part #:10028550
Catalog #:614-57-40
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Body Style: | Block | Bore Shape: | Round |
| Number of Keyways: | 1 | Product Group: | MatTop® |
| Number of Teeth: | 27 | Material: | Nylon |
| Bore Type: | Shaft-Ready | Number of Set Screws: | None |
| Sprocket Series: | 5700 | Pitch Diameter (in): | 12.921 |
| Bore Diameter (mm): | 40 mm | Product Line: | Chain and Belt Sprockets |
| Chain Number: | 5700 | Hub Type: | C-HUB |
| Pitch Diameter (mm): | 328.19 | Sprocket Construction: | Molded Split Sprocket |
General Specifications
| UPC: | 793699414615 | Weight: | 1.04 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
