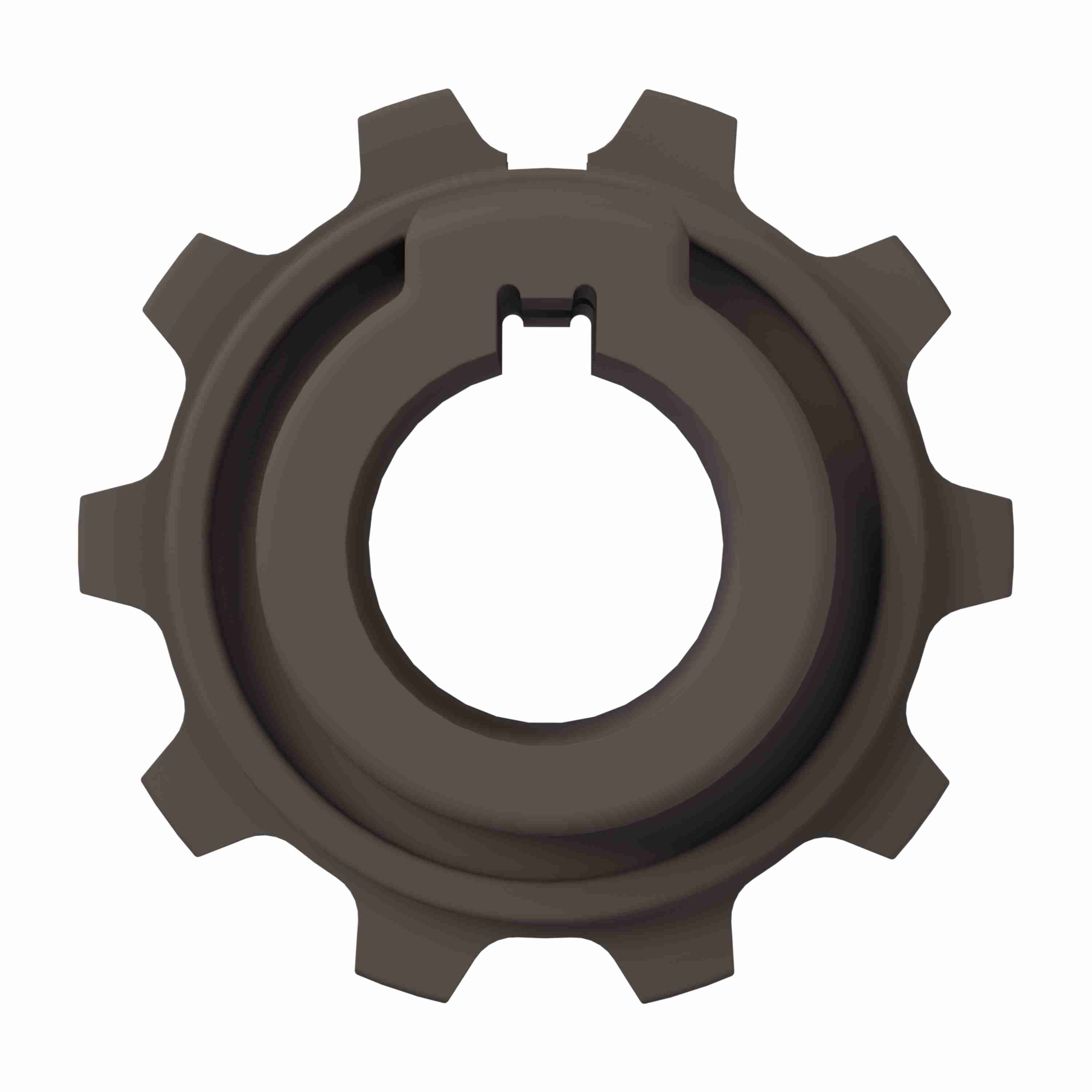

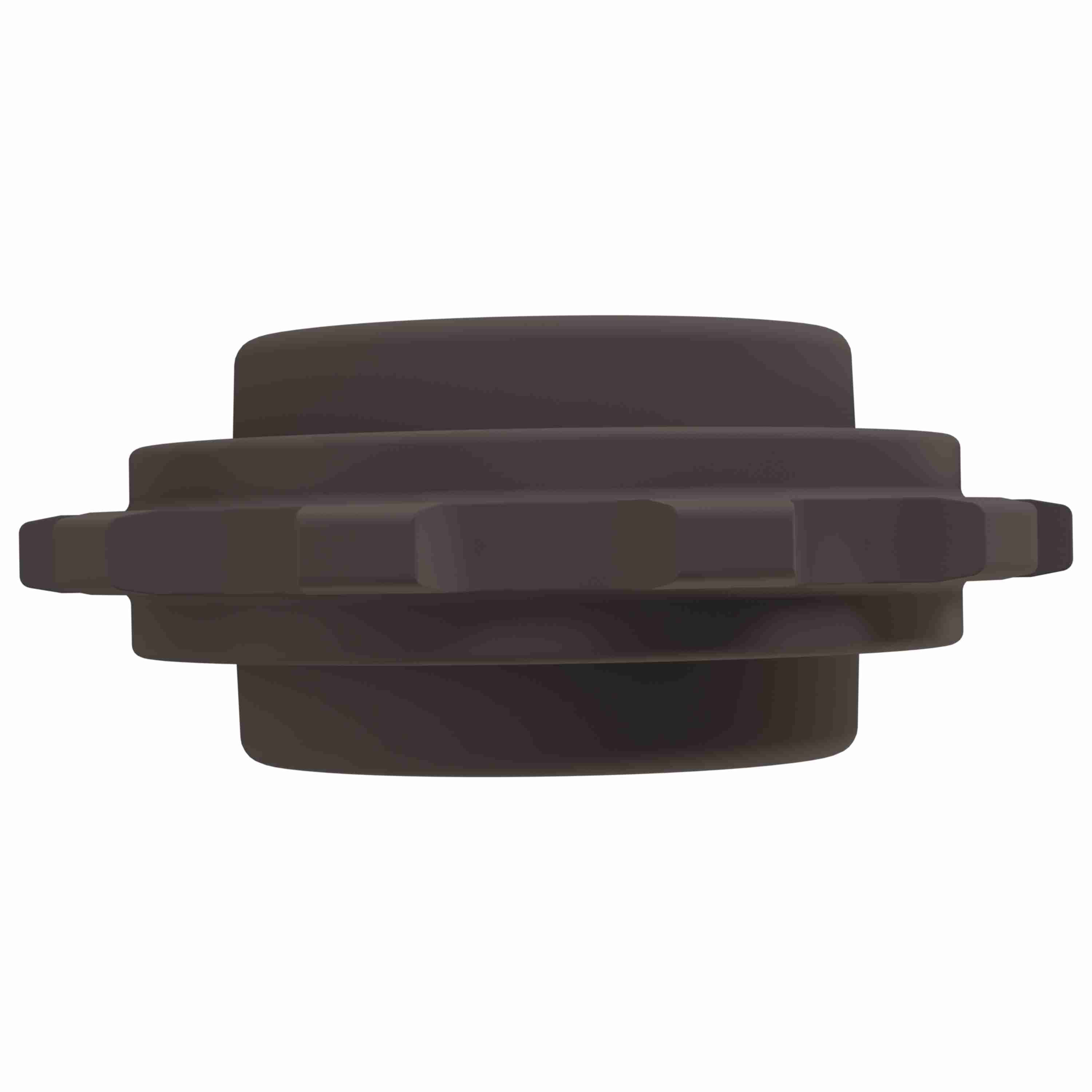

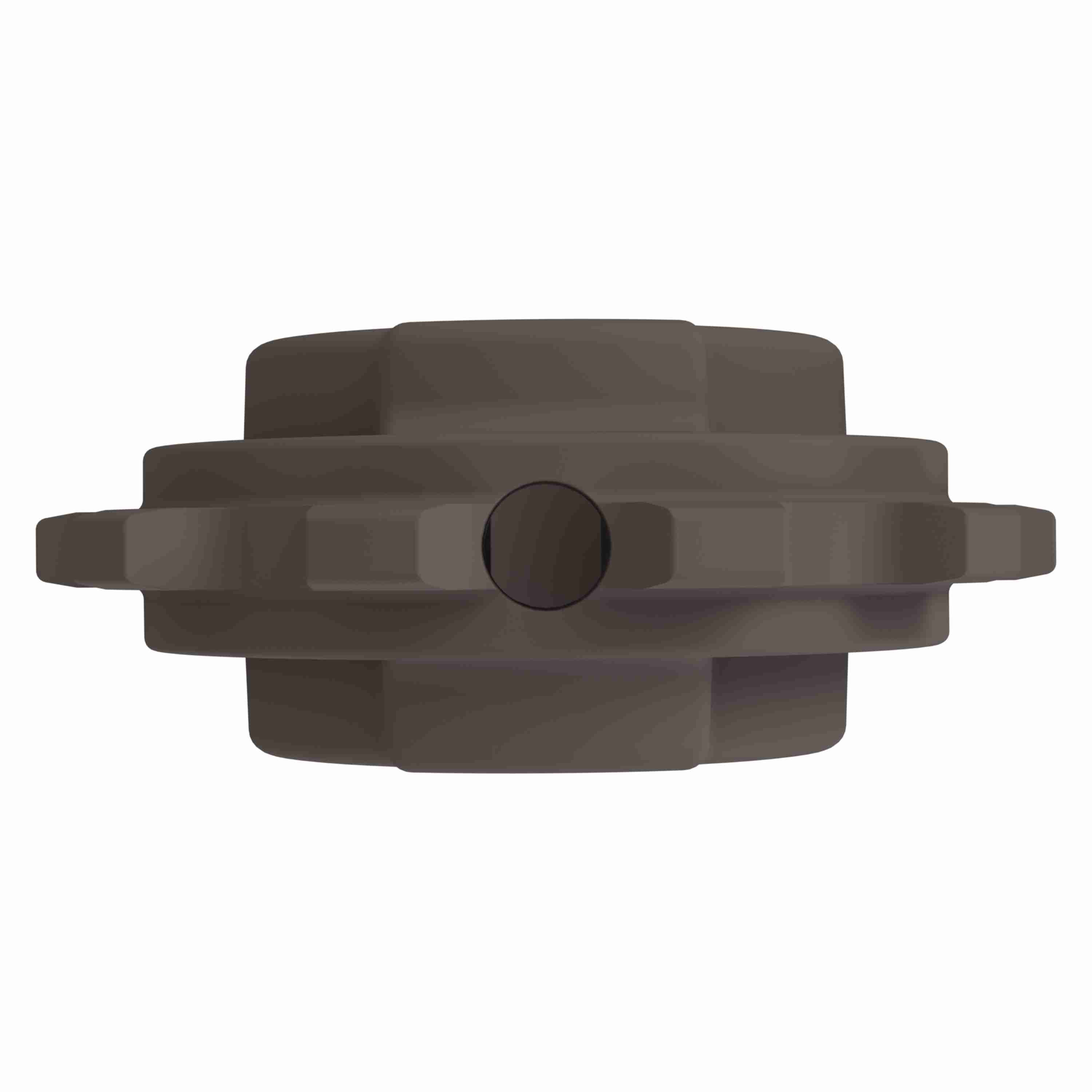

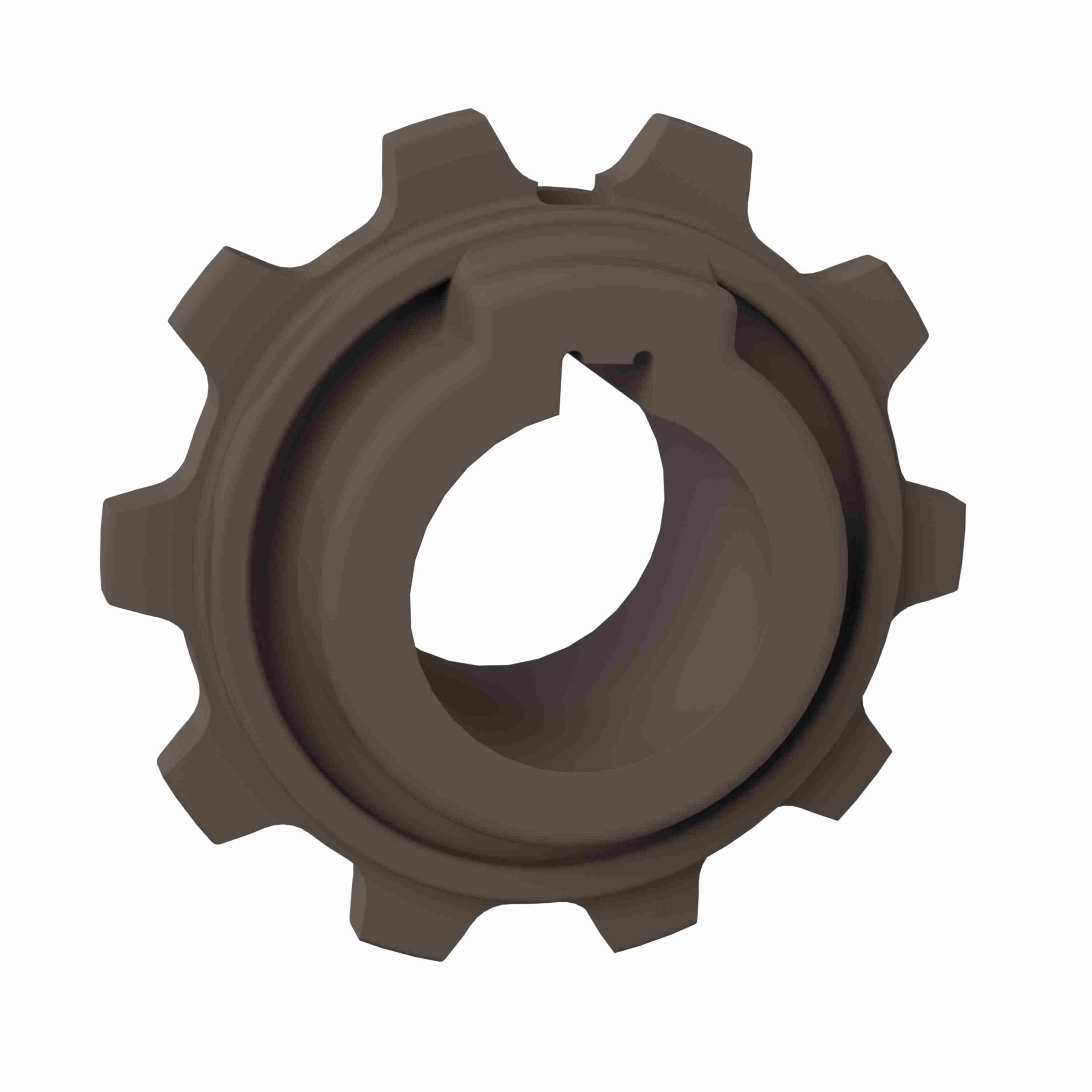

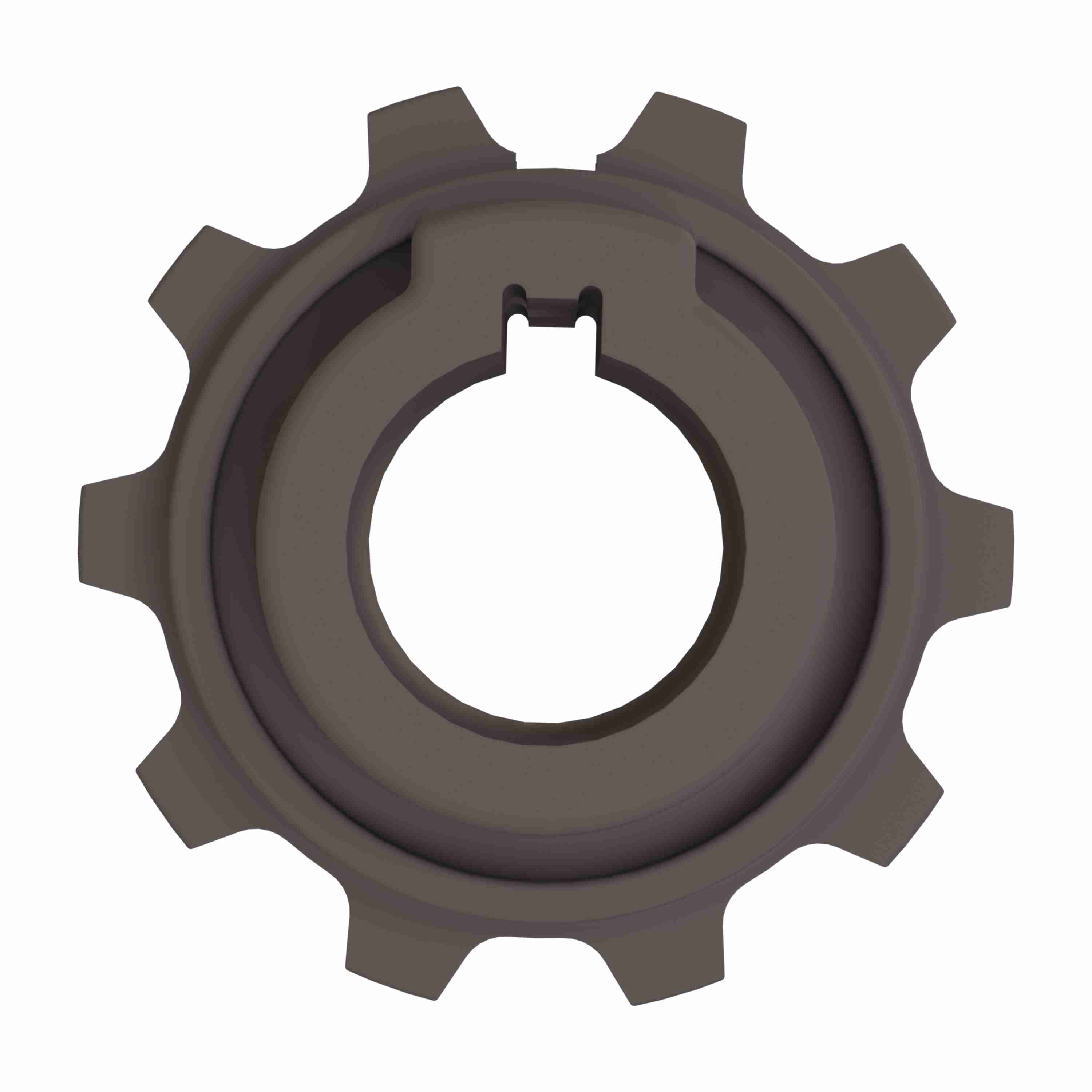

Rexnord 5930 Series Solid One Piece Molded Acetal Sprocket and a 10 Teeth with 1in Round Shaft-Ready Bore with Keyway & Setscrew - 114-811-12
Part #:10028484
Catalog #:114-811-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 10 | Sprocket Construction: | Molded Non-Split Sprocket |
| Pitch Diameter (in): | 2.427 | Sprocket Series: | 5930 |
| Bore Type: | Shaft-Ready | Bore Diameter (in): | 1 in |
| Product Group: | MatTop® | Number of Keyways: | 1 |
| Bore Shape: | Round | Chain Number: | 5930 |
| Pitch Diameter (mm): | 61.65 | Number of Set Screws: | 1 Setscrew |
| Product Line: | Chain and Belt Sprockets | Material: | Acetal |
| Body Style: | Block |
General Specifications
| UPC: | 662864356206 | Weight: | 0.08 LB |
| Packaged Length: | 2.50 IN | Packaged Width: | 2.50 IN |
| Packaged Height: | 1.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
