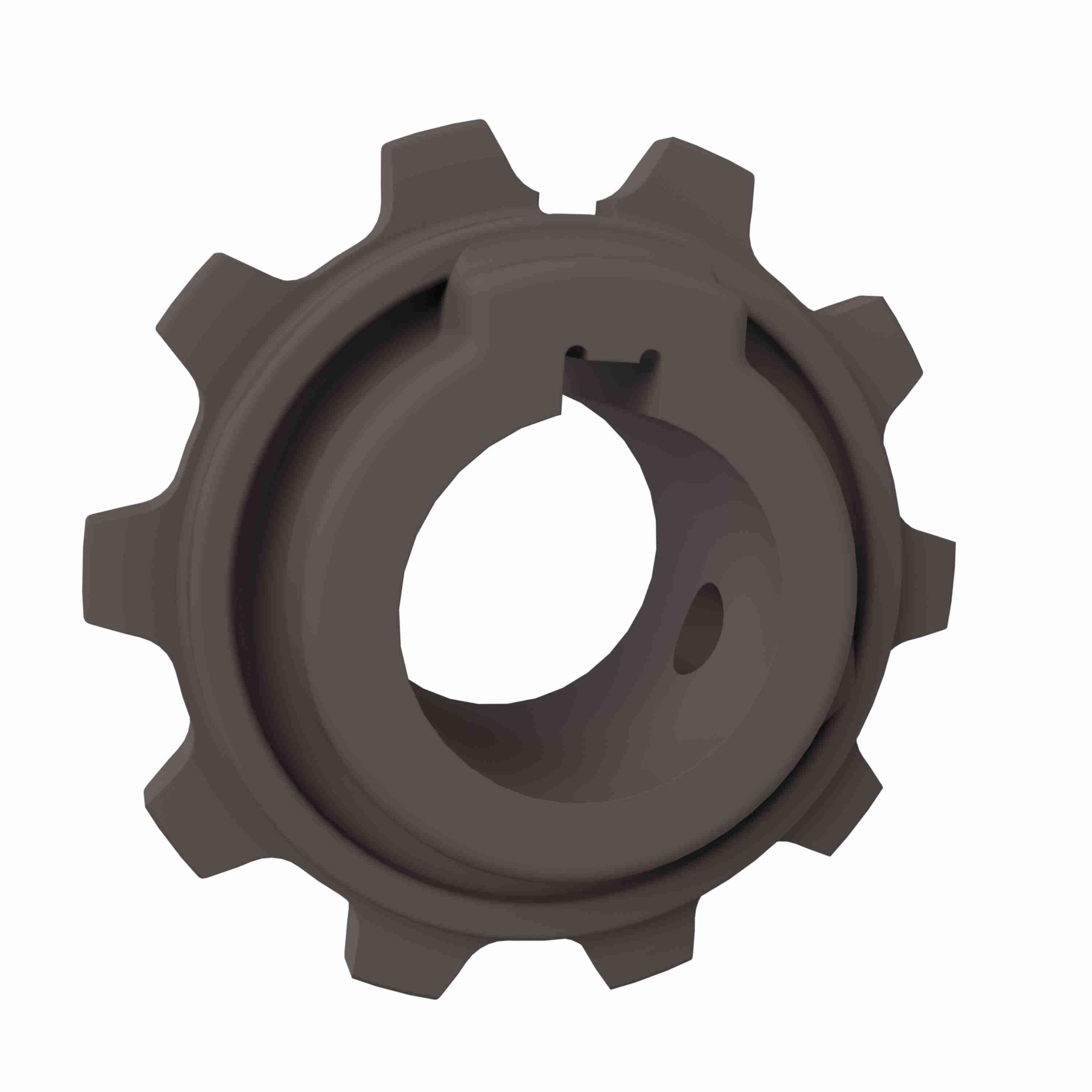

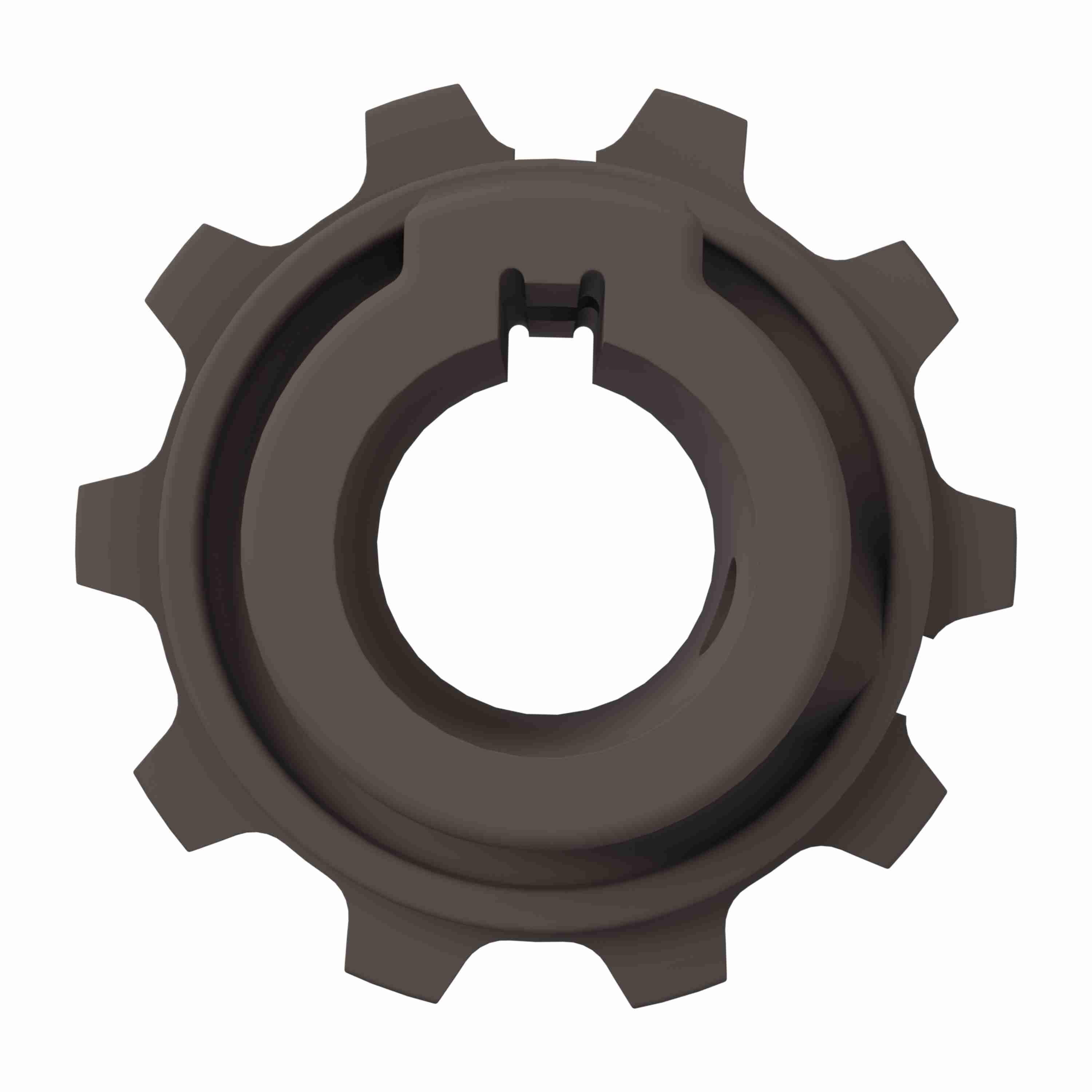

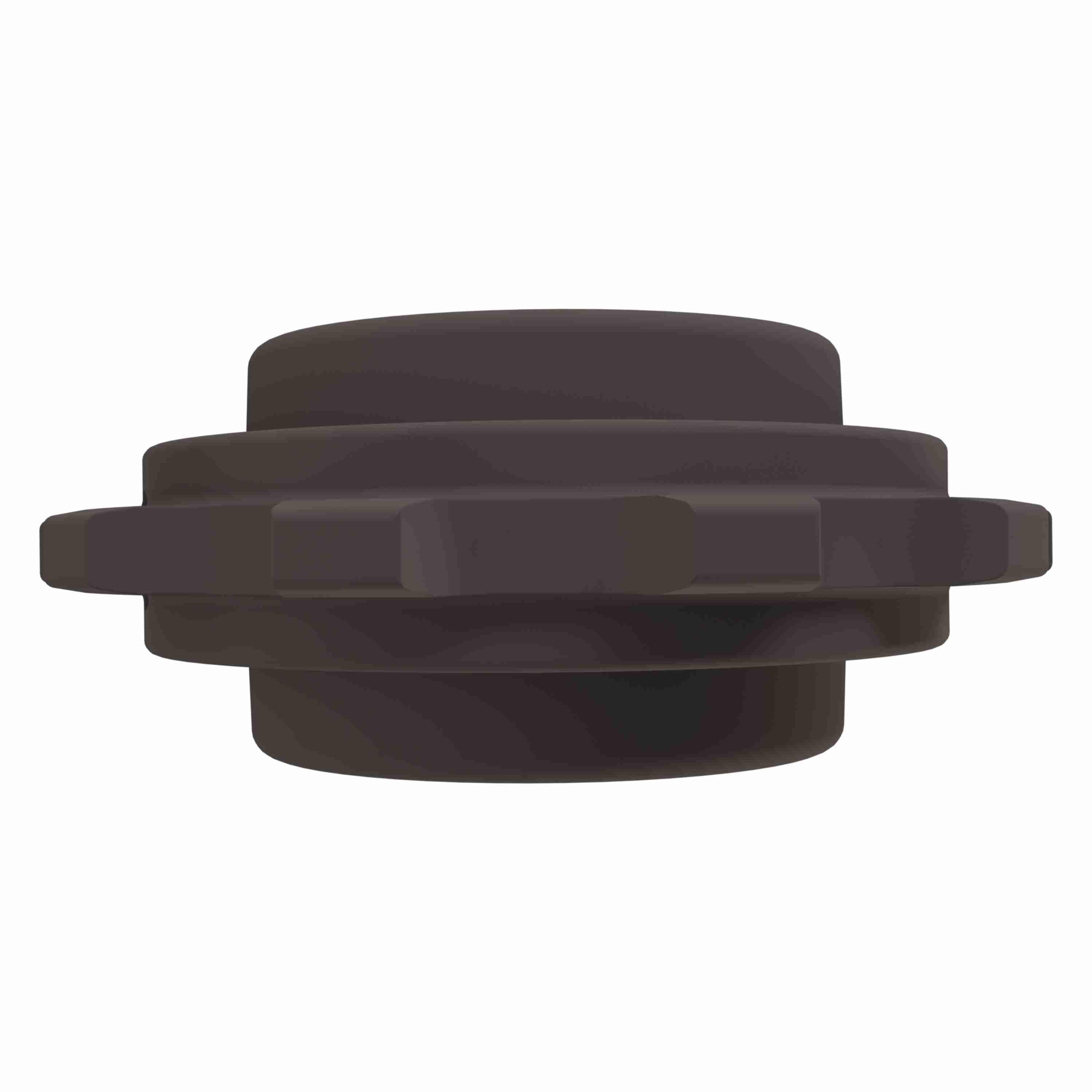

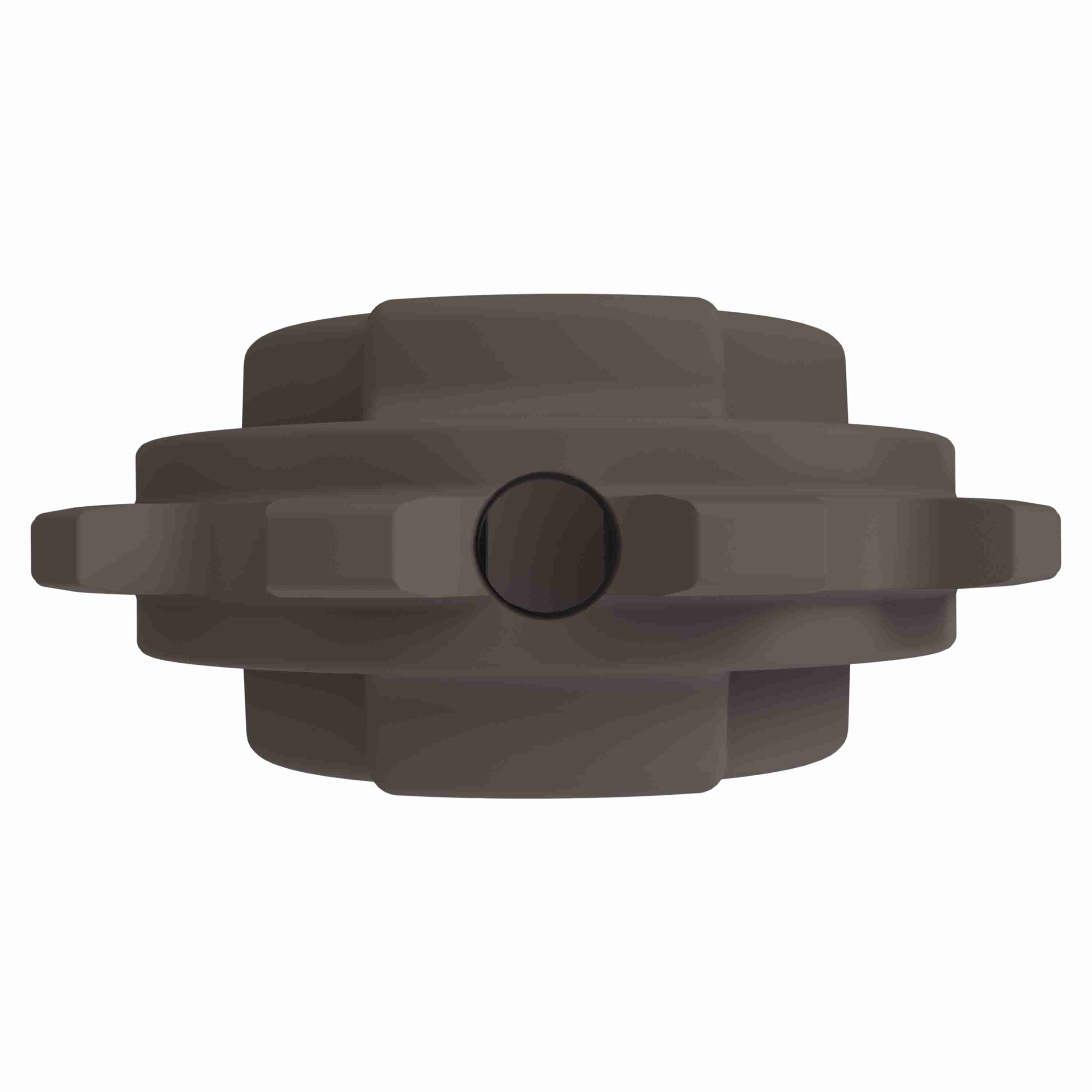

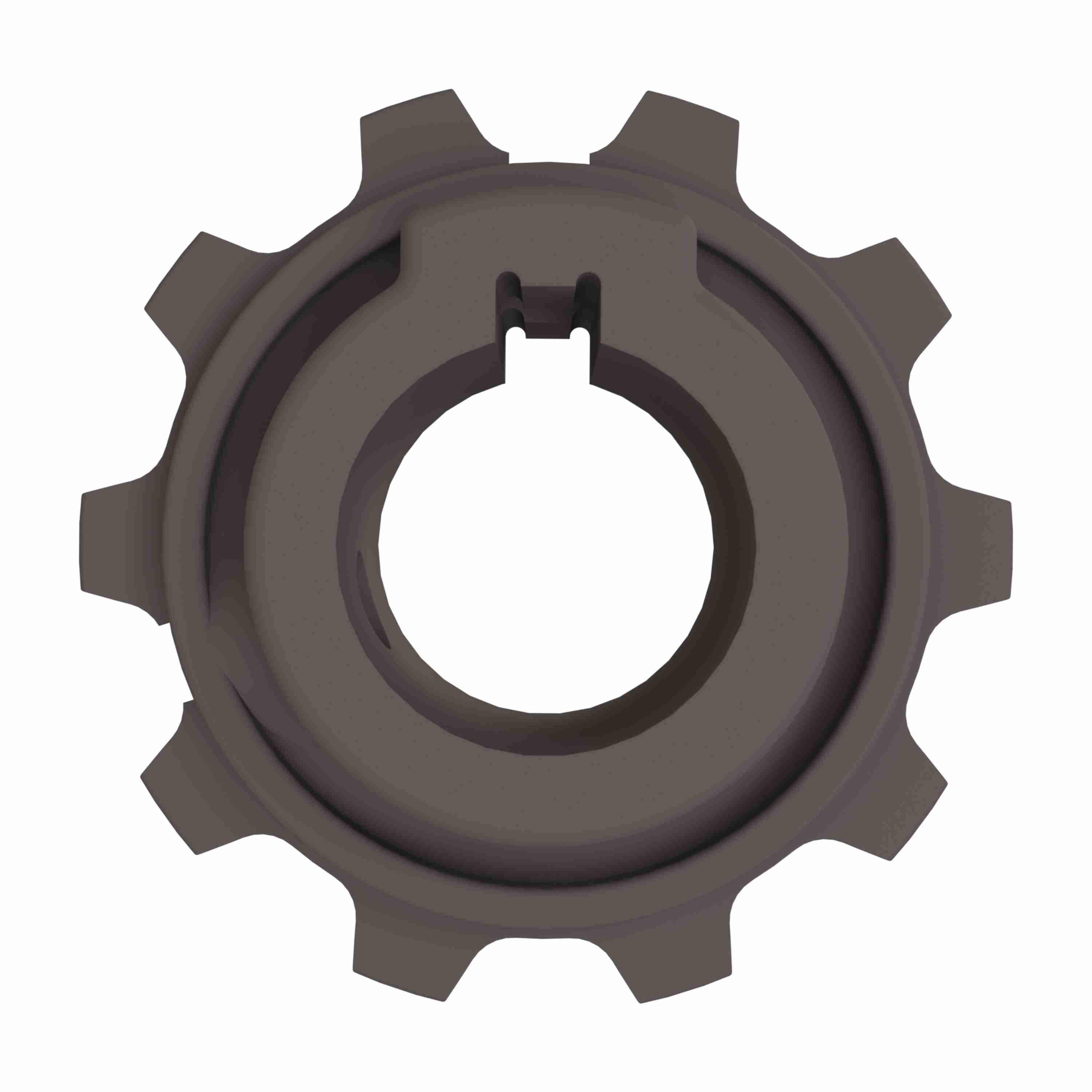

Rexnord 5930 Series Solid One Piece Molded Acetal Sprocket with 10 Teeth and a 1in Round Shaft-Ready Bore with Keyway & 2 Setscrews - 114-811-1
Part #:10028483
Catalog #:114-811-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pitch Diameter (mm): | 61.65 | Number of Teeth: | 10 |
| Product Line: | Chain and Belt Sprockets | Body Style: | Block |
| Chain Number: | 5930 | Bore Diameter (in): | 1 in |
| Pitch Diameter (in): | 2.427 | Bore Type: | Shaft-Ready |
| Product Group: | MatTop® | Number of Set Screws: | 2 Setscrews |
| Bore Shape: | Round | Material: | Acetal |
| Number of Keyways: | 1 | Sprocket Series: | 5930 |
| Sprocket Construction: | Molded Non-Split Sprocket |
General Specifications
| UPC: | 698210122003 | Weight: | 0.10 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
