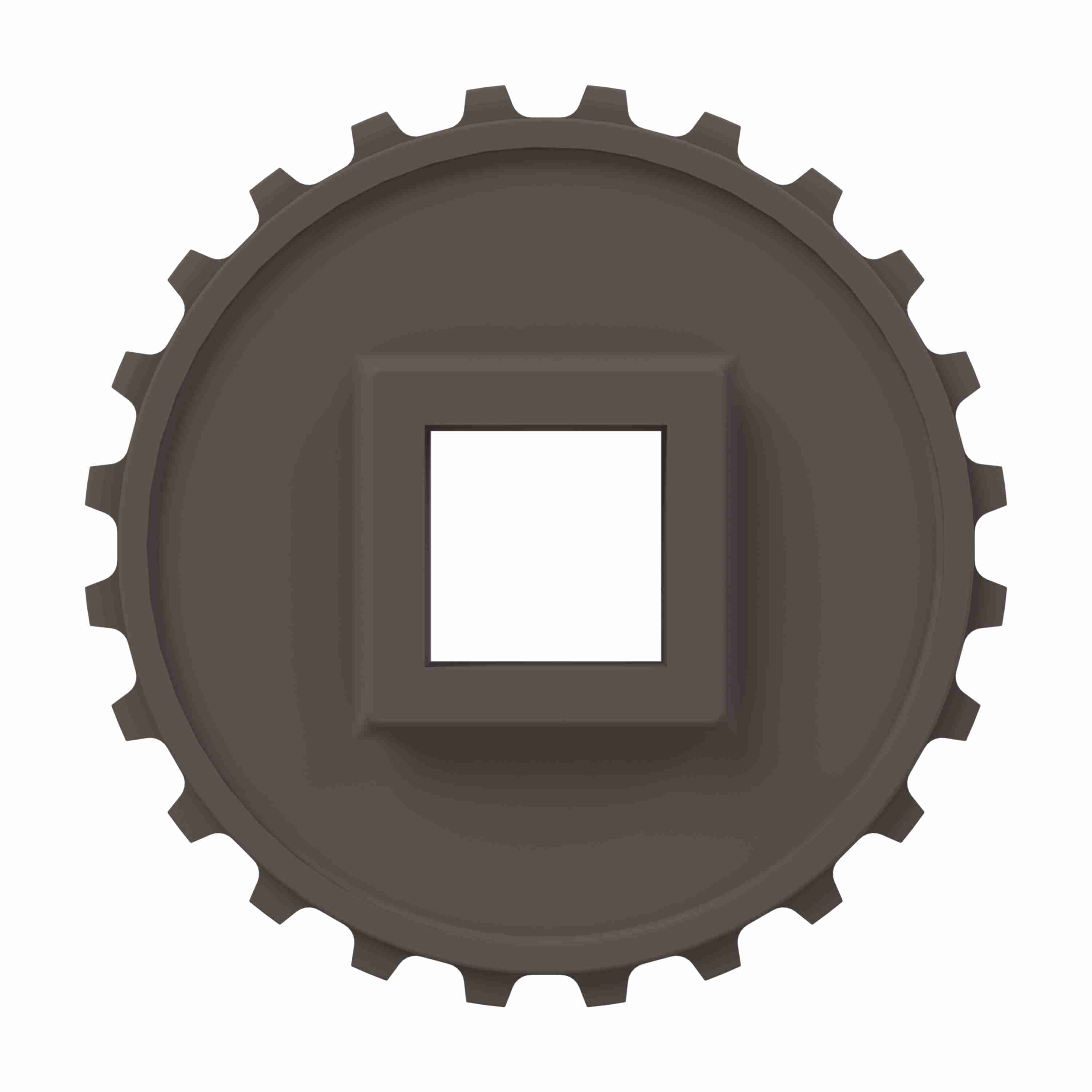

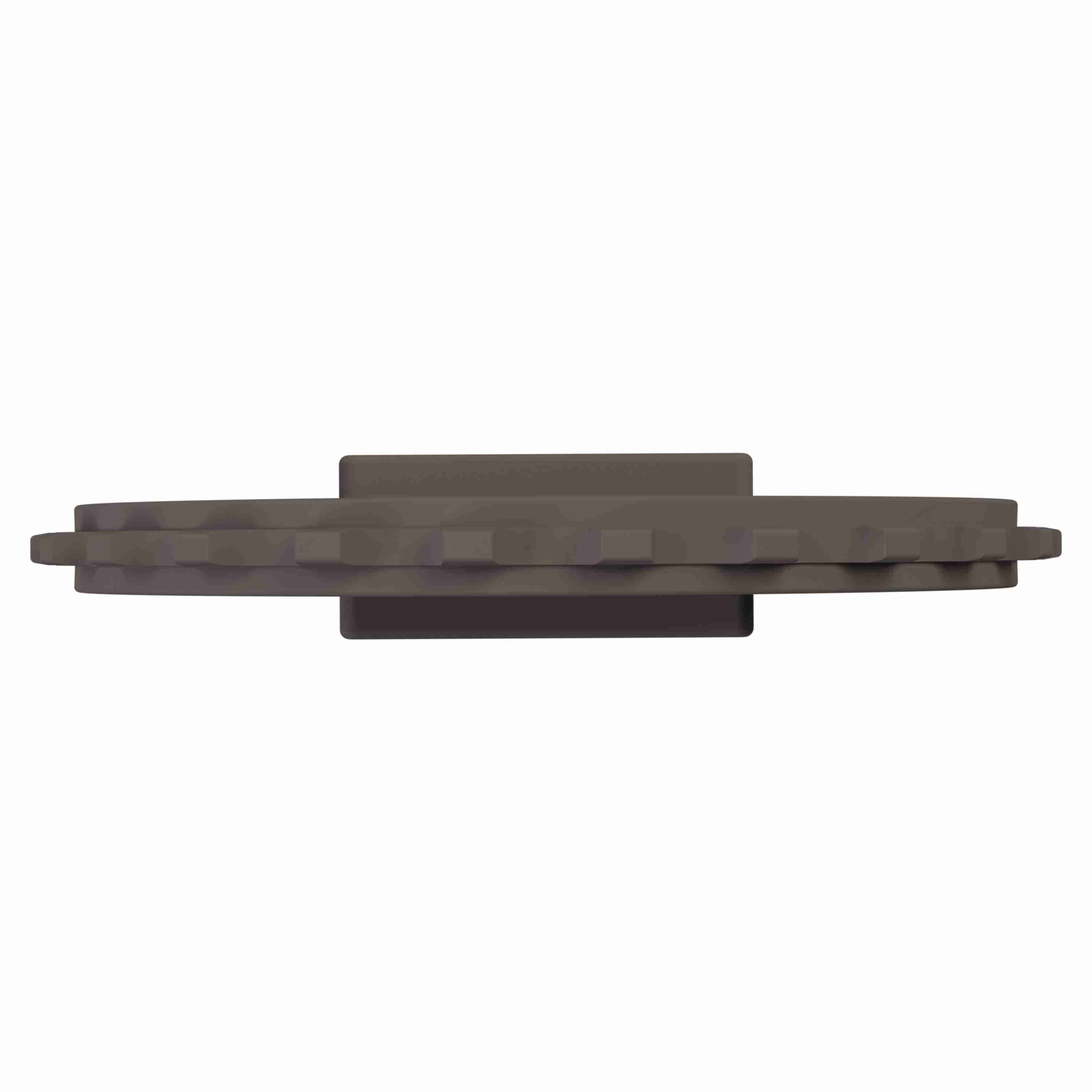

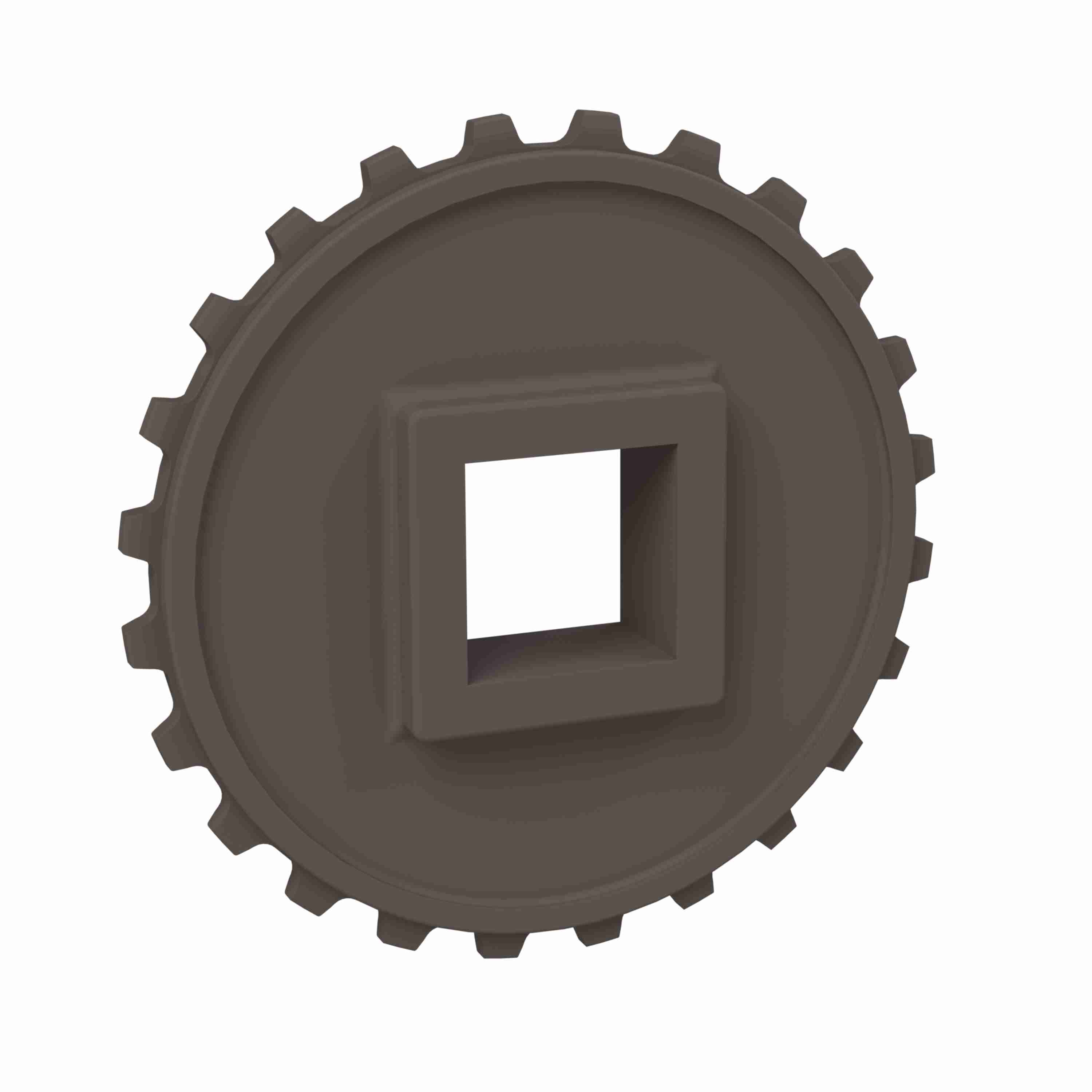

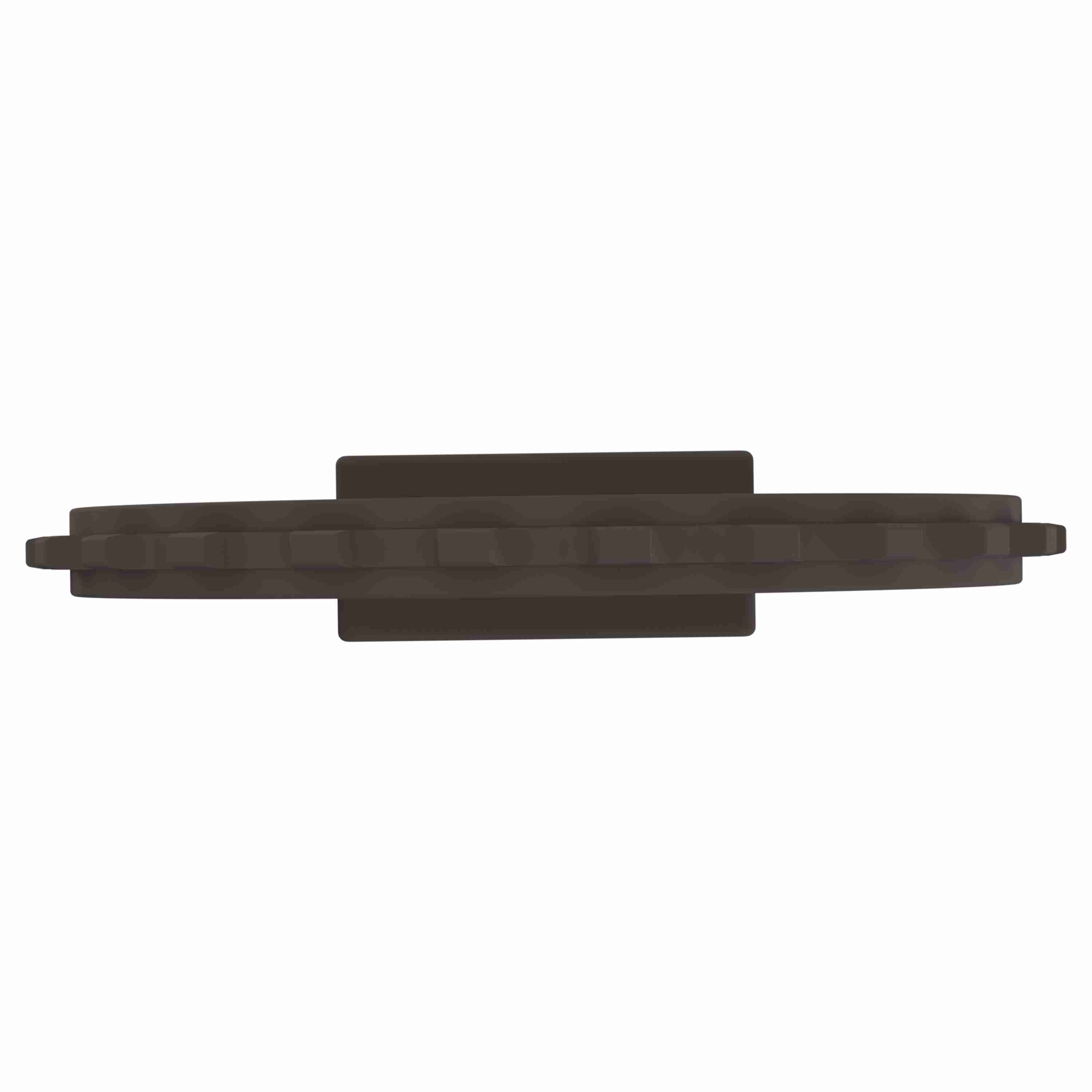

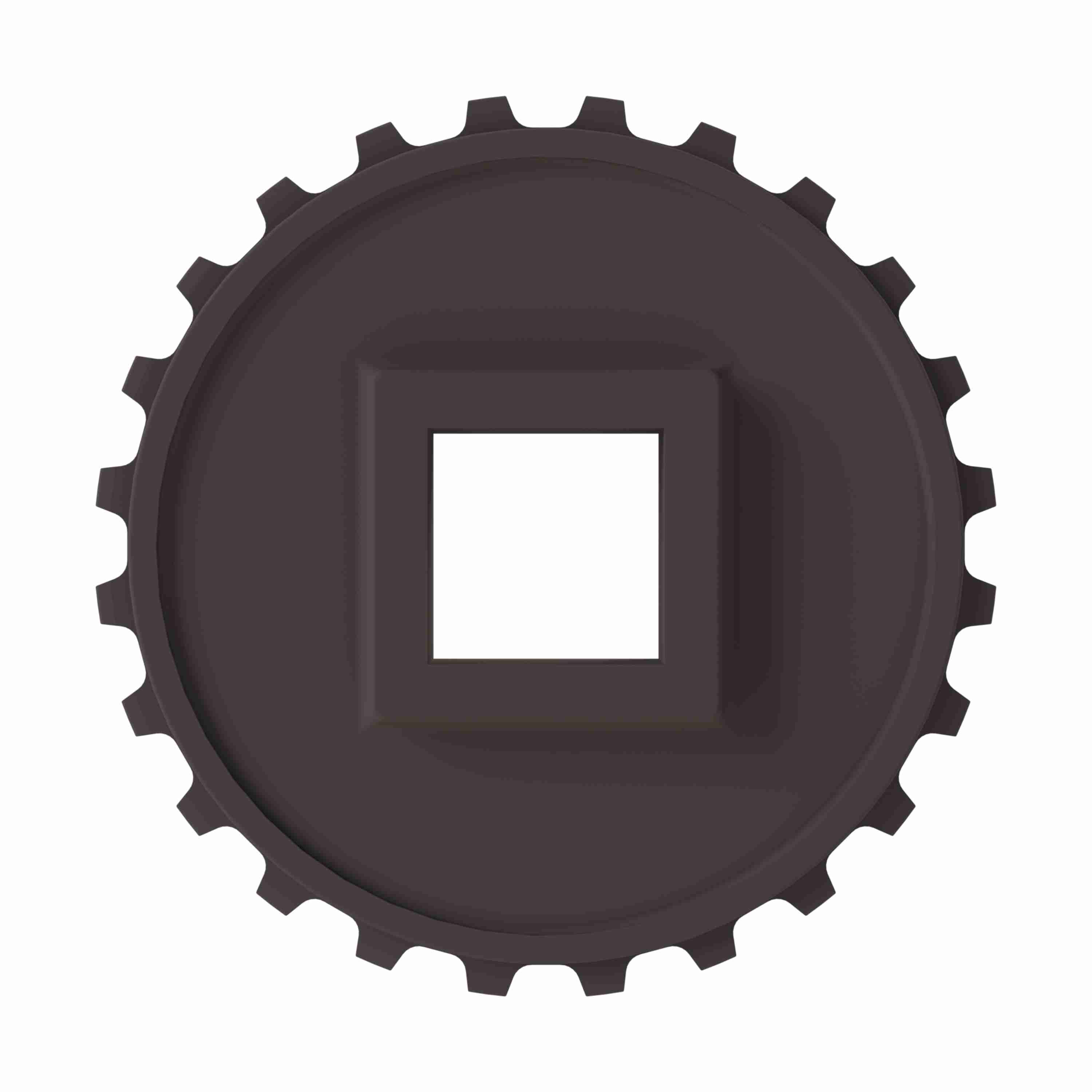

Rexnord 5930 Series Solid One Piece Molded Acetal Sprocket with 24 Teeth and a 1-1/2in Square Bore - 114-696-1
Part #:10013546
Catalog #:114-696-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Teeth: | 24 | Body Style: | Block |
| Sprocket Series: | 5930 | Bore Diameter (in): | 1-1/2 in |
| Product Group: | MatTop® | Material: | Acetal |
| Pitch Diameter (in): | 5.746 | Bore Shape: | Square |
| Pitch Diameter (mm): | 145.95 | Product Line: | Chain and Belt Sprockets |
| Chain Number: | 5930 | Number of Set Screws: | None |
| Sprocket Construction: | Molded Non-Split Sprocket | Bore Type: | Shaft-Ready |
| Number of Keyways: | 0 |
General Specifications
| UPC: | 698210837273 | Weight: | 0.50 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
