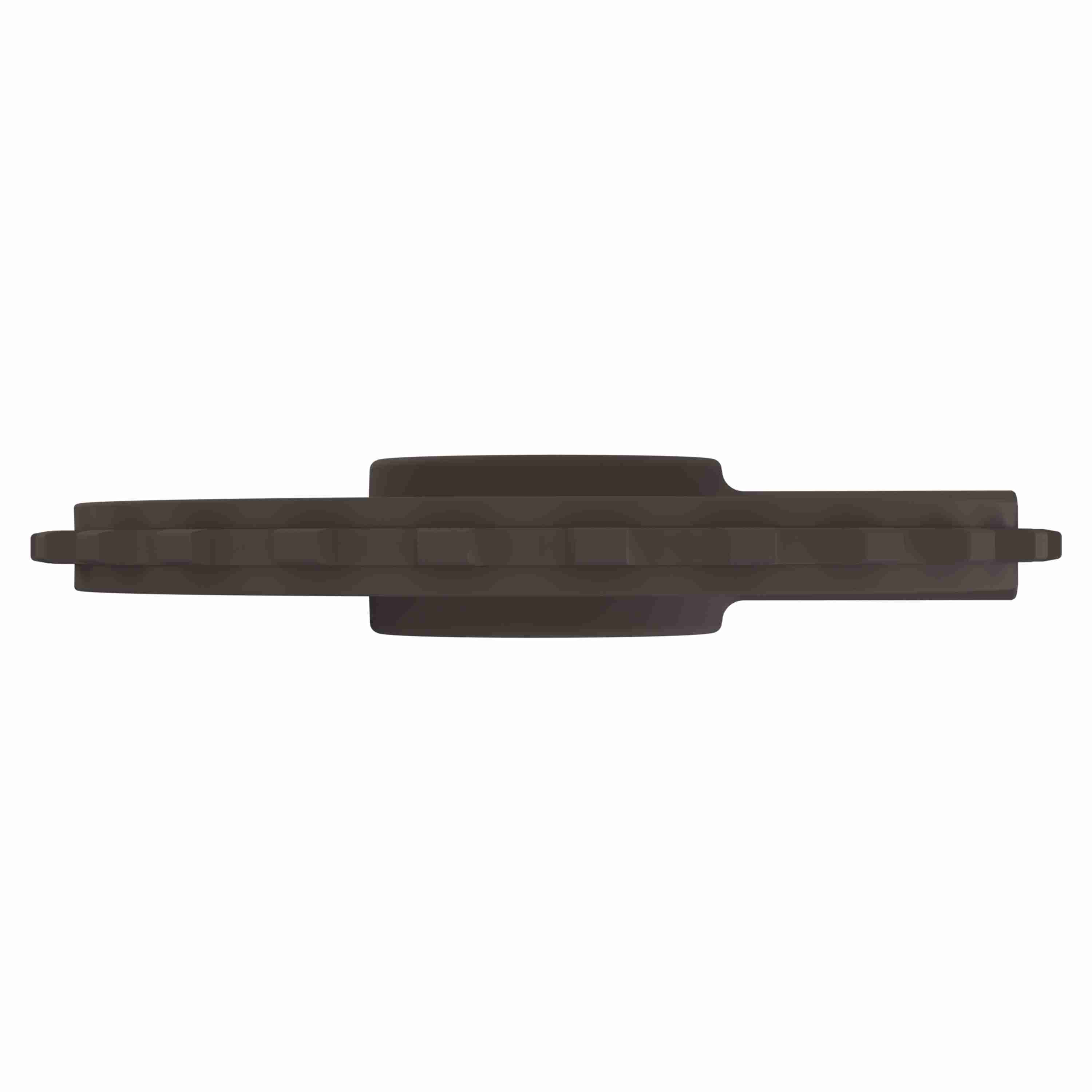

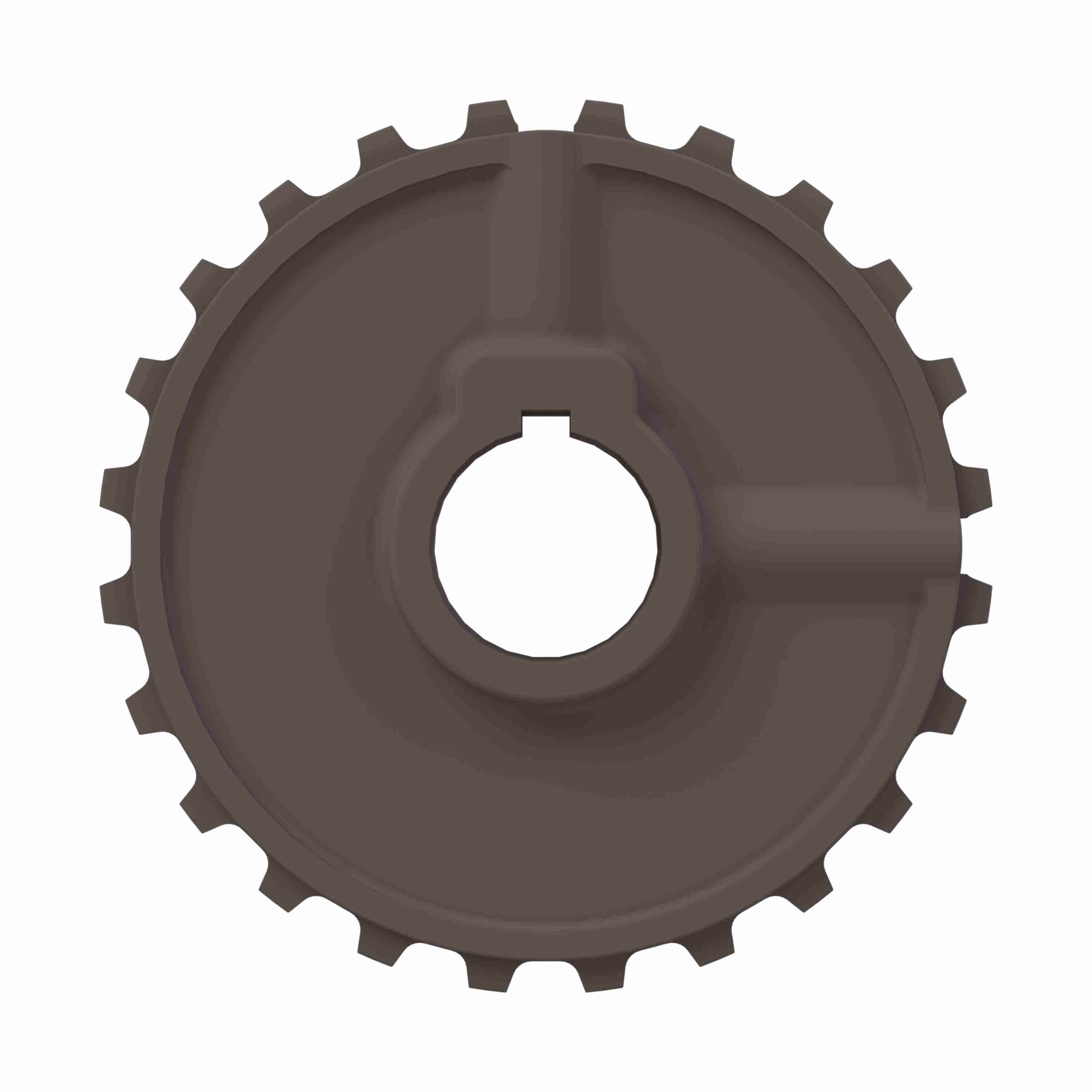

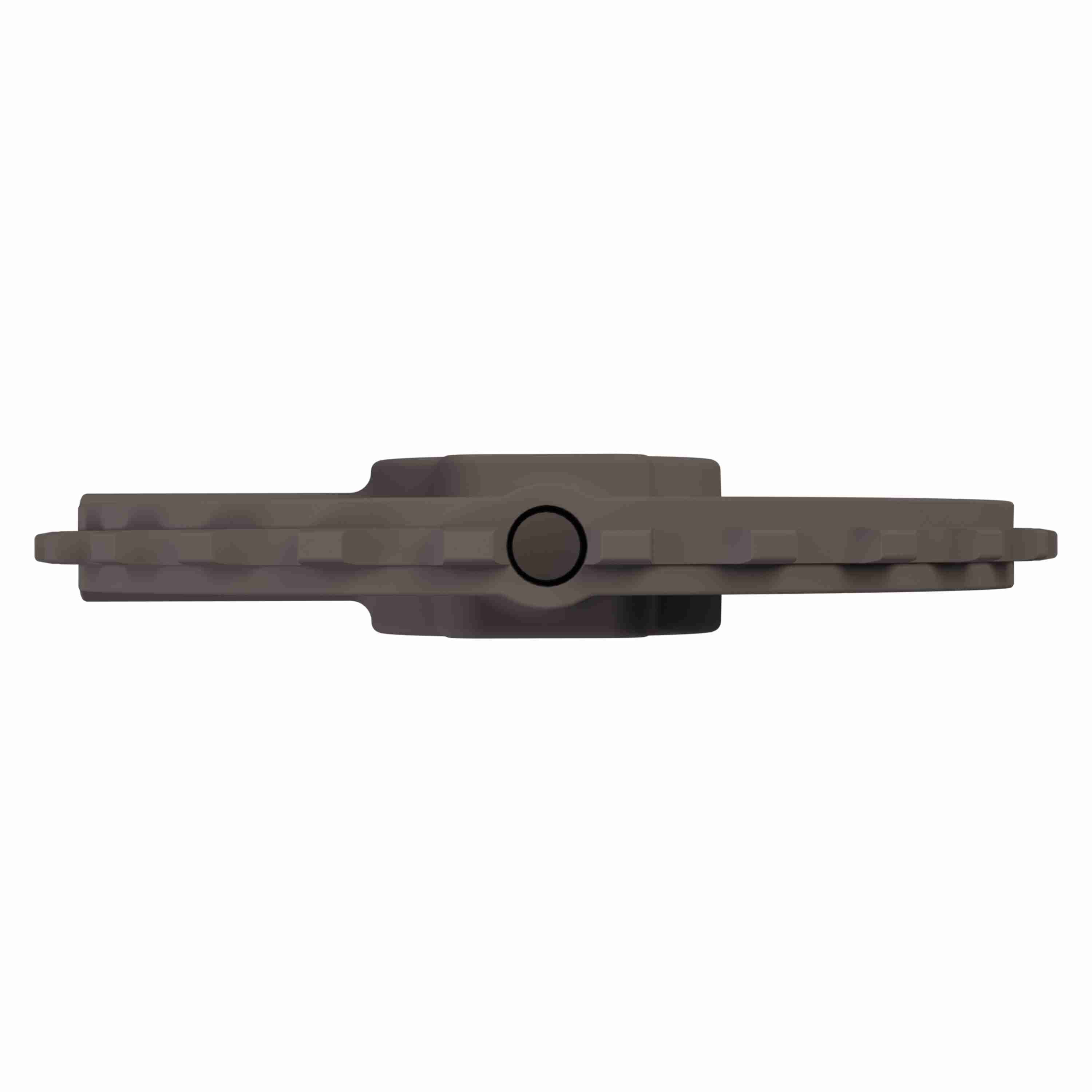

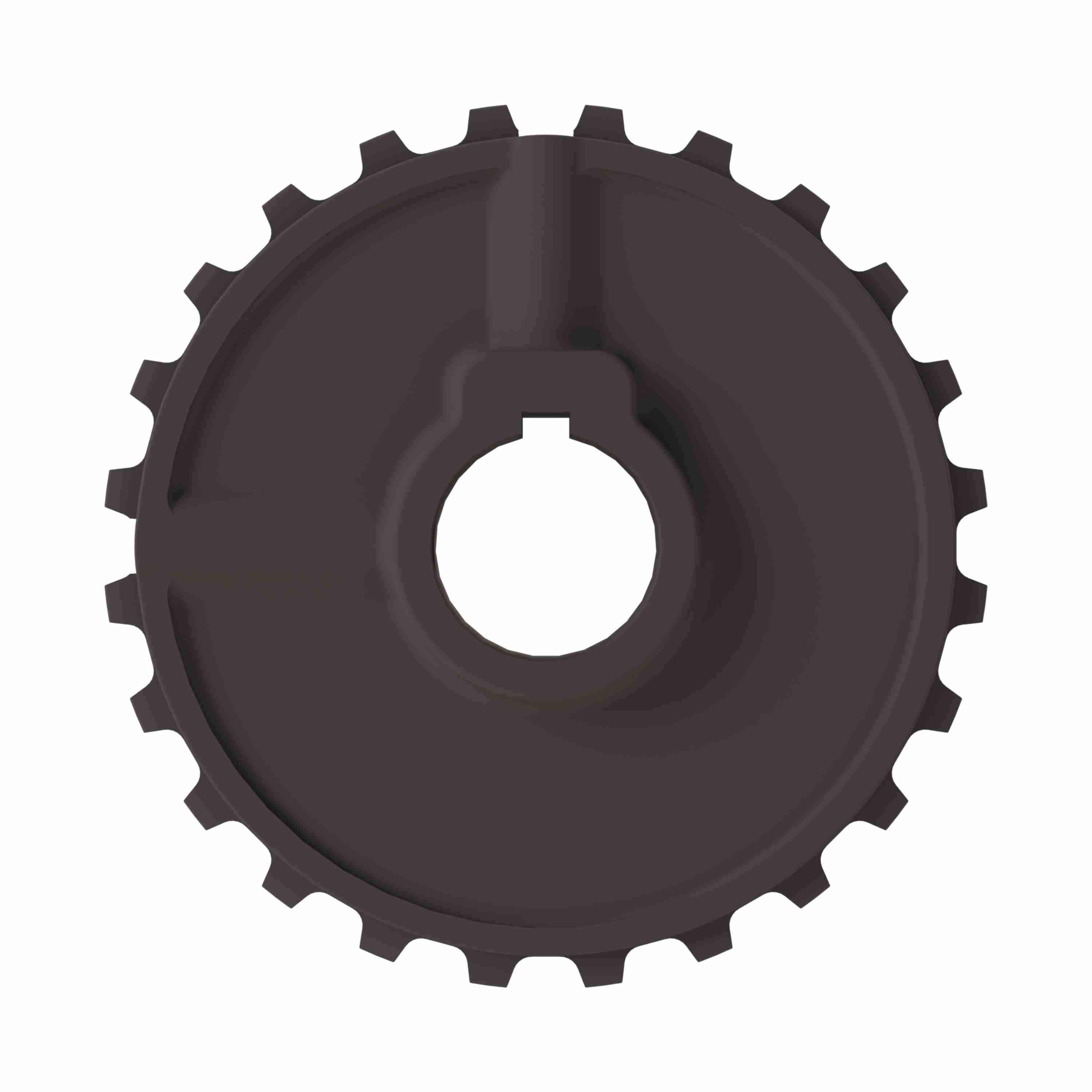

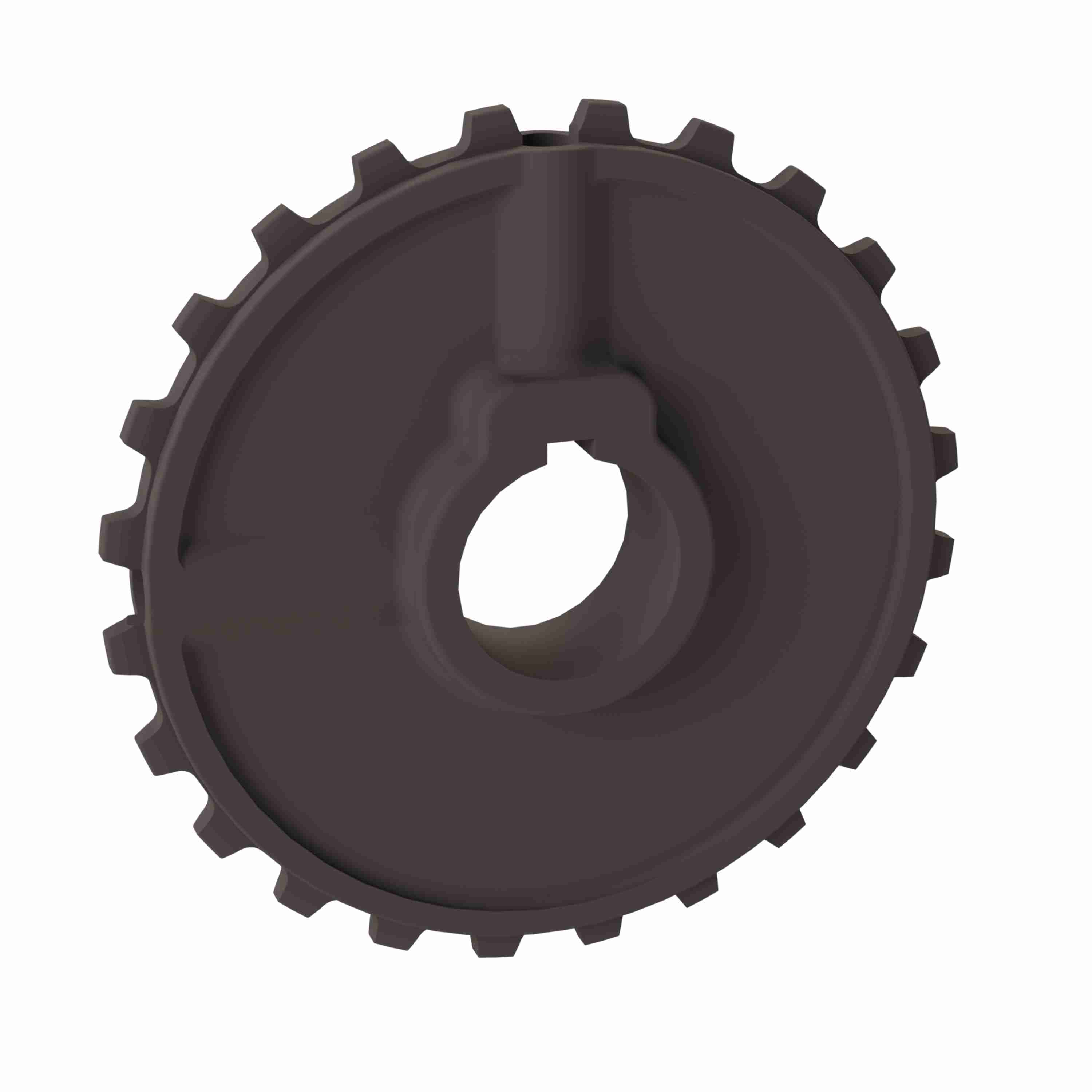

Rexnord 5930 Series Solid One Piece Molded Acetal Sprocket with 24 Teeth and a 35mm Round Shaft-Ready Bore with Keyway & 2 Setscrews - 114-699-10
Part #:10333740
Catalog #:114-699-10
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Hub Type: | C-HUB | Product Line: | Chain and Belt Sprockets |
| Bore Shape: | Round | Sprocket Construction: | Molded Non-Split Sprocket |
| Sprocket Series: | 5930 | Product Group: | MatTop® |
| Pitch Diameter (mm): | 145.95 | Bore Type: | Shaft-Ready |
| Material: | Acetal | Chain Number: | 5930 |
| Number of Teeth: | 24 | Bore Diameter (mm): | 35 mm |
| Body Style: | Block | Pitch Diameter (in): | 5.746 |
| Number of Set Screws: | 2 Setscrews | Number of Keyways: | 1 |
General Specifications
| UPC: | 782934823824 | Weight: | 0.20 LB |
| HTC: | 8483901050 | Country of Origin: | Mexico |
