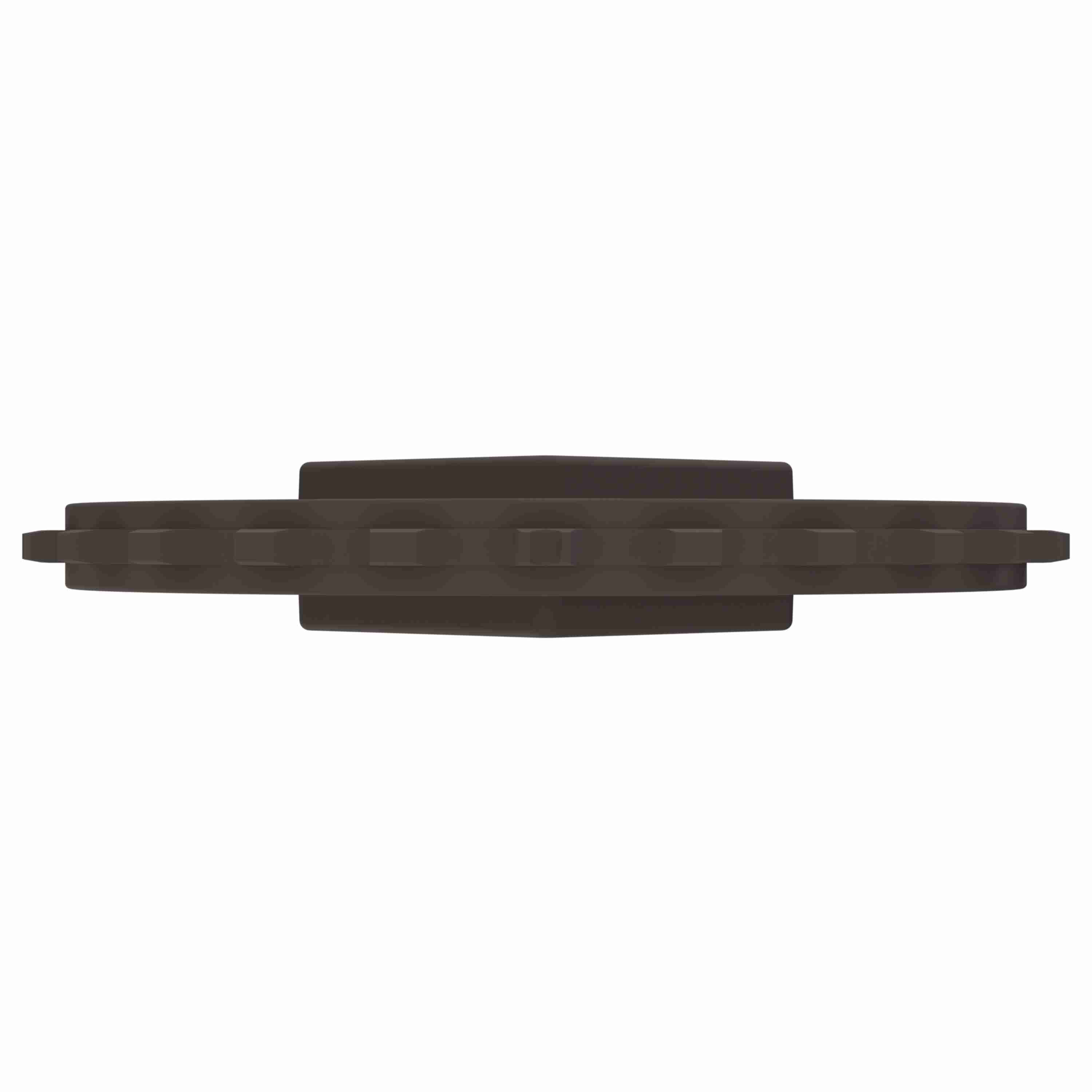

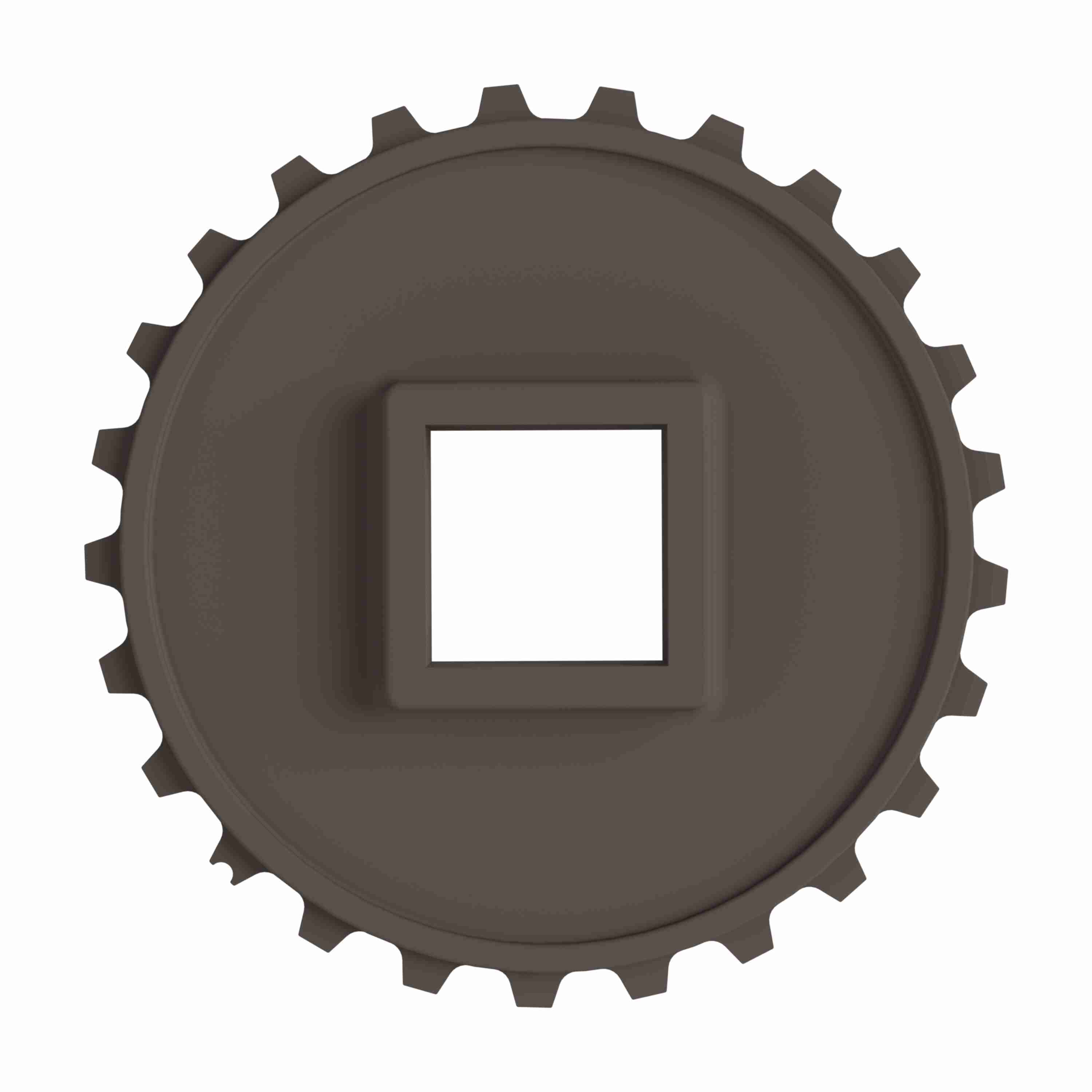

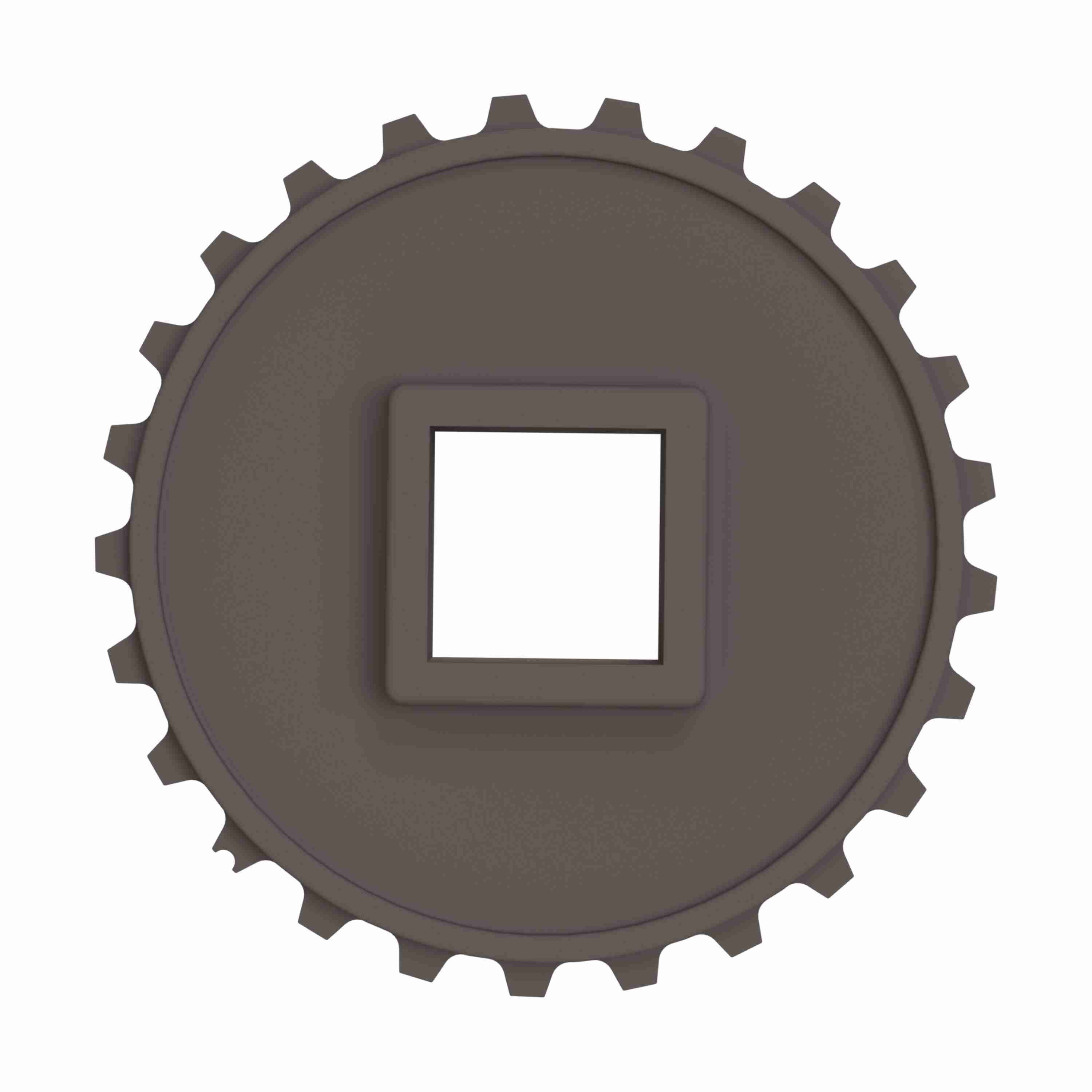

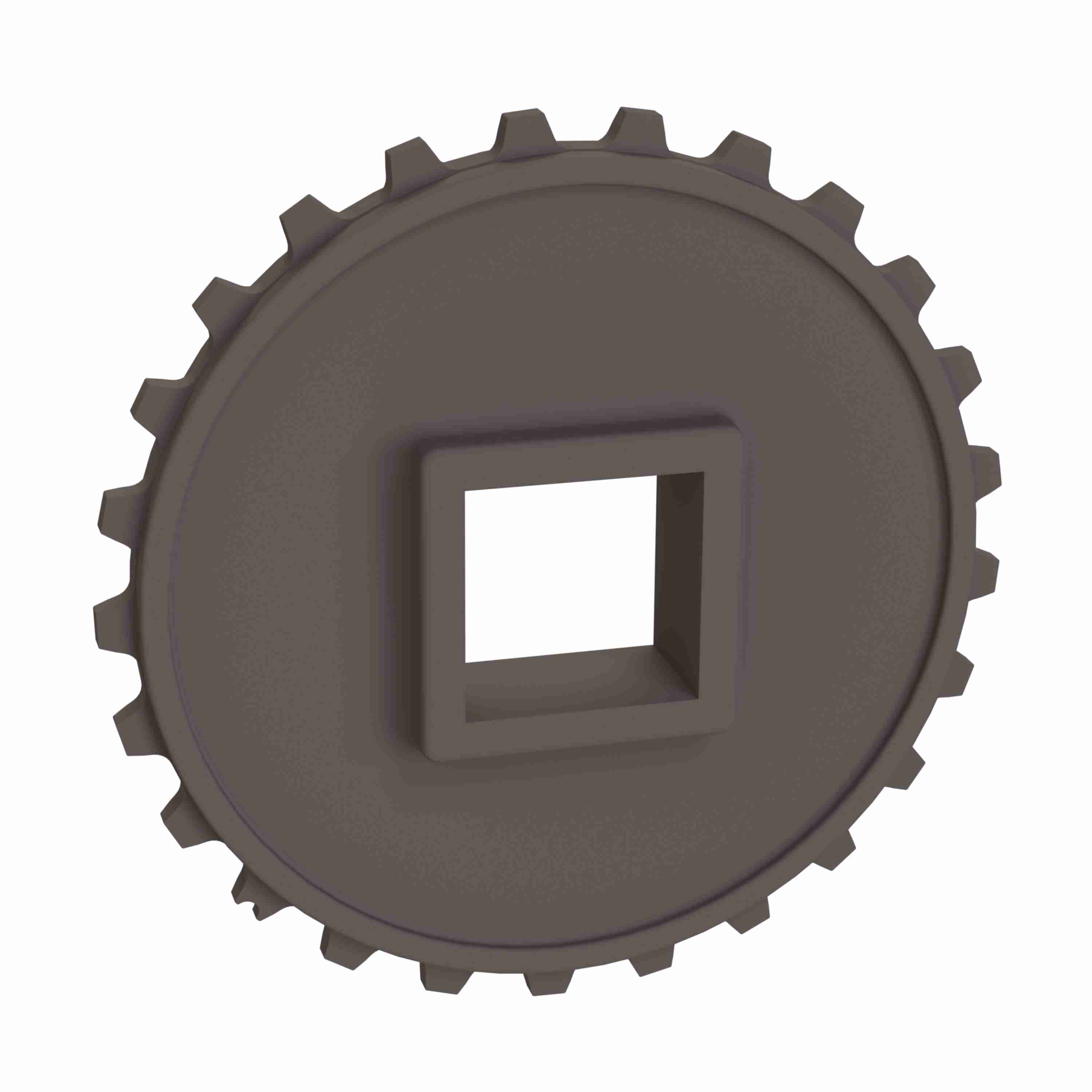

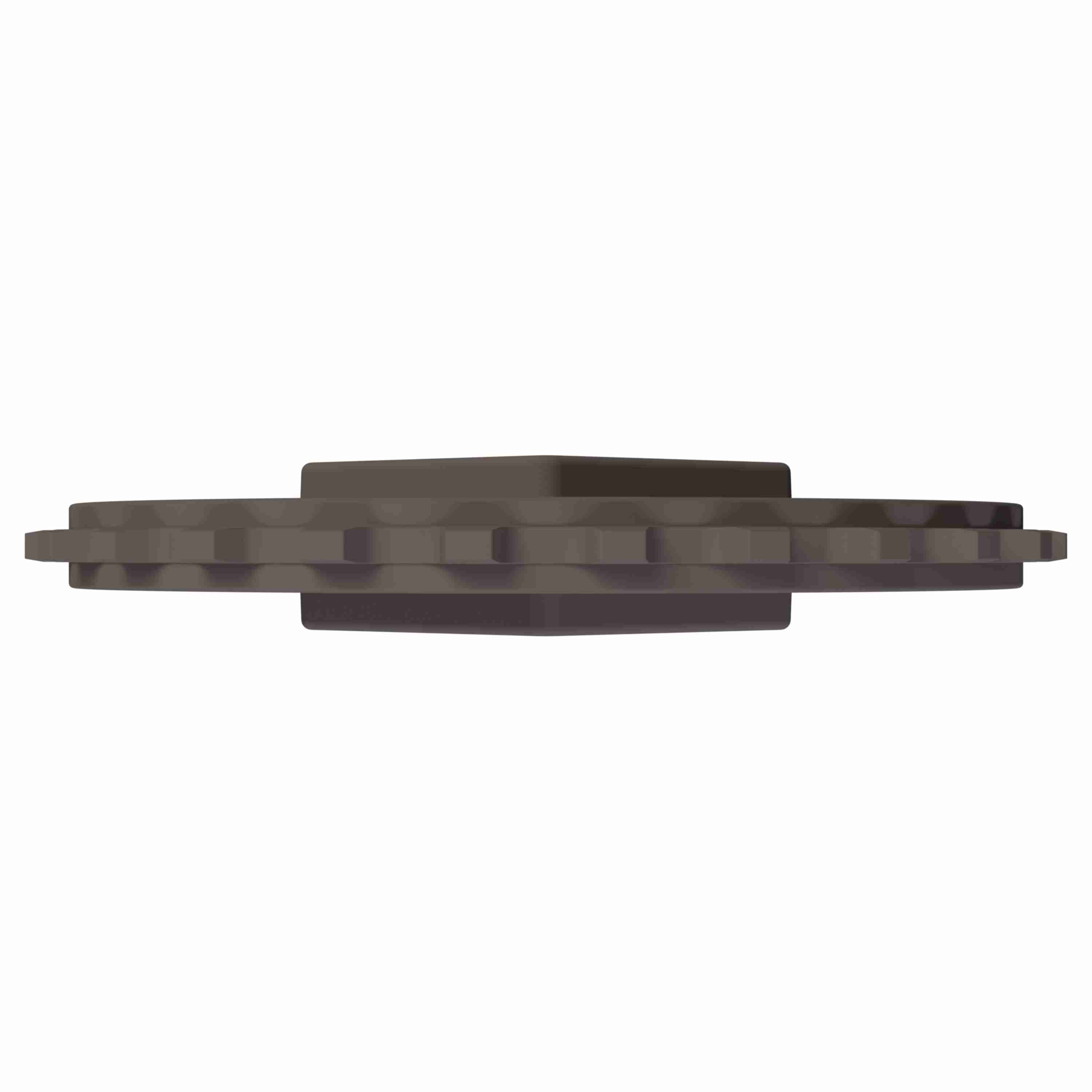

Rexnord 5930 Series Solid One Piece Molded Acetal Sprocket with 25 Teeth and a 40mm Square Bore - 114-692-11
Part #:10027394
Catalog #:114-692-11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Construction: | Molded Non-Split Sprocket | Bore Diameter (mm): | 40 mm |
| Body Style: | Block | Pitch Diameter (in): | 5.984 |
| Chain Number: | 5930 | Number of Teeth: | 25 |
| Pitch Diameter (mm): | 151.99 | Product Group: | MatTop® |
| Bore Type: | Shaft-Ready | Product Line: | Chain and Belt Sprockets |
| Material: | Acetal | Sprocket Series: | 5930 |
| Bore Shape: | Square | Number of Keyways: | 0 |
| Number of Set Screws: | None |
General Specifications
| UPC: | 793699261714 | Weight: | 0.46 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
