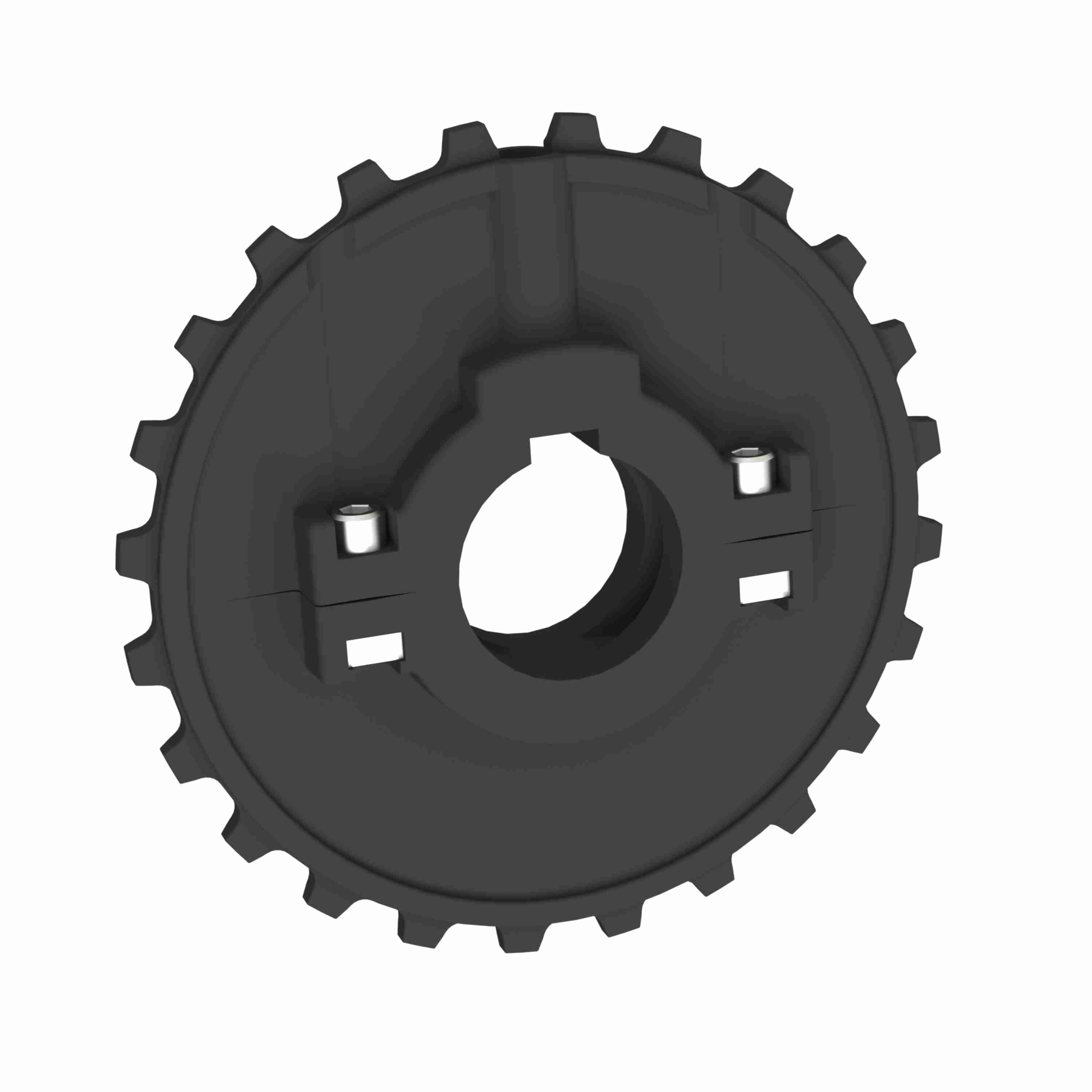

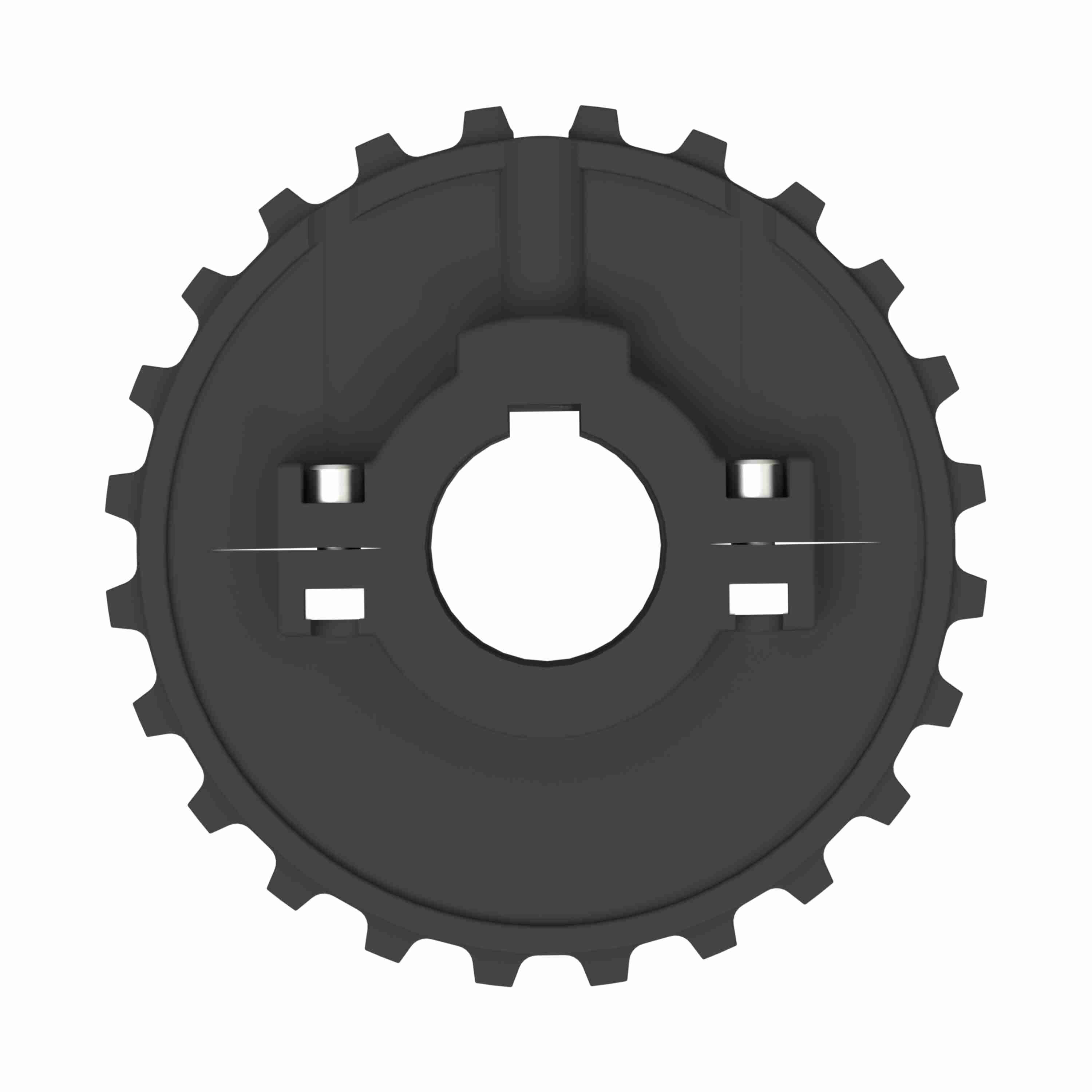

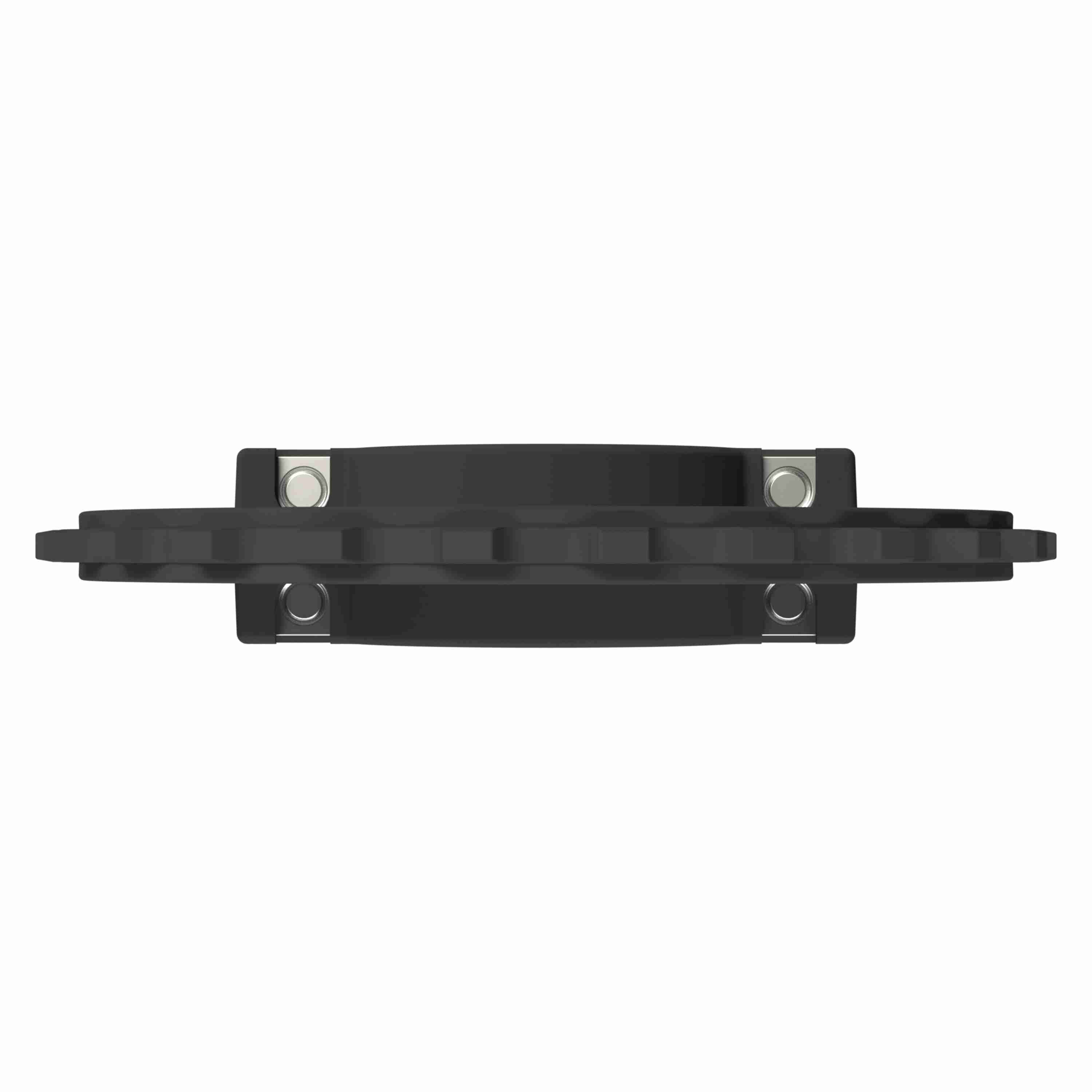

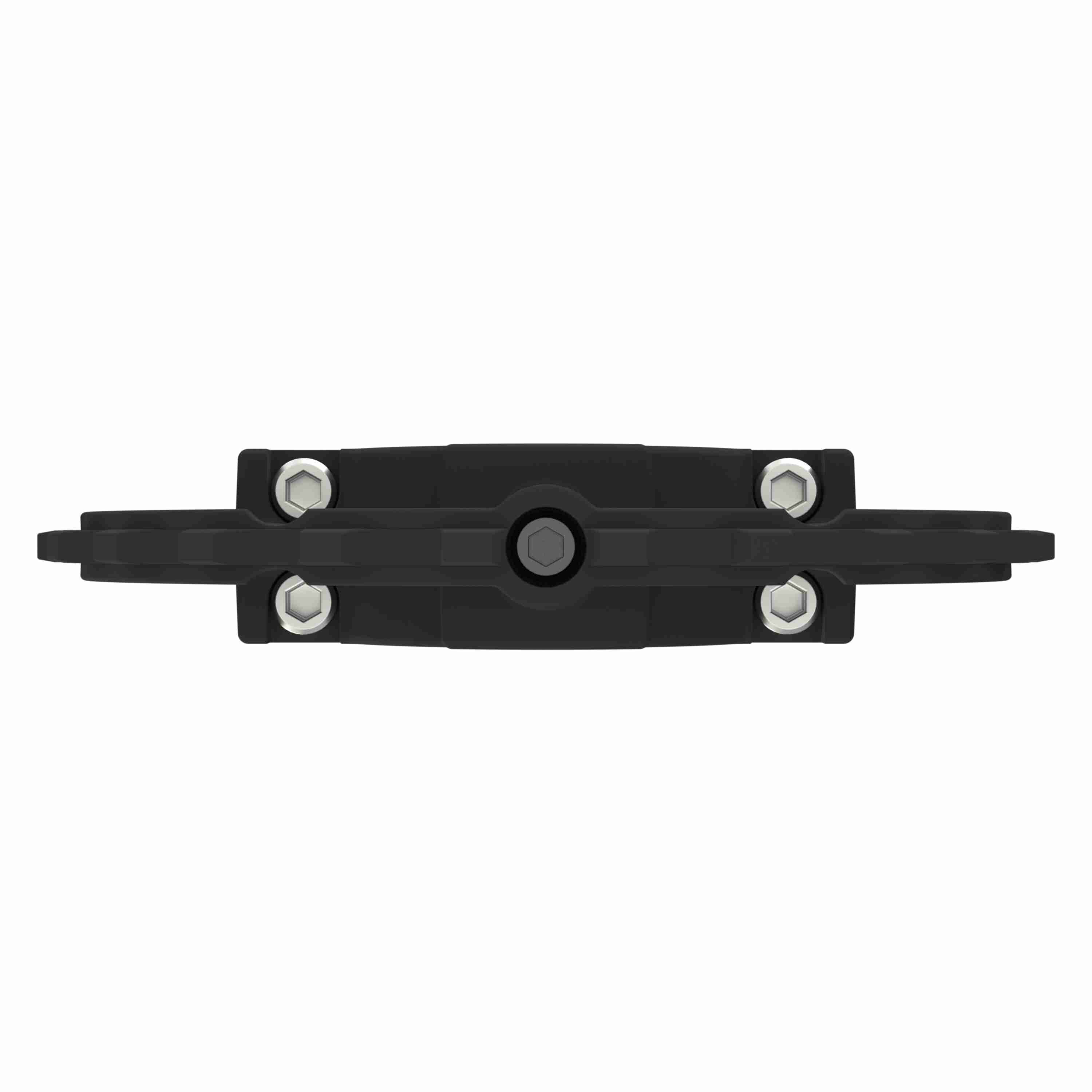

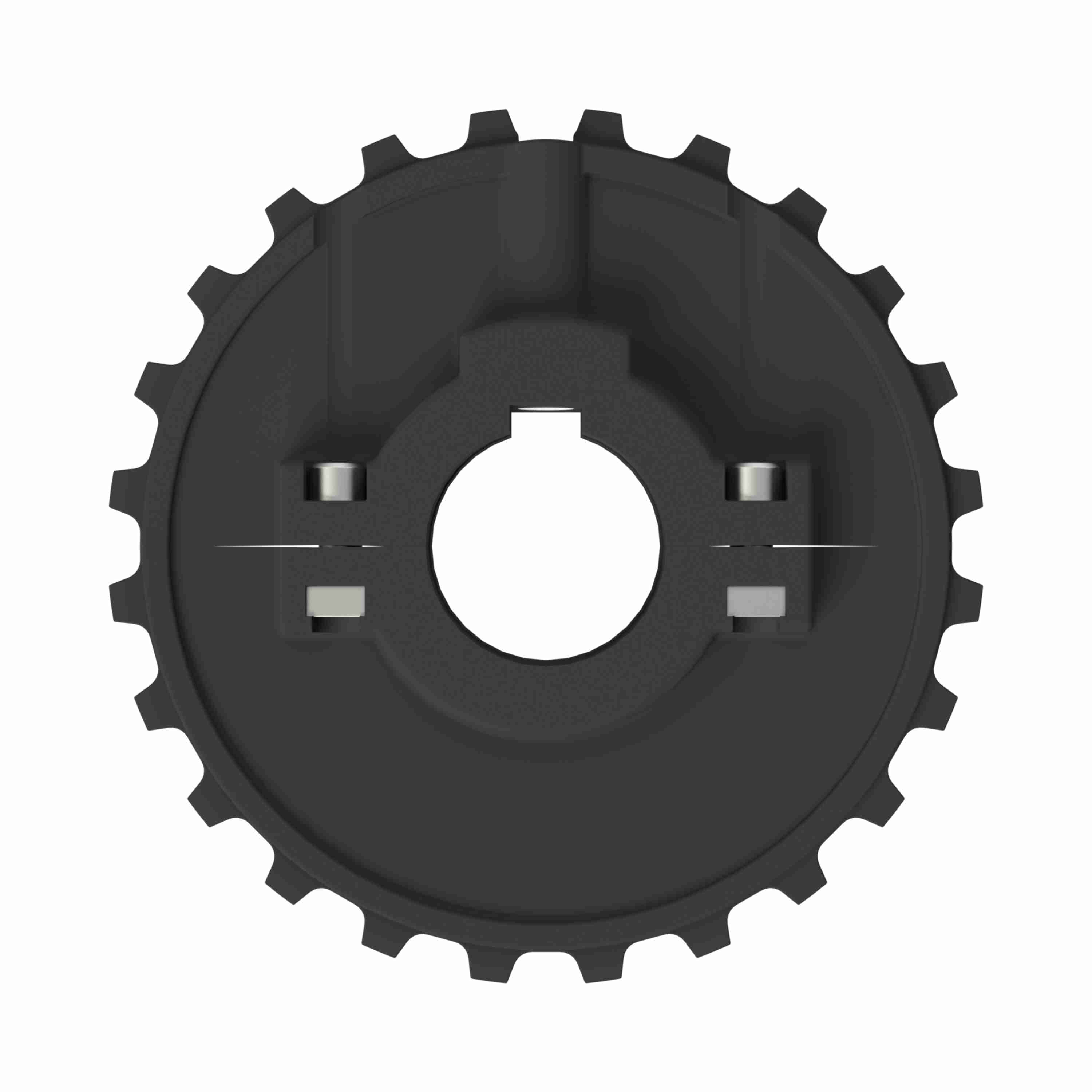

Rexnord 5930 Series Split Molded Nylon Sprocket and a 24 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 614-107-3
Part #:10028554
Catalog #:614-107-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Type: | Shaft-Ready | Sprocket Series: | 5930 |
| Bore Diameter (in): | 1-1/4 in | Number of Teeth: | 24 |
| Body Style: | Block | Pitch Diameter (in): | 5.746 |
| Product Group: | MatTop® | Bore Shape: | Round |
| Number of Set Screws: | 1 Setscrew | Pitch Diameter (mm): | 145.95 |
| Number of Keyways: | 1 | Material: | Nylon |
| Sprocket Construction: | Molded Split Sprocket | Product Line: | Chain and Belt Sprockets |
| Chain Number: | 5930 |
General Specifications
| UPC: | 793699275711 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
