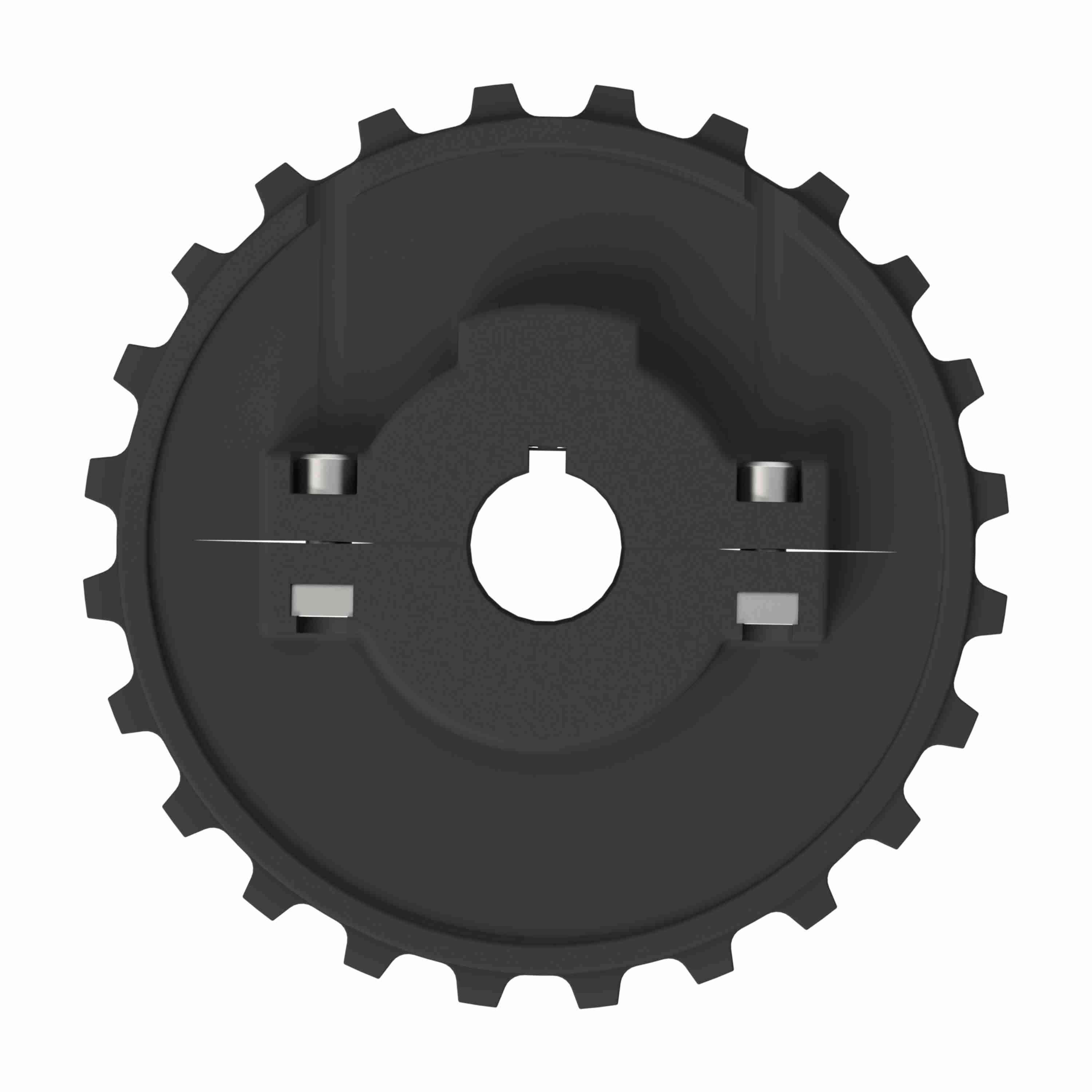

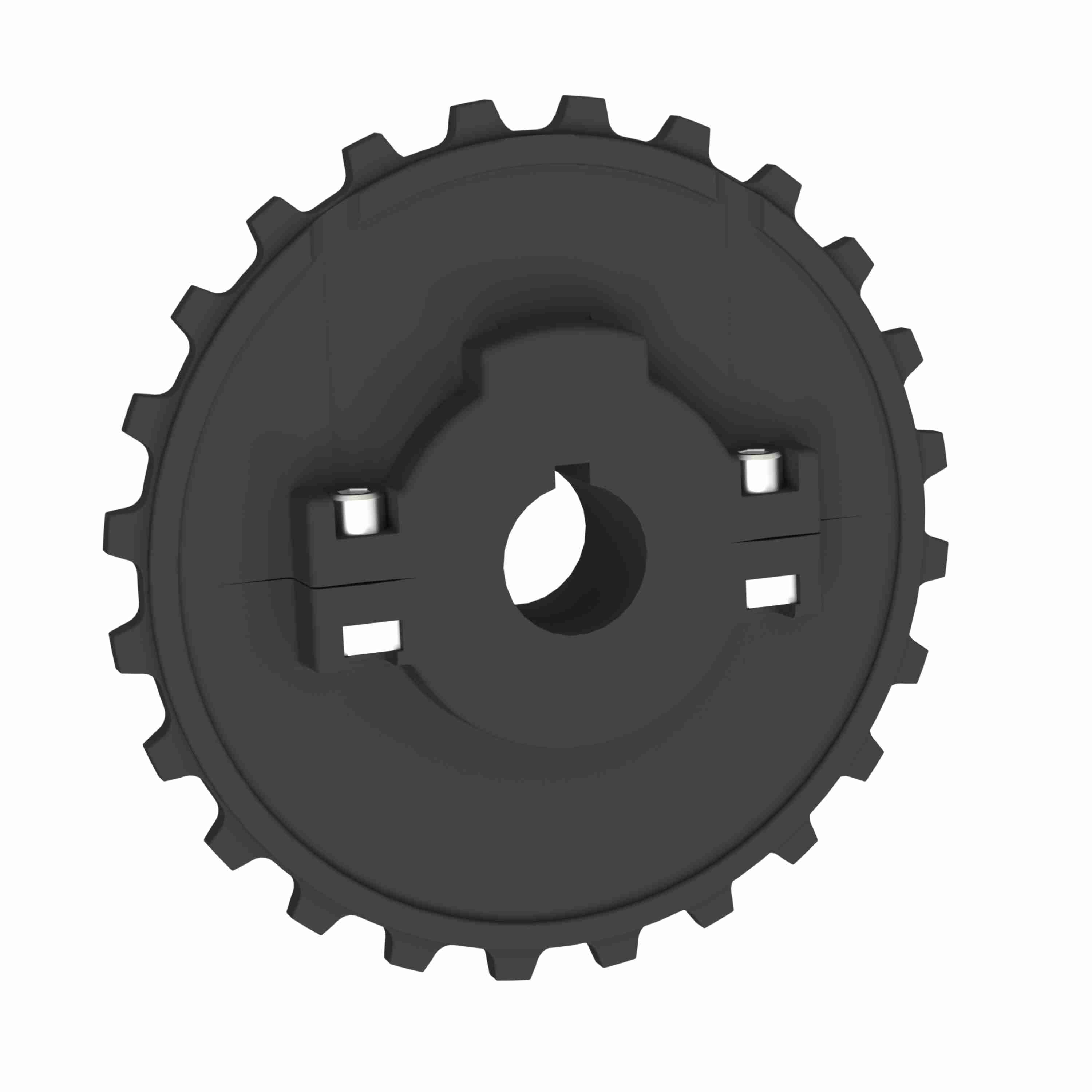

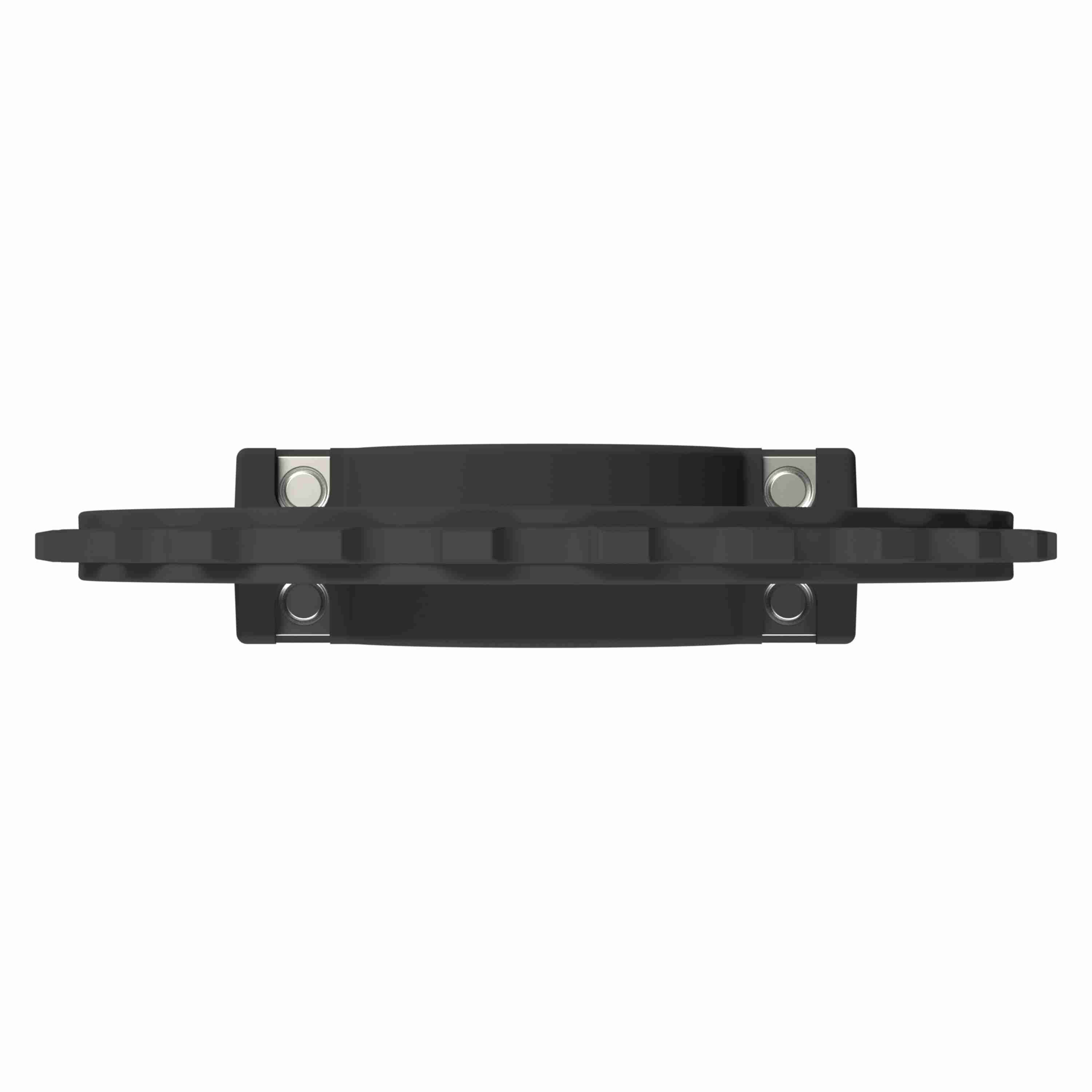

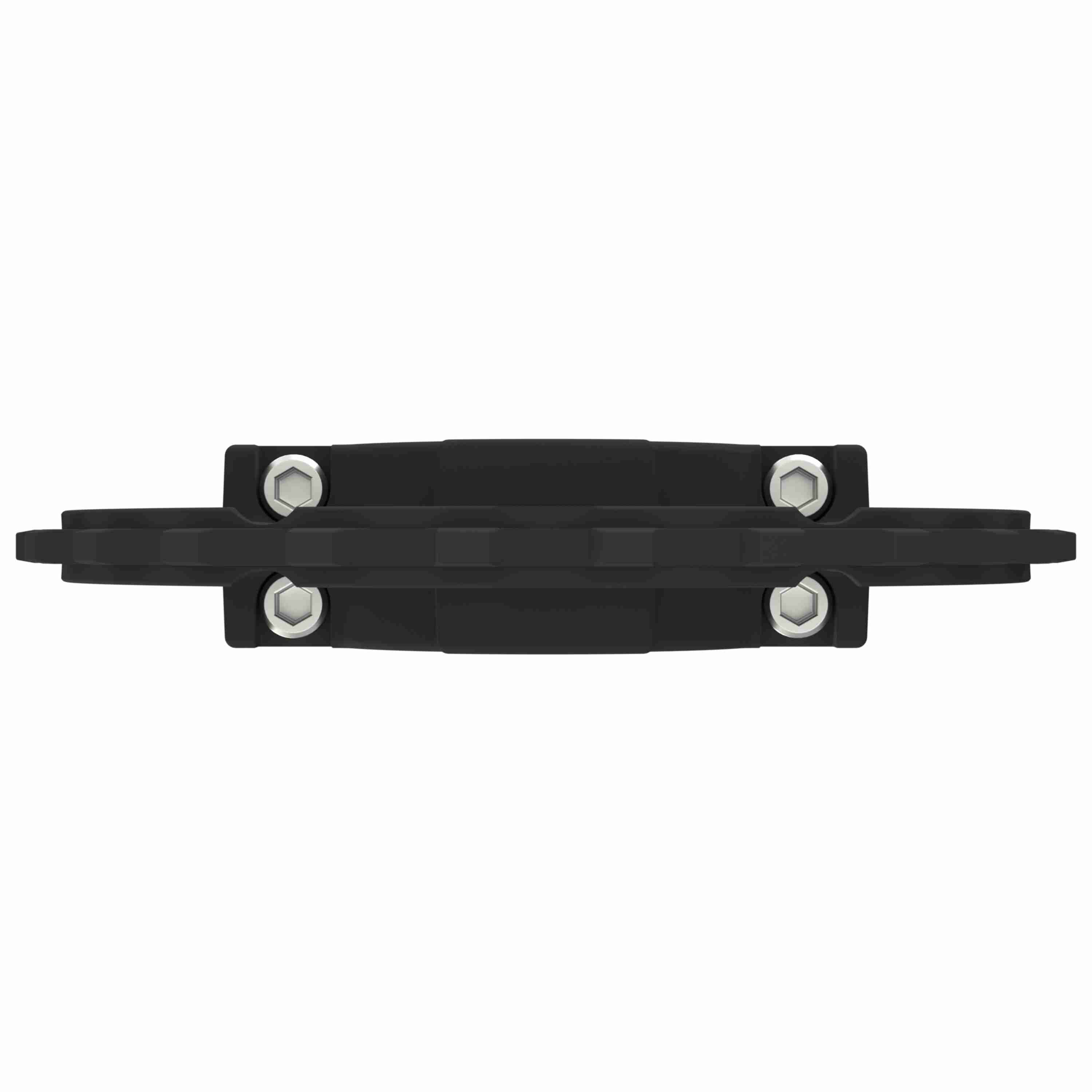

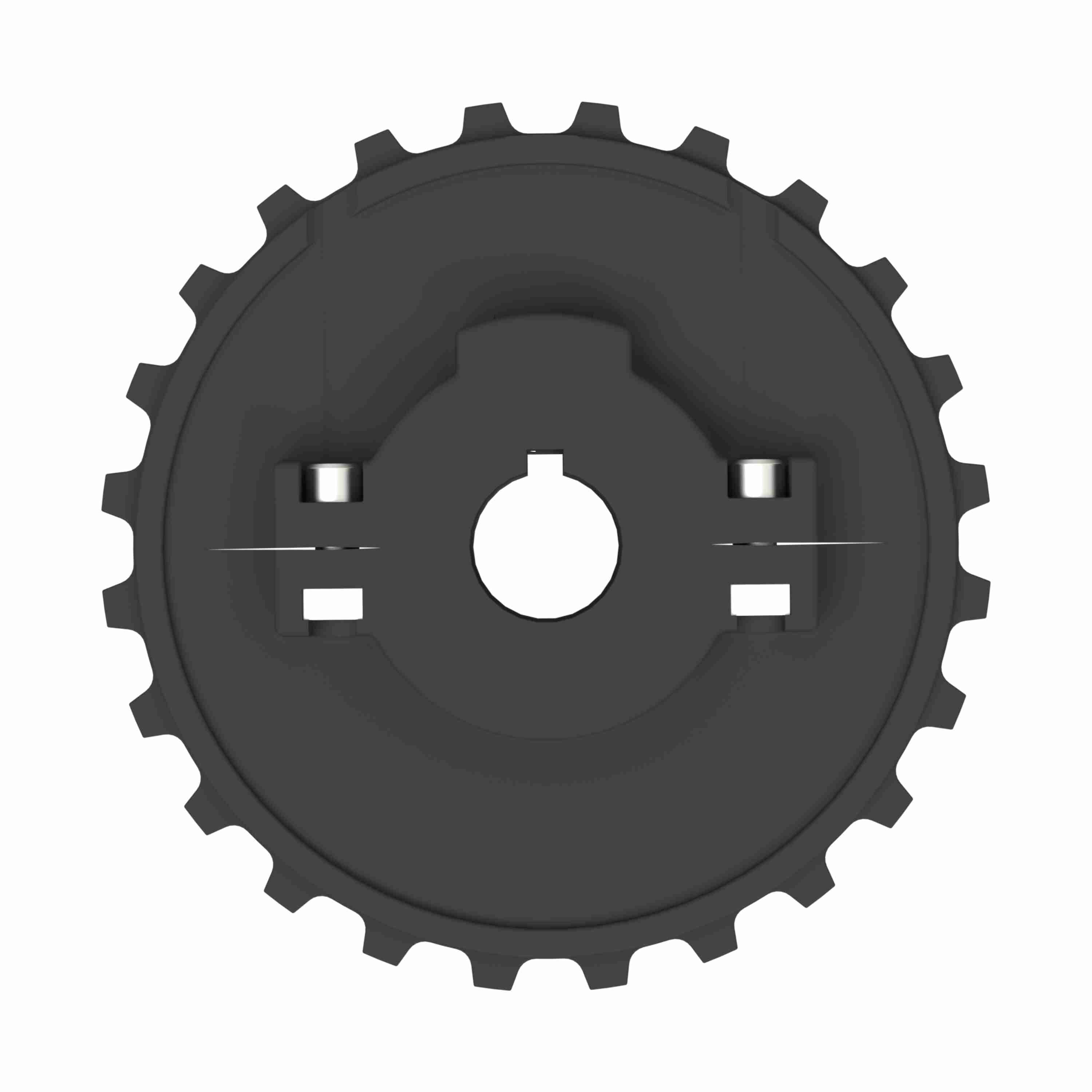

Rexnord 5930 Series Split Molded Nylon Sprocket with 24 Teeth and 25mm Round Shaft-Ready Bore with Keyway - 614-107-25
Part #:10334028
Catalog #:614-107-25
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 5930 | Pitch Diameter (in): | 5.746 |
| Sprocket Series: | 5930 | Bore Type: | Shaft-Ready |
| Product Group: | MatTop® | Bore Shape: | Round |
| Pitch Diameter (mm): | 145.95 | Sprocket Construction: | Molded Split Sprocket |
| Number of Keyways: | 1 | Number of Set Screws: | None |
| Number of Teeth: | 24 | Product Line: | Chain and Belt Sprockets |
| Body Style: | Block | Material: | Nylon |
| Bore Diameter (mm): | 25 mm | Hub Type: | C-HUB |
General Specifications
| UPC: | 782934823862 | Weight: | 0.26 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
