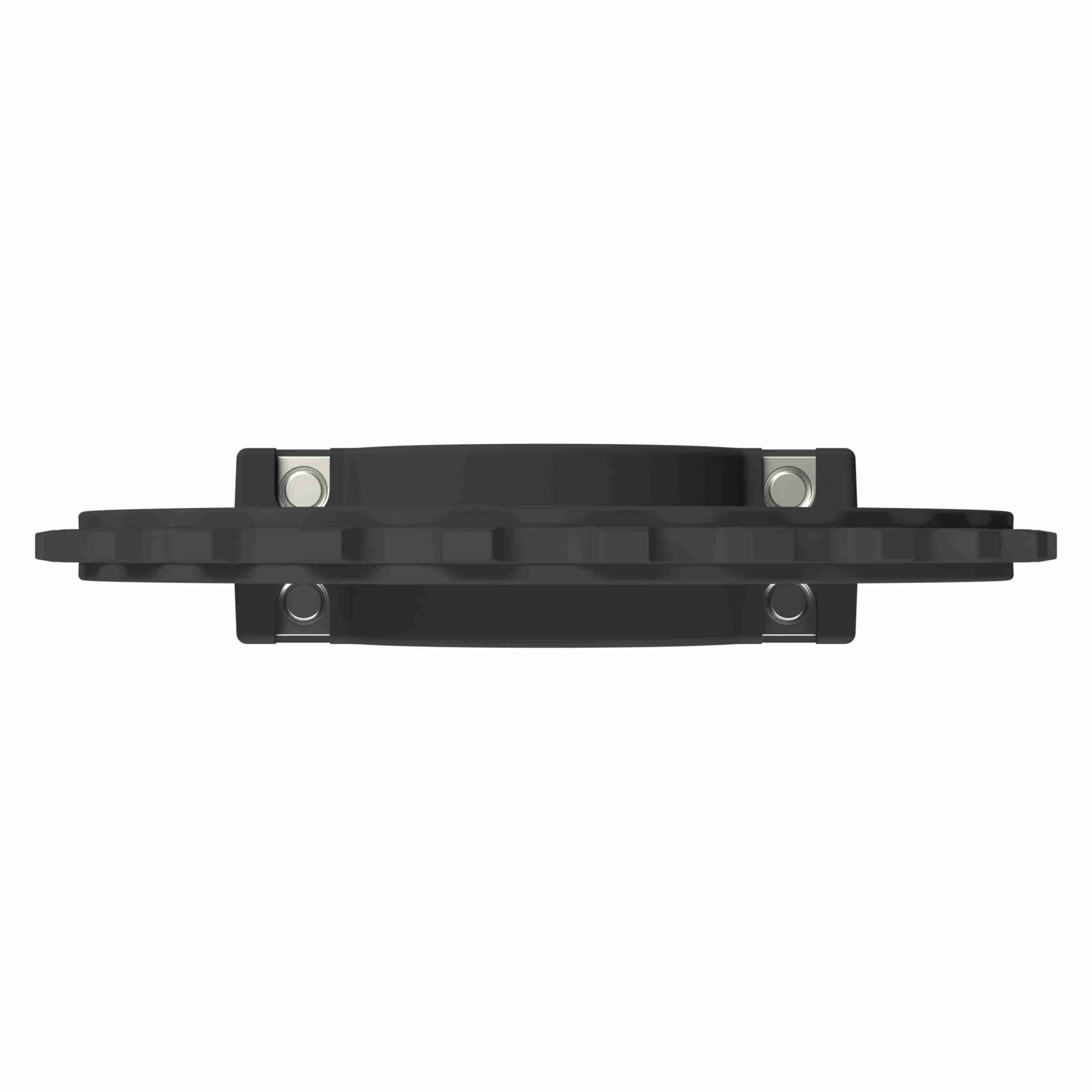

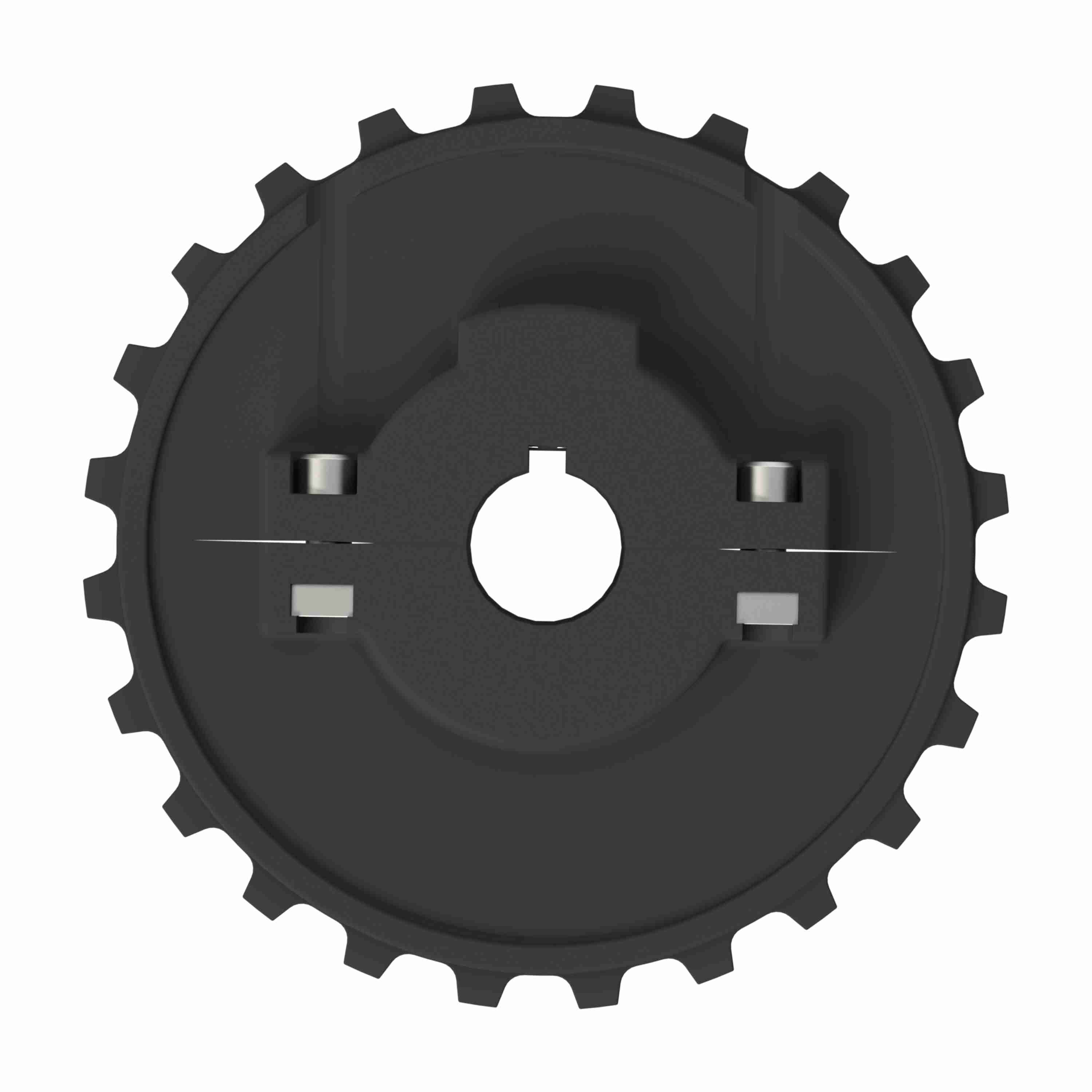

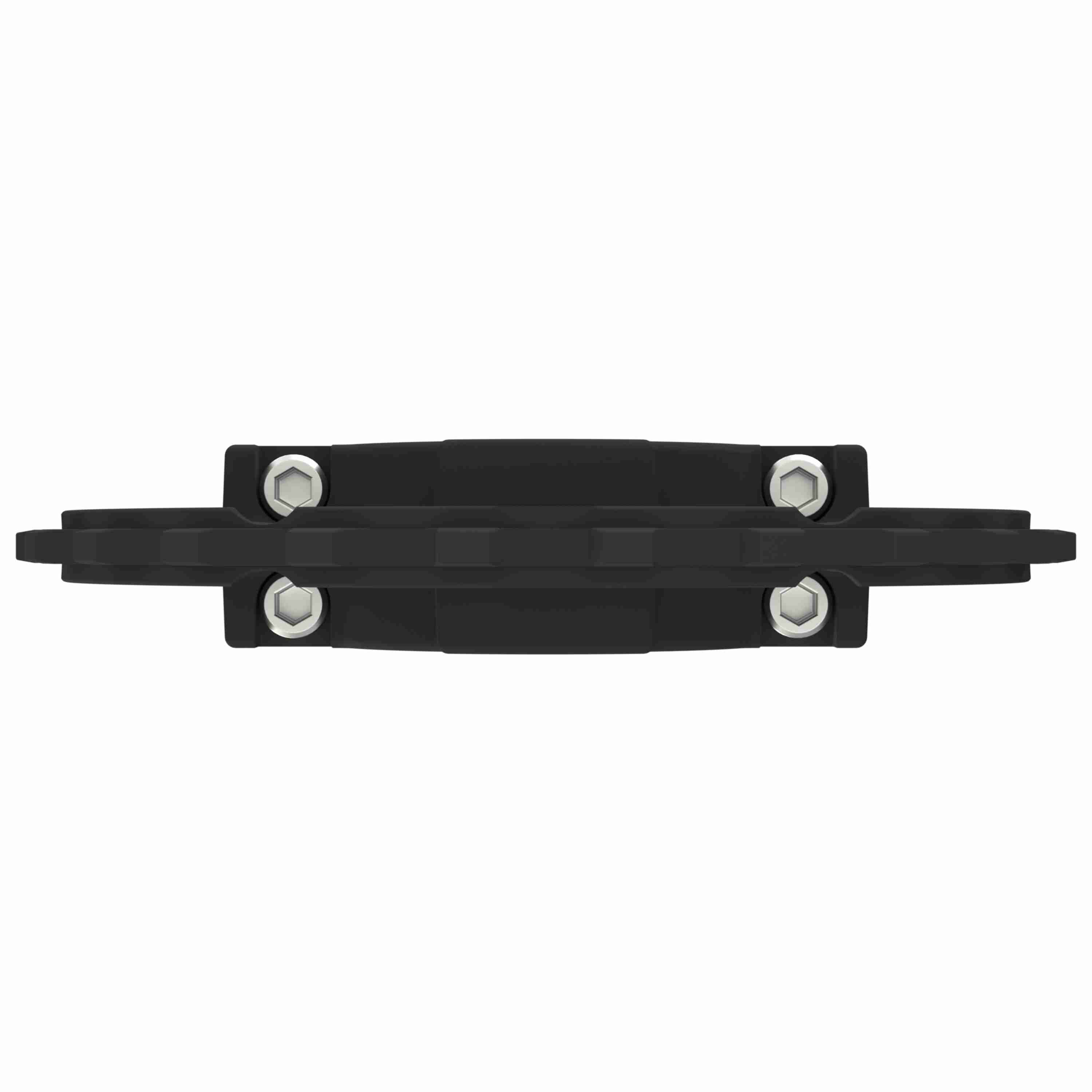

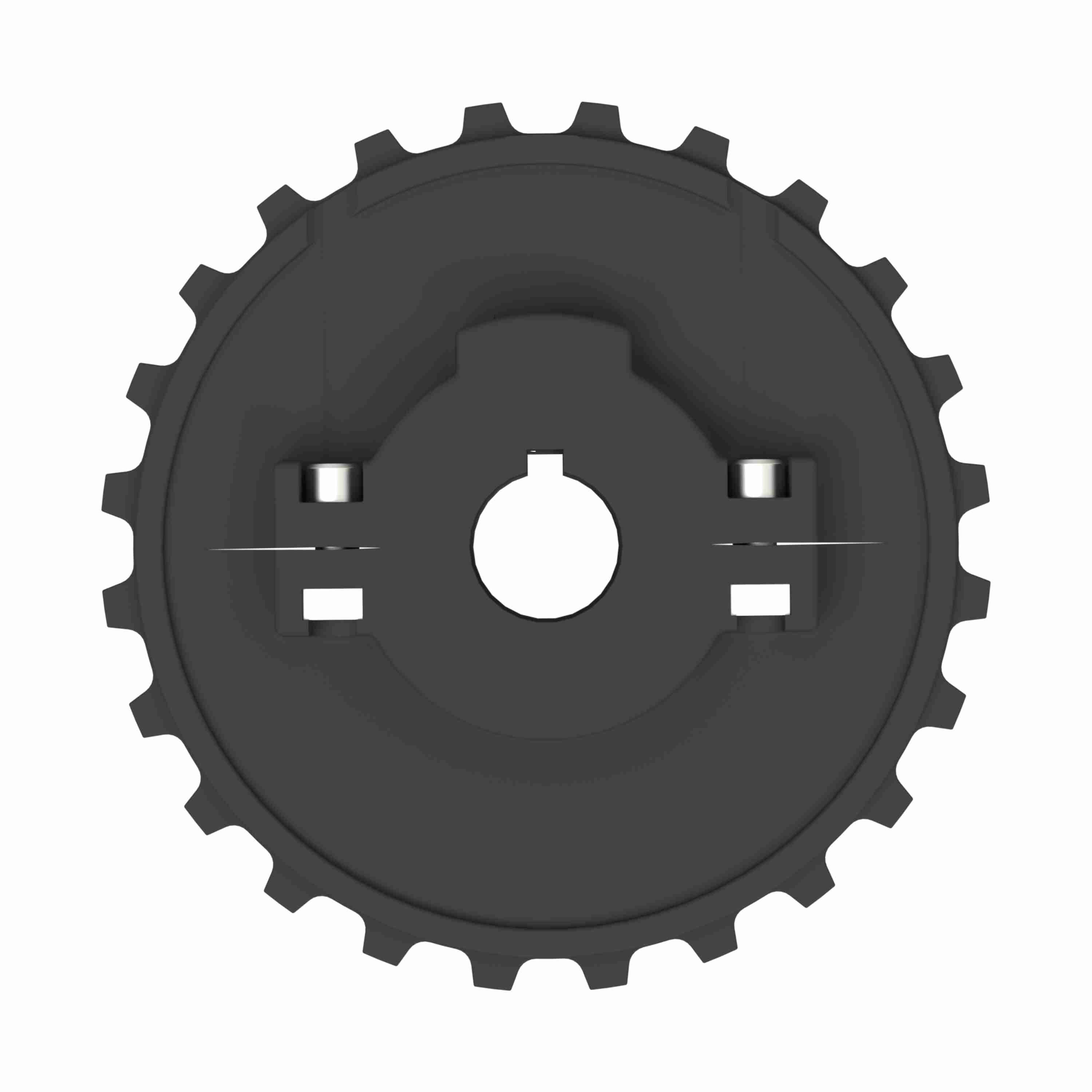

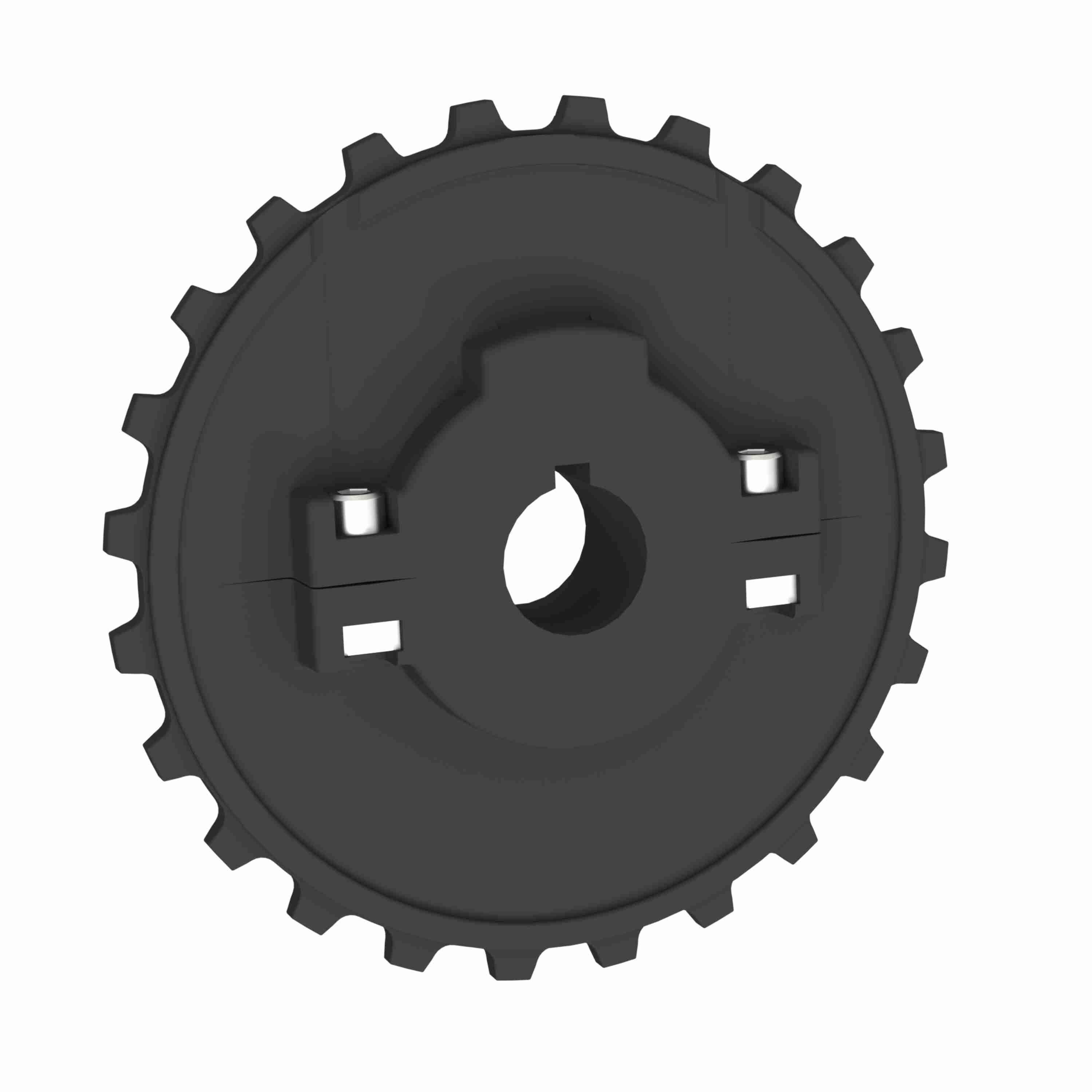

Rexnord 5930 Series Split Molded Nylon Sprocket with 24 Teeth and 35mm Round Shaft-Ready Bore with Keyway - 614-107-35
Part #:10334030
Catalog #:614-107-35
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Diameter (mm): | 35 mm | Number of Set Screws: | None |
| Bore Type: | Shaft-Ready | Material: | Nylon |
| Chain Number: | 5930 | Number of Teeth: | 24 |
| Body Style: | Block | Number of Keyways: | 1 |
| Sprocket Construction: | Molded Split Sprocket | Product Group: | MatTop® |
| Pitch Diameter (mm): | 145.95 | Product Line: | Chain and Belt Sprockets |
| Sprocket Series: | 5930 | Bore Shape: | Round |
| Pitch Diameter (in): | 5.746 |
General Specifications
| UPC: | 782934817311 | Weight: | 0.26 KG |
| HTC: | 8483901050 | Country of Origin: | Mexico |
