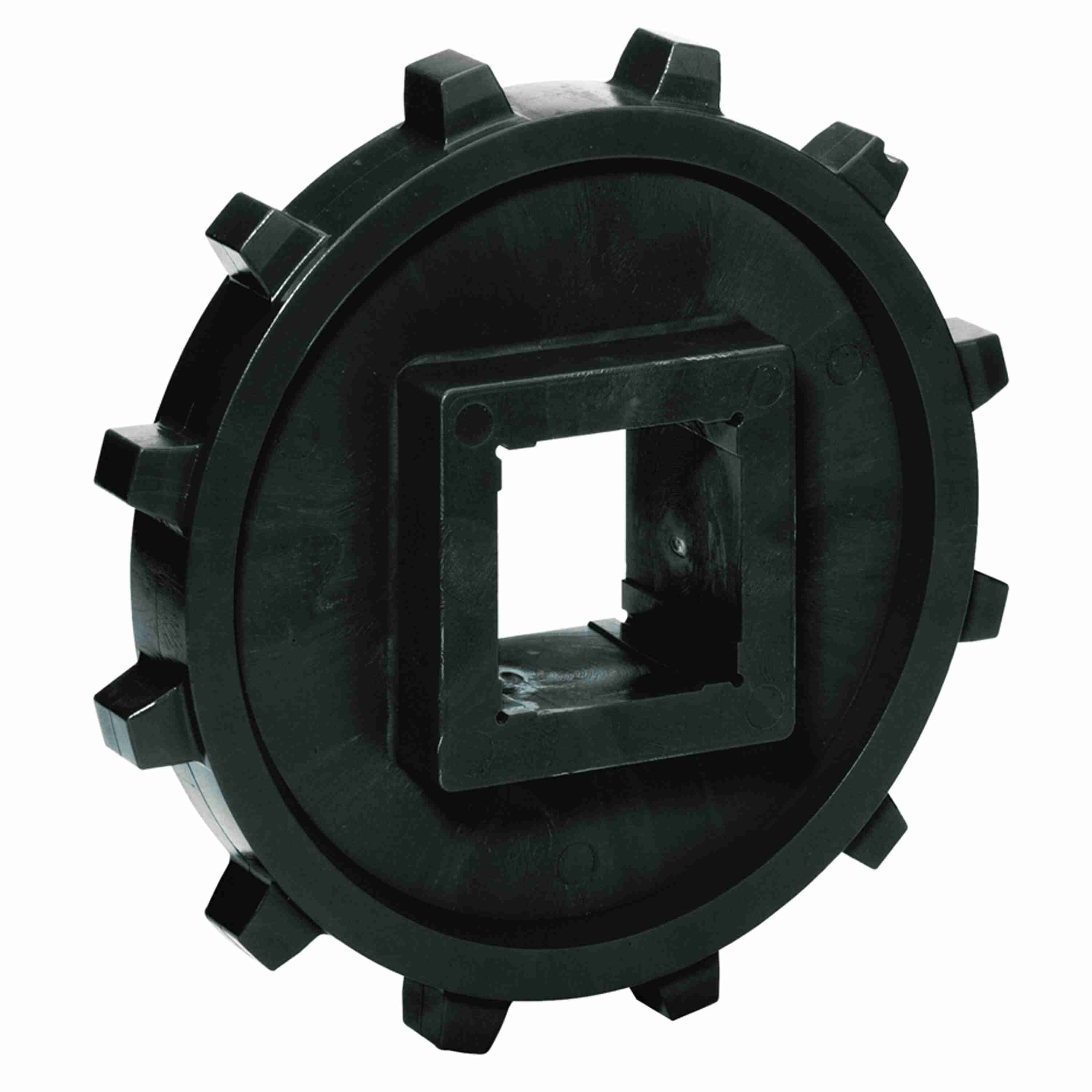

Rexnord 5960 Series Solid One Piece Molded Acetal Sprocket with 12 Teeth and a 40mm Square Bore - 114-857-11
Part #:10013593
Catalog #:114-857-11
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | MatTop® | Body Style: | Block |
| Pitch Diameter (in): | 5.796 | Product Line: | Chain and Belt Sprockets |
| Bore Diameter (mm): | 40 mm | Sprocket Construction: | Molded Non-Split Sprocket |
| Number of Teeth: | 12 | Hub Type: | C-HUB |
| Material: | Acetal | Number of Keyways: | 0 |
| Pitch Diameter (mm): | 147.21 | Bore Type: | Shaft-Ready |
| Chain Number: | 5960 | Sprocket Series: | 5960 |
| Bore Shape: | Square | Number of Set Screws: | None |
General Specifications
| UPC: | 793699428117 | Weight: | 0.73 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
