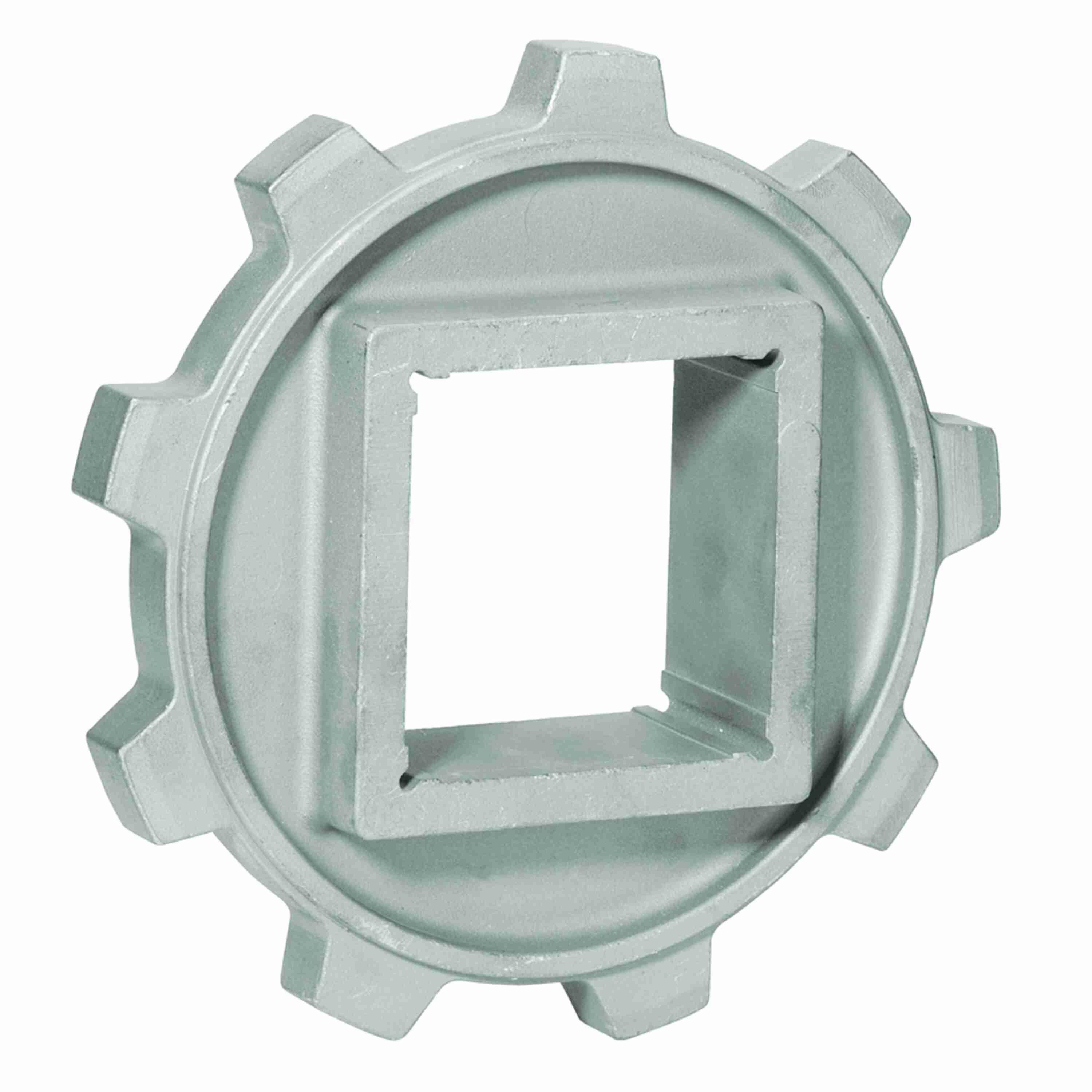

Rexnord 5990 Series Solid One Piece Machined Stainless Steel Sprocket with 9 Teeth and a 2-1/2in Square Bore - 114-3924-3
Part #:10072752
Catalog #:114-3924-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Type: | Shaft-Ready | Chain Number: | 5990 |
| Pitch Diameter (in): | 6.579 | Material: | Stainless Steel |
| Bore Diameter (in): | 2-1/2 in | Body Style: | Block |
| Product Line: | Chain and Belt Sprockets | Sprocket Construction: | Stainless Steel Non-Split Sprocket |
| Hub Type: | A-No Hub | Number of Keyways: | 0 |
| Number of Teeth: | 9 | Sprocket Series: | 5990 |
| Number of Set Screws: | None | Product Group: | MatTop® |
| Pitch Diameter (mm): | 167.1 | Bore Shape: | Square |
General Specifications
| UPC: | 793699426465 | Weight: | 10.20 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
