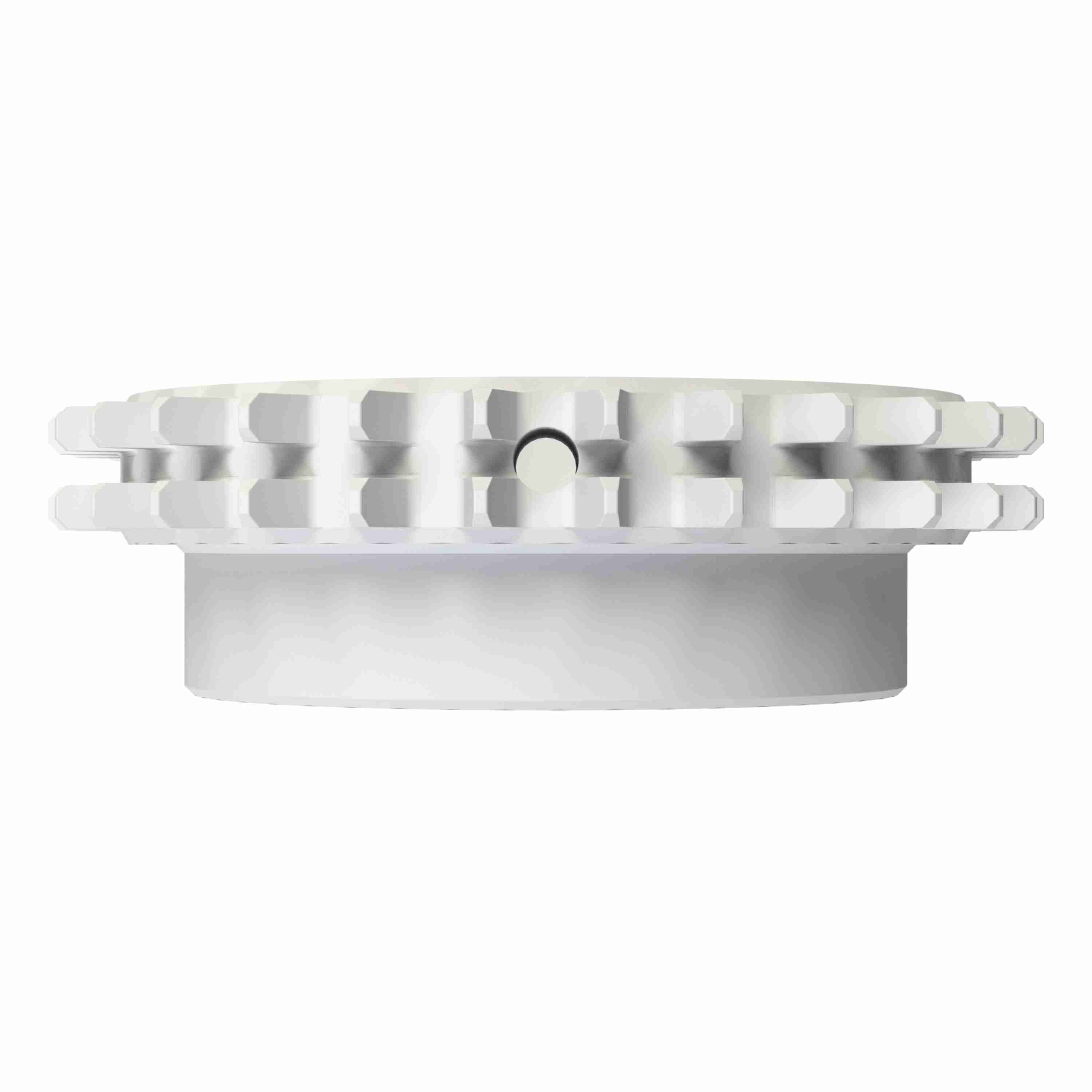

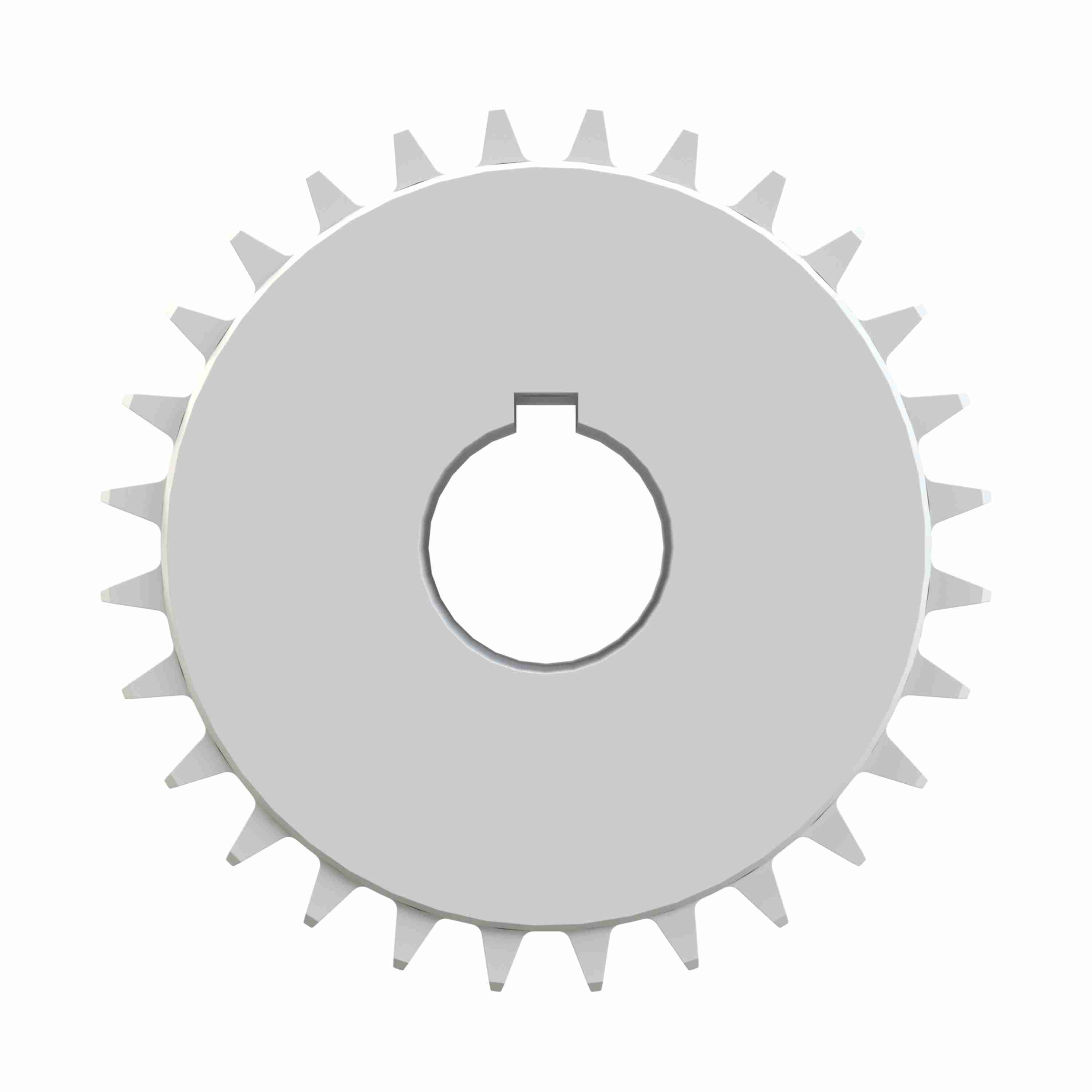

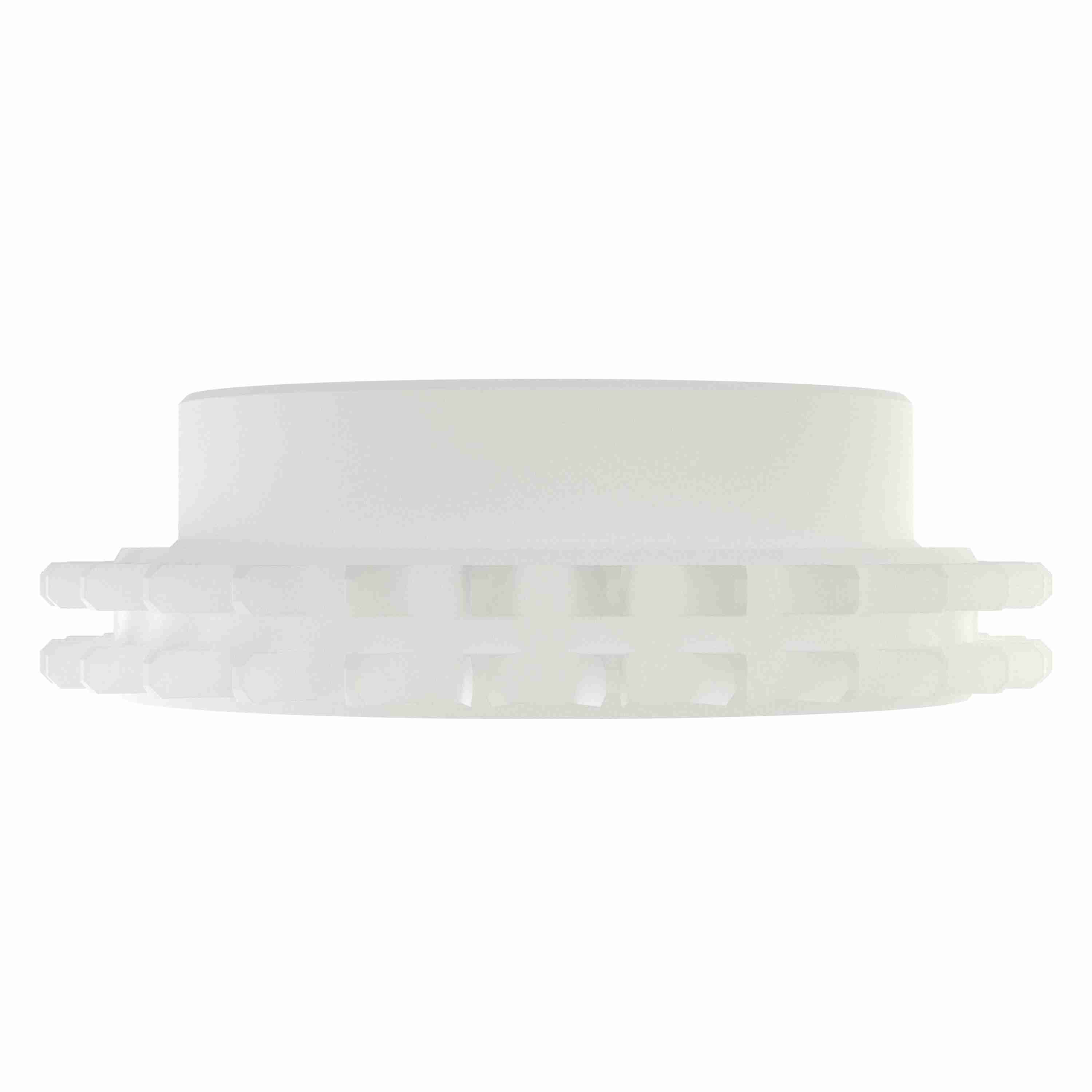

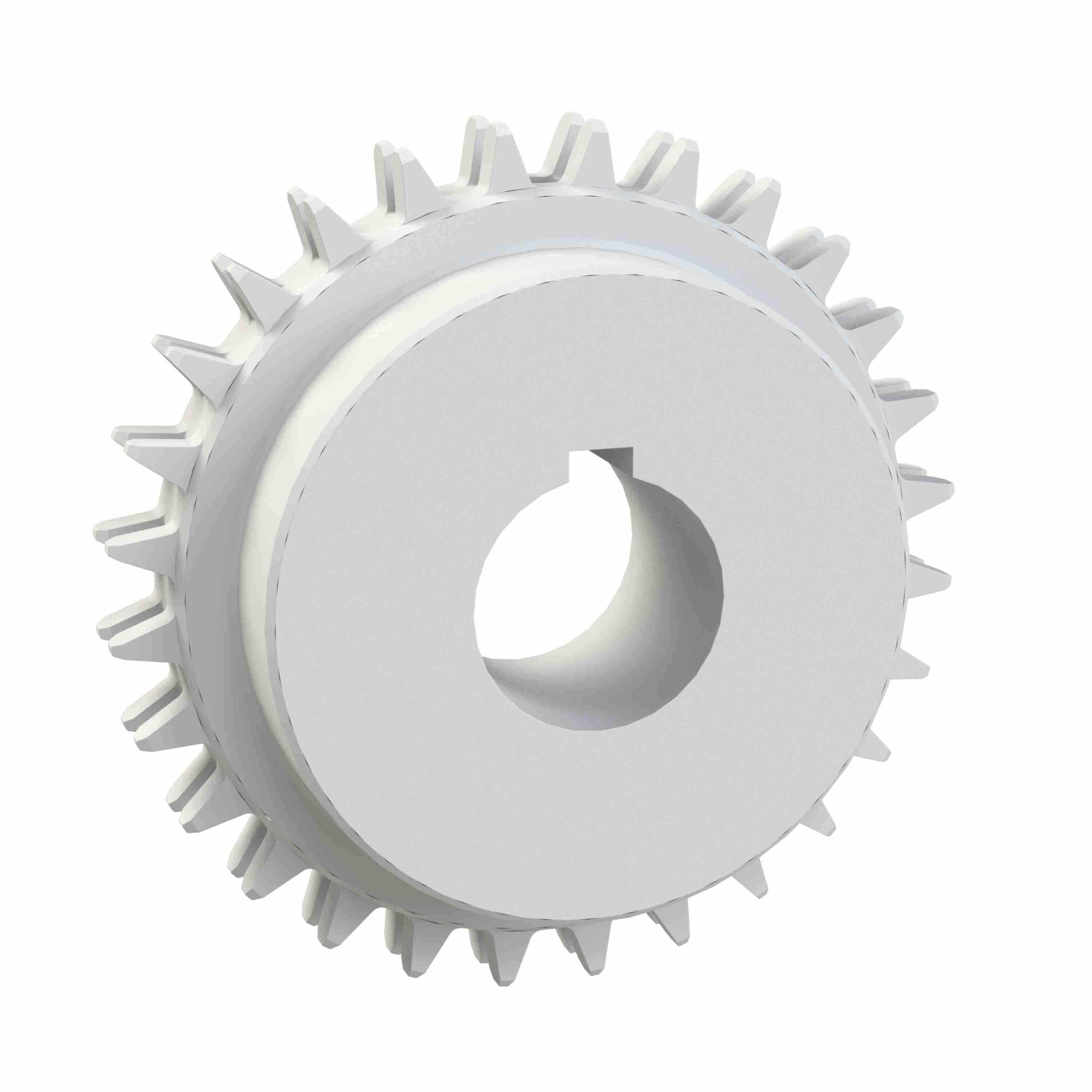

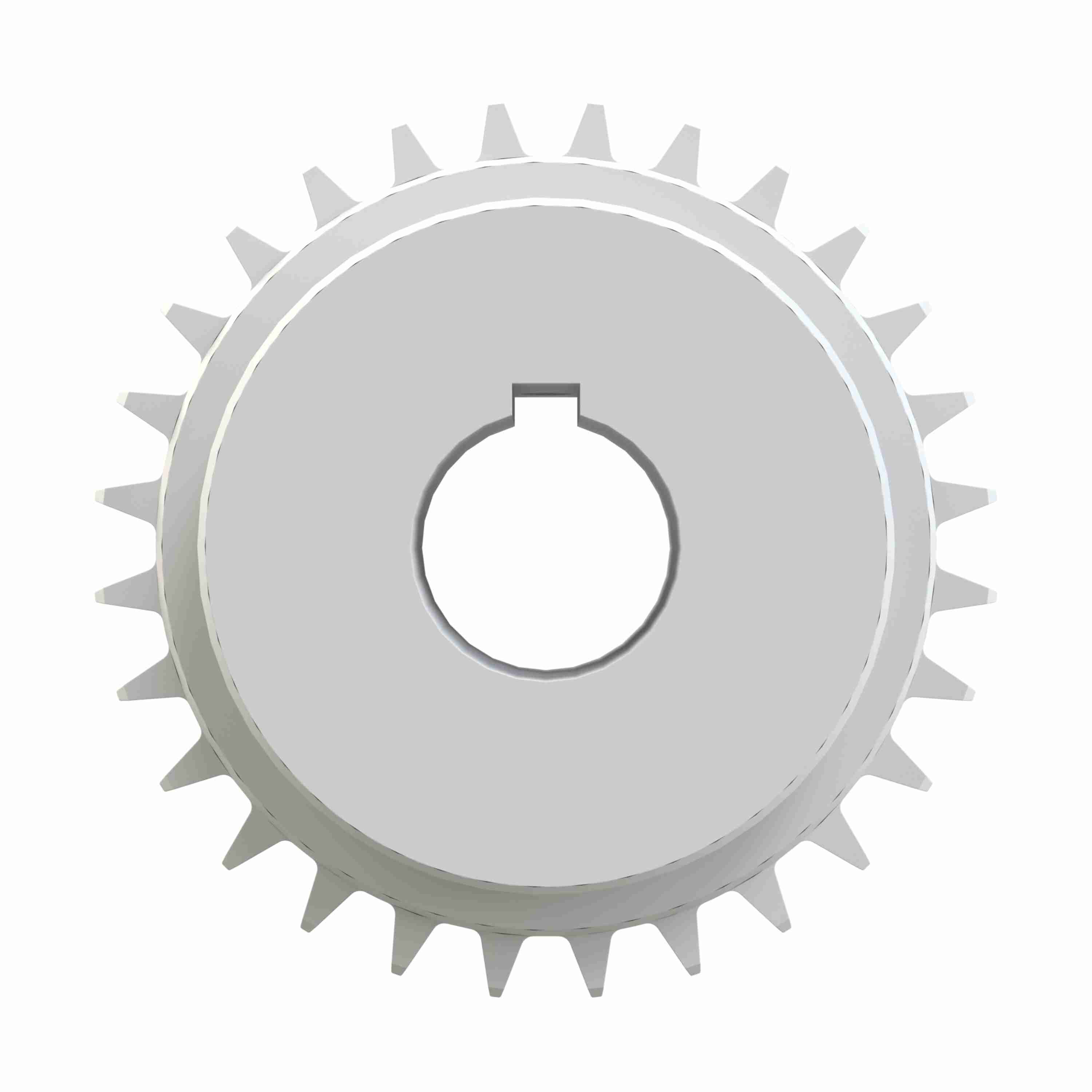

Rexnord 7520 Series Solid One Piece Machined Nylon Sprocket and a 28 Teeth with 1-1/4in Round Shaft-Ready Bore with Keyway & Setscrew - 890.25.01
Part #:10148097
Catalog #:890.25.01
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Series: | 7520 | Sprocket Construction: | Machined Non-Split Sprocket |
| Material: | Nylon | Pitch Diameter (in): | 4.466 |
| Product Group: | MatTop® | Pitch Diameter (mm): | 113.43 |
| Number of Teeth: | 28 | Bore Type: | Shaft-Ready |
| Number of Set Screws: | 1 Setscrew | Number of Keyways: | 1 |
| Bore Diameter (in): | 1-1/4 in | Hub Type: | B-HUB |
| Body Style: | Block | Product Line: | Chain and Belt Sprockets |
| Chain Number: | 7520 | Bore Shape: | Round |
General Specifications
| UPC: | 662864318501 | Weight: | 0.40 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
