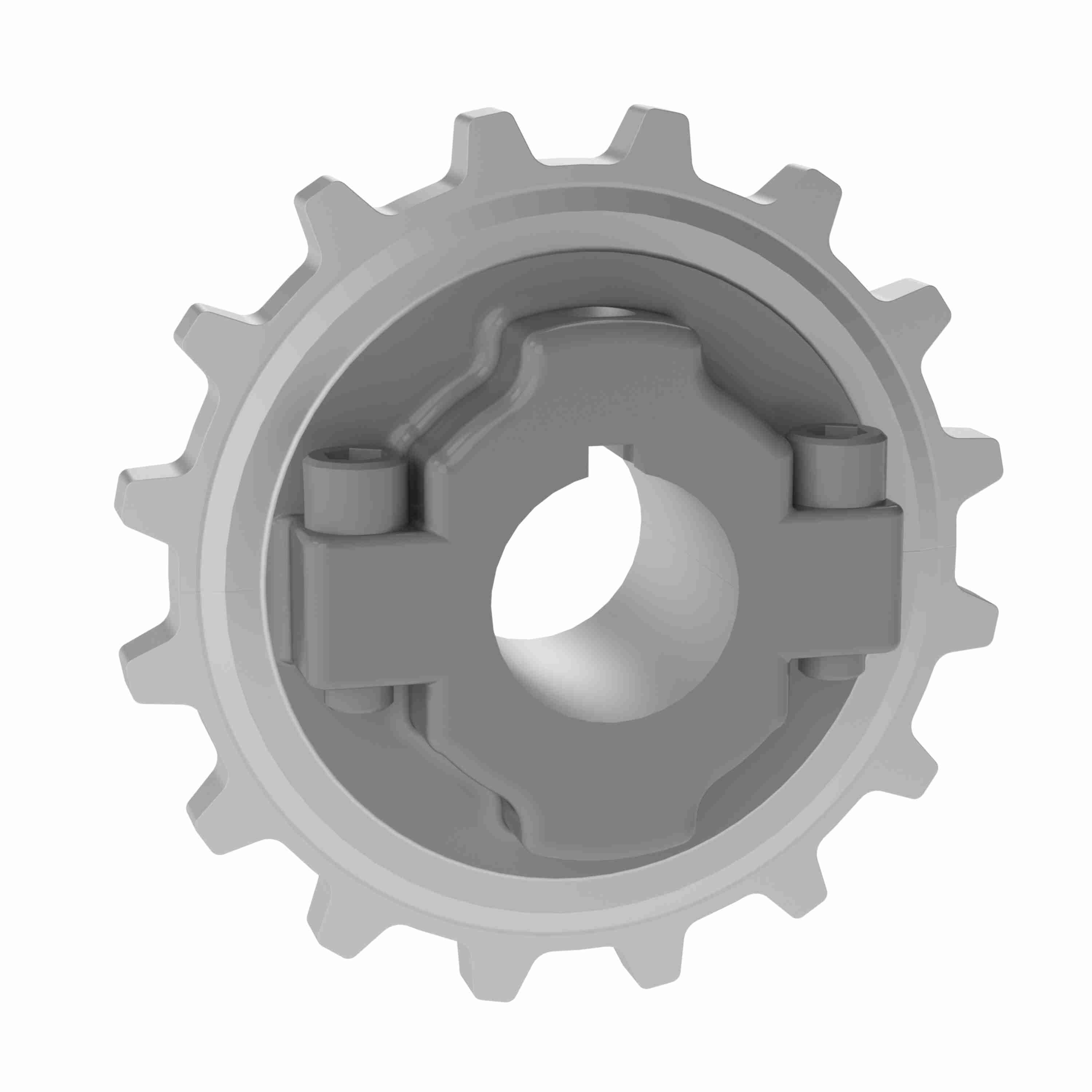

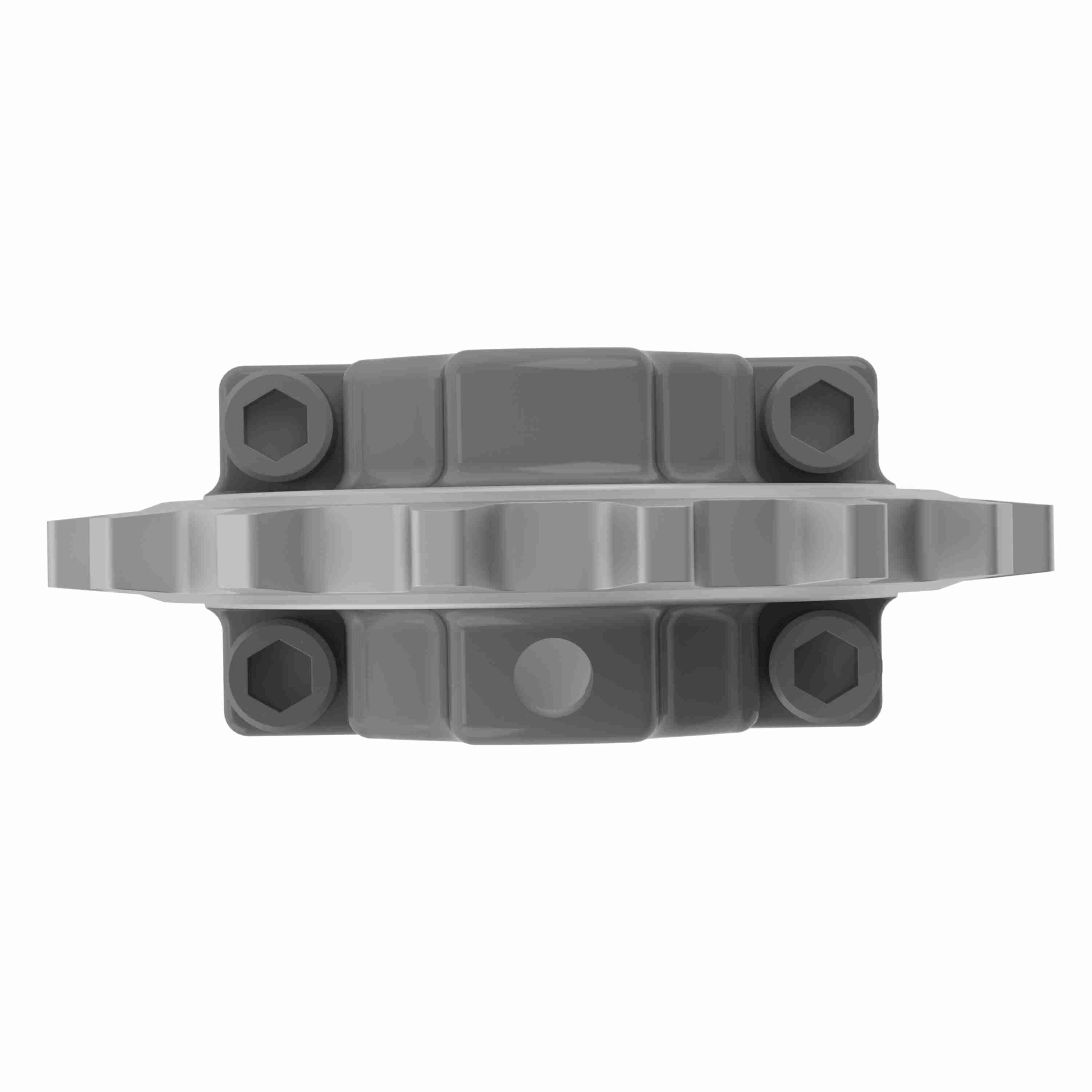

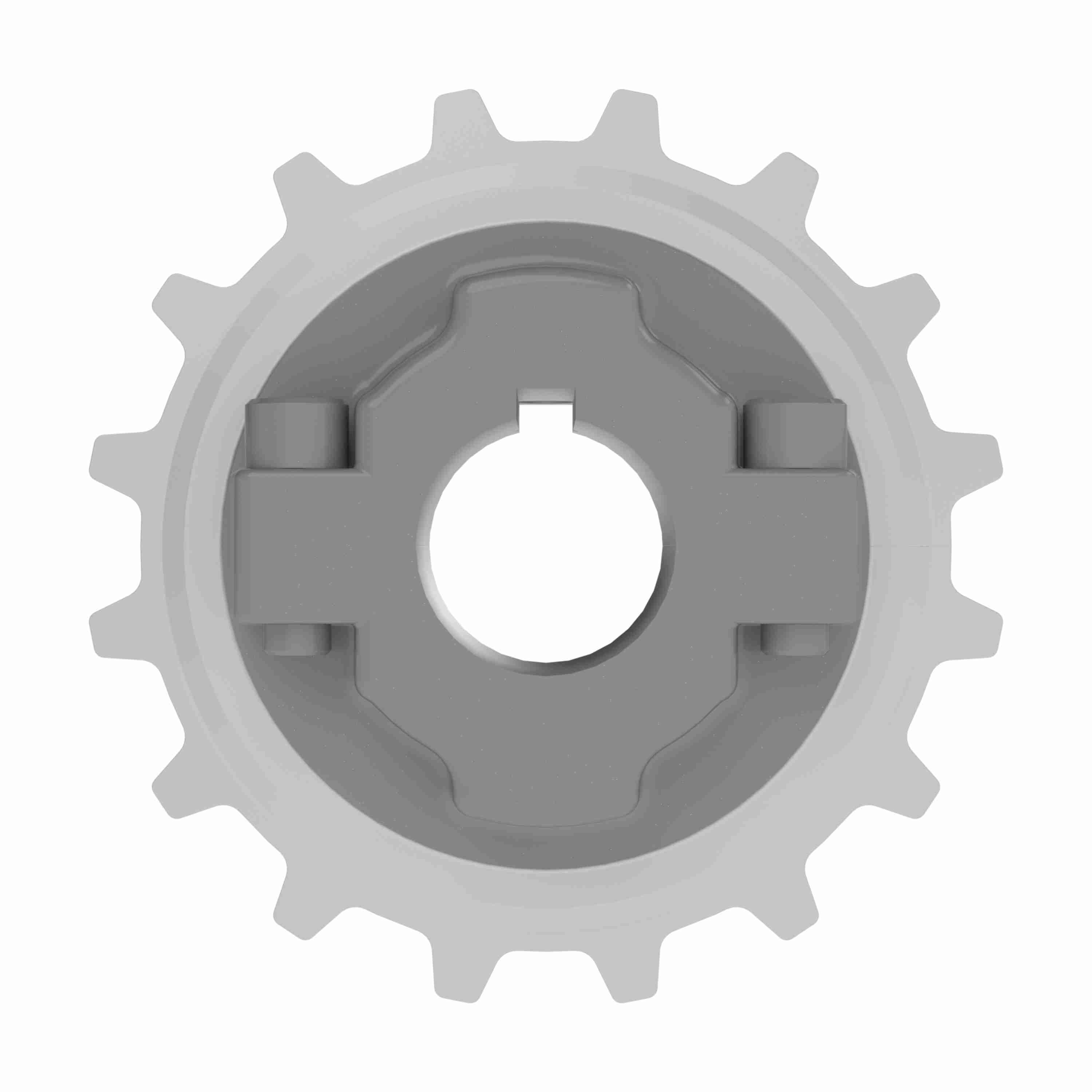

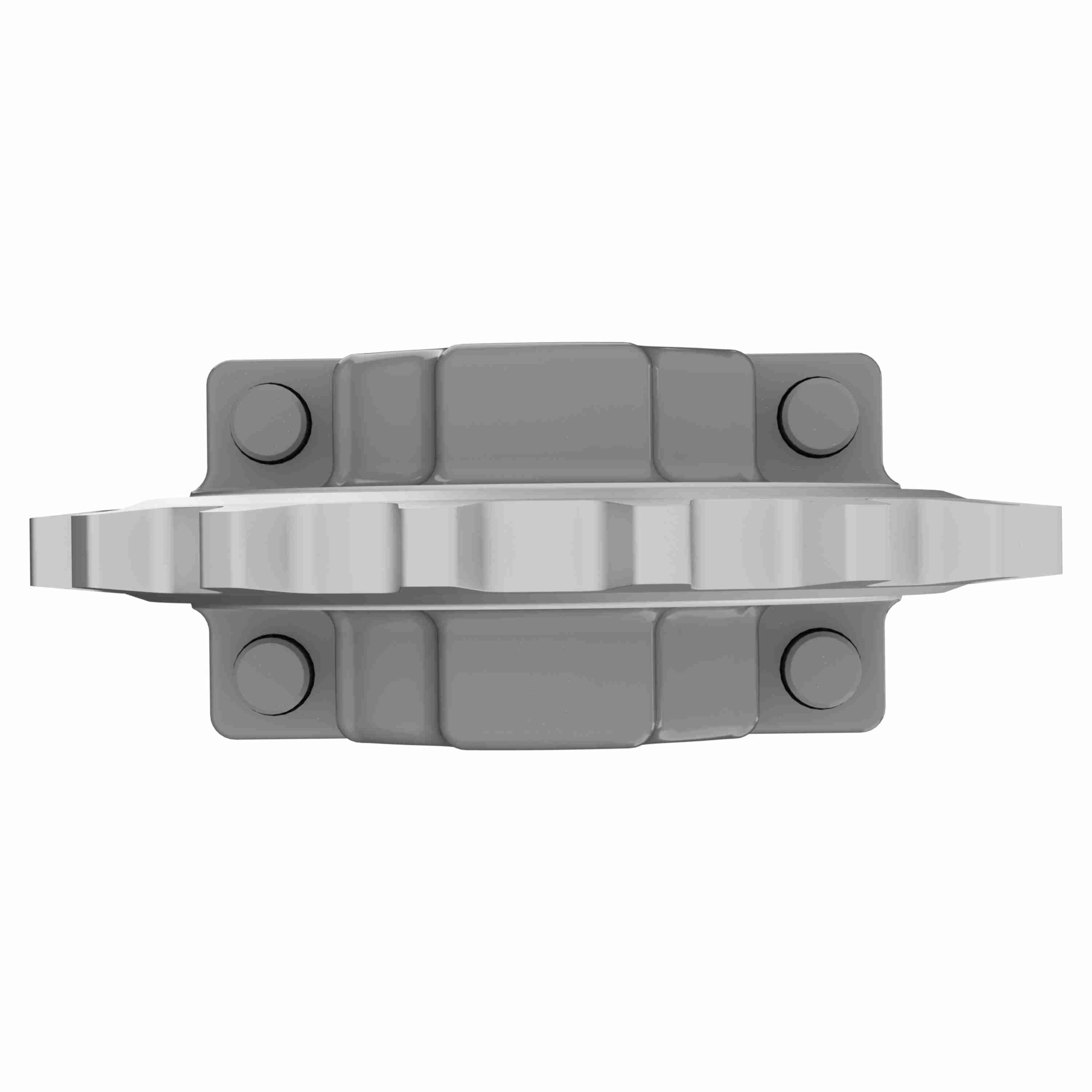

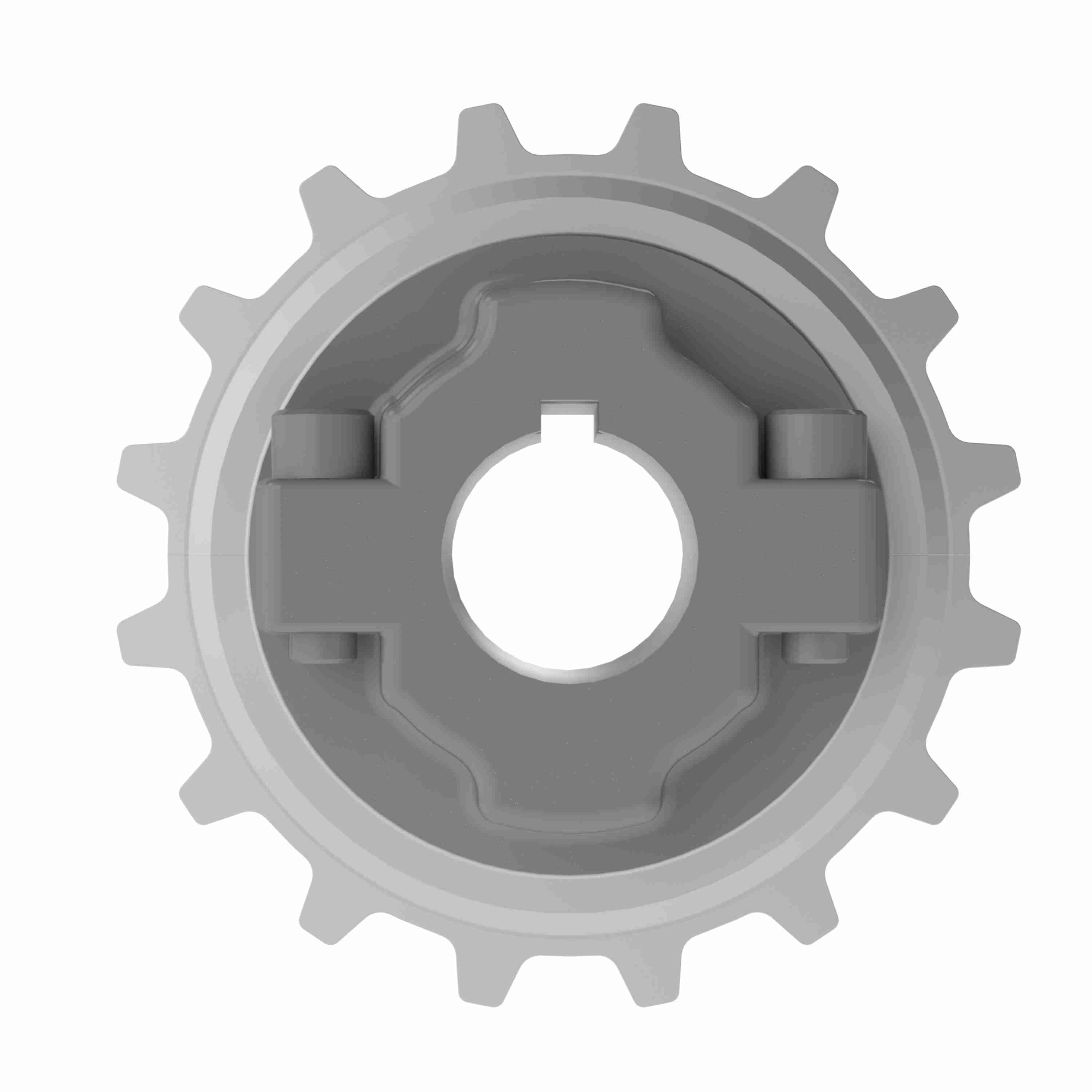

Rexnord 7700 Series Split Cast Stainless Steel Sprocket and a 16 Teeth with 1-3/8in Round Shaft-Ready Bore with Keyway & Setscrew - 614-163-3
Part #:10028757
Catalog #:614-163-3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Series: | 7700 | Material: | Stainless Steel |
| Body Style: | Block | Bore Diameter (in): | 1-3/8 in |
| Pitch Diameter (in): | 5.126 | Number of Set Screws: | 1 Setscrew |
| Pitch Diameter (mm): | 130.2 | Bore Shape: | Round |
| Number of Keyways: | 1 | Number of Teeth: | 16 |
| Product Group: | MatTop® | Chain Number: | 7700 |
| Product Line: | Chain and Belt Sprockets | Sprocket Construction: | Stainless Steel Split Sprocket |
| Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 793699408485 | Weight: | 3.50 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | United States of America |
