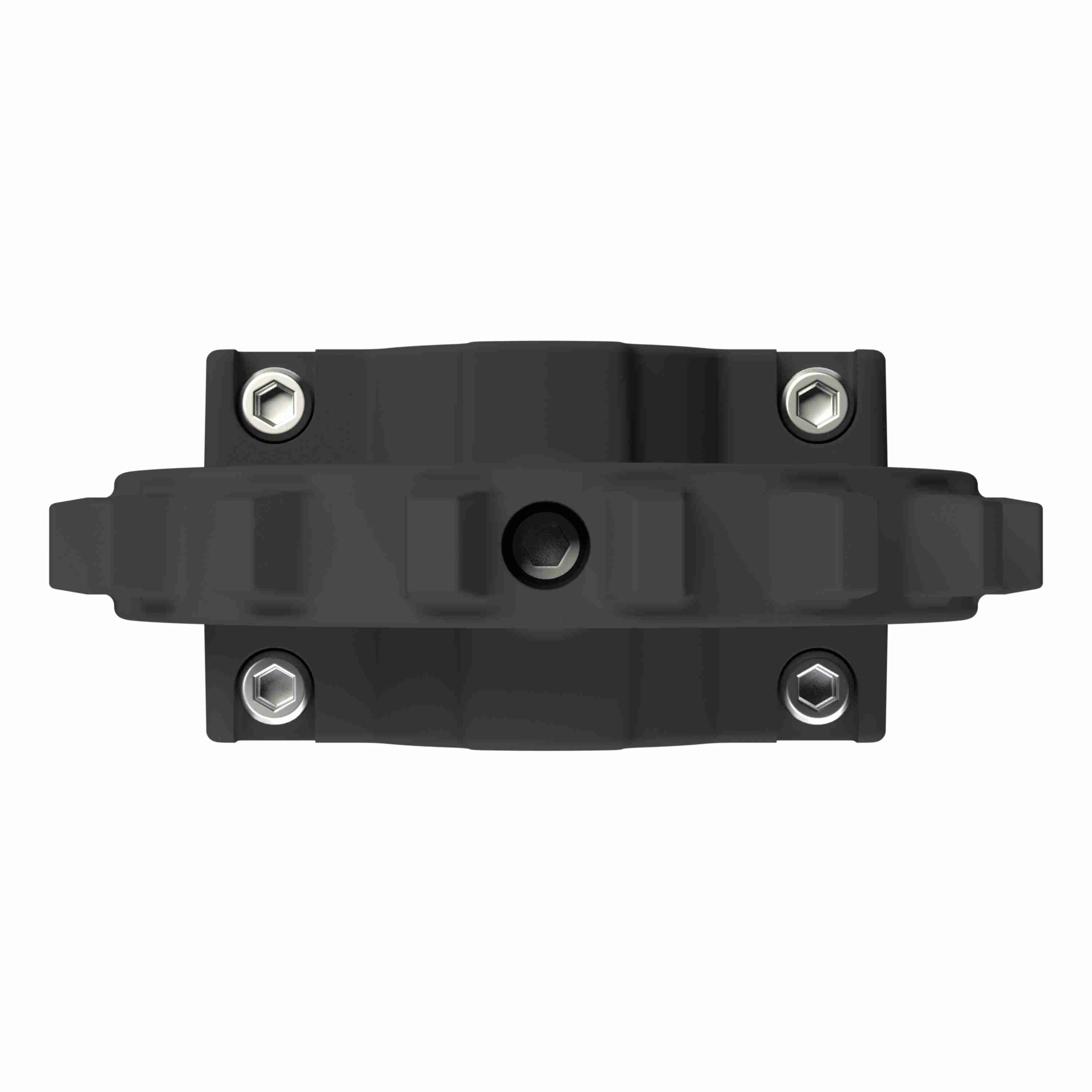

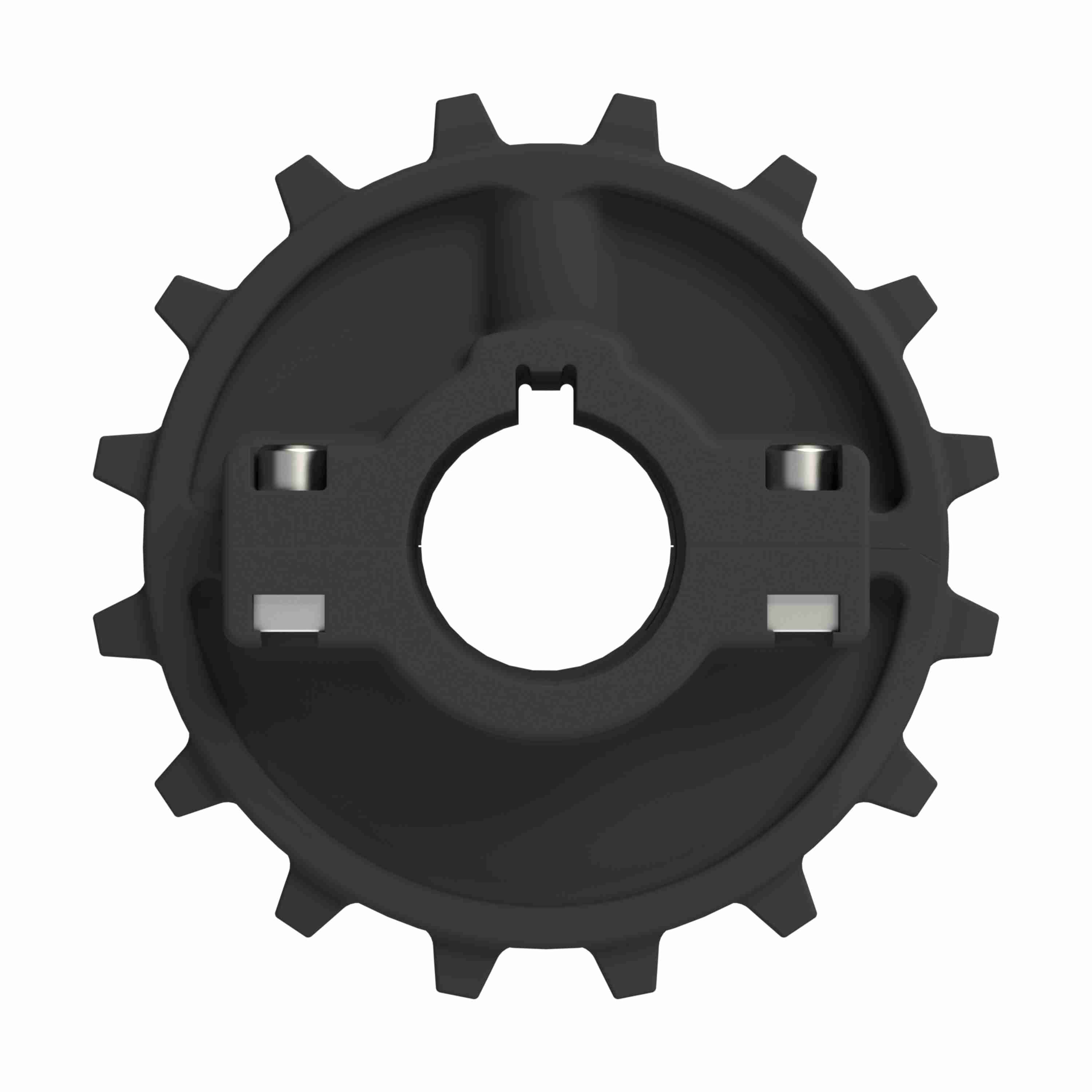

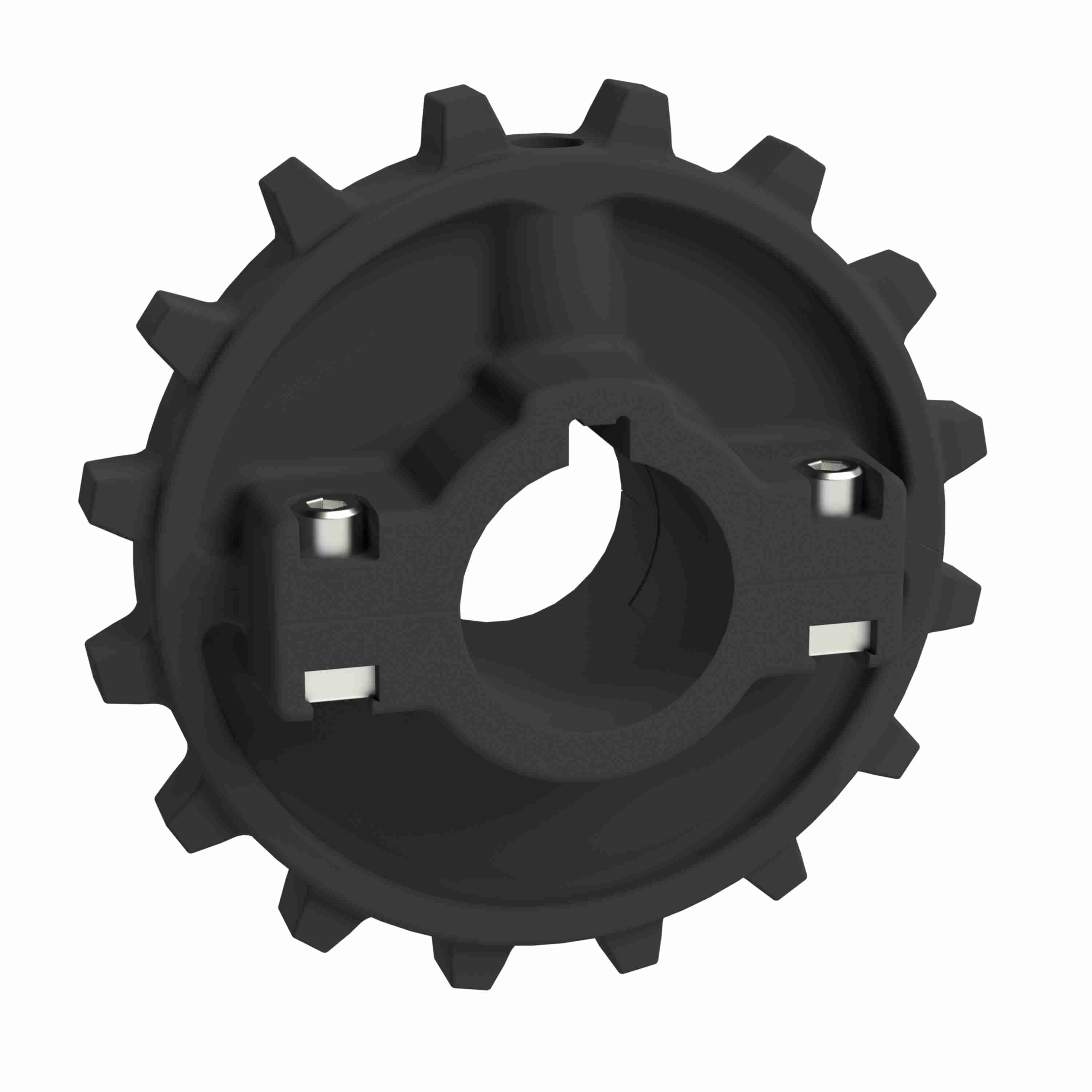

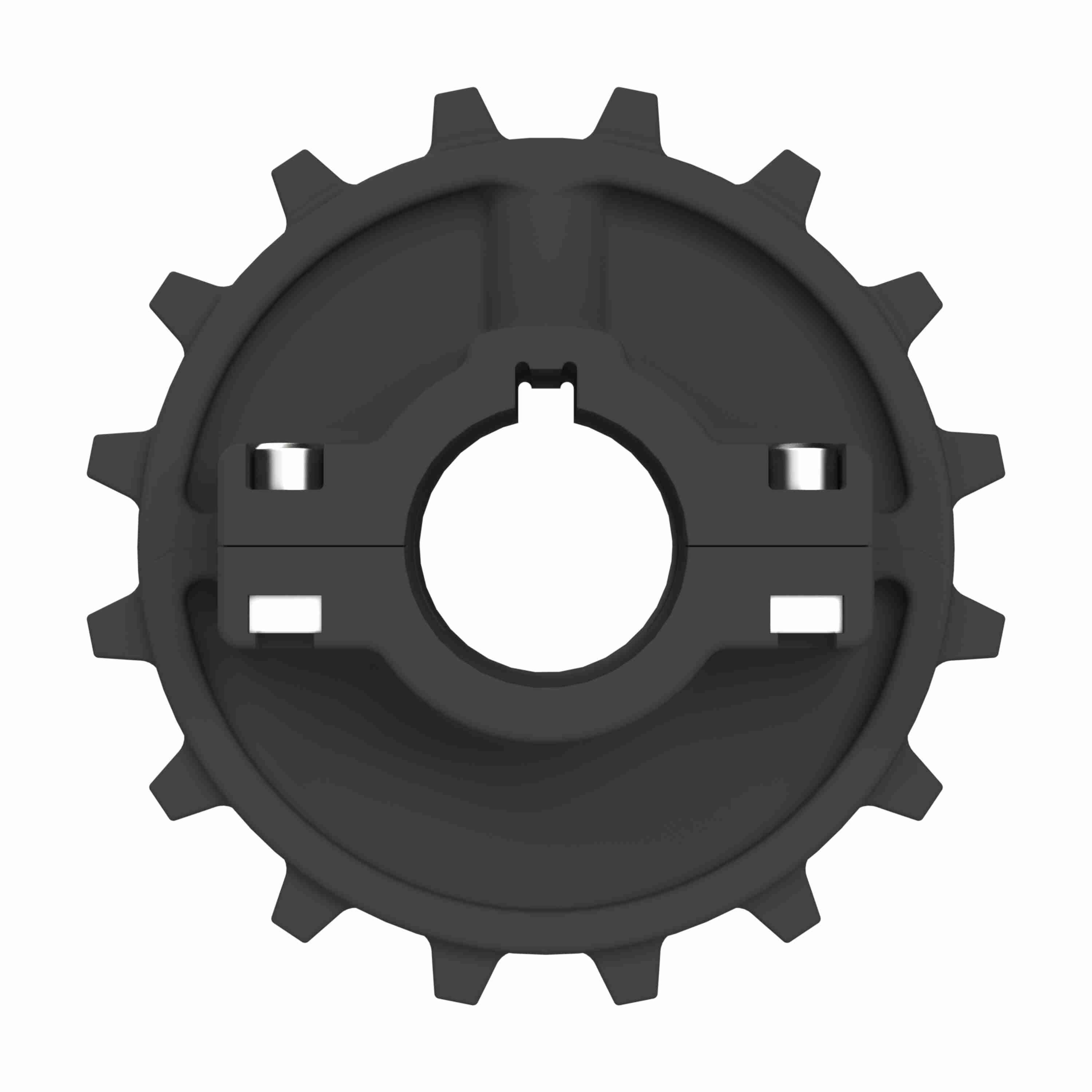

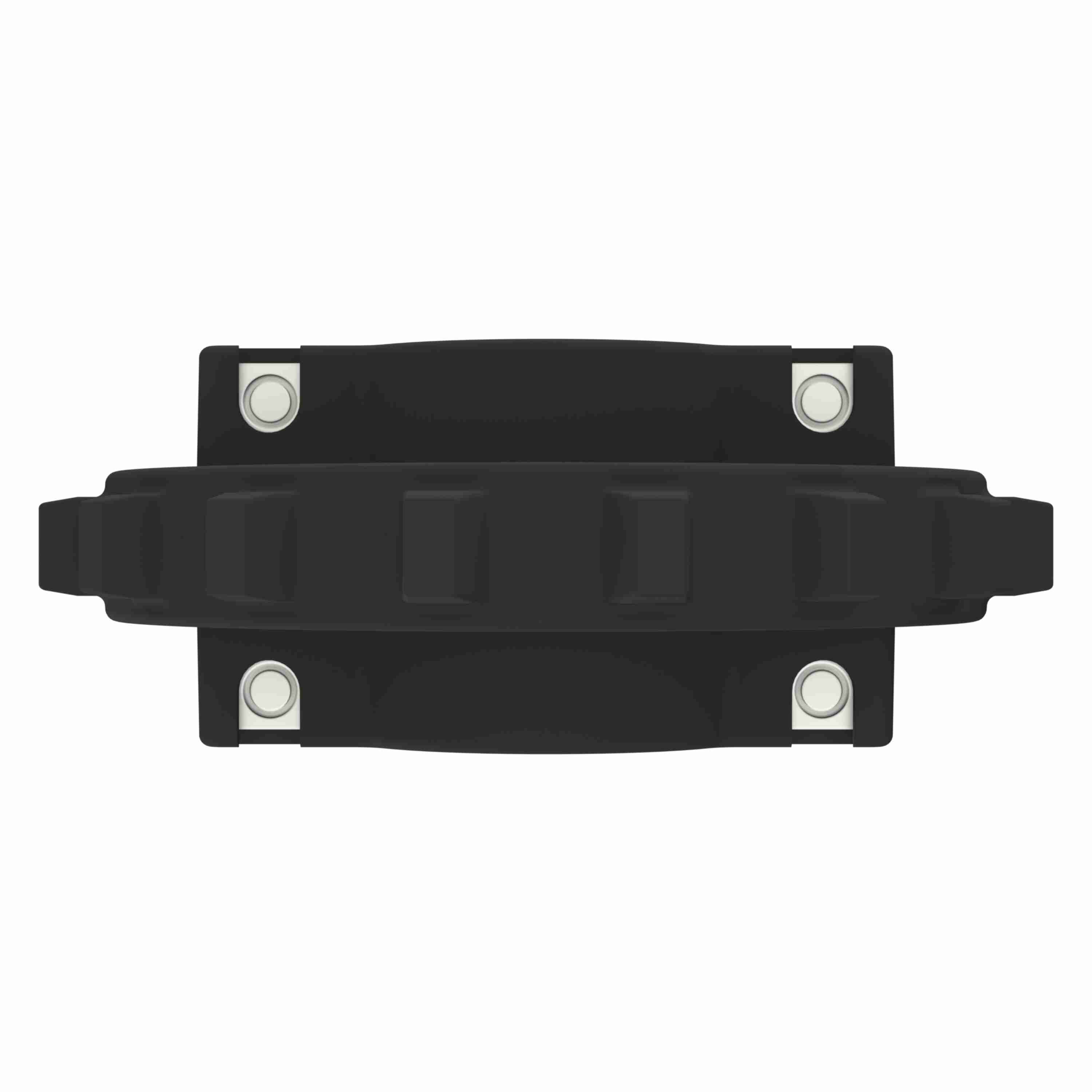

Rexnord 7700 Series Split Molded Nylon Sprocket and a 16 Teeth with 1-3/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-62-2
Part #:10019895
Catalog #:614-62-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | MatTop® | Material: | Nylon |
| Pitch Diameter (in): | 5.126 | Bore Shape: | Round |
| Hub Type: | C-HUB | Number of Keyways: | 1 |
| Sprocket Construction: | Molded Split Sprocket | Product Line: | Chain and Belt Sprockets |
| Number of Teeth: | 16 | Chain Number: | 7700 |
| Bore Type: | Shaft-Ready | Pitch Diameter (mm): | 130.2 |
| Bore Diameter (in): | 1-3/16 in | Sprocket Series: | 7700 |
| Number of Set Screws: | 1 Setscrew | Body Style: | Block |
General Specifications
| UPC: | 698210111168 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
