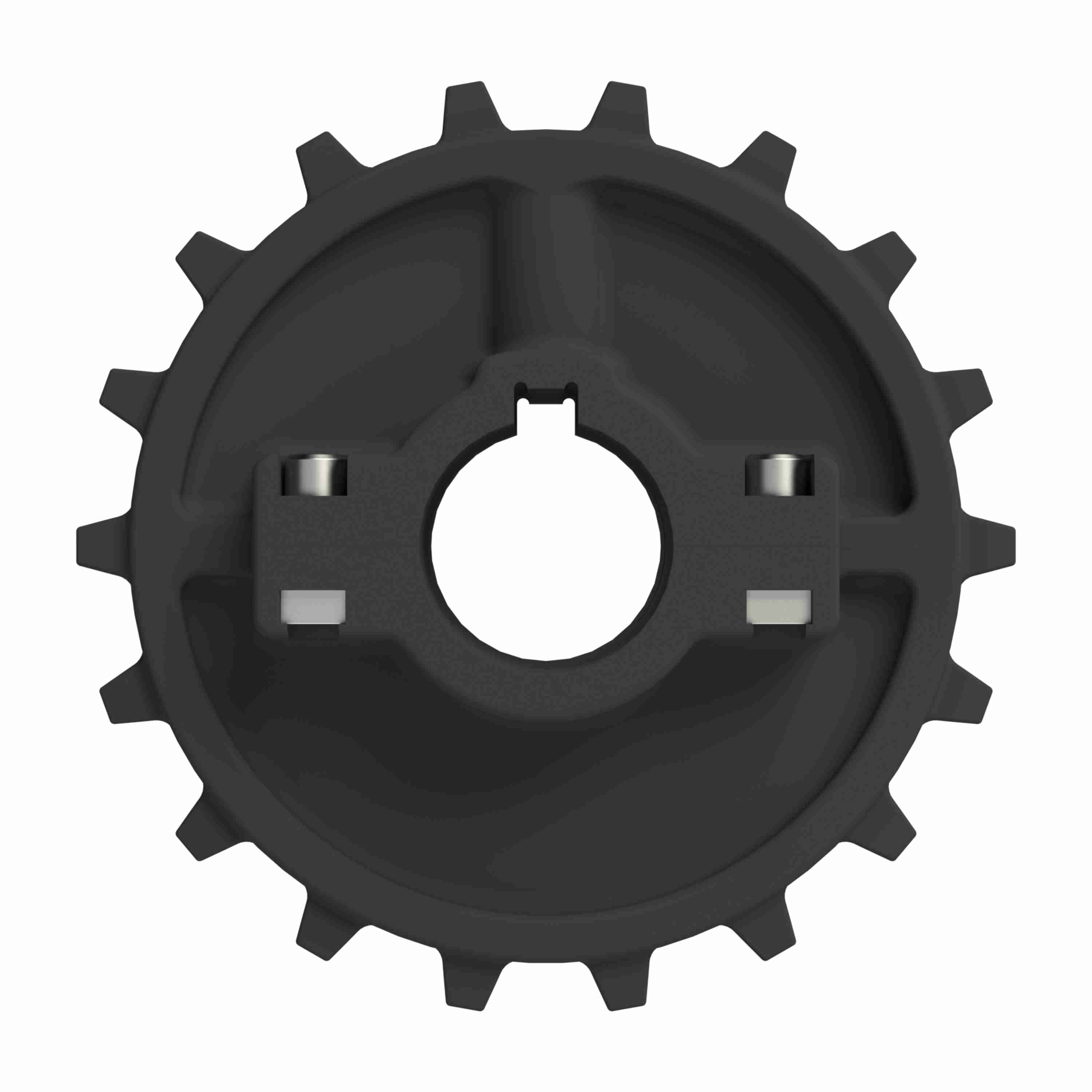

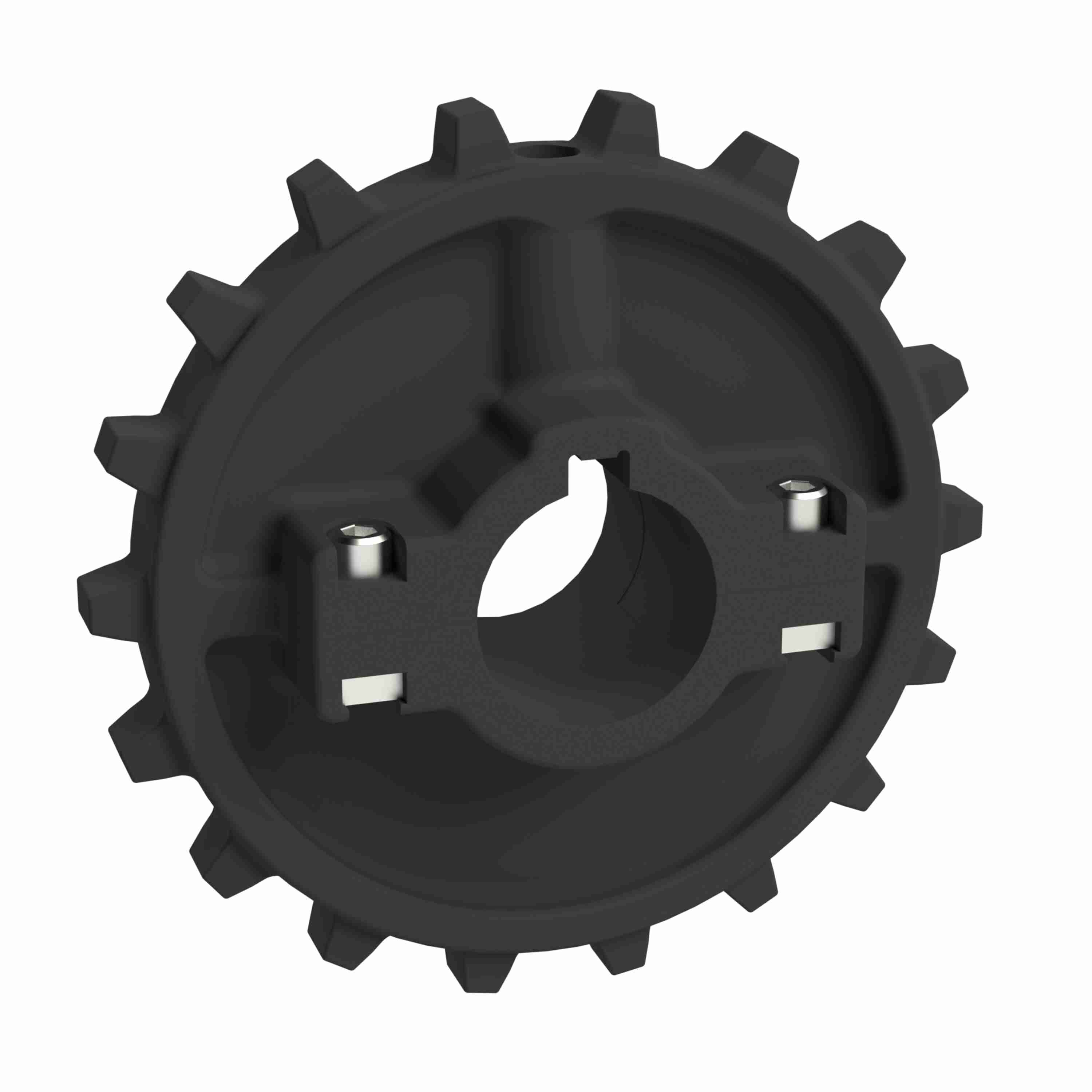

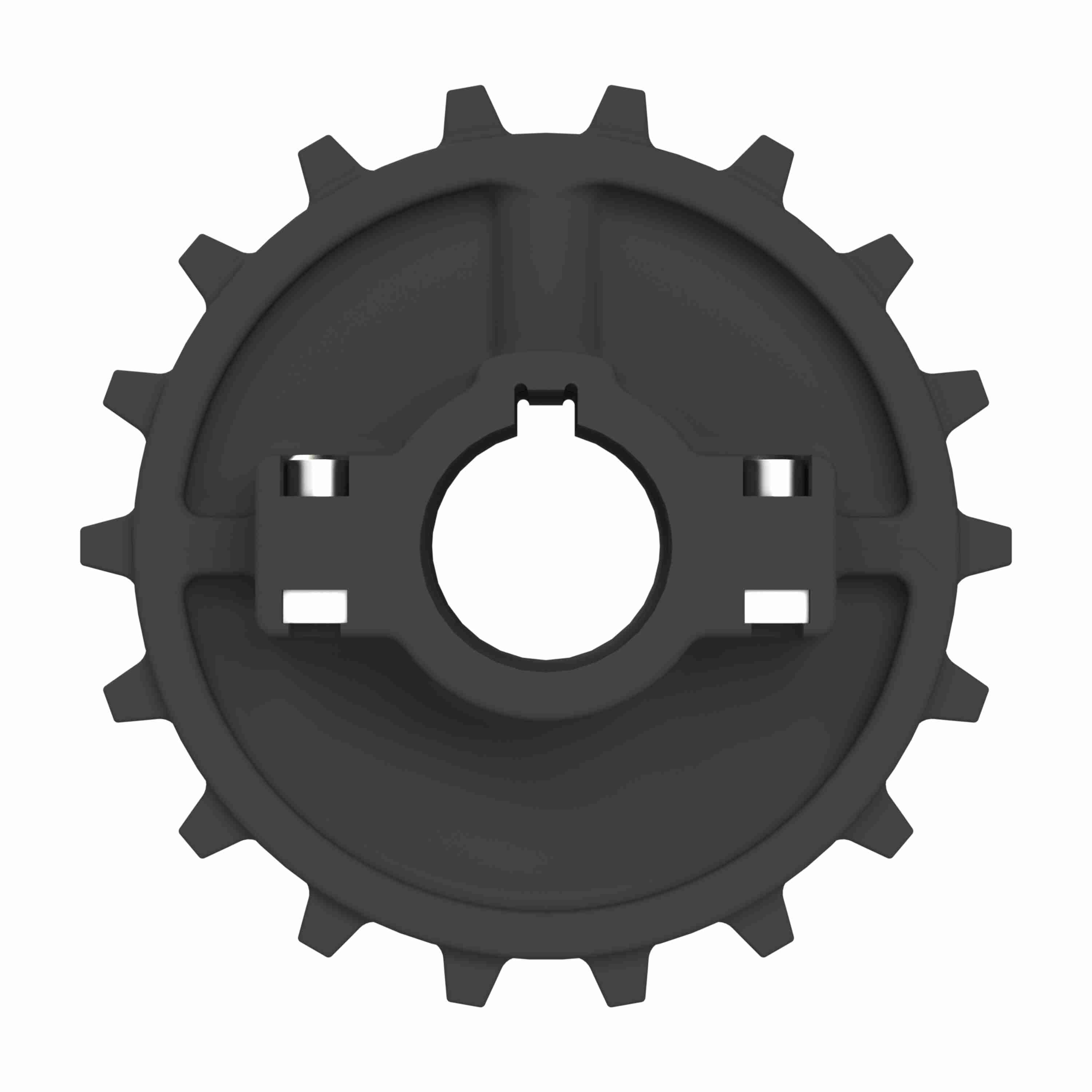

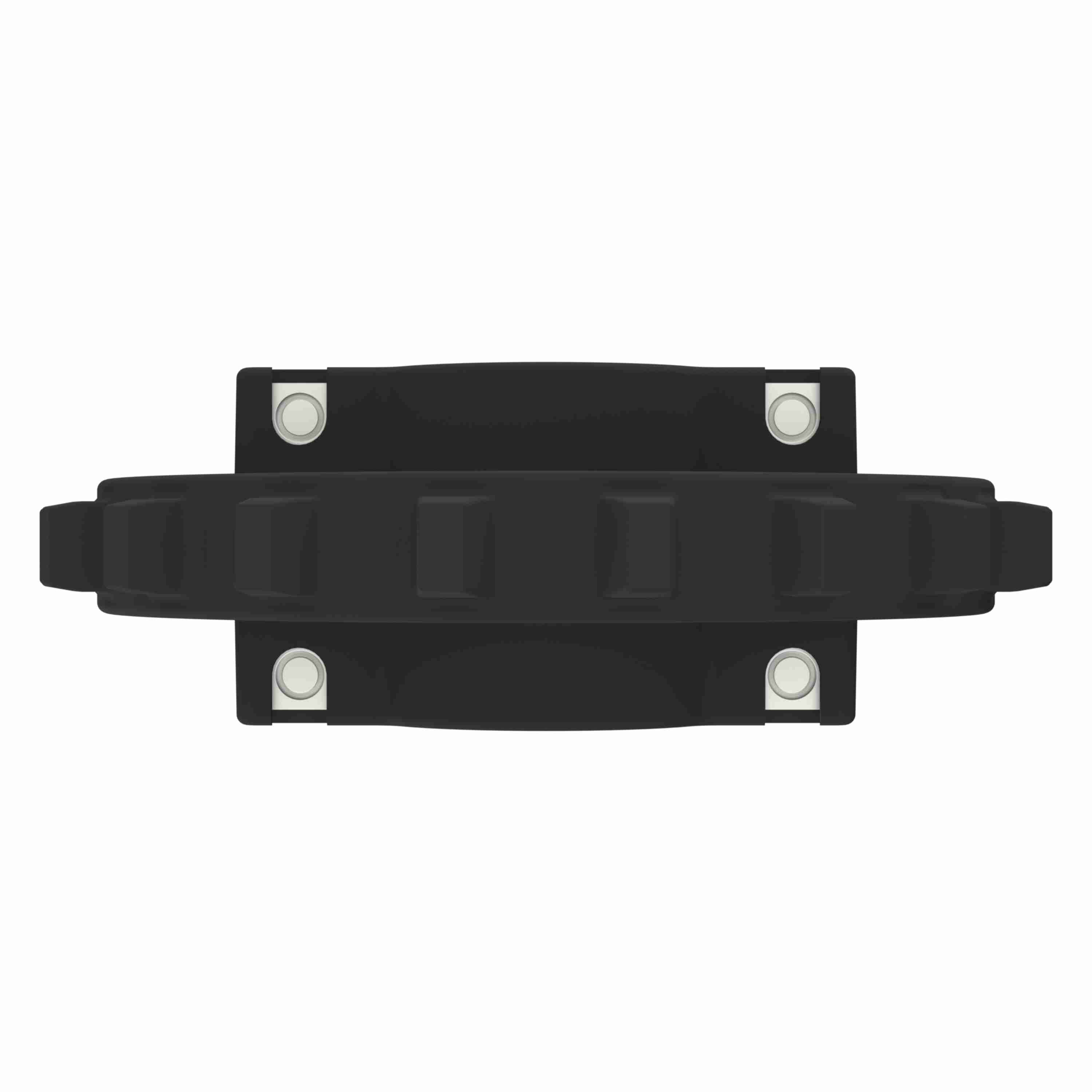

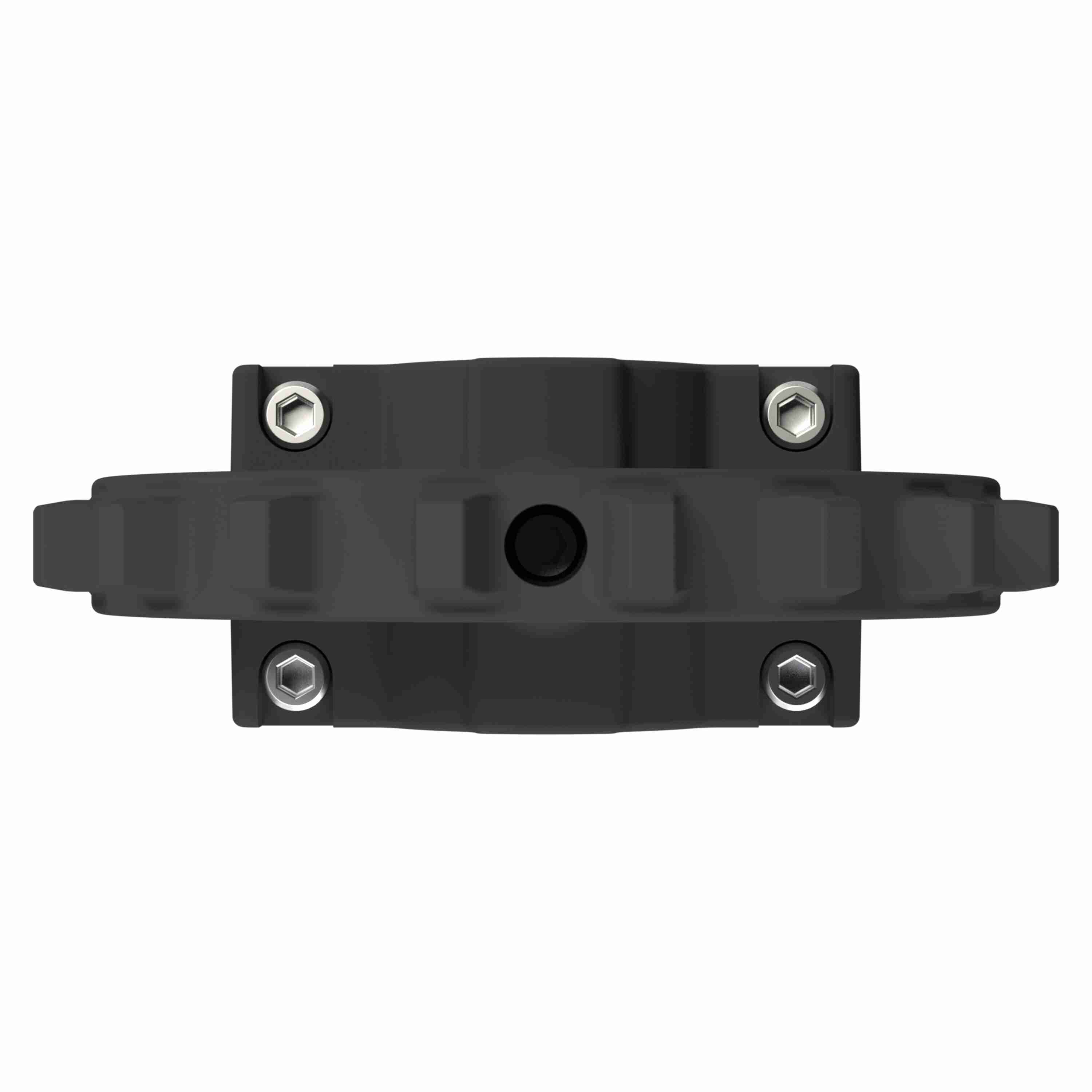

Rexnord 7700 Series Split Molded Nylon Sprocket and a 18 Teeth with 1-3/16in Round Shaft-Ready Bore with Keyway & Setscrew - 614-60-2
Part #:10019873
Catalog #:614-60-2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Bore Shape: | Round | Number of Teeth: | 18 |
| Bore Diameter (in): | 1-3/16 in | Body Style: | Block |
| Material: | Nylon | Pitch Diameter (mm): | 146.27 |
| Number of Set Screws: | 1 Setscrew | Sprocket Series: | 7700 |
| Product Line: | Chain and Belt Sprockets | Number of Keyways: | 1 |
| Chain Number: | 7700 | Sprocket Construction: | Molded Split Sprocket |
| Product Group: | MatTop® | Pitch Diameter (in): | 5.759 |
| Bore Type: | Shaft-Ready |
General Specifications
| UPC: | 698210908164 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
