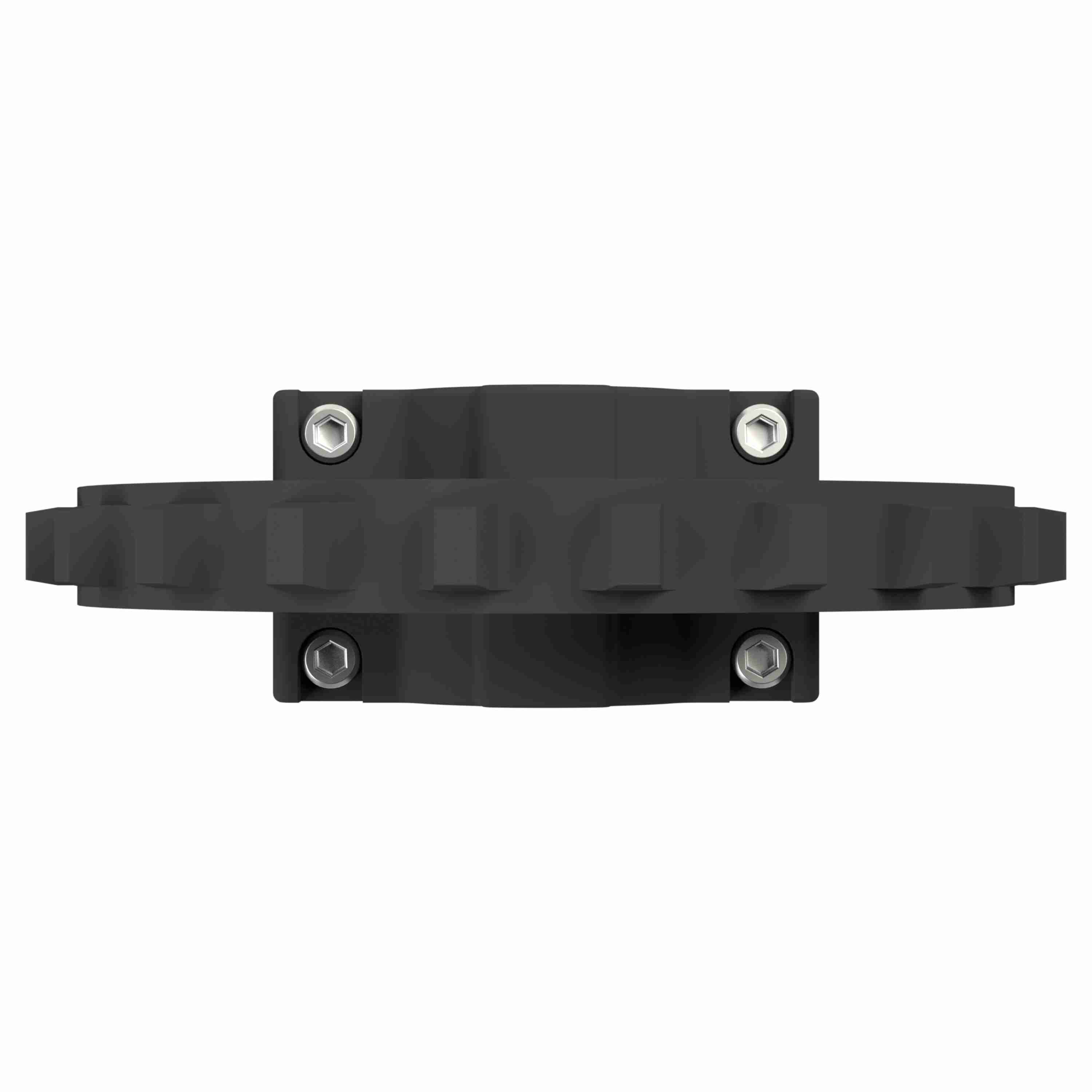

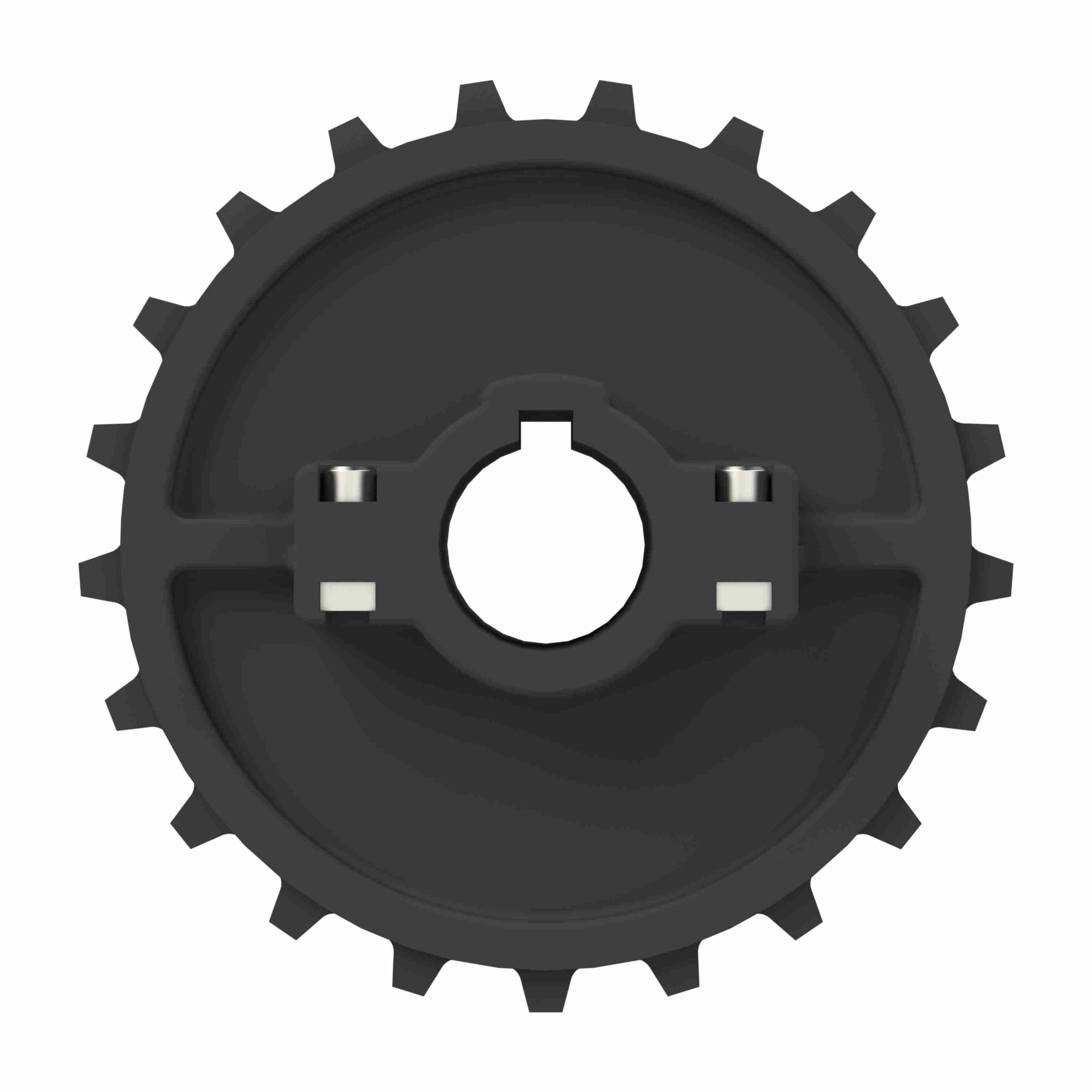

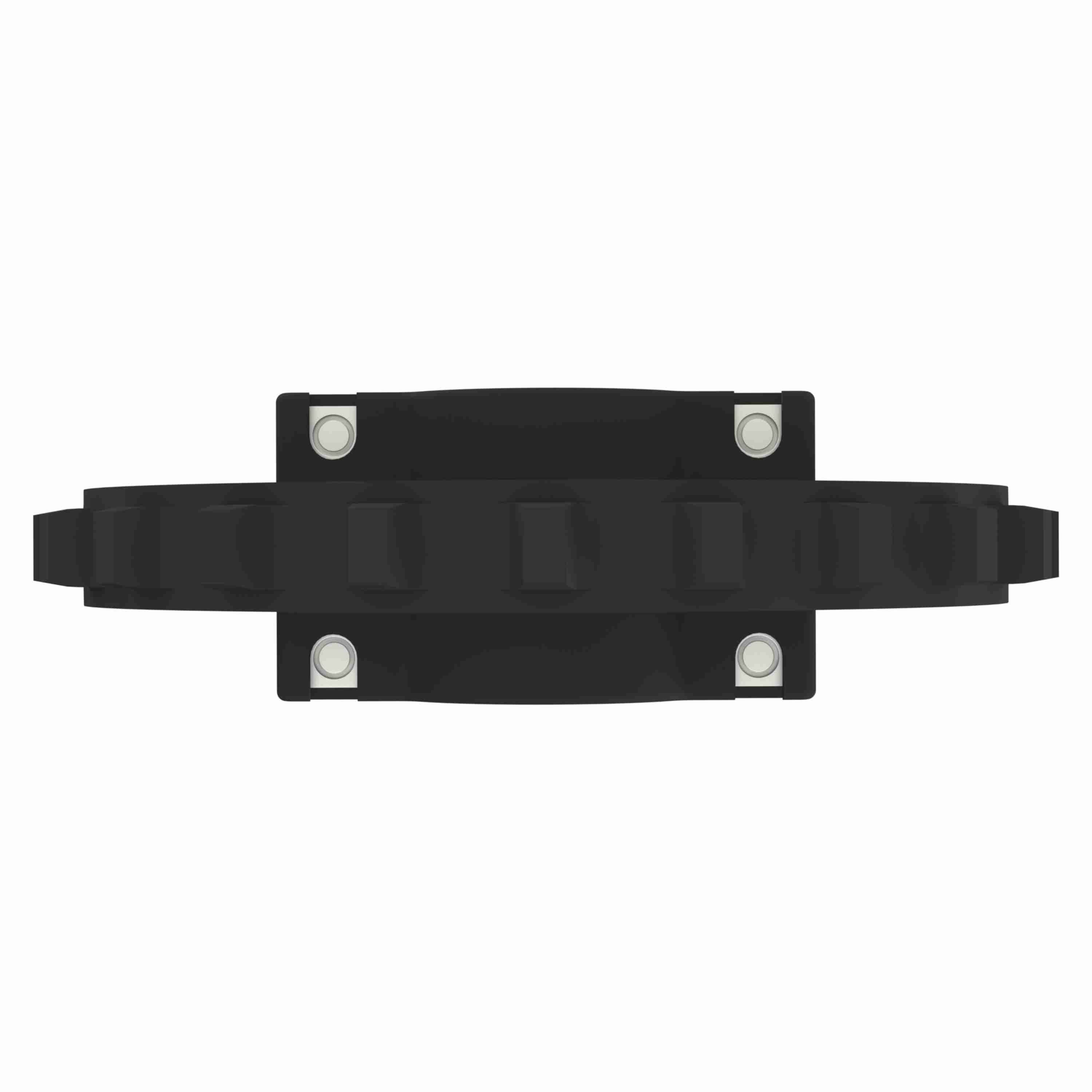

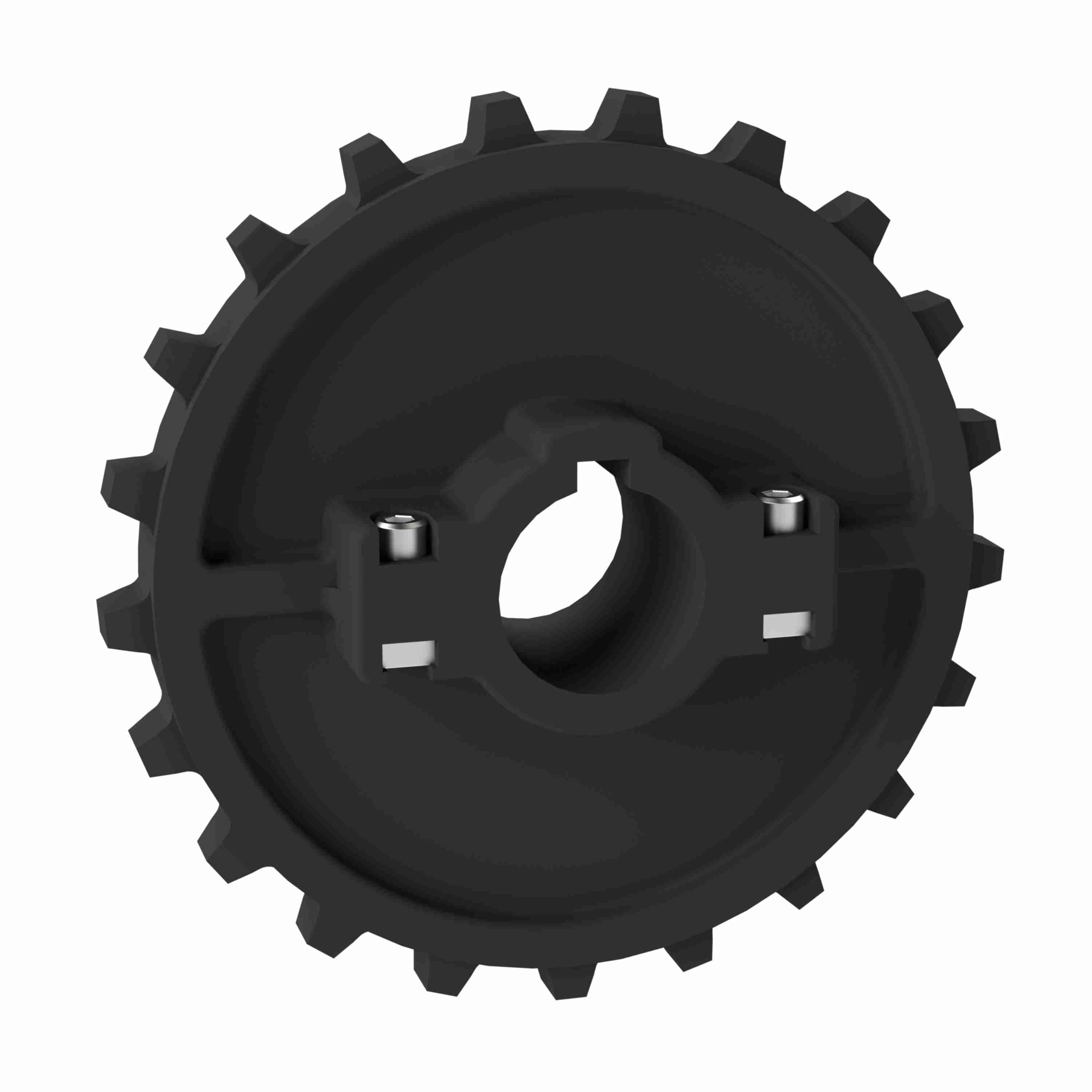

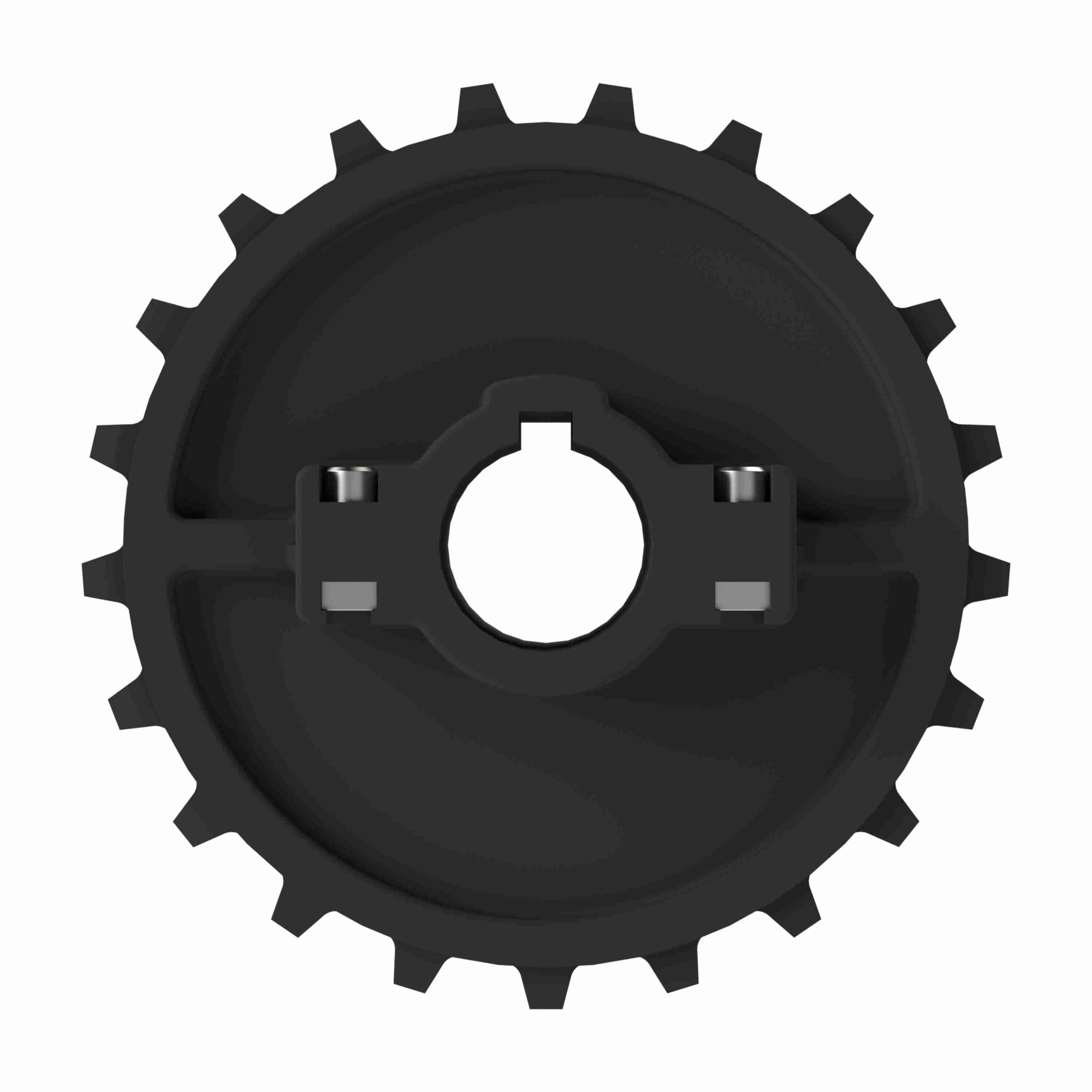

Rexnord 7700 Series Split Molded Nylon Sprocket and a 21 Teeth with 1-3/8in Round Shaft-Ready Bore with Keyway & Setscrew - 614-63-14
Part #:10028590
Catalog #:614-63-14
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | 1 Setscrew | Pitch Diameter (in): | 6.71 |
| Body Style: | Block | Chain Number: | 7700 |
| Product Line: | Chain and Belt Sprockets | Material: | Nylon |
| Sprocket Series: | 7700 | Bore Shape: | Round |
| Product Group: | MatTop® | Pitch Diameter (mm): | 170.42 |
| Number of Teeth: | 21 | Bore Diameter (in): | 1-3/8 in |
| Sprocket Construction: | Molded Split Sprocket | Bore Type: | Shaft-Ready |
| Hub Type: | C-HUB | Number of Keyways: | 1 |
General Specifications
| UPC: | 793699169041 | Weight: | 1.00 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
