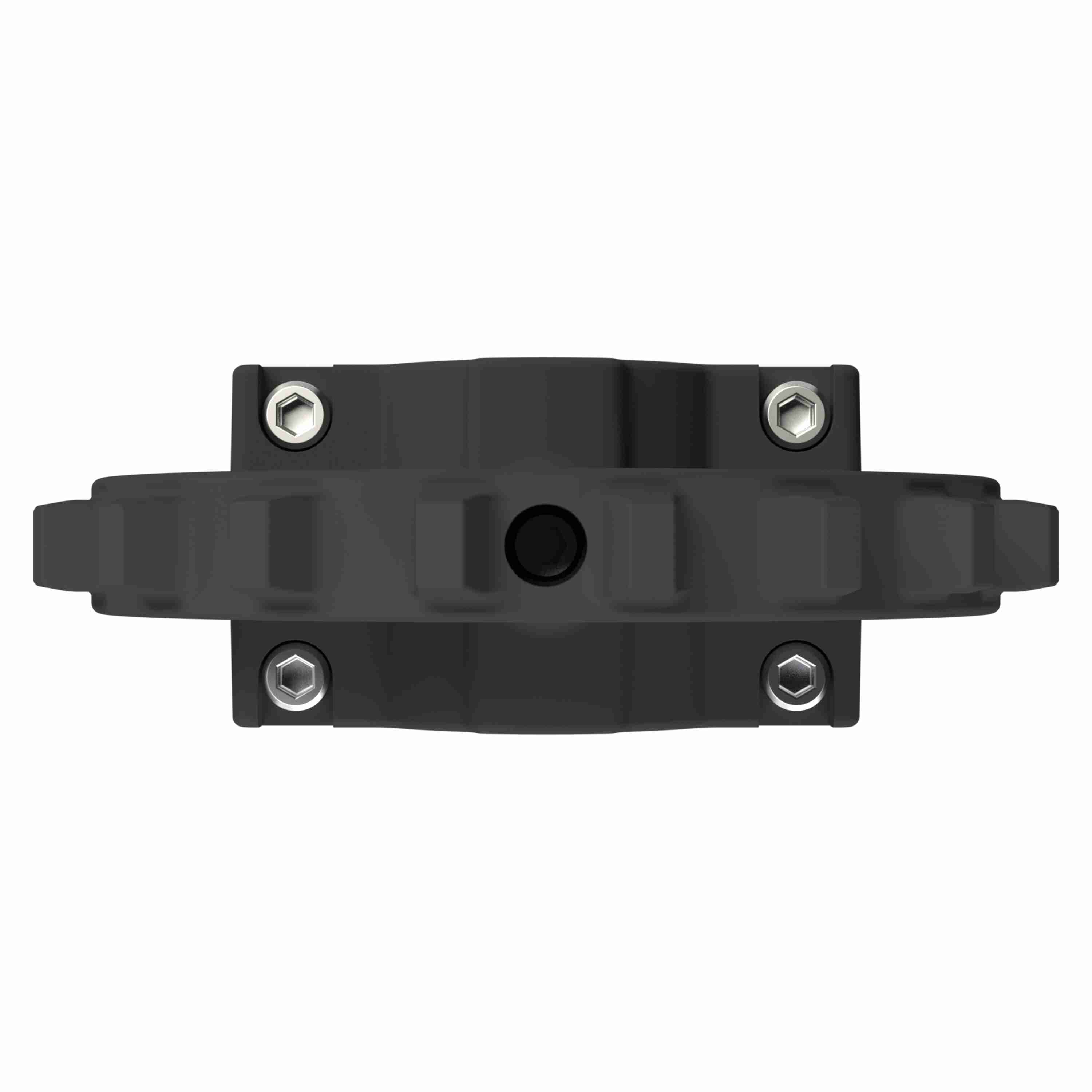

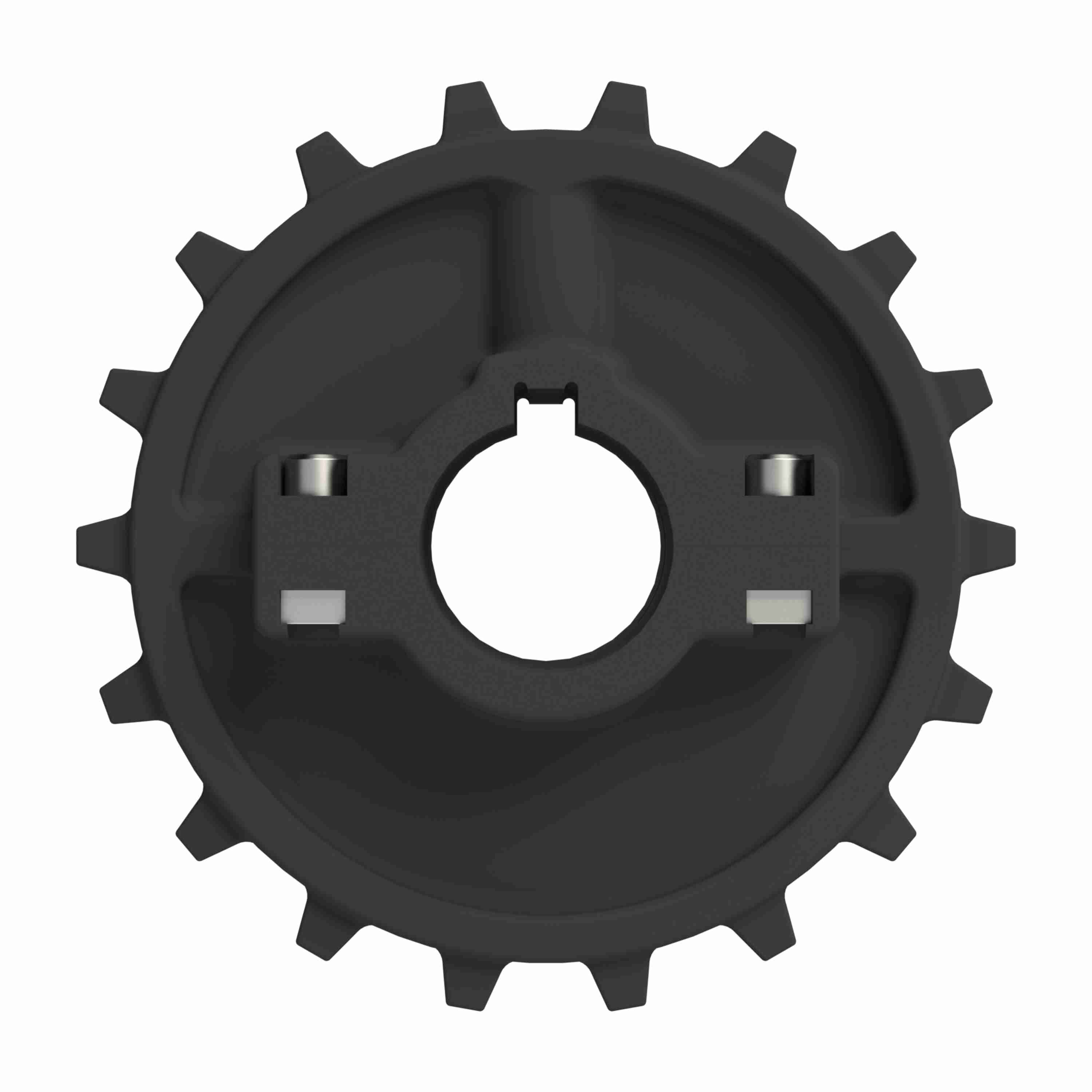

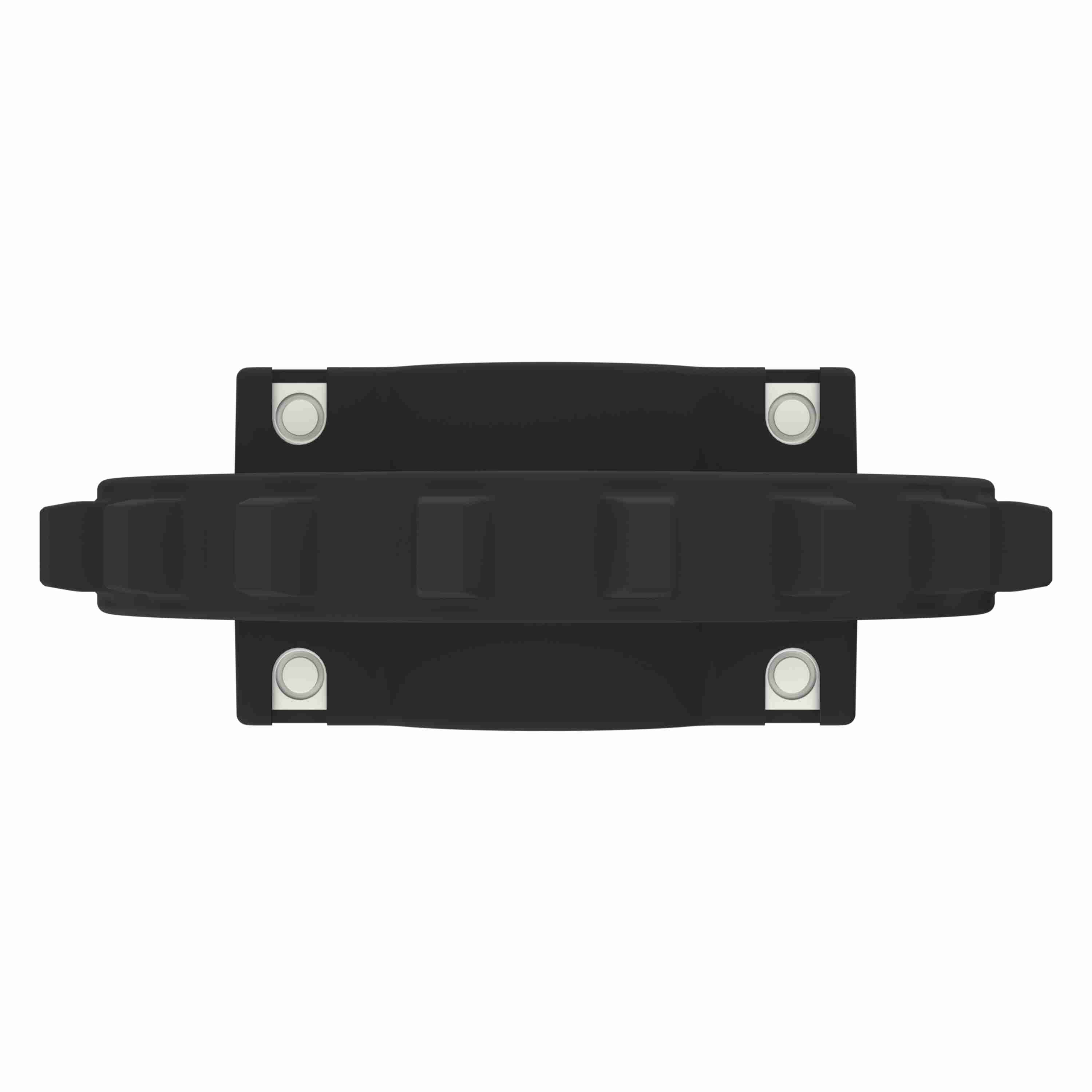

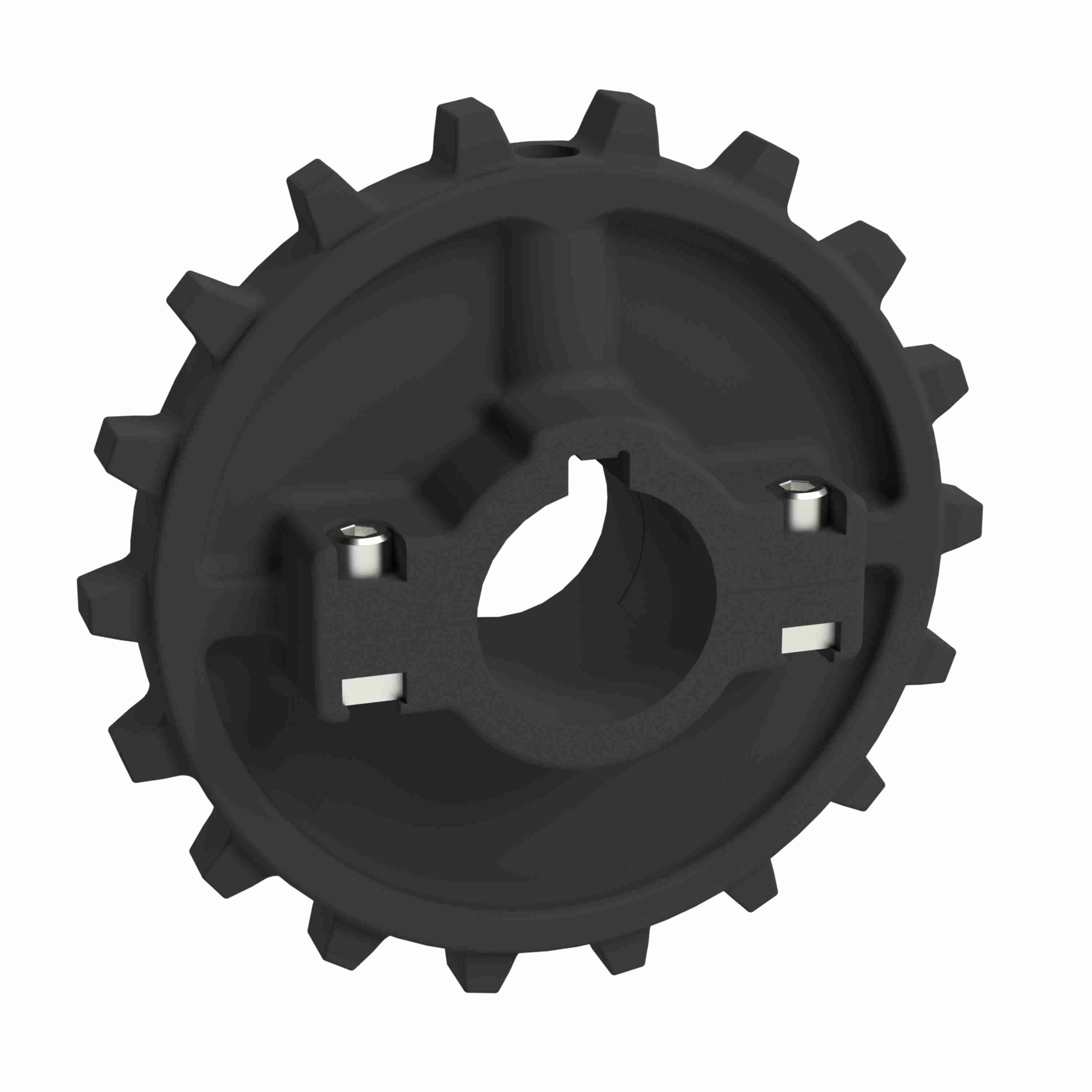

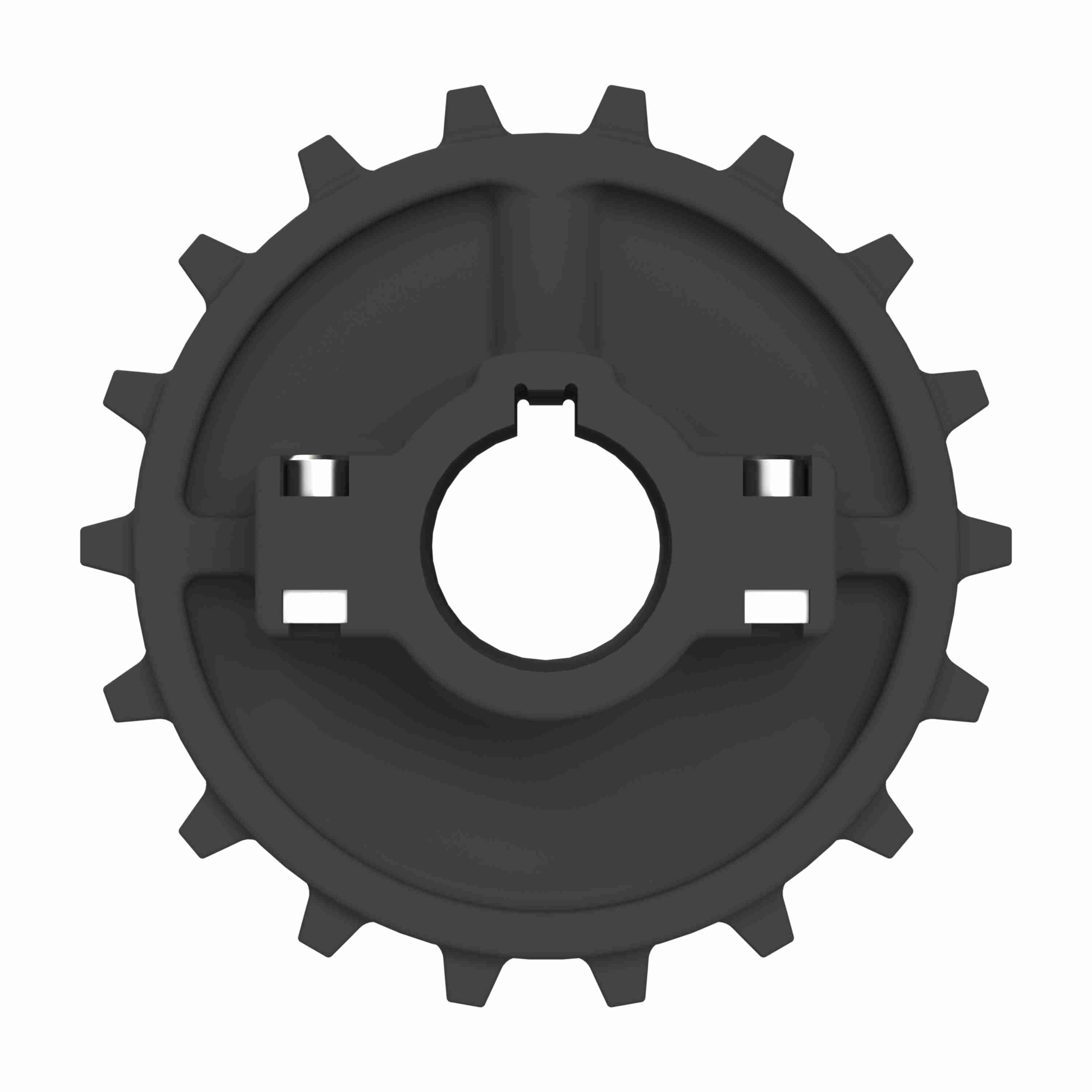

Rexnord 7700 Series Split Molded Nylon Sprocket with 18 Teeth and 25mm Round Shaft-Ready Bore with Keyway - 614-60-25
Part #:10028579
Catalog #:614-60-25
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Hub Type: | C-HUB | Chain Number: | 7700 |
| Product Line: | Chain and Belt Sprockets | Number of Teeth: | 18 |
| Number of Keyways: | 1 | Material: | Nylon |
| Bore Type: | Shaft-Ready | Body Style: | Block |
| Number of Set Screws: | None | Bore Diameter (mm): | 25 mm |
| Pitch Diameter (in): | 5.759 | Pitch Diameter (mm): | 146.27 |
| Product Group: | MatTop® | Sprocket Series: | 7700 |
| Sprocket Construction: | Molded Split Sprocket | Bore Shape: | Round |
General Specifications
| UPC: | 793699414950 | Weight: | 0.84 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
