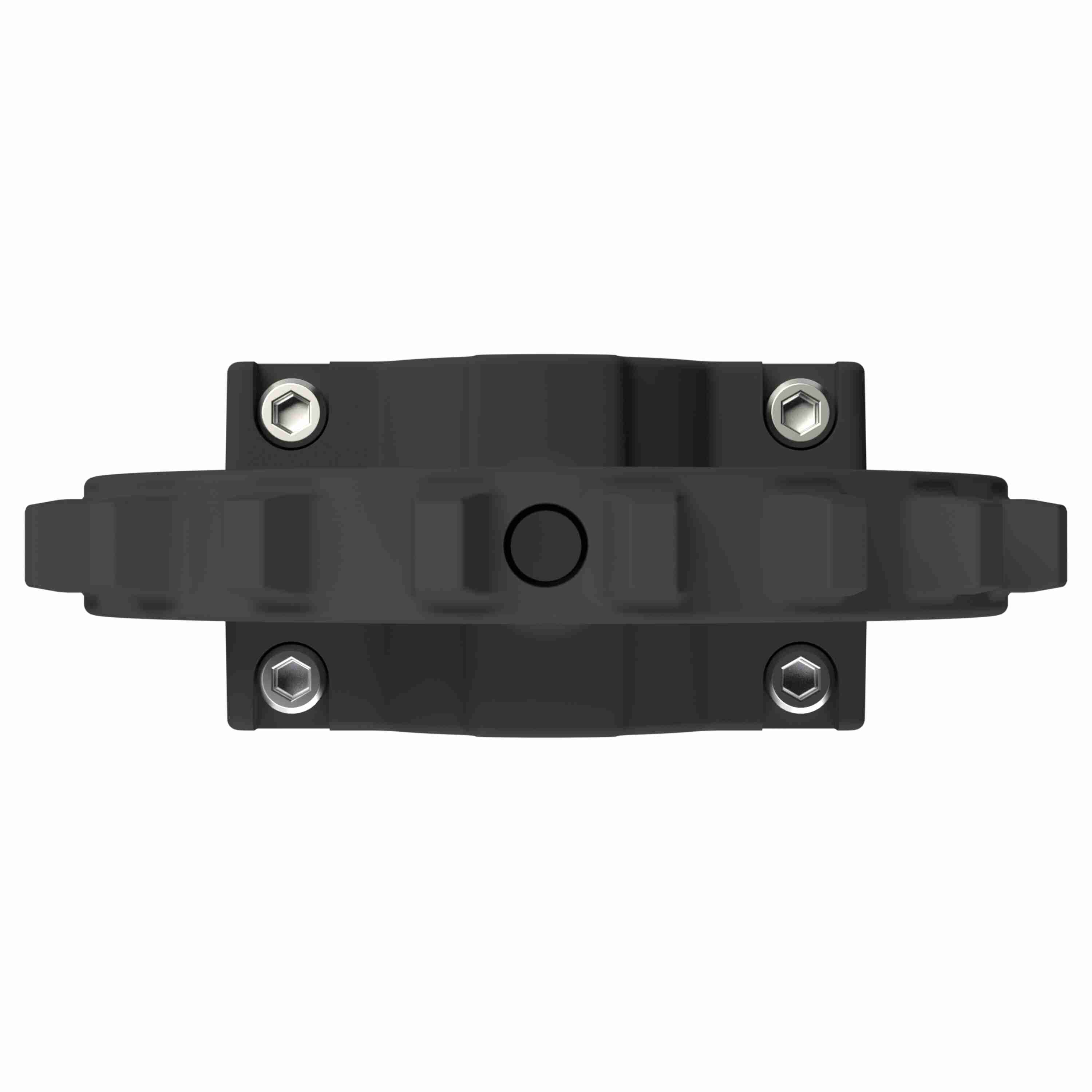

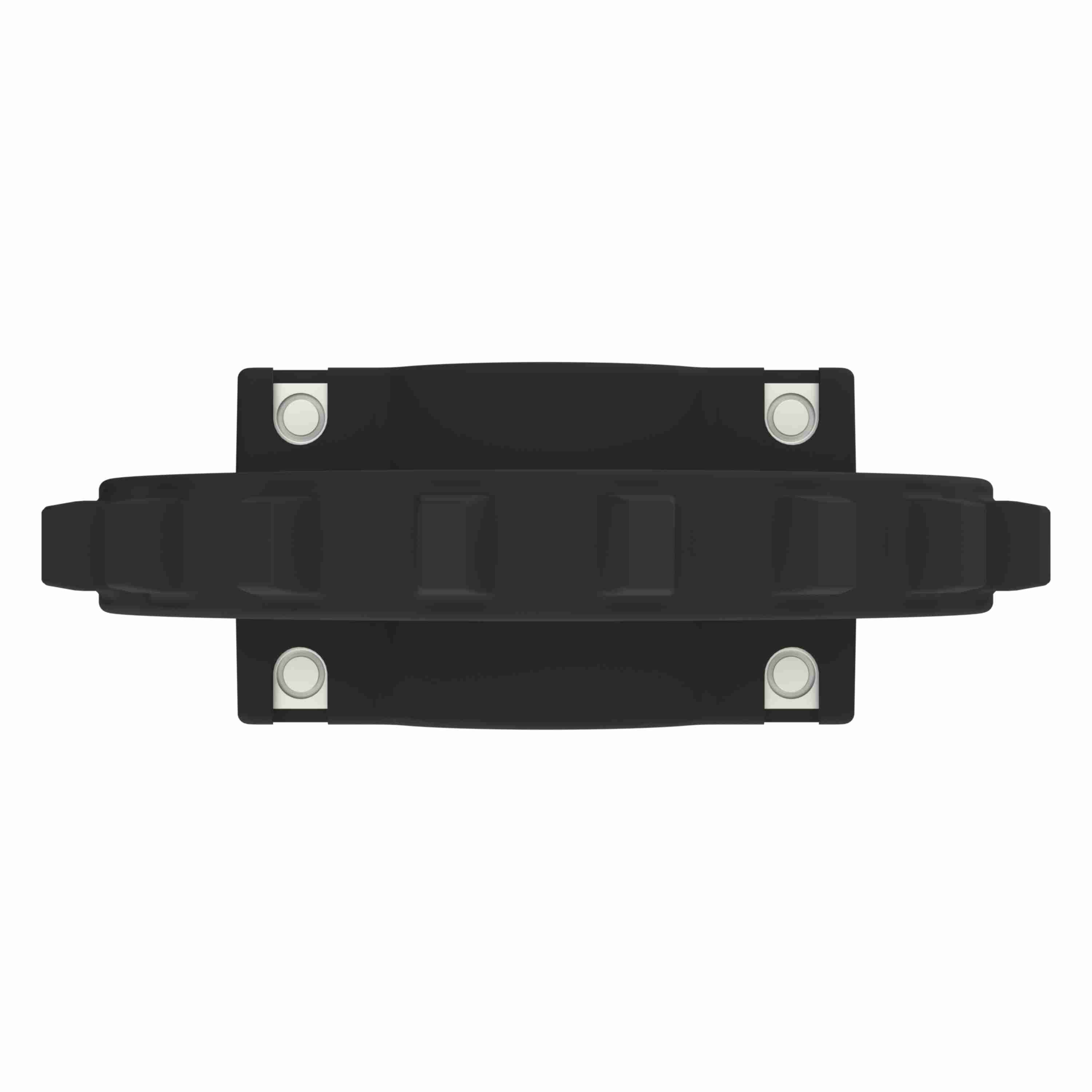

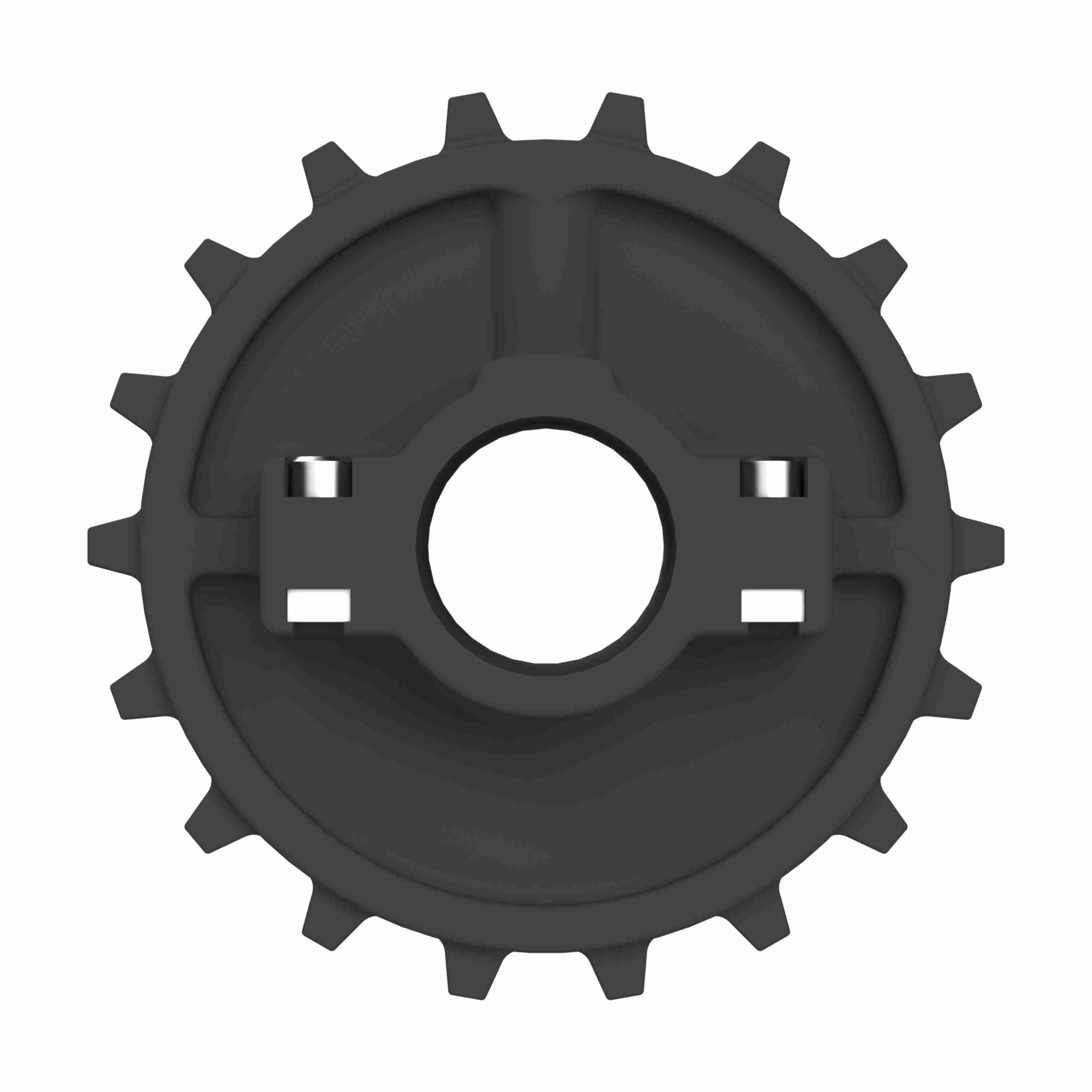

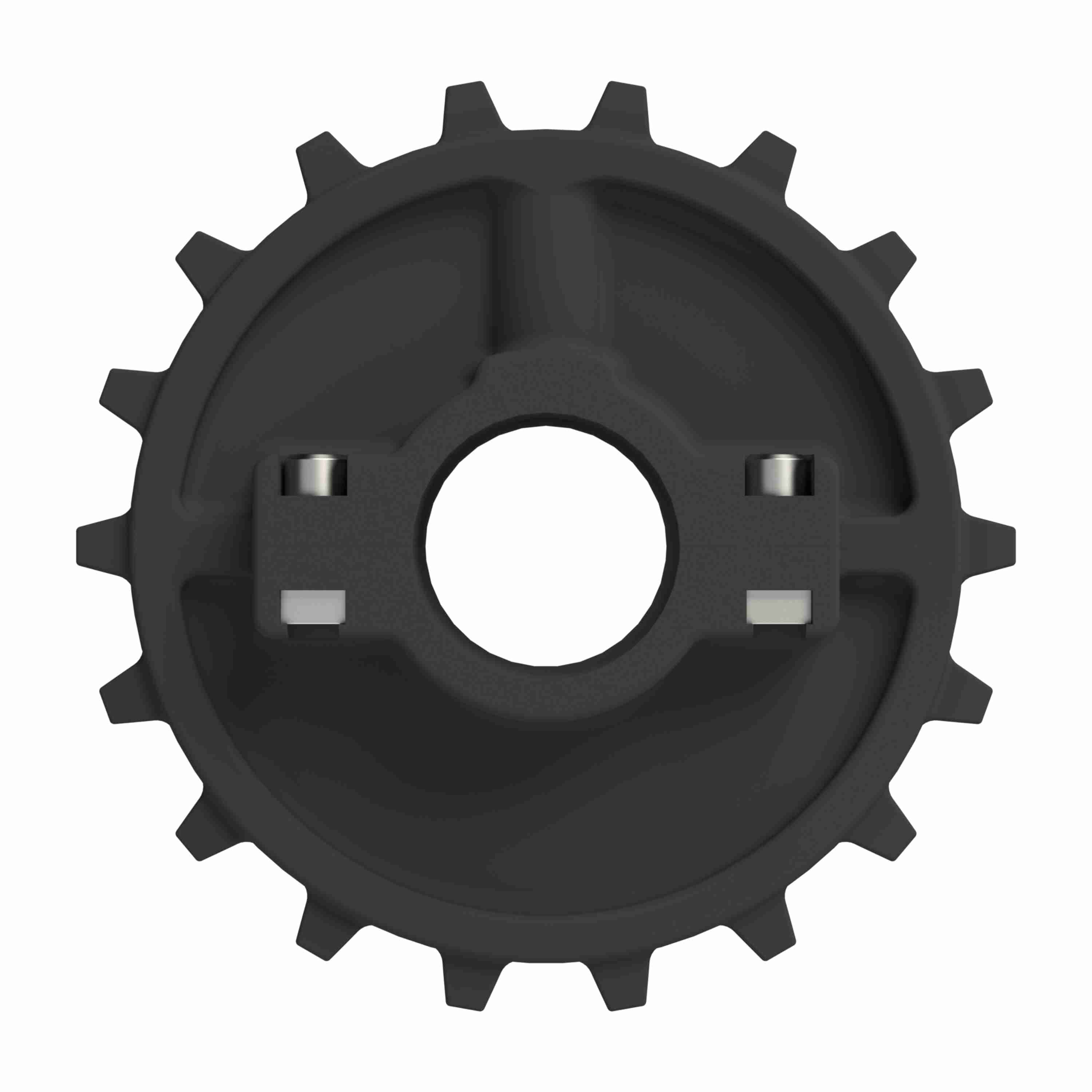

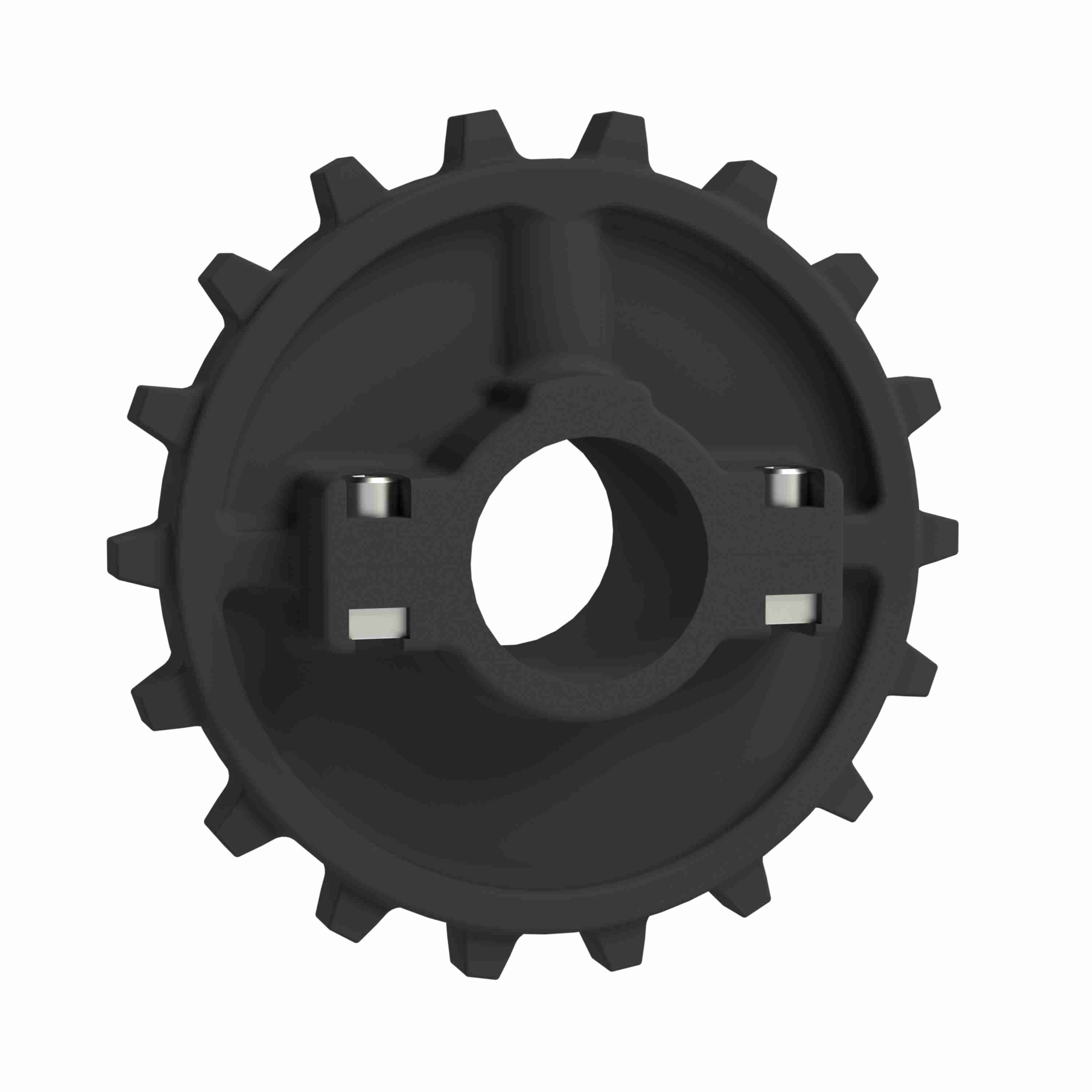

Rexnord 7700 Series Split Molded Nylon Sprocket with 18 Teeth and 40mm Round Idler Bore - 614-60-41
Part #:10028582
Catalog #:614-60-41
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Body Style: | Block | Bore Shape: | Round |
| Product Group: | MatTop® | Number of Keyways: | 0 |
| Pitch Diameter (mm): | 146.27 | Bore Diameter (mm): | 40 mm |
| Bore Type: | Idler | Number of Set Screws: | None |
| Pitch Diameter (in): | 5.759 | Sprocket Construction: | Molded Split Sprocket |
| Sprocket Series: | 7700 | Chain Number: | 7700 |
| Material: | Nylon | Product Line: | Chain and Belt Sprockets |
| Number of Teeth: | 18 |
General Specifications
| UPC: | 793699261950 | Weight: | 0.84 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
