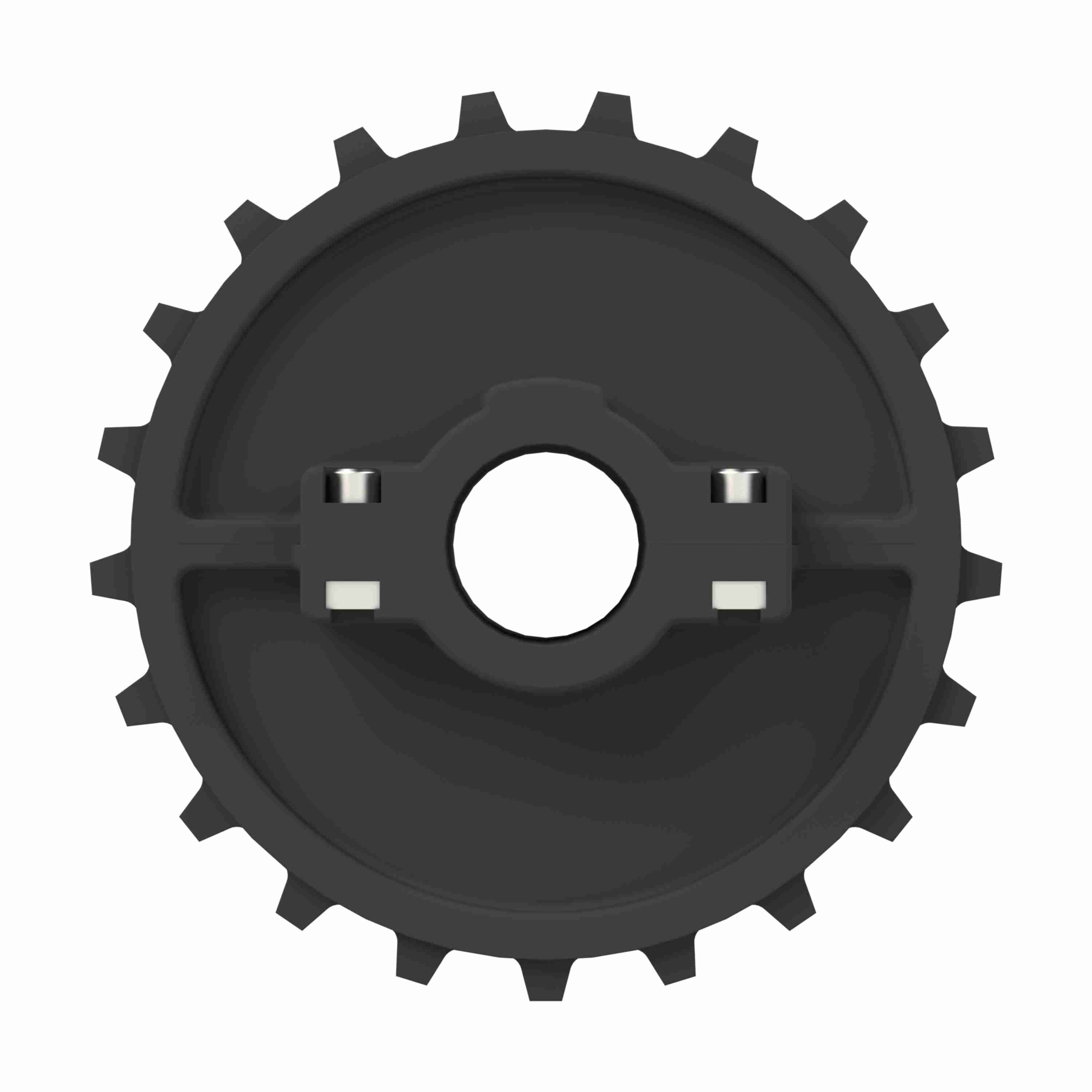

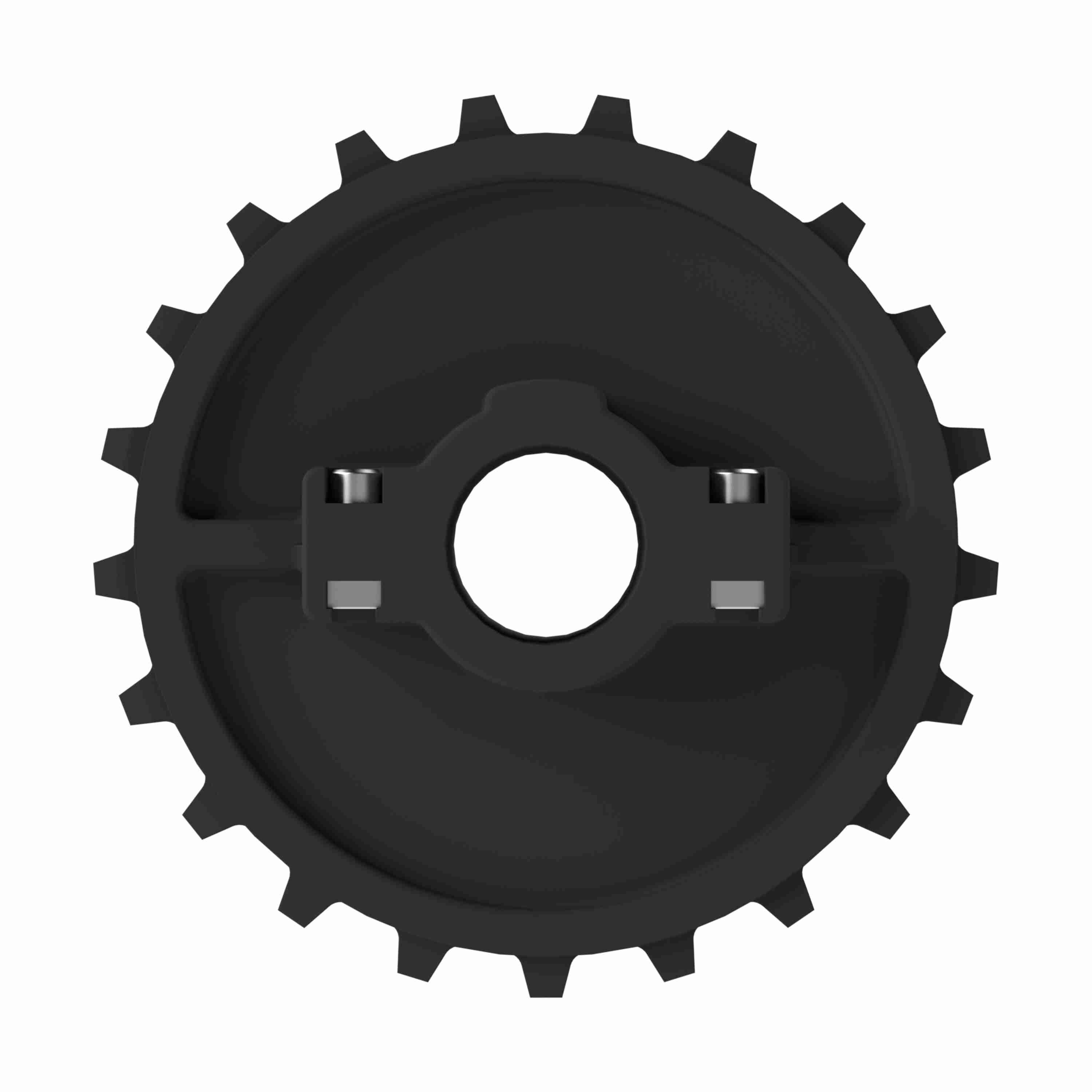

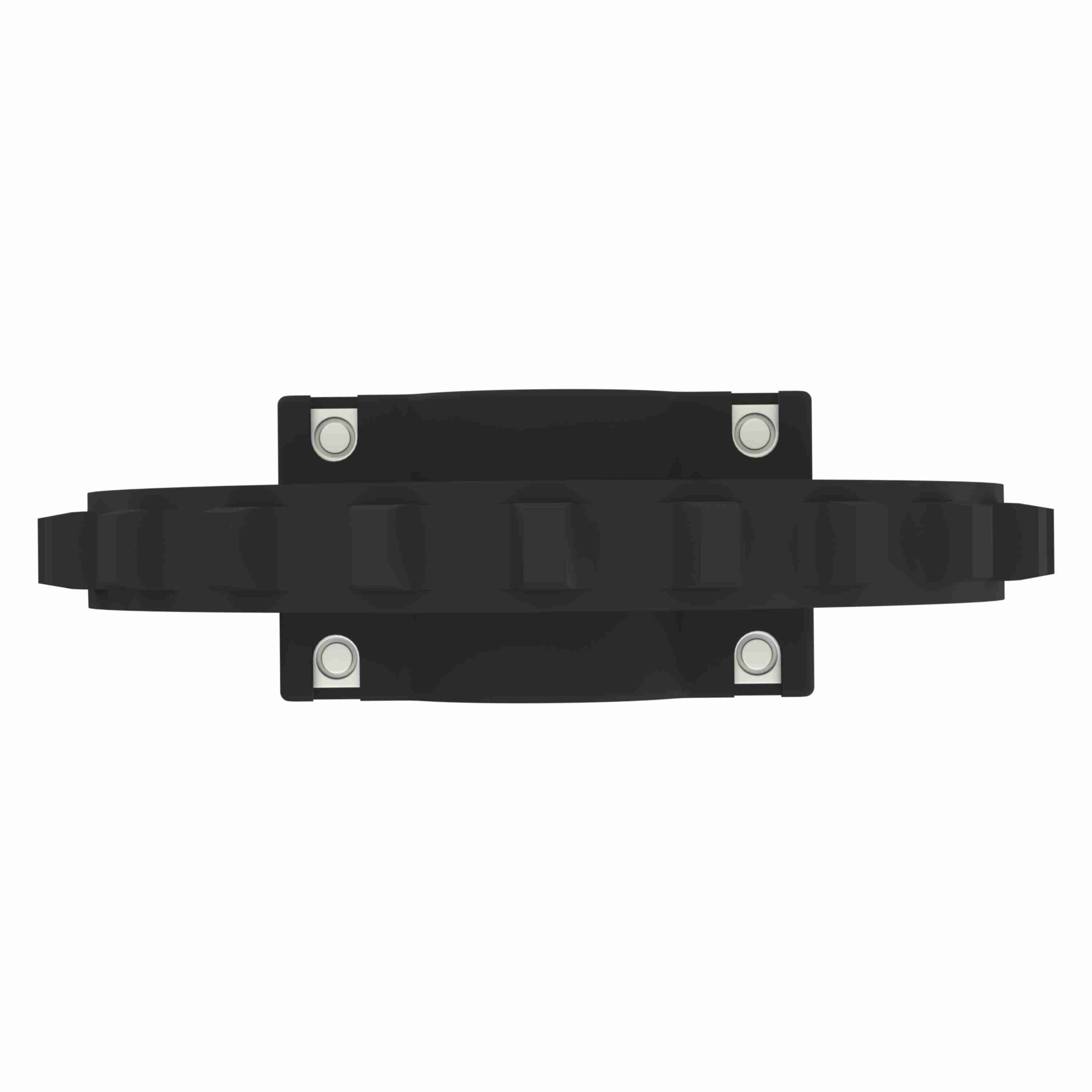

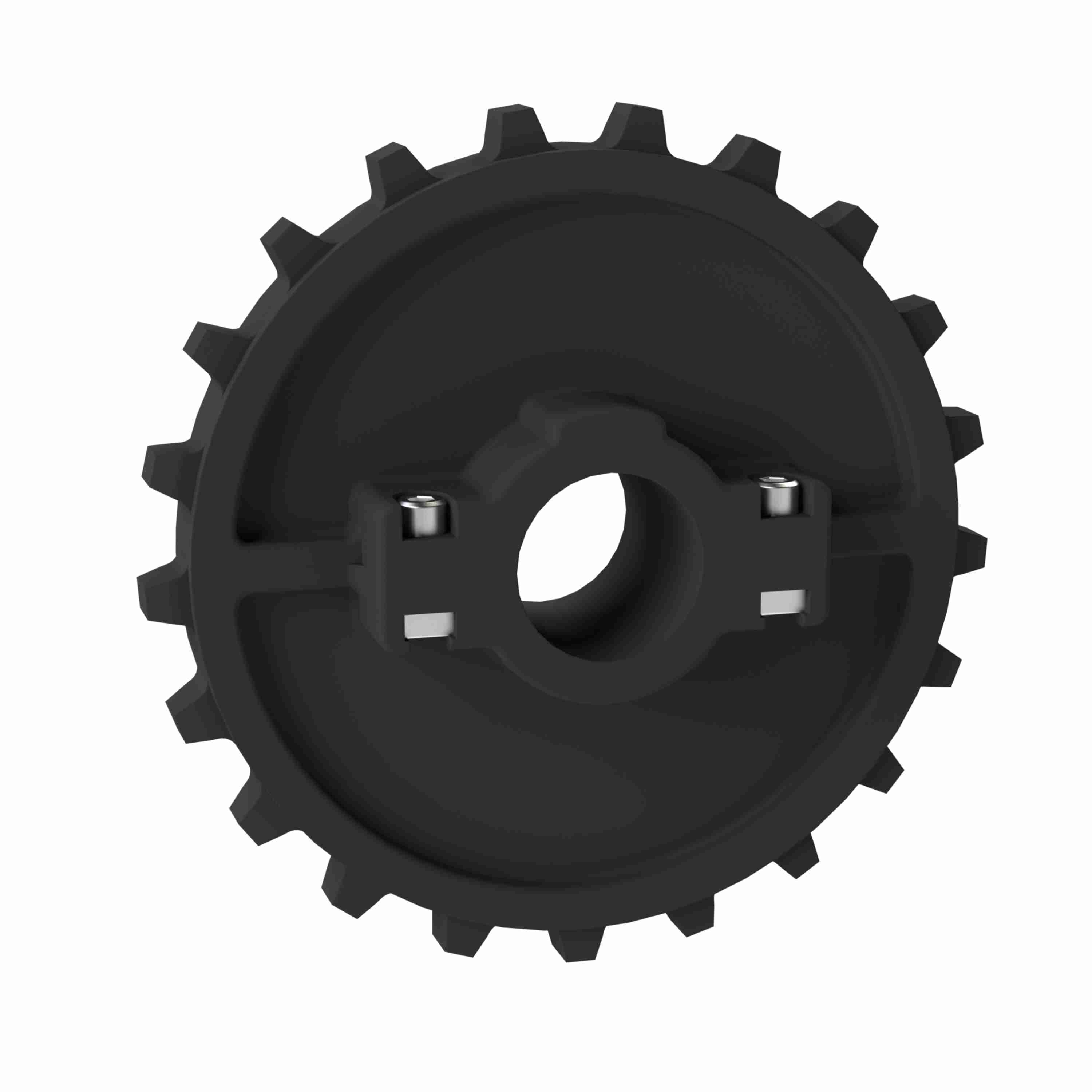

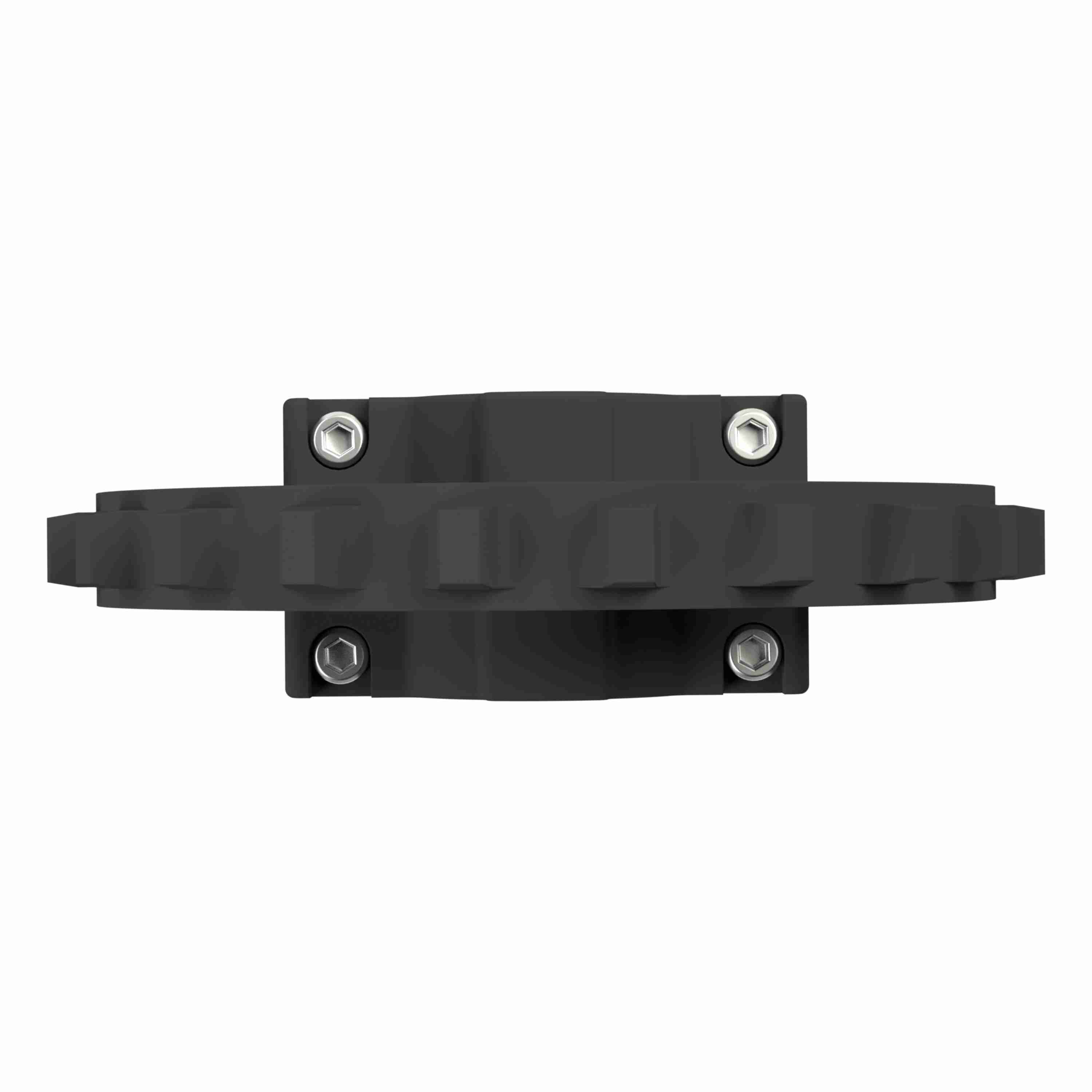

Rexnord 7700 Series Split Molded Nylon Sprocket with 21 Teeth and 1-7/16in Round Idler Bore - 614-63-9
Part #:10028591
Catalog #:614-63-9
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of Set Screws: | None | Sprocket Construction: | Molded Split Sprocket |
| Product Group: | MatTop® | Product Line: | Chain and Belt Sprockets |
| Pitch Diameter (mm): | 170.42 | Body Style: | Block |
| Pitch Diameter (in): | 6.71 | Chain Number: | 7700 |
| Number of Teeth: | 21 | Bore Shape: | Round |
| Sprocket Series: | 7700 | Number of Keyways: | 0 |
| Bore Type: | Idler | Bore Diameter (in): | 1-7/16 in |
| Material: | Nylon |
General Specifications
| UPC: | 793699415186 | Weight: | 0.97 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8483901050 |
| Country of Origin: | Mexico |
